DCR32 smart card reader can provide you more convenience, with CE and ROHS certification.
Item No.:
DCR32Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

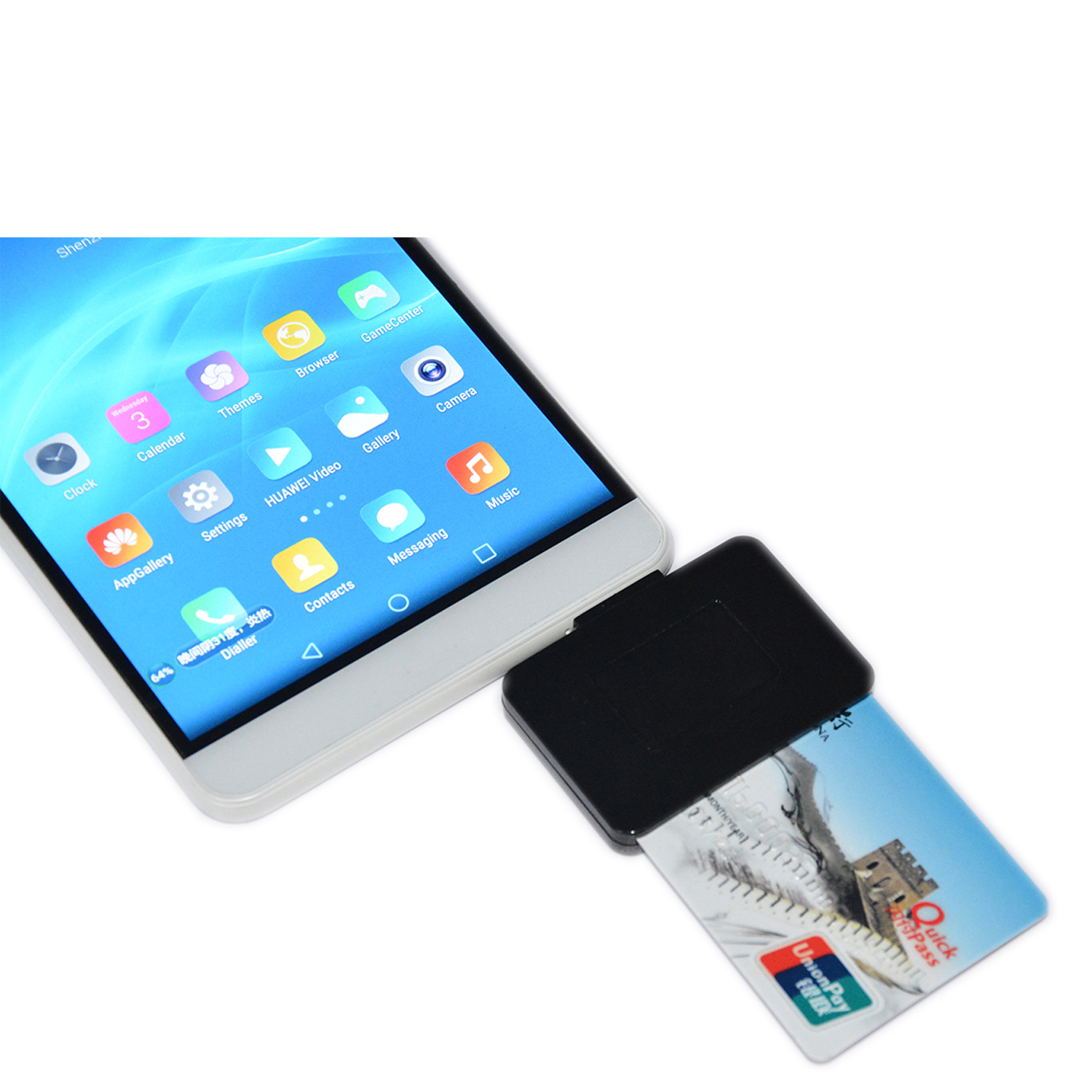

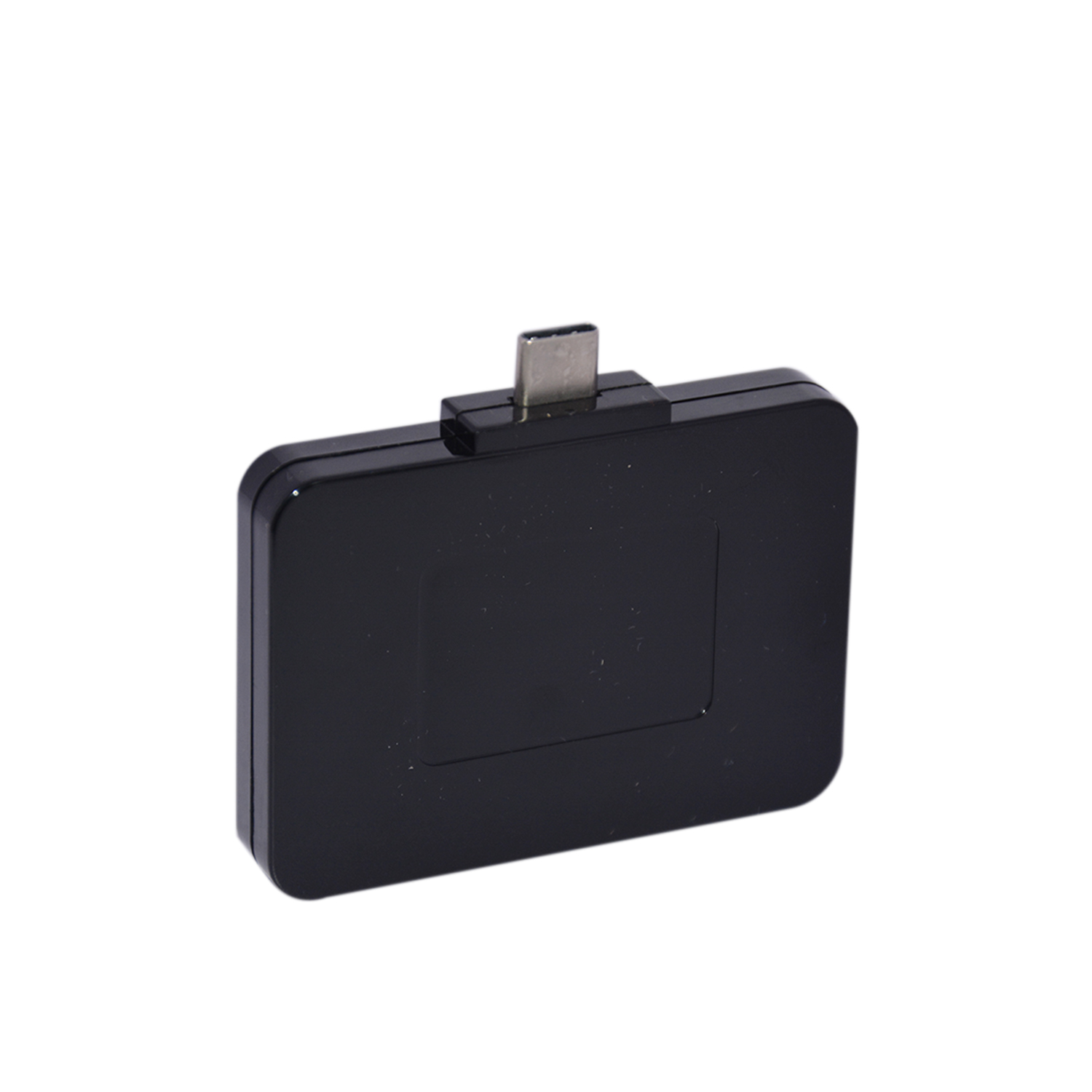

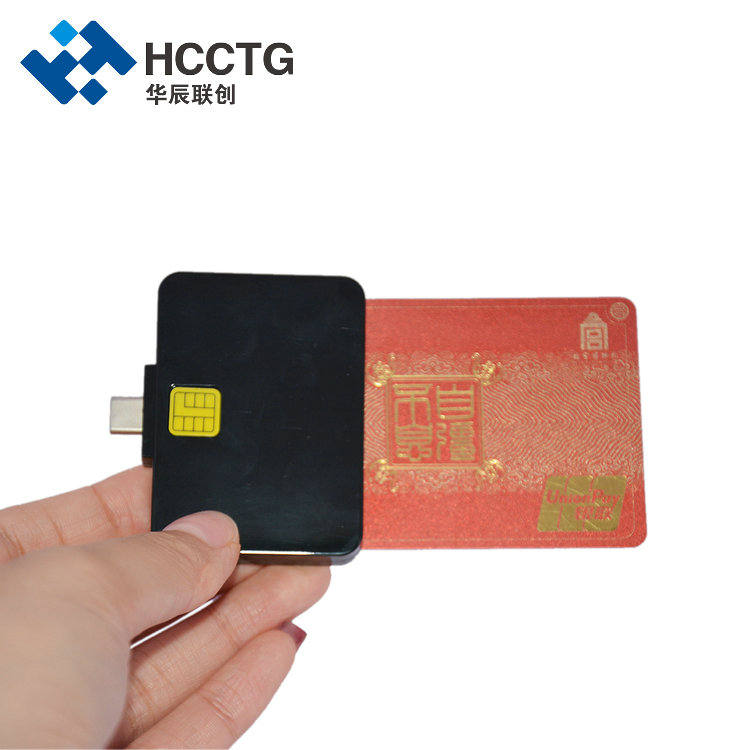

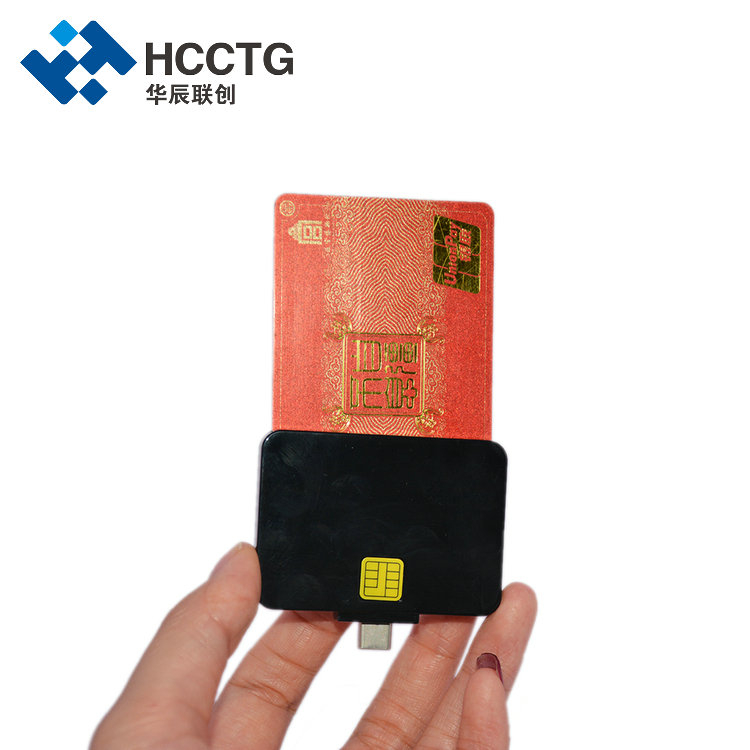

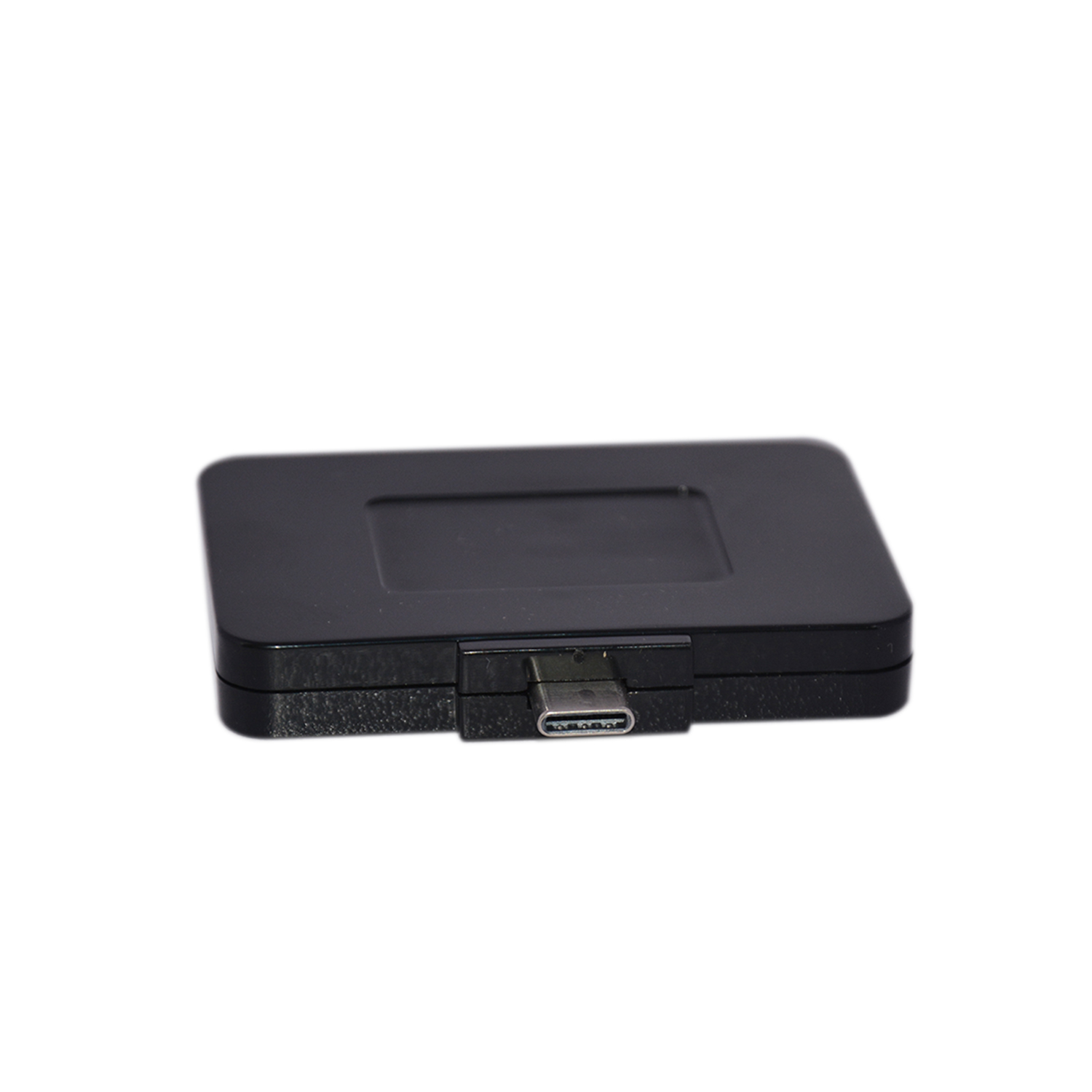

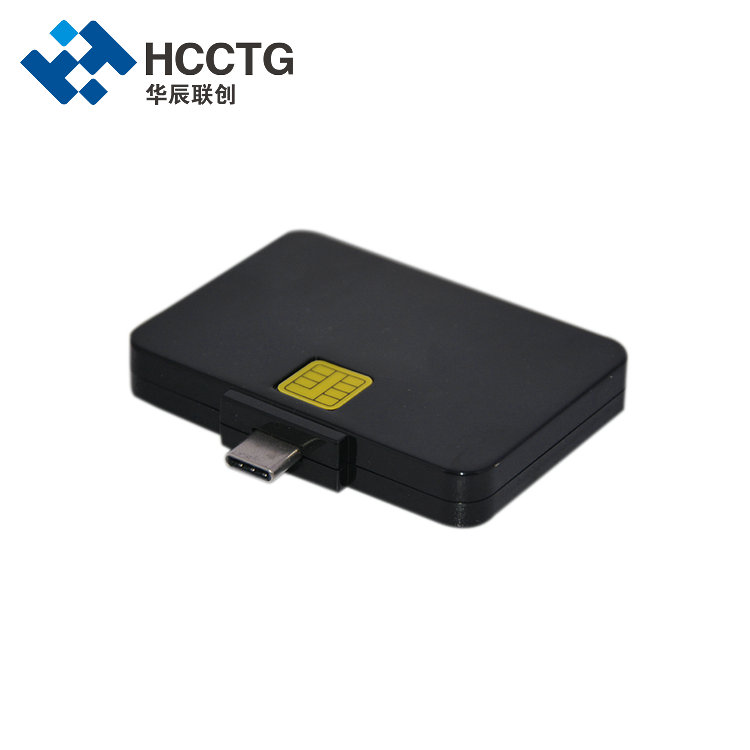

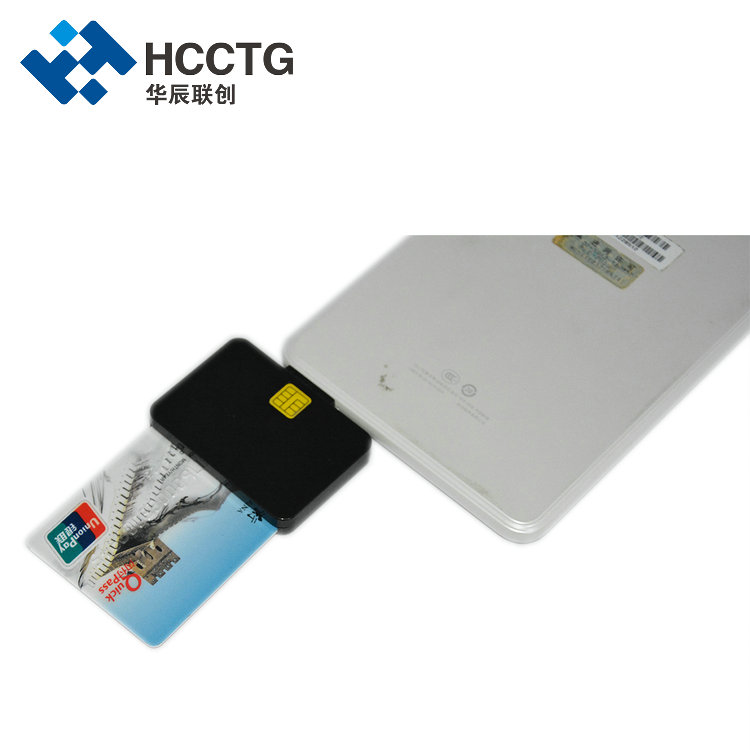

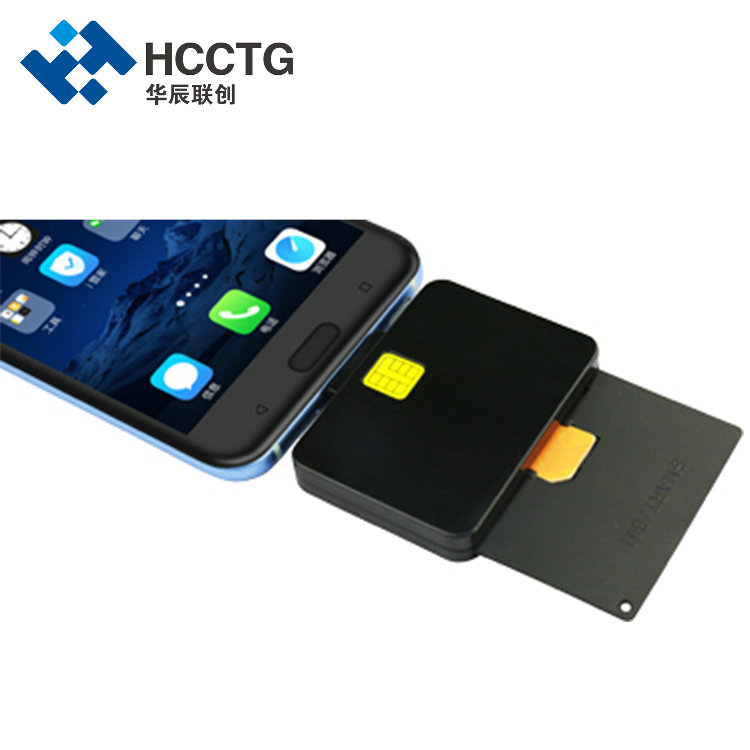

USB CE EMV Mobile Contact Smart IC Chip Card Reader DCR32
DCR32 supports 5V, 3V and 1.8V Smart Cards, ISO 7816 Class A, B and C and also support PC/SC driver.
Specification
| Host Interface | USBTYPE C |
| Transmission Speed | 12 Mbps (USB 2.0 full speed) |
| Power Supply | Bus powered |
| Smart Card Interface | |
| Standards | ISO 7816T=0, T=1, |
| Protocols | 2-wire: SLE 4432/42 (S=10), 3-wire: SLE 4418/28 (S=9), I2C (S=8) |
| AT88sc1608/ 153, AT24c128/ 256 | |
| ST: M14C16, M14C04 | |
| Card Size | ID-1 (full-size) |
| Smart Card Interface Speed | 420 Kbps (when supported by card) |
| Smart Card clock frequency | Up to 5 MHZ |
| Supported card types | 5V, 3V and 1.8V Smart Cards ISO 7816 Class A, B and C |
| Iternal Memory | 1MB |
| Power to Smart Card | 60 mA |
| Other Features | |
| Status Indicator | YES |
| Options | |
| Customer specific logo or label | On request |
| Customer specific colors | On request |
| PC/SC Driver Support | Windows 98 / ME, 200 / XP (32bit), 2003 Server Windows CE 5.0 (depending on hardware) Windows Vista (32bit / 64bit) Windows 7/ 8/10/ Mac OS Linux(need Micro USB to USB Adapter) Android |
| Hardware Specifications | |
| Operating temperature | 0º-55ºC / 32-131ºF |
| Operating humidity | 10-90% rH |
| Composition | ABS |
| Connector cable | 100 cm / 70.9" |
| Durability | 100.000 insertions |
| Meantime between failure (MTBF) | 500.000 hours |
| ItemDimension(L*W*H) | 60mm*45mm*10mm |
| Certification | CE/ FCC/ RoHS/EMV L1 certificate and reach standard |
