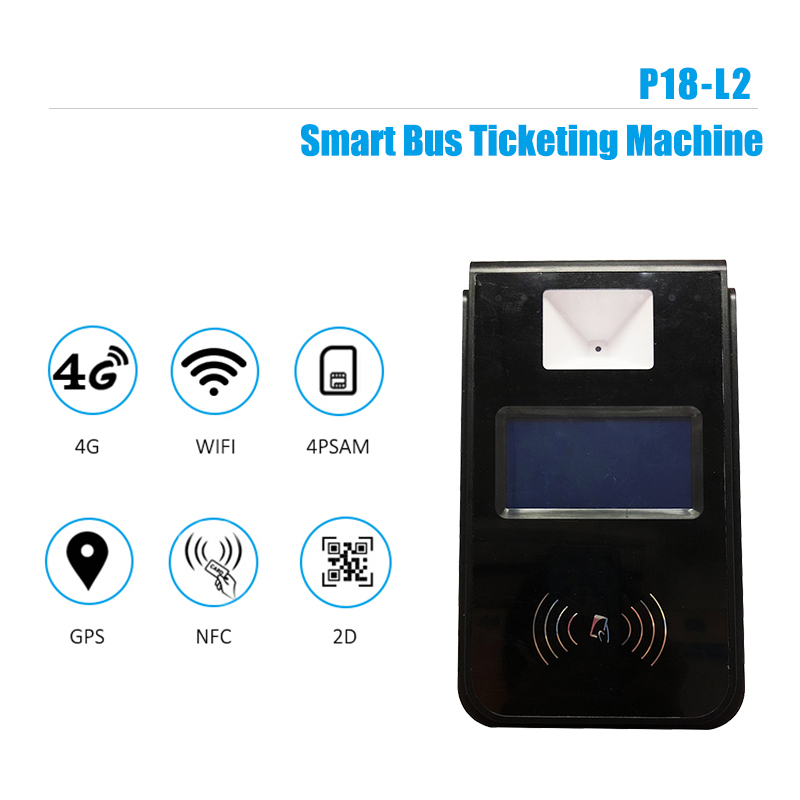

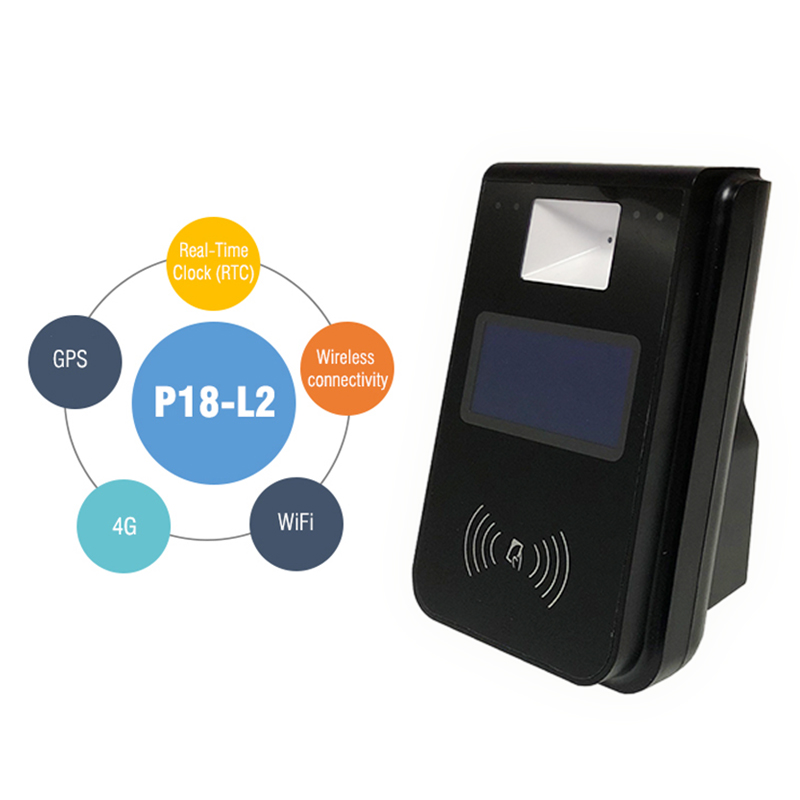

P18-L2
HCCTG

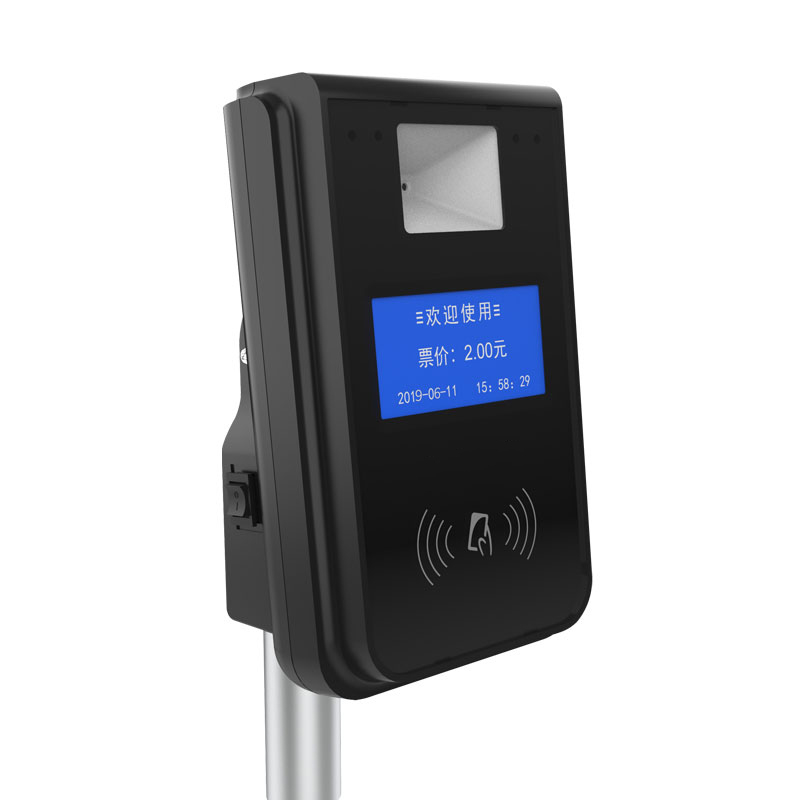

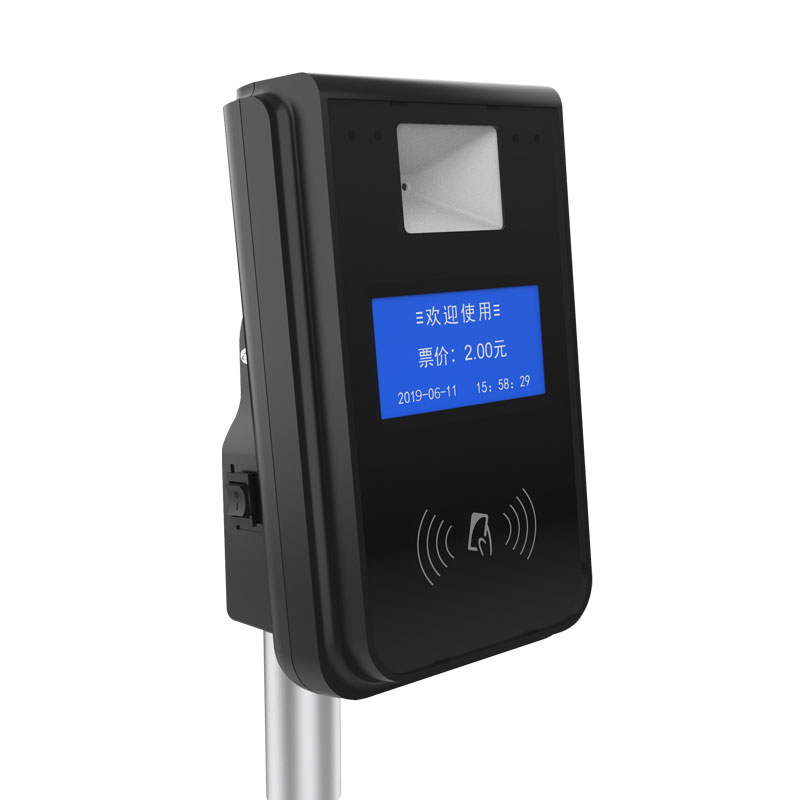

Product Introduction

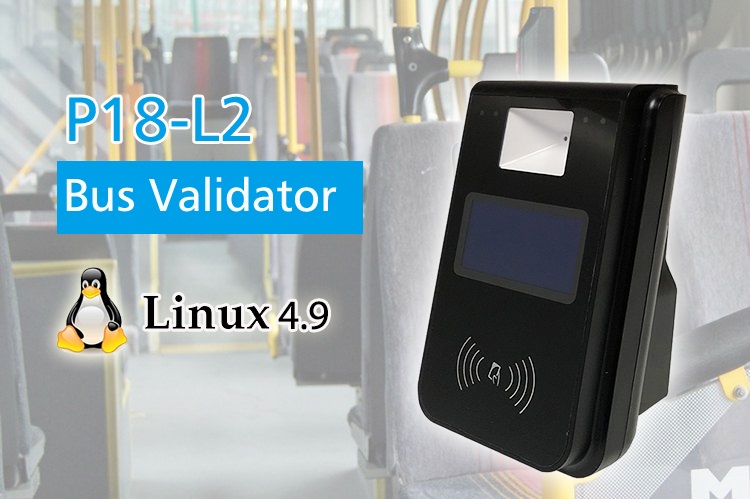

The P18-L2 Bus Validator supports all smart cards compliant to ISO14443 Type A & B, Mifare Classic, DES Fire, Felice, built-in the embedded powerful 32bit ARM Cortex-A7 528 MHz processor. There are 4 SAM sockets for holding Purchase SAM to ensure the security and integrity of the transactions.
With the barcode scanner built-in, the P18 can support multiple cashless payment methods. Besides, the P18-L2 can support bank card payment by EMV certificate.
Product Advantage
32-bit ARM Cortex-A7 528 MHz
512 MB DDR
8 GB EMMC
External 64 MB SPI Flash
8 KB FRAM
Linux 3.0 OS
160×80 dot matrix LCD display with backlight
4.3 inch
4 LED Status Indicators
2 function keys
Support power switch
Built-in buzzer
Built-in audio speaker
Contactless smart card interface
Specifications
OS | Linux 4.9 |
Processor | 32-bit ARM Cortex-A7 528GHz |
Memory | |
DDR (RAM) | 512 MB |
EMMC (Flash) | 8 GB |
SPI Flash | 64 MB |
FRAM | 8 KB |
Power | |
Supply Voltage | 9 – 48 V DC |
Supply Current | Max. 2A |
Over Voltage Protection | Supported |
Over Current Protection | Supported |

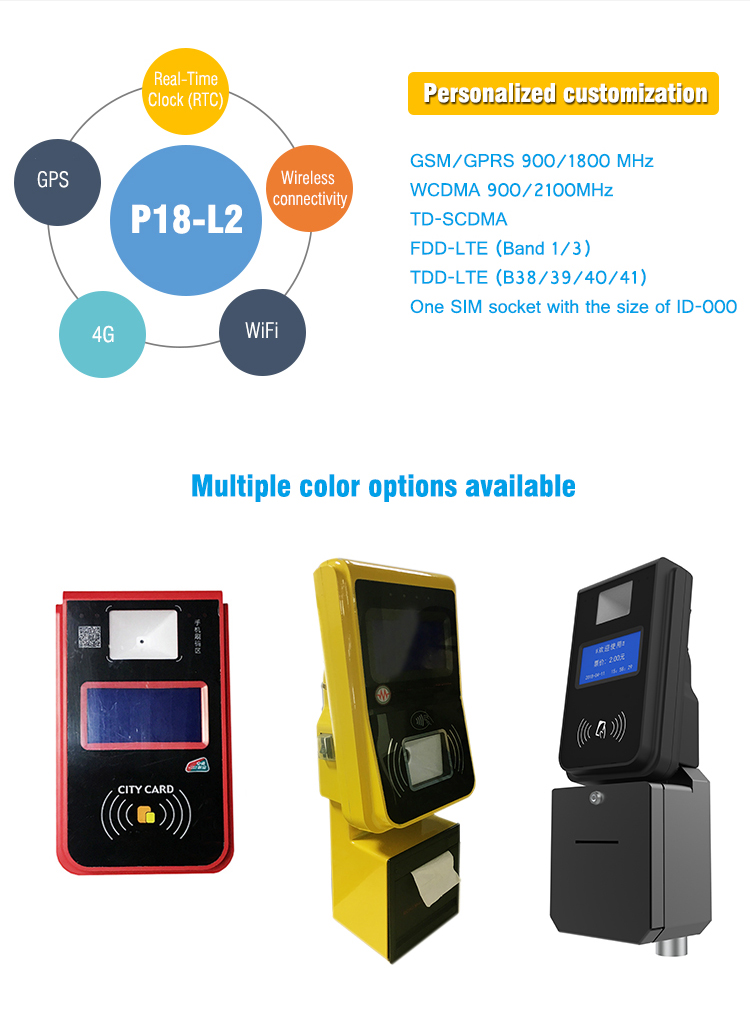

Connectivity | |
RS232 | 3 lines R*D, T*D and GND without flow control |
RS485 | 3 lines A, B and GND |
Ethernet | Built-in 10/100-base-T with RJ45 connector |
USB | USB 2.0 Host Full Speed |
GSM/GPRS/EDGE | 900 MHz/1800 MHz |
Dual Band UMTS/HSDPA/HSPA+ | B1/B8 |
Dual Band TD-SCDMA | B34/B39 |
Four-Band FDD-LTE | B1/B3/B7/B8 |
Four-Band TDD-LTE | B38/B39/B40/B41 |
WiFi | IEEE 802.11 b/g/n |
GPS | Supported |

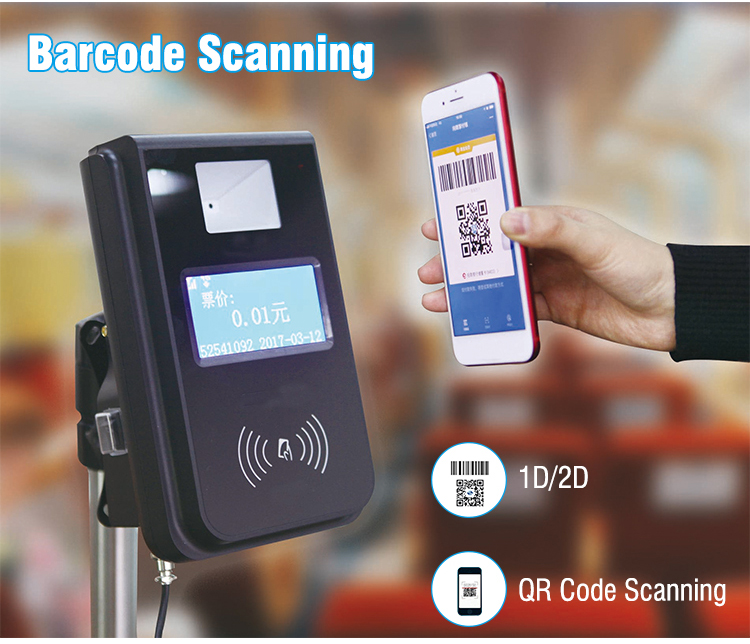

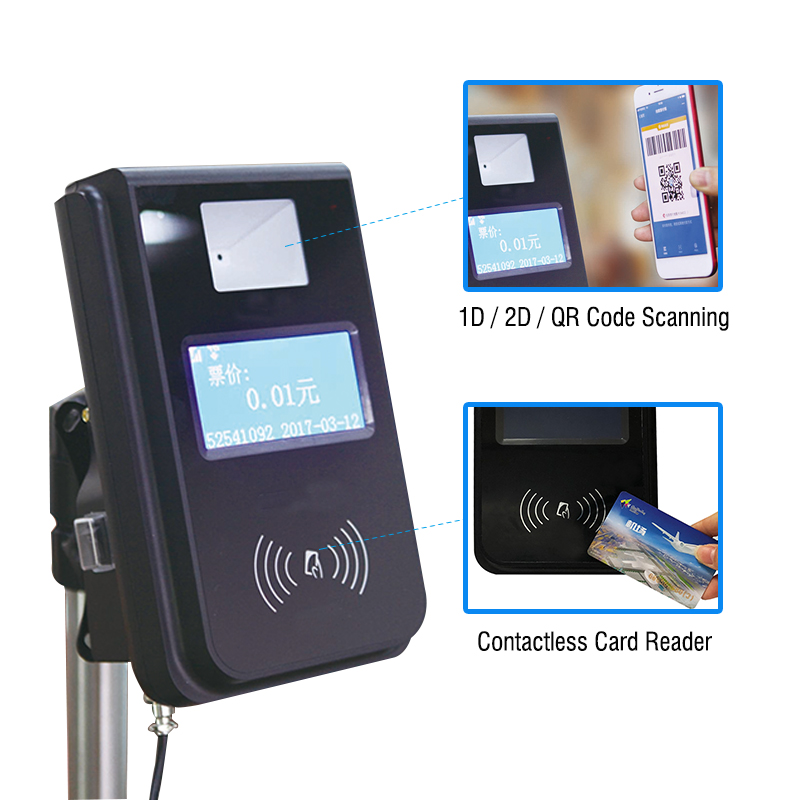

Barcode Scanner | |
1D Barcode Scanning | Supported |
2D Barcode Scanning | Supported |
QR Code Scanning | Supported |
Contactless Smart Card Interface | |
Standard | ISO-14443 A & B part 1-4, ISO-18092 |
Protocol | Mifare® Classic Protocols, T=CL, FeliCa |
Smart Card Read /Write Speed | Up to 424 kbps |
Operating Distance | Up to 50 mm |
Operating Frequency | 13.56 MHz |
SAM Card Interface | |
Number of Slots | 4 ID -000 slots |
Card connect slot | Contact |
Standard | ISO/IEC 7816 Class A, B (5V, 3V) |
Protocol | T=0, T=1 |
Smart Card Read /Write Speed | 9,600-115,200 bps |
Firmware Upgrade Interface | |
Firmware Upgradeable through | RS232 |
Built-in Peripherals | |

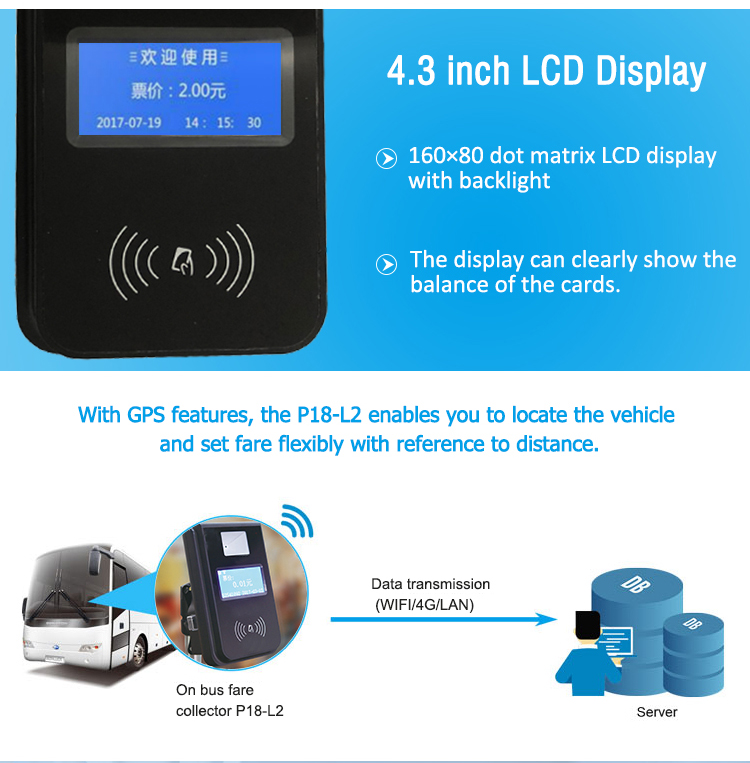

LCD Display | 160×80 dot-matrix LCD display with backlight, 4.3 inch |
Speaker | Supported |
Buzzer | Supported |
LED Status Indicators | 4LEDs for indicating status (from left most: blue, yellow, green, red) |
Other Features | Real Time Clock |
Working environment | Temperature: -20℃～60℃ |
Humidity: 5℅～93℅(Non-condensing) | |
Storage environment | Temperature:－30℃～80℃ |
Humidity: 5℅～95℅(non-condensing) | |
Physical Specifications | |
Dimensions | 227mm×140mm×99mm |
Case Color | Black |
Weight | 880g |

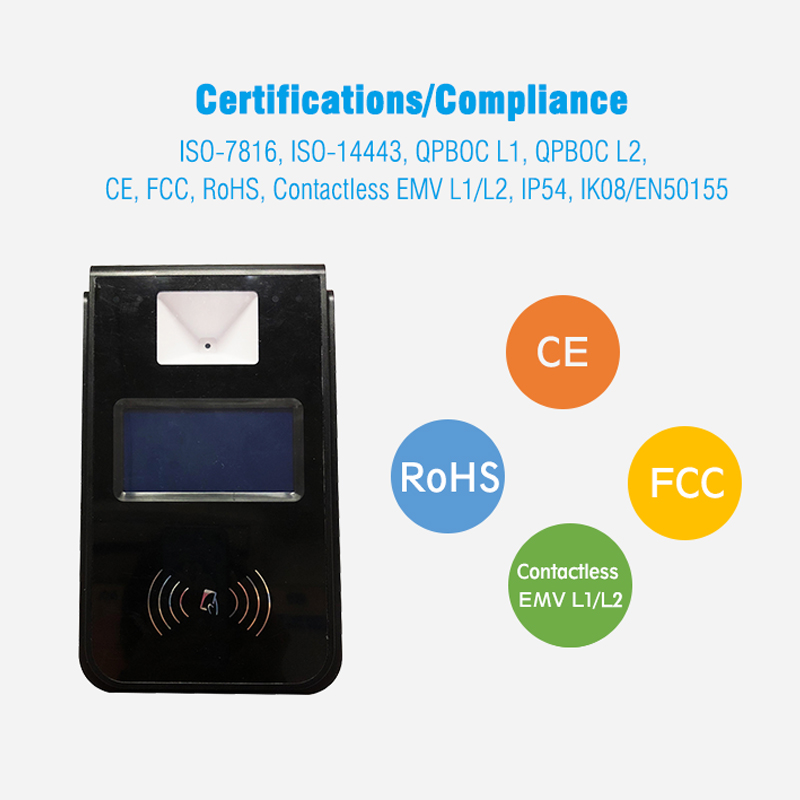

Certifications/Compliance | ISO-7816, ISO-14443, QPBOC L1, QPBOC L2, CE, FCC, RoHS, Contactless EMV L1/L2, IK08/EN50155, IP54 |

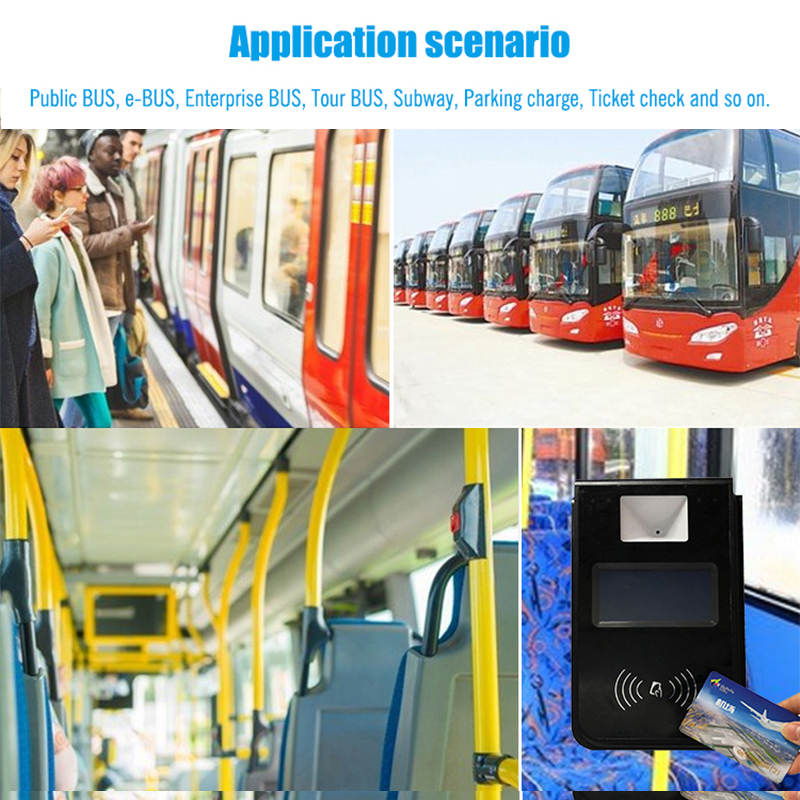

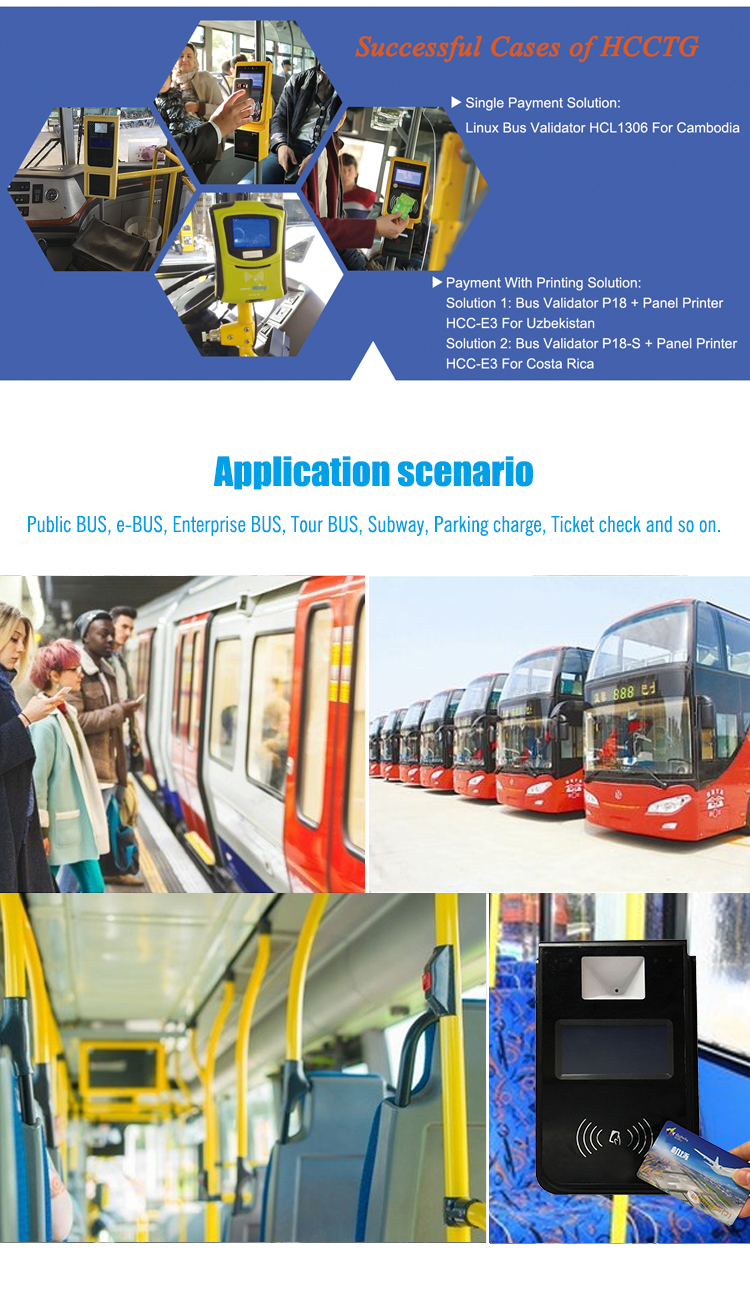

Product Uses
Public Transport: Bus validators facilitate seamless fare collection, enabling efficient boarding and fare processing for passengers on buses, ensuring accurate revenue collection for transit agencies.
Contactless Payments: Bus validators support various contactless payment methods like NFC cards and mobile wallets, enhancing user convenience and reducing transaction times.
Fare Integration: Validators integrate with multi-modal transport systems, allowing passengers to use the same card or payment method across different modes of transportation.
