T200
HCCTG

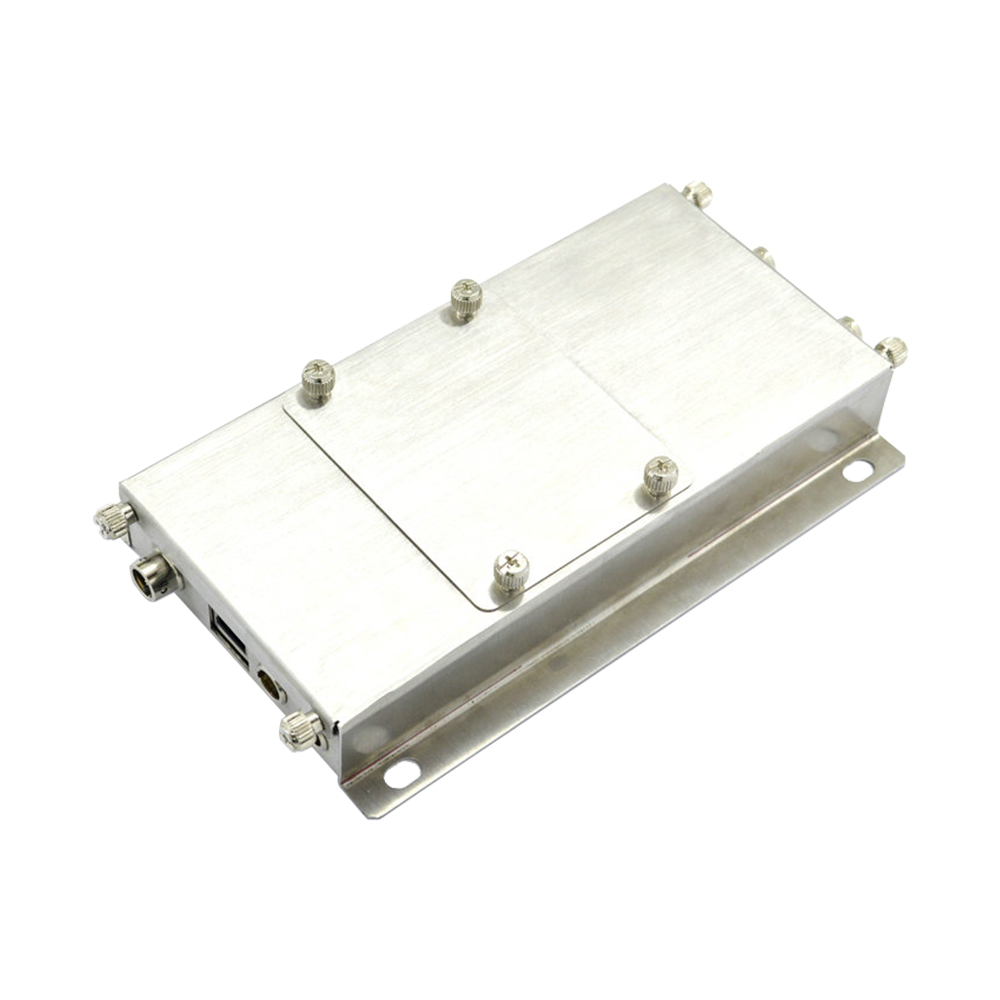

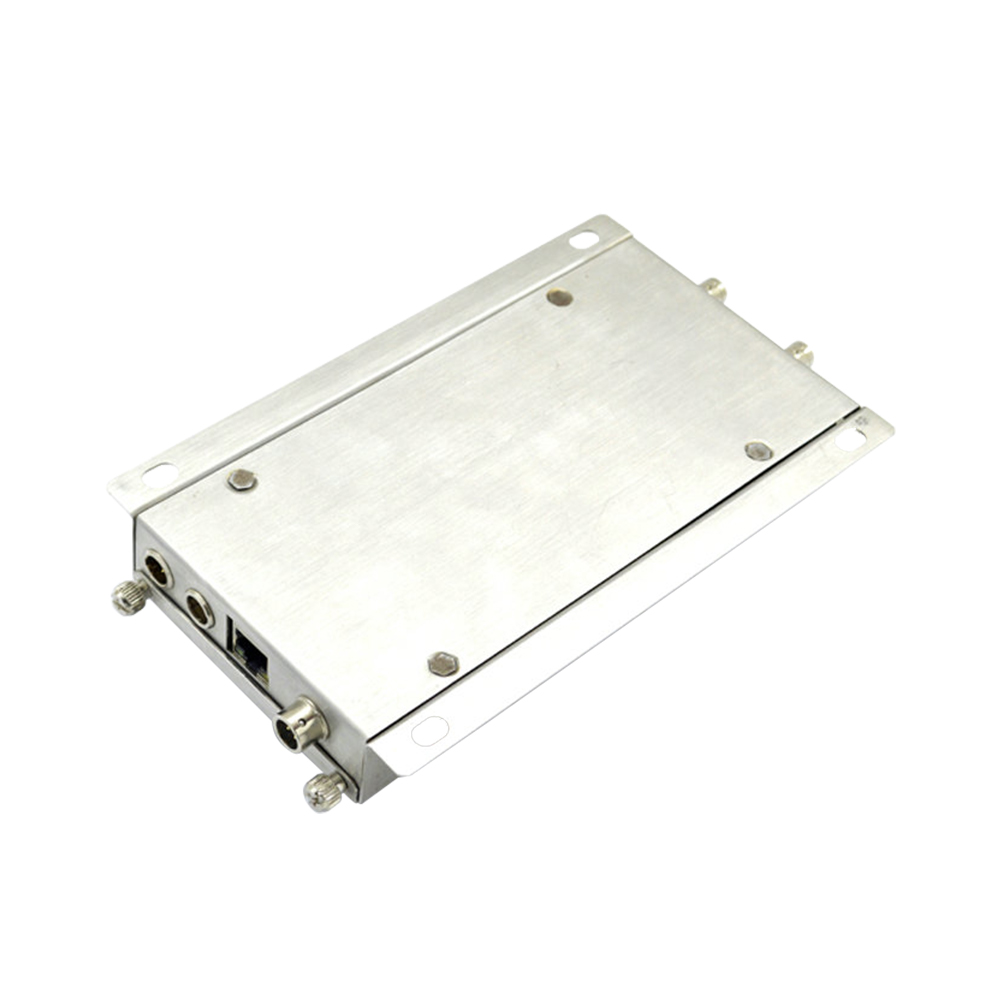

Metro Station Ticket Selling Kiosk Card Reader Module T200

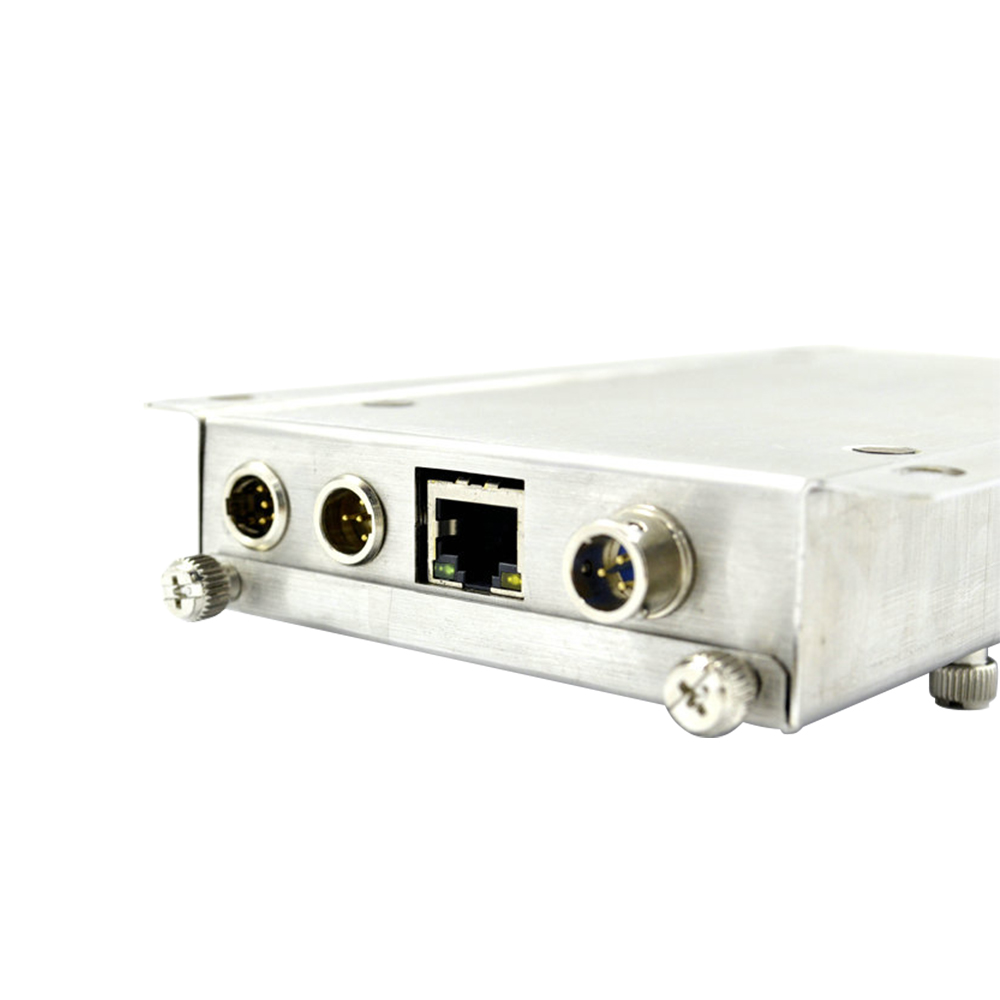

T200 supports RJ45, RS232 and USB communication interfaces. With the above features, T200 Reader is specially designed for the metro system usage. According to different application, it could be integrated to the ENG, EXG, TVM, AVM, TR, BOM and other metro tickets processing device.
Features:
1 GHz 32-bit ARM Cortex-A9 Processor
Linux 3.0.35 OS
1GB DDR2 and 8 GB Flash memory
2 contactless card reader interfaces compliant with ISO14443 and Mifare
Self-adoption antenna could avoid blind detection area, better card processing
8 * SAM slots
2 * RS232 Interface
1 * USB 2.0 Host Interface
1 * RJ45 Ethernet port
Real-Time Clock (RTC)
Support RSA, AES, 3DES encryption algorithm, support SHA1 and SHA256 hash algorithm as well
Specifications:
Physical Specifications | |
OS | Linux 3.0.35 |
Processor | 1 GHz 32-bit ARM Cortex-A9 Processor |
RAM | 1 GB DDR2 |
Flash | 8 GB NAND Flash |
Contactless Smart Card Interface | |
Standard | ISO-14443 A & B part 1-4 |
Protocol | Mifare® Classic Protocols, T=CL |
Smart Card Read /Write Speed | 106, 212, 424 kbps |
Operating Distance | Up to 60 mm |
Operating Frequency | 13.56 MHz |
Number of Antenna | 2 external antenna with coxial cable |
Connectivity | |
RS232 | 2 * RS232 port |
Ethernet | 1 * RJ45 Ethernet port |
USB | 1 * USB Type A slots |
SAM Card Interface | |
Number of Slots | 8 ID-000 slots |
Card Connector Type | Contact |
Standard | ISO/IEC 7816 Class A, B and C (5V, 3V and 1.8V) |
Protocol | T=0 or T=1 |
Smart Card Read /Write Speed | 9,600-600,000 bps |
Power | |
Supply Voltage | 12V DC |
Supply Current | Max. 2A |
Over Voltage Protection | Support |
Over Current Protection | Support |
Real-Time Clock | Support |
Case Color | Silver |
Weight | 600 g |
Temperature | -10°C - 50°C |
Humidity | 5% to 93%, non-condensing |
Certifications/Compliance | ISO-7816, ISO-14443, USB 2.0 High/Full Speed |
