The P18-Q is a multifunctional device designed to enhance payment experiences and streamline fare collection systems in modern public transportation. With support for wireless, contactless, and cashless payments, as well as RFID NFC technology, it serves as an efficient NFC bus validator. Its seamless integration of diverse payment methods and advanced technology makes it a dependable choice for enhancing the efficiency of fare collection processes while ensuring convenient and secure transactions for passengers.
| Processor: | |
|---|---|
| Operating System: | |
| Memory: | |
| Voltage: | |
| Screen: | |
| Certificate: | |
| Quantity: | |
P18-Q
HCCTG

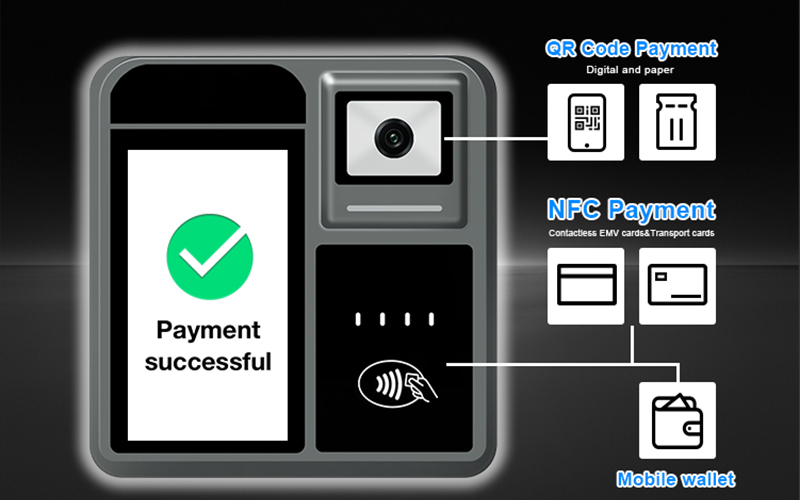

The P18-Q bus validator revolutionizes fare collection with its state-of-the-art features, including smart card technology, NFC processing, and QR code ticketing. Seamlessly integrating with GPS trackers and mobile payment systems, it provides invaluable data for efficient fare collection while enhancing connectivity.It is a premier NFC solution, delivering secure and convenient fare collection options. As a leading supplier of bus fare collection equipment, we take pride in offering this highly advanced validator, which combines smart card, chip card, contactless card and QR code technologies for efficient bus fare collection.
The P18-Q ticket validator brings simplicity, the highest transaction security, and convenience to every passenger, transportation carrier, or integrator. The validator enriches the frictionless user experience with its on-the-go feature and rigorous design.
Features:
Android 9.0
KunT11 4 cores Cortex-A53,2.0GHz
600×1024 TFT LCD display

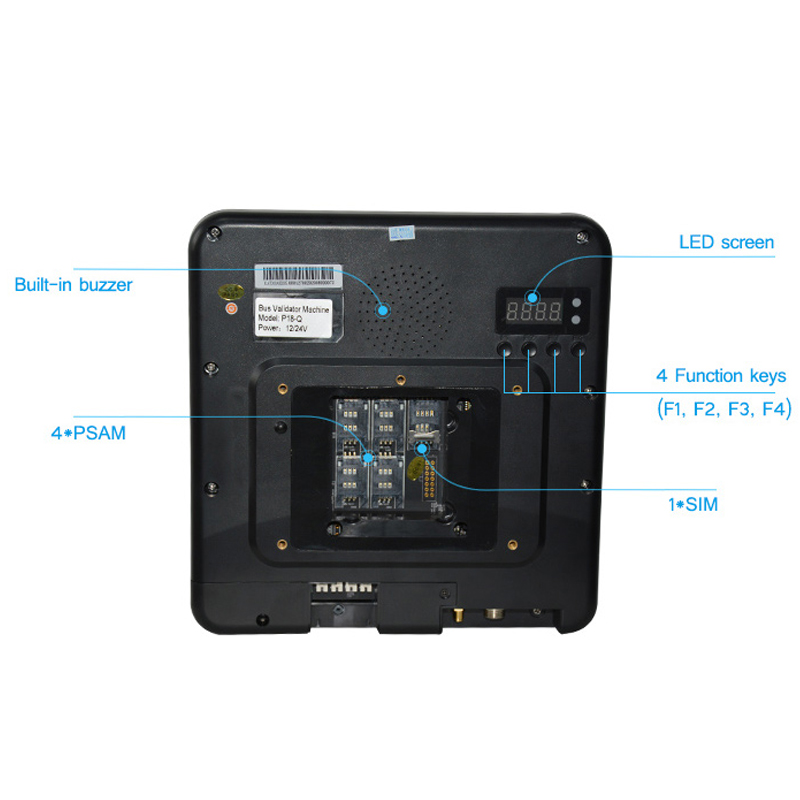

LED Status Indicators
4 LED from left to right blue, yellow, green, red, controllable
2 LED in the back from top to bottom green, red, controllable
4 function keys (F1, F2, F3, F4)
Support power switch
Built-in buzzer
Built-in audio speaker
Contactless smart card interface
Support RS232 Interface
Support Ethernet / USB/USB TypeC Interface
Firmware Upgradeable
Certifications: CE / FCC / CCC / QPBOC L1 / QPBOC L2 / EMV L1 / Visa-VCTKS / Mastercard-PayPass / RoHS / IP54 / EMC 32/35 / SRRC / E13(E mark) / IK06 / IP54 / CTA(pending)
Specification
Main control hardware configuration | Processor: KunT11 4 Cores Cortex-A53,2.0Ghz |
Operating System: Android 9.0 | |
Memory: LPDDR4X 2GB + eMMC 16 GB (4GB+64GB at optional) | |
Power | Supply Voltage: 9-48 V DC |
Over Voltage Protection: Supported | |
Over Current Protection: Supported | |
Power-failure protection: Supported | |

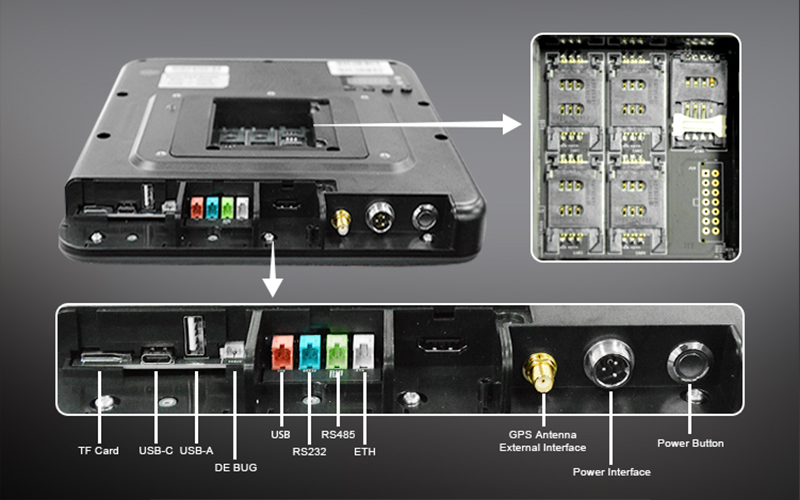

Peripherial Ports | 1 * RS232 interface with 5v voltage output |
1 * RS485 interface with 5v voltage output | |
1 * Ethernet (Built-in 10/100-base-T with RJ45 connector) | |
2 * USB 2.0 Host Full Speed | |
1 * USB Type C OTG interface | |
Communications | 4G LTE GSM: B3/5/8 WCDMA: B1/5 TD-SCDMA: B34/39 TDD LTE: 38/39/40/41 FDD LTE: B1/3 |
WiFi: IEEE 802.11 b/g/n/ac | |
GNSS: GPS/AGPS, GLONASS, Beidou | |
Bluetooth: BT4.0 + BR/EDR + BLE | |

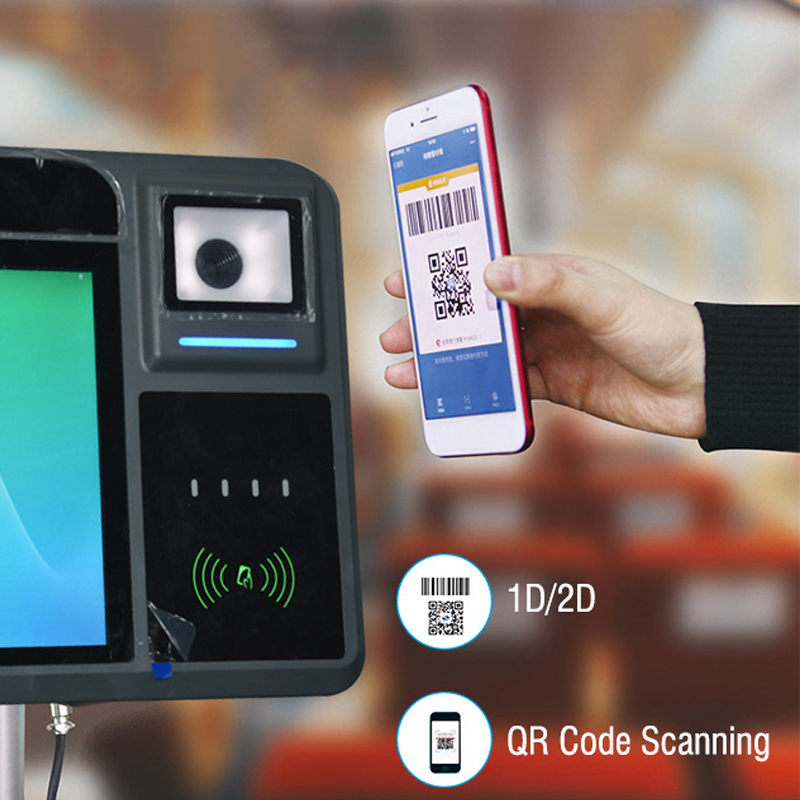

Barcode Scanner | 1D Barcode Scanning |
2D Barcode Scanning | |
QR Code Scanning | |

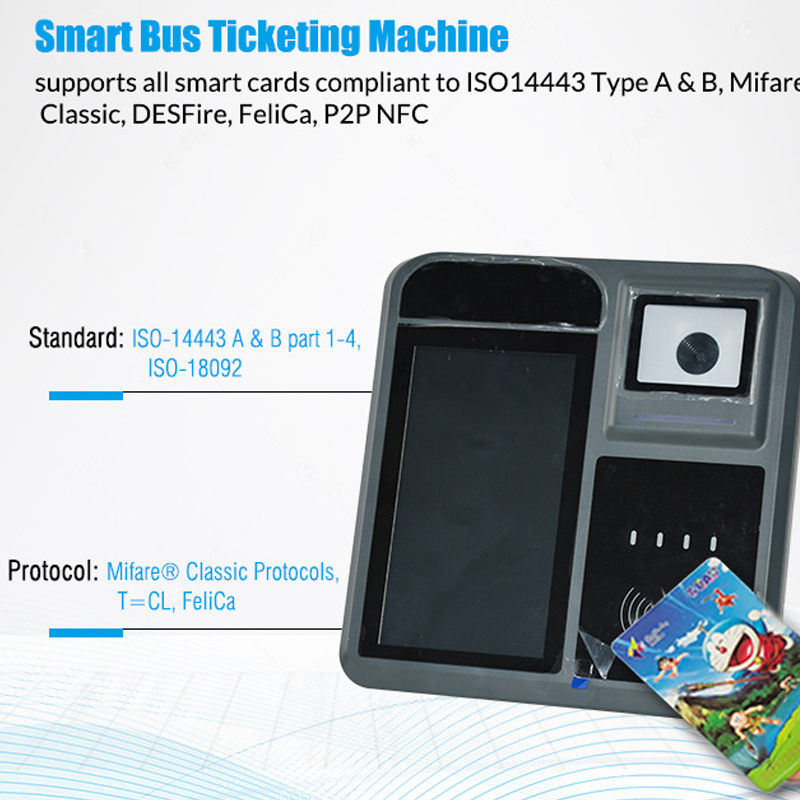

Contactless Card Reader | Standard: ISO-14443 A & B part 1-4 |
Protocol: Mifare® Classic Protocols, T=CL | |
Operating Distance: Up to 50 mm | |
Operating Frequency:13.56 MHz | |
Certificate: Contactless EMV L1, Visa-Paywave, Mastercard-Paypass | |
SAM Card Interface | Number of Slots: 4 * ID-000 slots |
Card Connector Type: Contact | |
Standard: ISO/IEC 7816 Class A, B (5V, 3V, 1.8V) | |
Protocol: T=0 or T=1 | |
SAM Card Interface | Number of Slots: 4 * ID-000 slots |
Card Connector Type: Contact | |
Standard: ISO/IEC 7816 Class A, B (5V, 3V, 1.8V) | |
Protocol: T=0 or T=1 | |

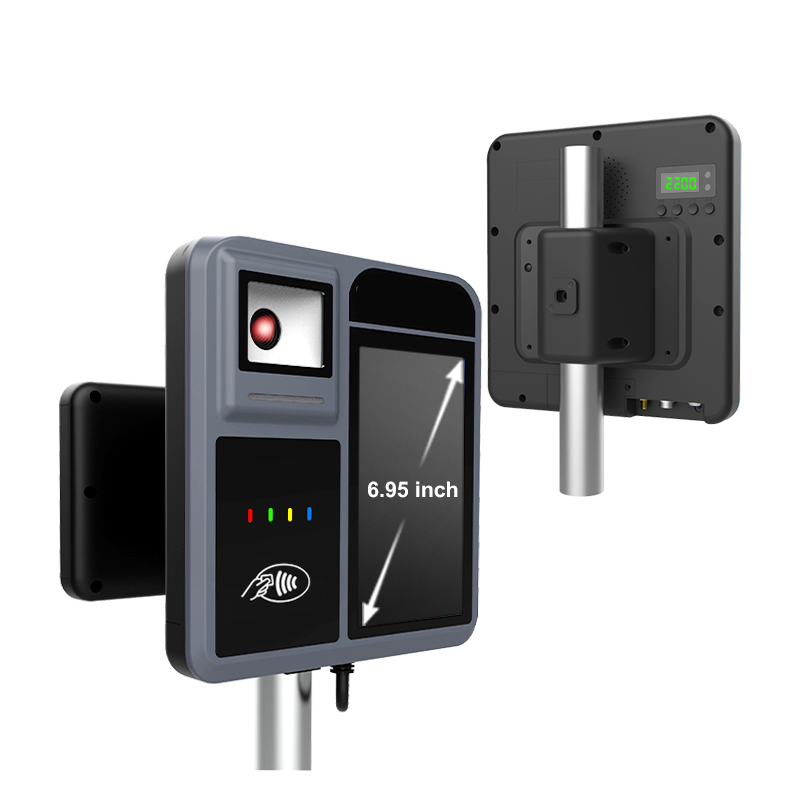

LCD Display | 600 * 1024 TFT LCD display with backlight, 6.95 inch (optional touch screen) |
Secondary screen(optional): 1024*600, LVDS | |
450(TYP) Cd/m² Luminance | |
Other Features | Speaker: Supported |
Buzzer: Supported | |
LED Status Indicators: 4 LEDs for indicating status for reader(from left most: blue, yellow, green, red) | |
1 LED for QR Status which below the Scanner(need software control) | |
2 Back LEDs : Red,Green | |
8 pieces of 4-bit nixie tube | |
TF card:Supported | |
Real Time Clock | |
Optional functional modules | Face recognition: Binocular camera Receipt printer: 58MM thermal receipt with auto-cutter Hidden cable box |
Environmental | Work Conditions : Temperature: -30°C ~70°C Humidity: 5% to 93%, non-condensing Storage temperature: -40℃～+85℃ |
Certifications/Compliance | CE/FCC, RoHS, CCC, IP54, IK07, E-mark |
Firmware Upgrade | USB or MDM |
