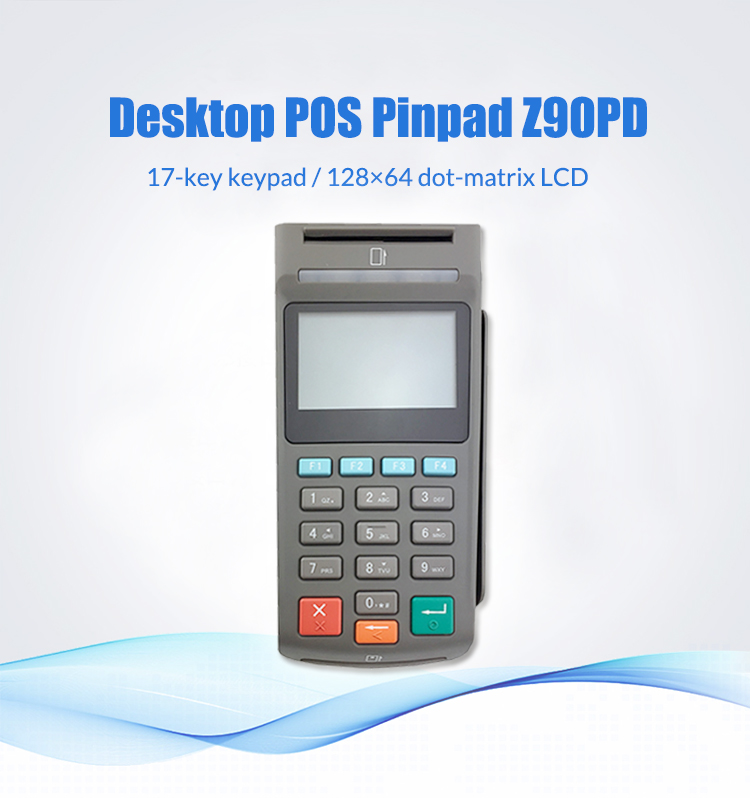

Z90PD is an All-In-One desktop PIN-pad reader that combines contact smart card, magnetic stripe and contactless technologies.

  • Item No.:

    Z90
  • Goods_stock:

    600
  • Shipping port:

    Shenzhen/Guangzhou/HongKong
  • Lead Time:

    2

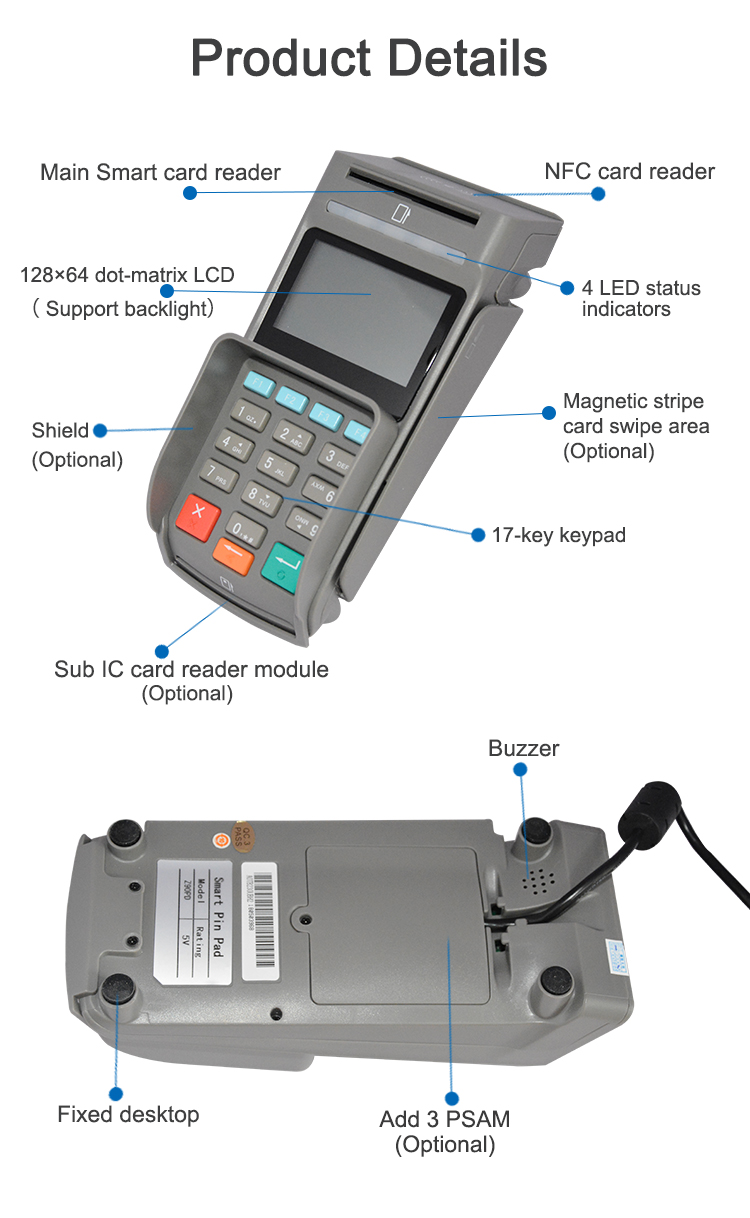

  • Product Details

Desktop Card Reader Security E-payment ATM POS Pinpad

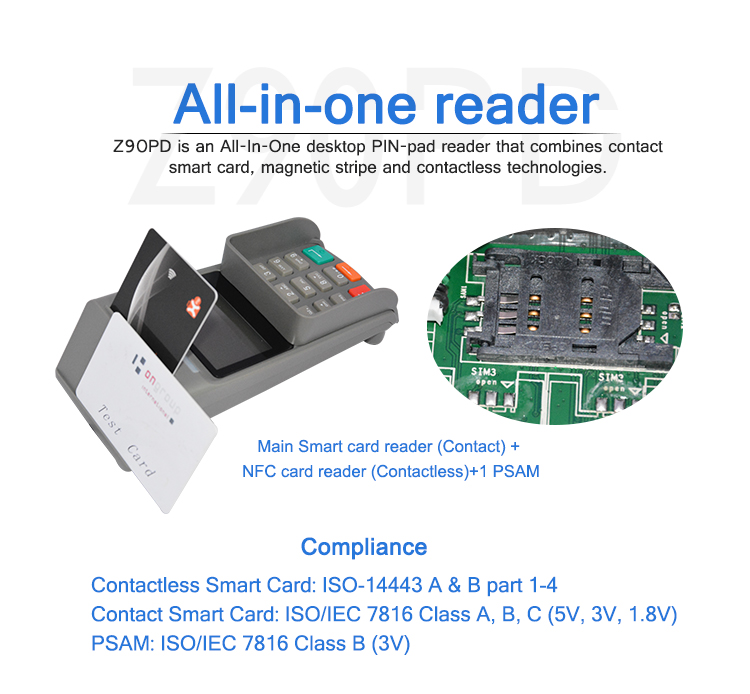

Z90PD is an All-In-One desktop PIN-pad reader that combines contact smart card, magnetic stripe and contactless technologies. It has LED indicators, 128 x 64 high-resolution graphical LCD, buzzer. Z90PD has passed the PBOC Level 1 and PBOC Level 2. It can be applied in banking, transportation, healthcare, government and retail sector.


  • 128×64 dot-matrix LCD, support backlight
  • 4 LED status indicators
  • 17-key keypad
  • 1 or 2 slots for full-size smart card reader/writer compliance with ISO/IEC 7816
  • Contactless card reader/writer compliance with ISO/IEC 14443 part 1-4
  • Configurable 1 to 4 SAM slots
  • Magnetic Stripe Support

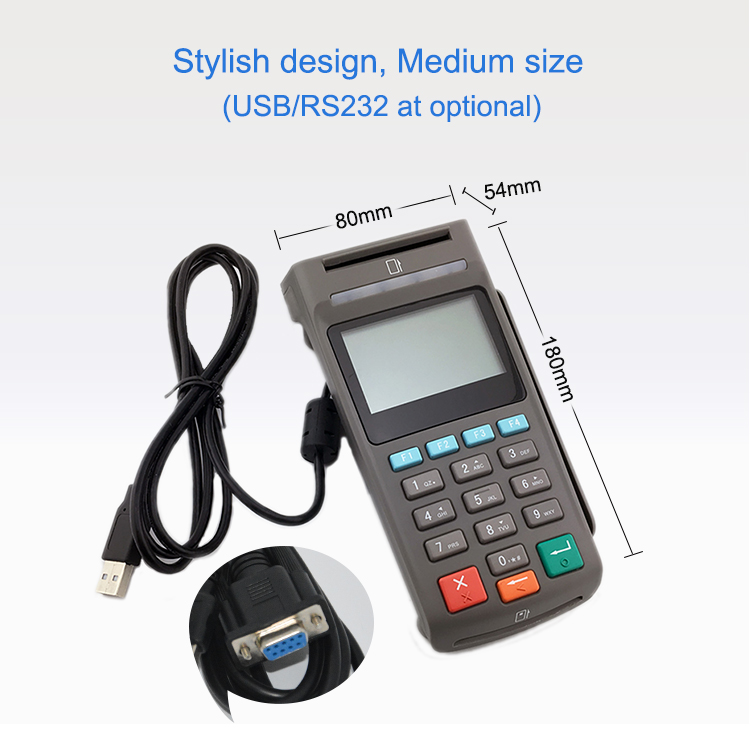

  • RS232 interface
  • USB full speed
  • Support buzzer
  • Support firmware upgrade
  • Optional external privacy shield
  • Certifications: PBOC Level 1, PBOC Level 2


Supported Card Types:

1.Contact Smart Cards

T=0 or T=1 protocol

ISO 7816-Compliant Class A, B, C (5V, 3V, 1.8V)

2.Contact Memory Cards

Cards following the I2C bus protocol (free memory cards) with capability, including:

Atmel: AT24C01/02/04/08/18/32/64/128

Cards with intelligent 1 KB EEPROM with write-protect function, including:

Infineon: SLE4418, SLE4428, SLE5518 and SLE5528

3.Contactless Cards

ISO 14443-Compliant, Type A & B Standard, parts 1 to 4, T=CL protocol

MiFare® Classic

4.Magnetic Stripe Cards

Track 1/2/3 reading

Bi-directional









Specification

Physical Specifications

Case Color

Black or Grey

Weight

310g

Memory

Memory

2 KB Flash

Power

Power Source

Battery

Supply Voltage

5 V DC

Supply Current

Max. 500 mA

USB Interface

Type

Type A, USB full speed

Power Source

From USB

Speed

12 Mbps

Firmware

Upgradable through USB interface

Interface Class

HID compliance

Cable Length

1.5 m fixed cable

Contactless Smart Card Interface

Standard

ISO-14443 A & B part 1-4

Protocol

Mifare® Classic Protocols, T=CL

Smart Card Read /Write Speed

106 kbps

Operating Distance

Up to 40 mm

Operating Frequency

13.56 MHz

Contact Smart Card Interface

Number of Slots

1 or 2 ID-1 Slots

Standard

ISO/IEC 7816 Class A, B, C (5V, 3V, 1.8V)

Protocol

T=0; T=1

Supply Current

Max. 50 mA

Short Circuit Protection

(+5) V /GND on all pins

Card Connector Type

ICC Slot 0: Landing

Smart Card Read /Write Speed

9,600-115,200 bps

Card Insertion Cycles

Min. 200,000

SAM Card Interface

Number of Slots

4 ID-000 slots

Card Connector Type

Contact

Standard

ISO/IEC 7816 Class B (3V)

Protocol

T=0; T=1

Smart Card Read /Write Speed

9,600-115,200 bps

Magnetic Stripe Card Interface

Standard

ISO 7811

Track 1/2/3, Bi-directional

Reading

Supported

Built-in Peripherals

Keypad

17 keys

LCD Display

128×64 dot-matrix LCD display with backlight

Buzzer

Monotone

LED Status Indicators

4 LEDs for indicating status

(from left most: blue, yellow, green, red)

PIN-pad Encryption

Algorithm

DES/3DES

Standard

X9.8, X9.9

Operating Conditions

Temperature

0°C – 50°C

Humidity

5% to 93%, non-condensing

Certifications/Compliance

ISO/IEC 7816, ISO/IEC 14443, PBOC Level 1, PBOC Level 2

Supported Operating Systems

Windows® XP, Windows® 7, Windows® 8.1, Windows® 10
