HCC-POS58D
HCCTG

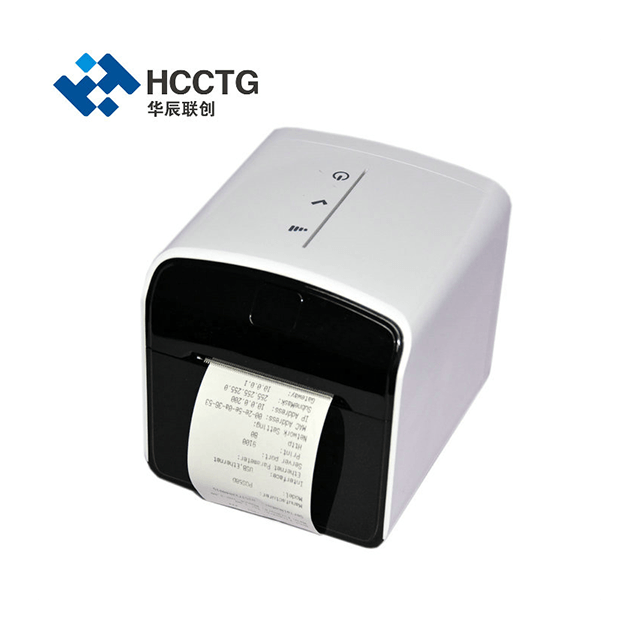

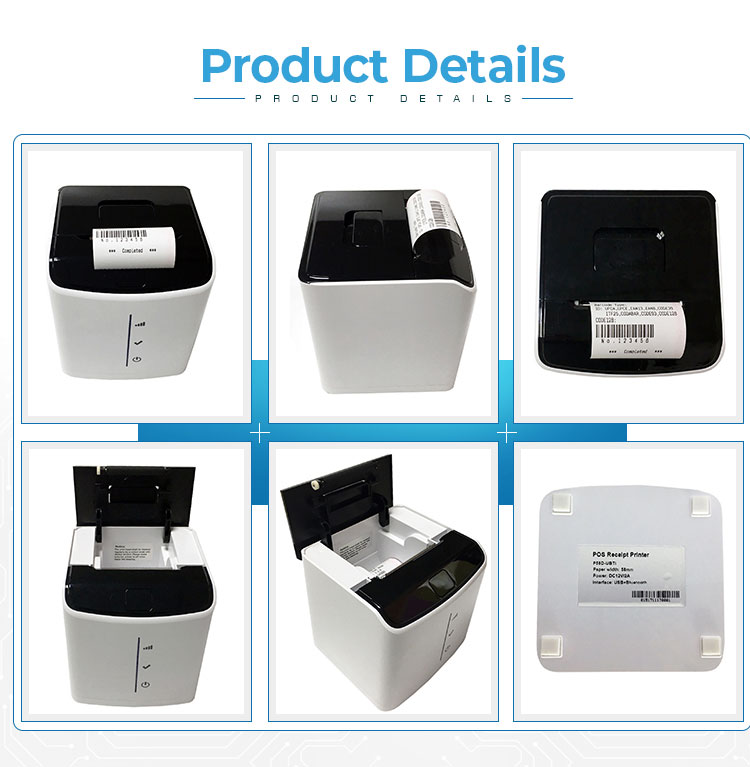

Product Introduction

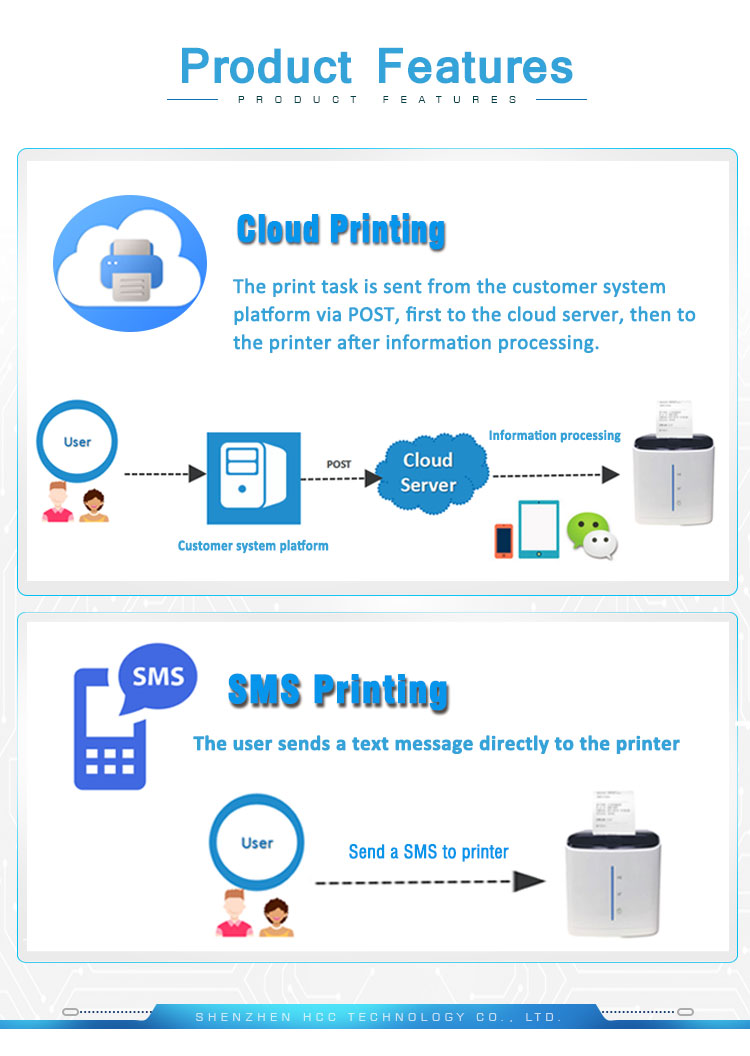

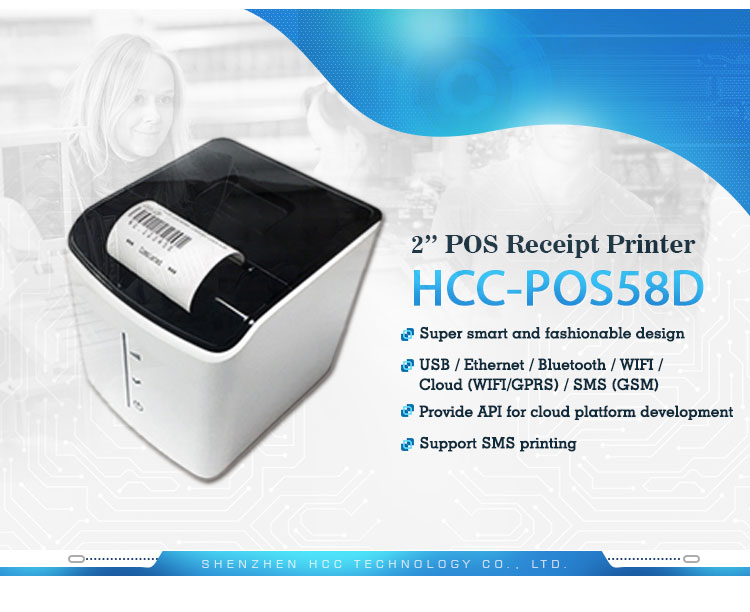

The HCC-POS58D thermal receipt printer is the ultimate solution for your printing needs. With a variety of communication interfaces to choose from, including USB, Ethernet, Bluetooth, WIFI, Cloud (WIFI/GPRS), and SMS (GSM), this POS printer is versatile and can accommodate a wide range of applications.
Product Advantage
1. USB / Ethernet / Bluetooth / WIFI / Cloud (WIFI/GPRS) / SMS (GSM) communication interface for option;
2. Super smart and fashionable design;

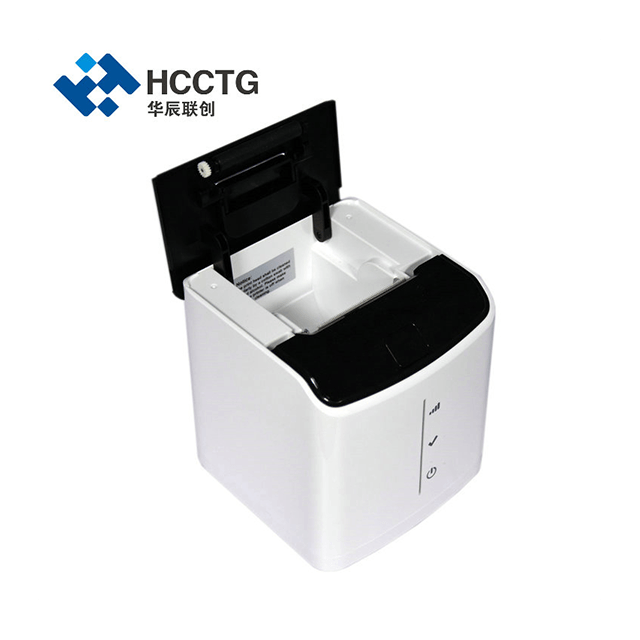

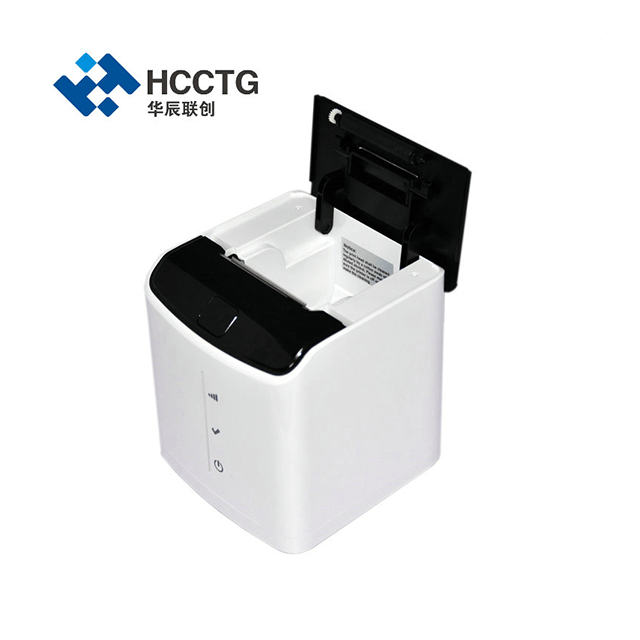

3. Drop-in easy paper loading;
4. High printing speed, High Reliability;
5. Cost effective, Easy operation and maintenance;
6. Simplified Chinese, Traditional Chinese, Korean, Japanese and other International language like Arabic support;
7. Compatible with EPSON ESC/POS command;
8. Provide API for cloud platform development;
9. Provide SDK & Demo for WM/WinCE/Symbian/Andriod/IOS;
10. Provide setting tool for easy configuration;
11. Support SMS printing;
12. Parts: USB Cable+Paper Roll+Power Adaptor.
Technical Parameters
Item | HCC-POS58D |
Print Method | Direct thermal line |
Print Speed | 80mm/sec |
Effective Print Width | 48mm |
Font | Dot Density: 384 dot/line Character Size ANK: Font A:12*24, Chines:24*24 Barcode UPCA/UPCE/JAN13(EAN13)/JAN8(EAN8/CODE39/ITF/CODABAR/CODE93/CODE128/PDF417/QR Code/Data Matrix |
Print Paper | Paper Type: Thermal paper Paper Width: 57.5±0.5mm Outer Diameter: 60mm(max.) Paper Thickness: 0.06~0.08mm Loading Method: Drop-in easy paper loading |
Reliability | Print Head: 50km |
Print Command | Compatible with ESC/POS |

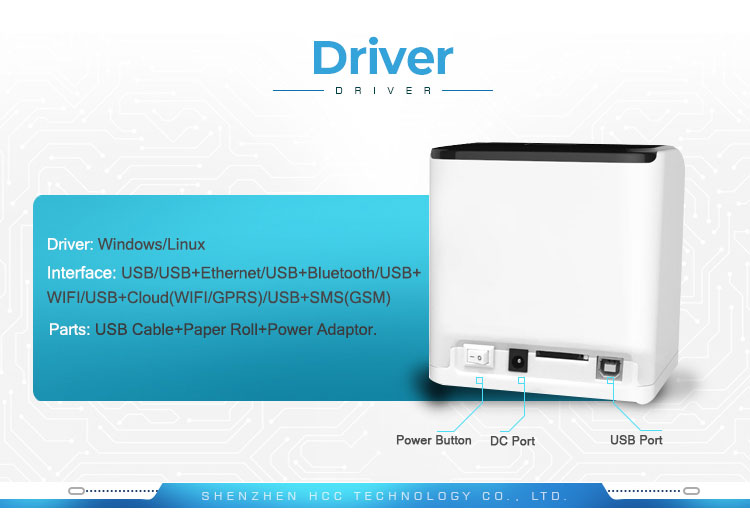

Driver | Windows/Linux |

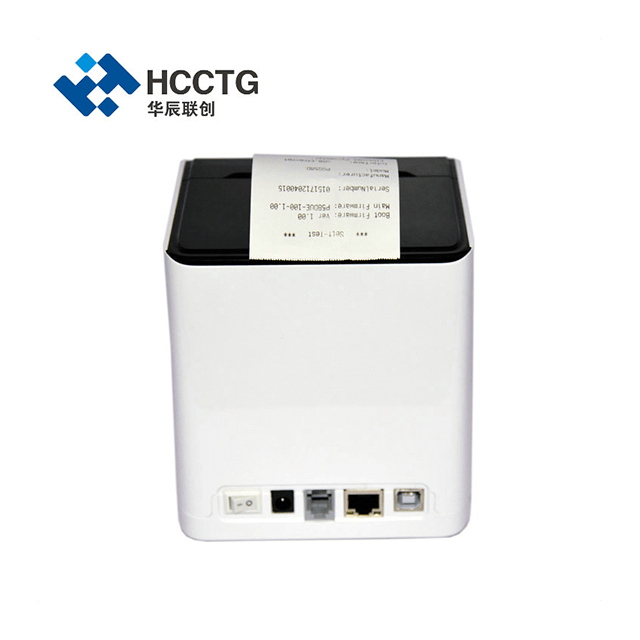

Interface | USB/USB+Ethernet/USB+Bluetooth/USB+WIFI/USB+WIFI+Cloud/USB+4G+Cloud/USB+4G+WIFI+Cloud/USB+GMS |
Power Supply | DC12V/2A |
Weight | 0.6KG |

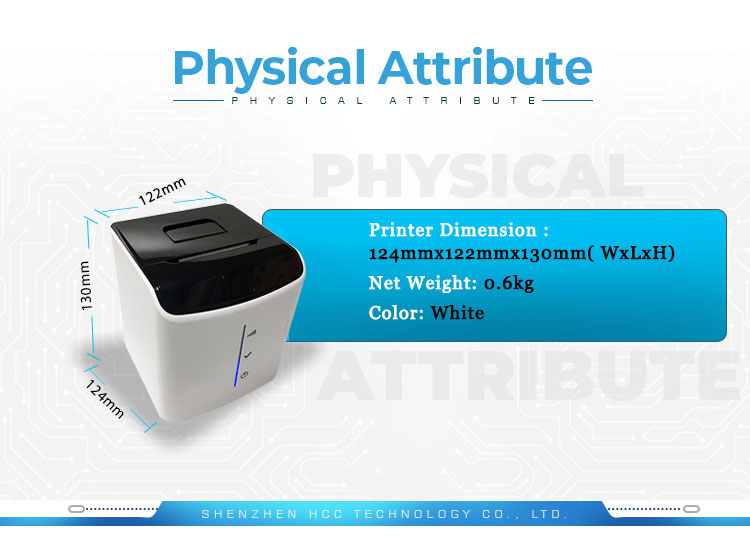

Dimension | 124mmx122mmx130mm (WxLxH) |
Operating Temp | 0~50°C |
Storage Temp | -20-60℃ |
Operating Humidity | 10~80% |
Storage Humidity | 10%-90% (No condensation) |
Product Uses
Retail Point of Sale (POS) systems: Thermal receipt printers are commonly used in retail stores to print customer receipts quickly and efficiently.
Restaurants and Hospitality: They facilitate smooth transactions and order processing in restaurants, cafes, and hotels, improving customer service.
Ticketing and Event Management: Thermal printers are employed in ticketing systems for events, concerts, and public transportation to issue tickets swiftly.
Product Video
https://www.youtube.com/watch?v=qjBSBjxV4r0
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
