1. Quickly and accurately identify one-dimensional codes
2. Green and low power consumption
3. Rich application scenarios
4. The appearance adopts ergonomic design
5. Stable, accurate, convenient, practical and efficient
6. Compatible with multiple system
| Quantity: | |
|---|---|
HS-6100
HCCTG

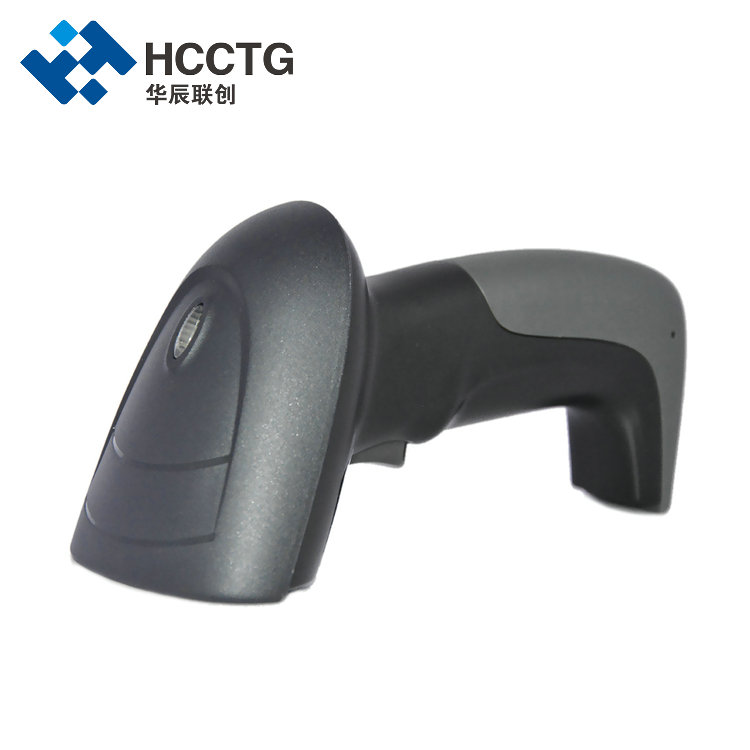

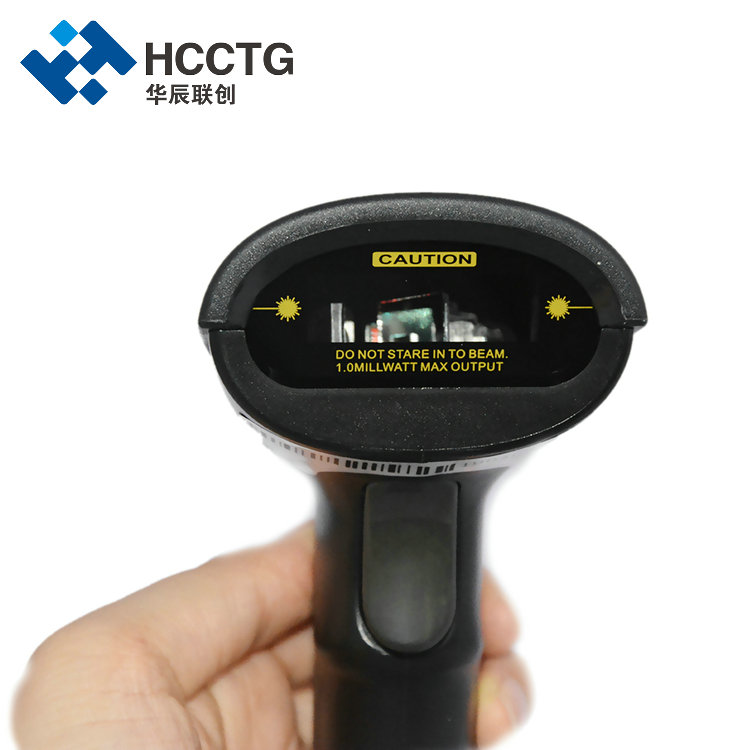

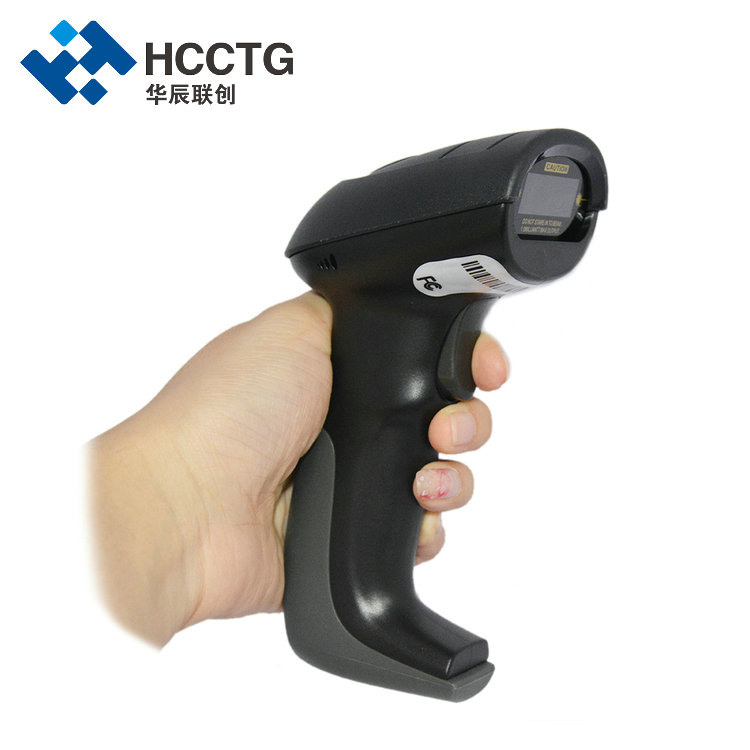

1D Laser Barcode Scanner
A highly cost-effective one-dimensional barcode laser scanner, which can read all standard one-dimensional barcodes. This model supports USB interface, is sturdy and durable,
The performance of HS-6100 fully meets the needs of various small and medium-sized scanning application environments, such as retail cash registers in small supermarkets and convenience stores, automated office and document management, mail and parcel delivery and distribution, etc.
1. High cost performance: low price and superior performance
2. Lightweight size: small size and light weight
3. Humanized design: beautiful and smooth appearance, comfortable and natural feel
Specification
Performance parameters | |
Barcode reading speed | 300 times/sec |
Identify the lowest contrast | 25% of the reflection difference |
Reading angle range | ±65°, ±70°, ±45° (left, right, forward, backward, rotation) |
Decoding accuracy | 0.0762mm (3mil) |
Decoding distance | 5-680mm (minimum and maximum) |
Reading Code System | UPC-A,UPC-E/E1,EAN-13,EAN-8,ISBN/ISSN,Code 39,Code 39(ASCII full code),Code 32,Trioptic Code 39 ,Cross Code 25,industrial code 25(Discrete 2 of 5),Matrix code 25, Kudaba Code(NW7),Code 128,UCC/EAN 128 ,ISBT128,Code 93,Code 11(USD-8),MSI/Plessey,UK/Plessey,China Post Code,etc |
Light source type | Laser 650nm±10nm |
Optical coating finishing | Silver Coating |
Interface Type | USB2.0 (standard), PS2 keyboard (optional), RS-232 serial port (optional), support for USB virtual serial port |
Tips | Buzzer sounds and red and blue lights |
Environmental adaptation parameters | |
Impact resistance | 1.5 meters free fall drop |
Operating temperature range | -15°C--45°C |
Storage temperature range | -25°C--65°C |
Operating Humidity Range | 10-92% non-condensing |
Humidity range | 10-92% non-condensing |
Ambient light intensity | Max.5,000 Lux (fluorescence) |
Physical parameters | |
Net weight | 200g |
Gross weight | 250g |
Main engine size(L*W*H) | 163*75*95(mm) |
Packing size(L*W*H) | 225*106*87(mm) |
Electrical parameters | |
Laser grade standard | EN60825-1, National 2 and Laser Safety Standard |
