Product Introduction

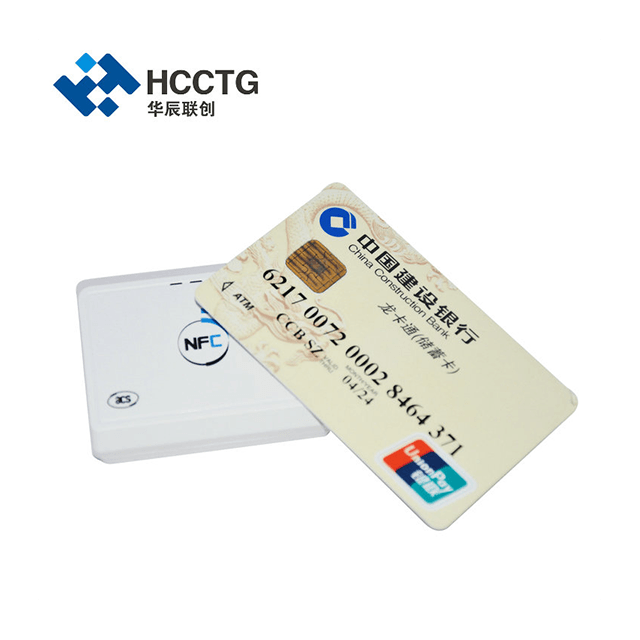

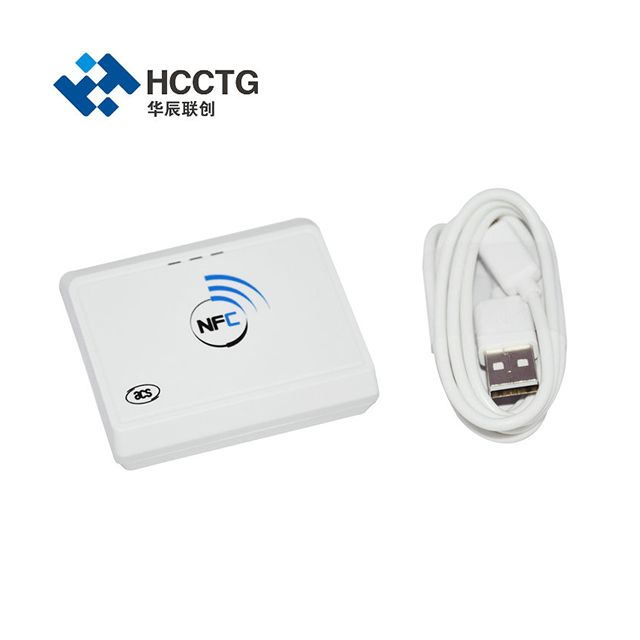

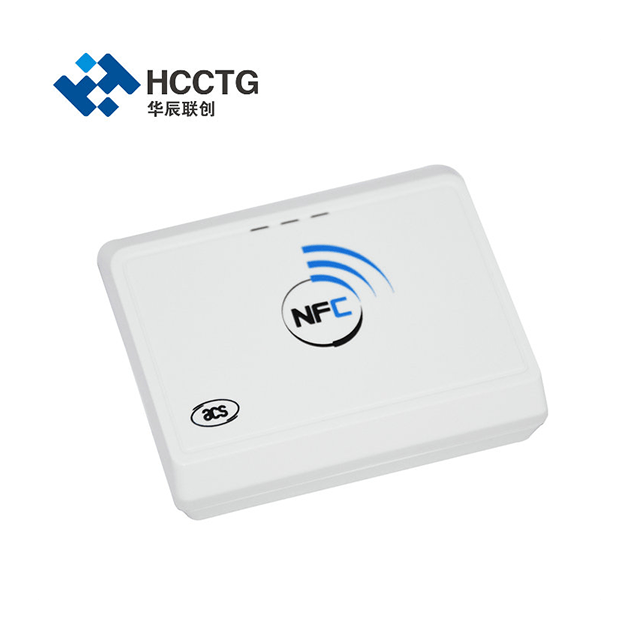

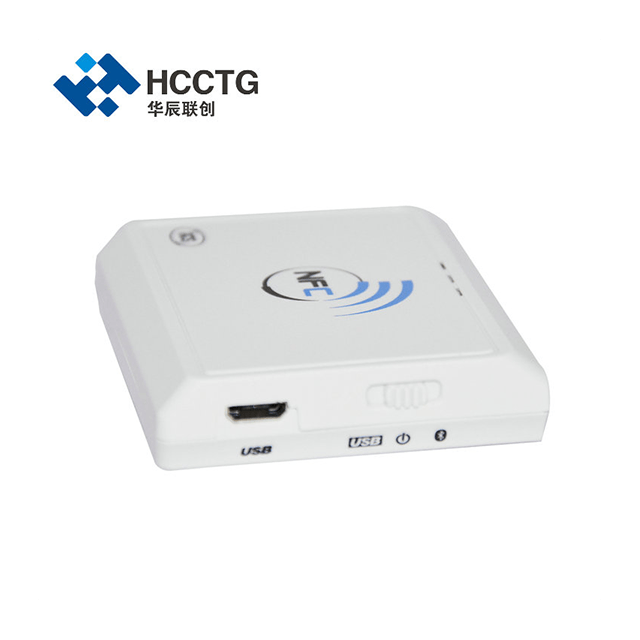

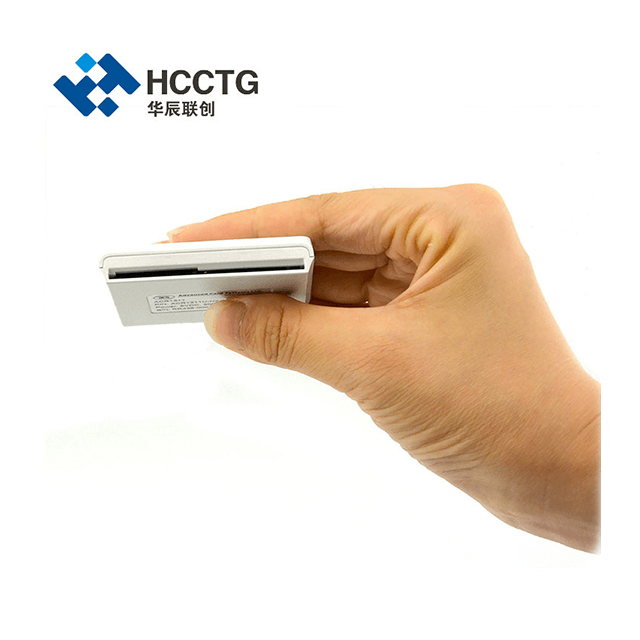

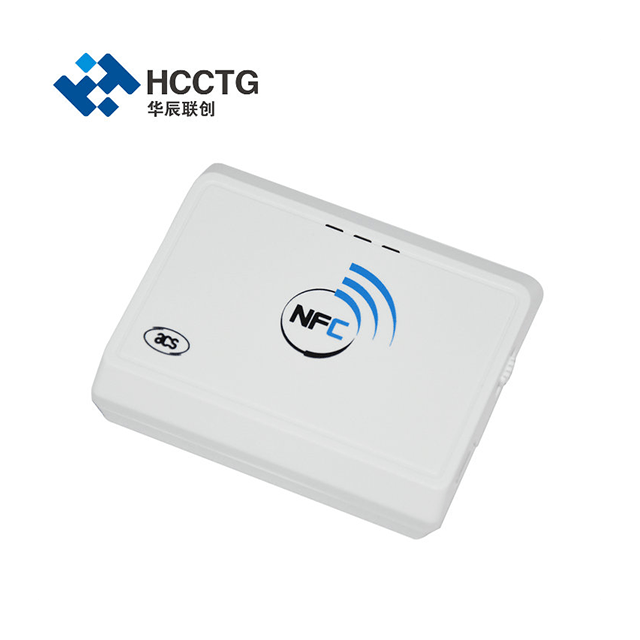

ACR1311U-N2 supports ISO 14443 Type A and B smart cards, MIFARE®, FeliCa®, and most NFC tags and devices compliant with ISO 18092 standard. This makes ACR1311U-N2 ideal for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking.
Product Advantage
Enhanced NFC Compatibility: The ACR1311U-N2 MPOS product supports 13.56MHz MIFARE NFC tags and smart cards, ensuring wide compatibility with various NFC-enabled devices. This allows for seamless and convenient contactless transactions, making it suitable for diverse applications.
Bluetooth Connectivity: With built-in Bluetooth technology, this MPOS device enables wireless communication with mobile devices, such as smartphones and tablets. The wireless connection enhances mobility, making it convenient for merchants to accept payments on-the-go.
Secure and Efficient Transactions: The ACR1311U-N2 prioritizes security in payment processing, ensuring that transactions are safe and protected against fraud. Moreover, its efficient processing capabilities ensure quick and reliable payment authorizations, enhancing the overall customer experience.
Technical Parameters
Physical characteristics | |
Dimensions | 60mm(L)×47.98mm(W)×12mm(H) |
Weight | 20g |
Color | White |
Bluetooth Interface | |
Protocol | Bluetooth Smart (Bluetooth Low Energy /Bluetooth 4.0) |
Power Source | Rechargeable Lithium-ion Battery (Charging through USB) |
Speed | 1Mbps |
USB Host Interface | |
Protocol | USB Full Speed |
Type | Four Line:+5V,GND,D+ and D- |
Connector Type | Micro USB |
Power Source | From USB Port |
Speed | USB Full Speed (12 Mbps) |
Cable Length | 1 m (Datachable) |
Firmware | Upgradeable through USB Interface |
Contactless Smart Card Interface | |
Standard | ISO 14443 Type A,MIFARE,DESFIRE |
Protocol | ISO 14443 T=CL for ISO14443-4 compliant cards, and T+CL Emulation for MIFARE Classic 1k/4k and NFC tags |
Operating Frequency | 13.56MHz |
Operating Distance | Up to 25mm(depending on tag type) |
Smart Card Read/ Write Speed | 106Kbps,212Kbps,424Kbps |
Antenna Size | 28.00mm×32.00mm |
Built-in Peripherals | |
LED | 2bi-color, Red and Blue,Red and Green |
Buzzer | Monotone |
Operating Conditions | |
Temperature | 0℃-50℃ |
Humidity | Max.90%(non-condensing) |
MTBF | 500,000 hrs |
Application Programming Interface | |
PC-link Mode | PC/SC CT-API(through wrapper on top of PC/SC) |
Certifications/Compliance | EN60950/IEC 60950,ISO 14443,USB Full Speed,Bluetooth Smart, PC/SC,CCID,RoHS 2, REACH, Microsoft® WHQL
|
Device Driver Operating System Support | Windows®ME,Windows®98,Windows®2000,Windows®XP,Windows®Vista,Windows®7,Windows®8,Windows®8.1,Windows®10,Windows®Server2003,Windows®Sever2008,Windows,®Sever2008R2,Windows ®Sever2012,Windows®Sever2012R2,Linux®,Mac OS®, Android, iOS
|
Product Uses
Access control systems: Smart card readers are utilized in secure access control setups for buildings, offices, and restricted areas, enabling authorized personnel to enter using their smart cards.
Public transportation: Smart card readers facilitate seamless payment and ticketing systems for buses, trains, and subways, enhancing efficiency and reducing cash transactions.
E-commerce and online banking: Smart card readers enable secure online transactions by authenticating users during digital payments and internet banking activities.
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
