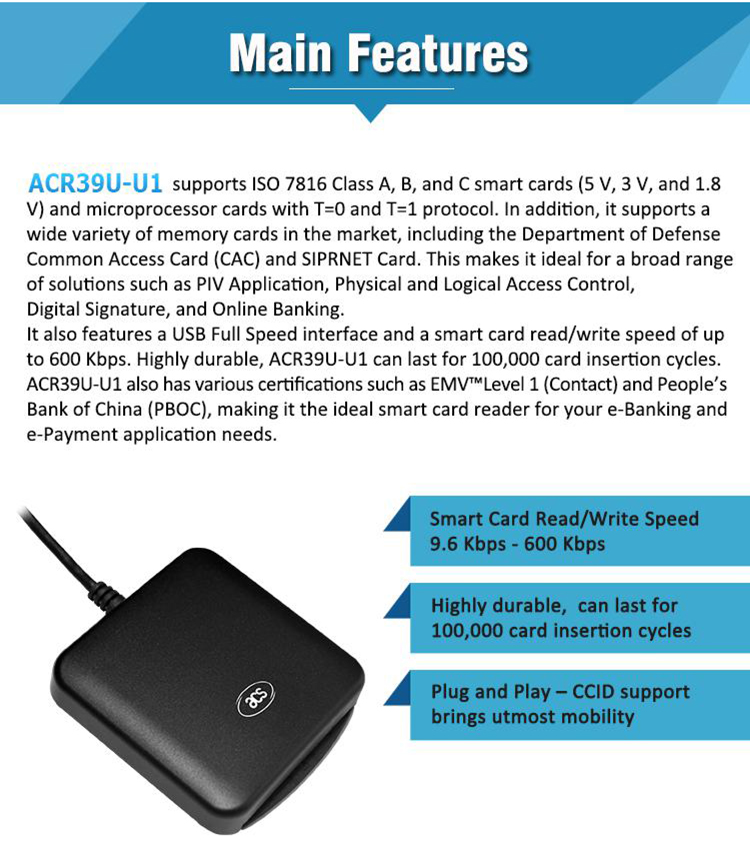

The ACR39U-U1 EMV card reader is a versatile and high-performance card reader that supports a wide range of ISO 7816-compliant smart cards. It is capable of reading Class A, B, and C cards, which are widely used in various applications such as financial transactions, access control, and identity verification. These cards are available in different voltage levels, including 5 V, 3 V, and 1.8 V, and the ACR39U-U1 is fully compatible with all of them.
| Quantity: | |
|---|---|
ACR39U-U1
HCCTG
What are the security benefits driving the popularity of smart card readers?
Smart card readers offer advanced security features such as encryption, multi-factor authentication, and secure data storage. These features make them crucial in preventing unauthorized access and data breaches, driving their popularity, especially in sensitive environments like government agencies and financial institutions.

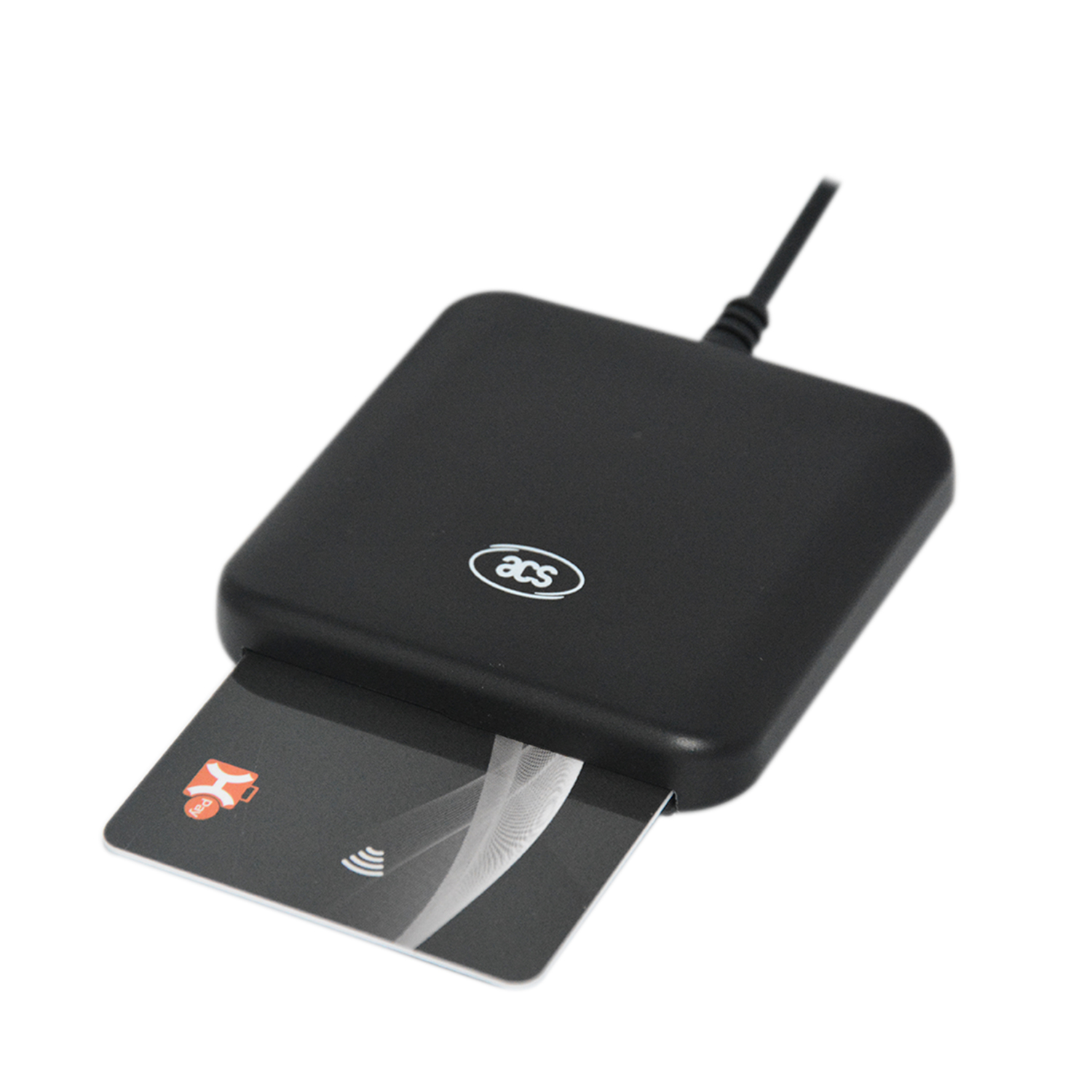

USB EMV Unionpay Contact Smart Card Reader ACR39U-U1
The ACR39U-U1 smart card reader is engineered to perfection, ensuring seamless operation and enhanced security. Its compact size doesn't compromise its performance; instead, it delivers unmatched efficiency and reliability in every use case.
The ACR39U-U1 is designed to handle a wide range of smart card applications with ease. Whether it's secure access control, payment processing, or identity verification, this reader excels in all scenarios. Its compatibility with various card types and its ability to read and process data swiftly make it an indispensable tool in today's fast-paced digital landscape.
Moreover, the ACR39U-U1 boasts user-friendly features that simplify the card reading process. Its intuitive interface and hassle-free setup ensure a smooth experience for both end-users and administrators. With advanced encryption algorithms, it guarantees the highest level of data security, safeguarding sensitive information effectively.
Specification

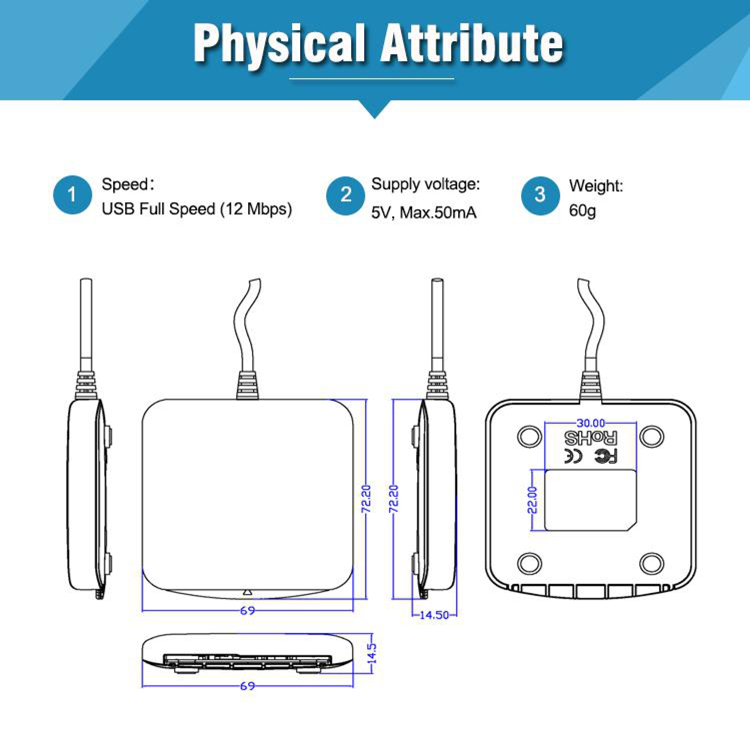

Dimensions | 72.2 mm (L) × 69.0 mm (W) × 14.5 mm (H) |
Weight | 60g |
Color | Black (Matte) |
Protocol | USB CCID |

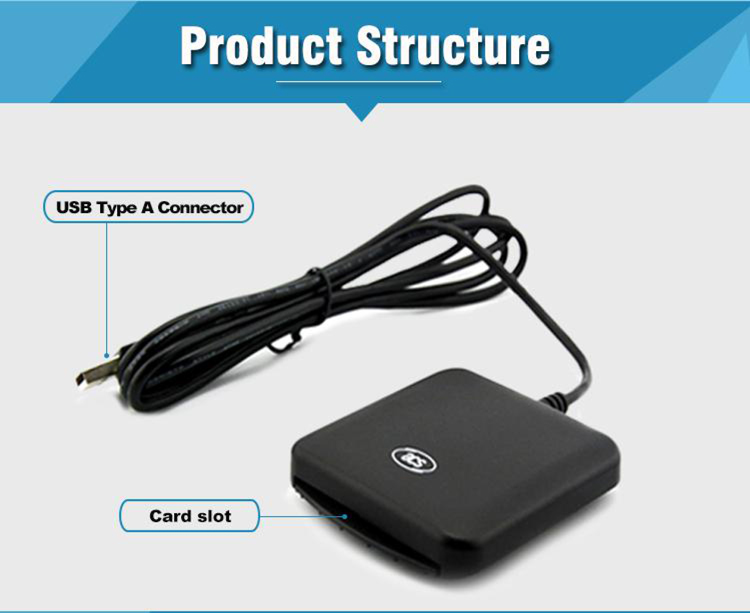

Connector Type | Standard Type A |
Power Source | From USB port |
Speed | USB Full Speed (12 Mbps) |
Supply Voltage | 5 V |
Cable Length | 1.5 m (Fixed) |
Number of Slot | 1 Full-sized Card Slot |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.8 MHz |
Card Connector Type | Contact |
Card Insertion Cycles | Min.100,000 |
LED | Green |
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
Temperature | 0°C – 60°C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |
Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft WHQL |
Device Driver Operating System Support | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 LINUX/MAC/ANDROID |
What are the security benefits driving the popularity of smart card readers?
Smart card readers offer advanced security features such as encryption, multi-factor authentication, and secure data storage. These features make them crucial in preventing unauthorized access and data breaches, driving their popularity, especially in sensitive environments like government agencies and financial institutions.
USB EMV Unionpay Contact Smart Card Reader ACR39U-U1
The ACR39U-U1 smart card reader is engineered to perfection, ensuring seamless operation and enhanced security. Its compact size doesn't compromise its performance; instead, it delivers unmatched efficiency and reliability in every use case.
The ACR39U-U1 is designed to handle a wide range of smart card applications with ease. Whether it's secure access control, payment processing, or identity verification, this reader excels in all scenarios. Its compatibility with various card types and its ability to read and process data swiftly make it an indispensable tool in today's fast-paced digital landscape.
Moreover, the ACR39U-U1 boasts user-friendly features that simplify the card reading process. Its intuitive interface and hassle-free setup ensure a smooth experience for both end-users and administrators. With advanced encryption algorithms, it guarantees the highest level of data security, safeguarding sensitive information effectively.
Specification
Dimensions | 72.2 mm (L) × 69.0 mm (W) × 14.5 mm (H) |
Weight | 60g |
Color | Black (Matte) |
Protocol | USB CCID |
Connector Type | Standard Type A |
Power Source | From USB port |
Speed | USB Full Speed (12 Mbps) |
Supply Voltage | 5 V |
Cable Length | 1.5 m (Fixed) |
Number of Slot | 1 Full-sized Card Slot |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.8 MHz |
Card Connector Type | Contact |
Card Insertion Cycles | Min.100,000 |
LED | Green |
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
Temperature | 0°C – 60°C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |
Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft WHQL |
Device Driver Operating System Support | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 LINUX/MAC/ANDROID |
