Product Introduction

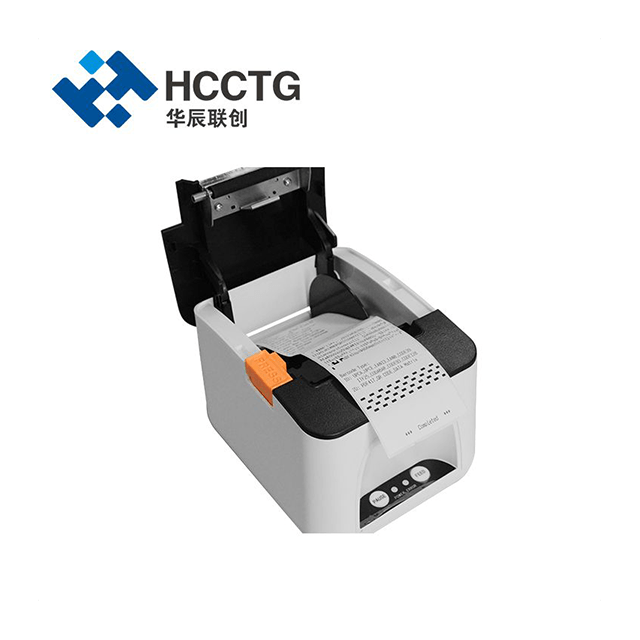

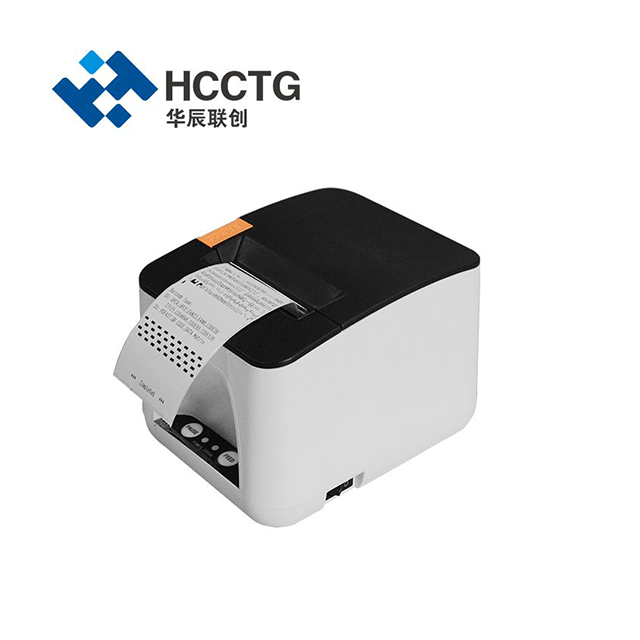

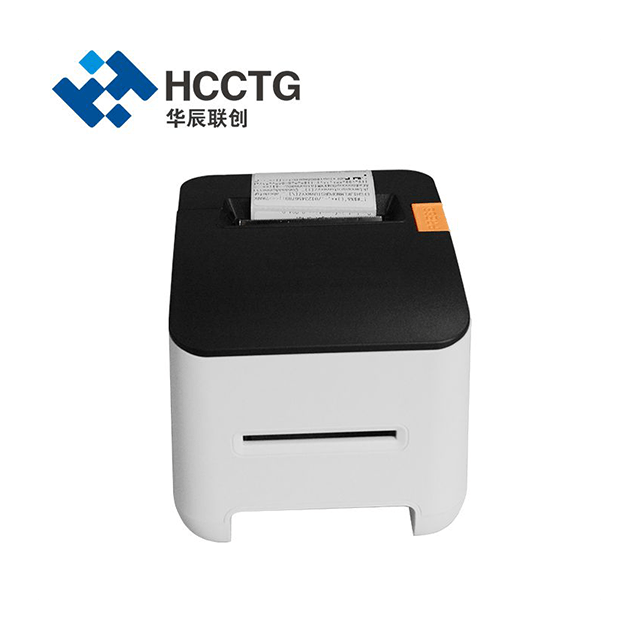

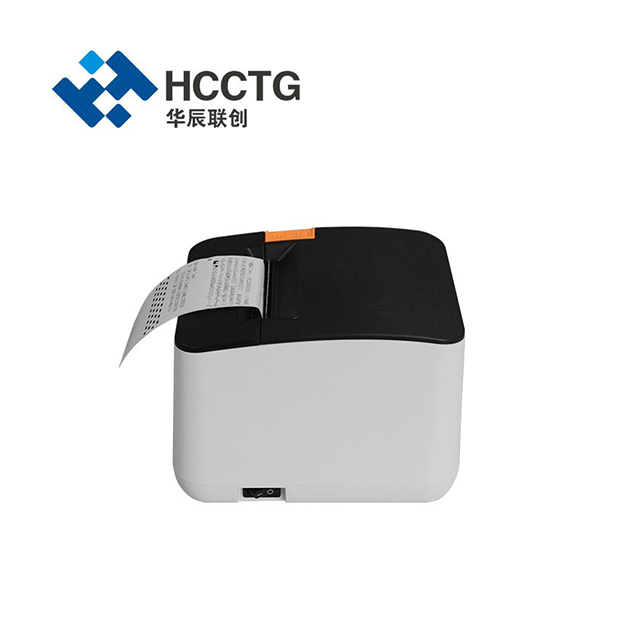

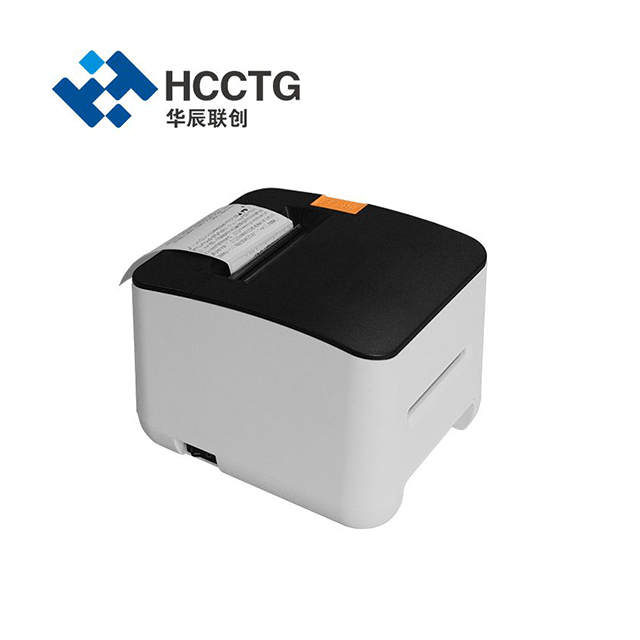

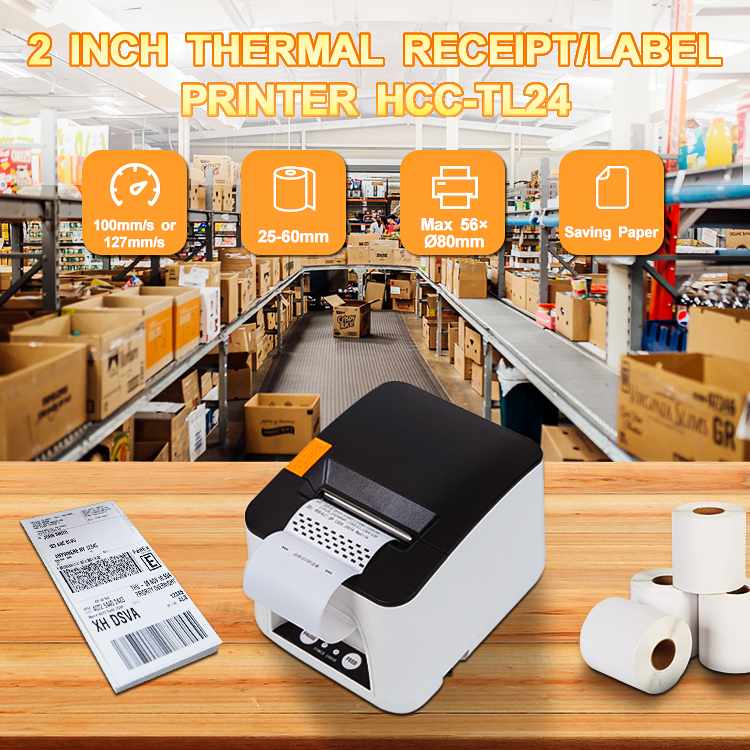

The TL24U Thermal Shipping Label Printer is a desktop-sized label printer, It’s simple to set up and compact in size, producing crisp and clear labels every time with its high resolution of 203dpi, perfect for small businesses thanks to its efficiency and cost-effectiveness.
Product Advantage

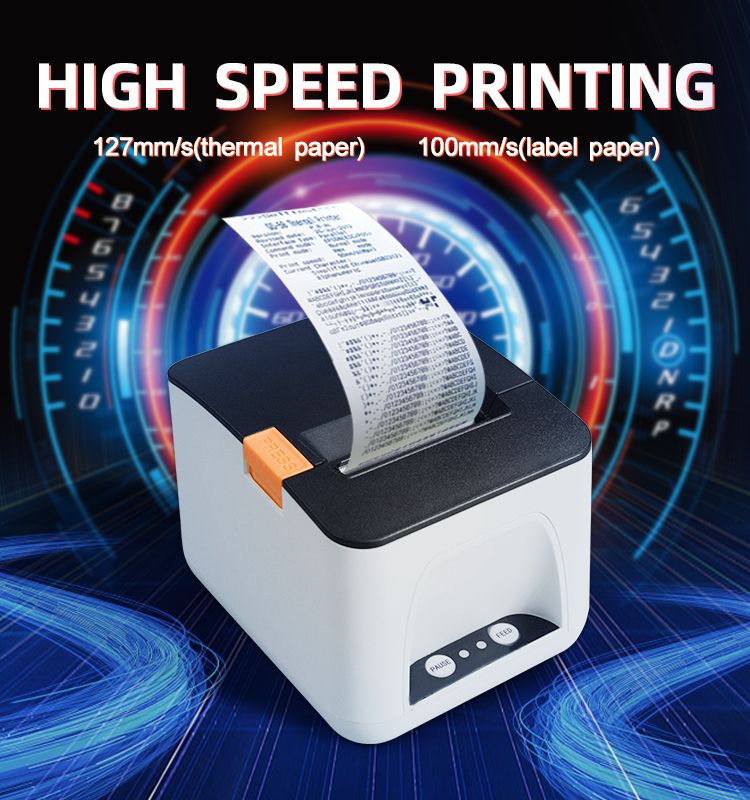

High-Speed Printing Performance: The HCC-TL24U Thermal Receipt/Label Printer impresses with an ultra-high printing speed of 127mm/s, ensuring rapid and efficient printing of receipts and labels. This exceptional speed boosts productivity, making it perfect for busy retail and logistics environments.

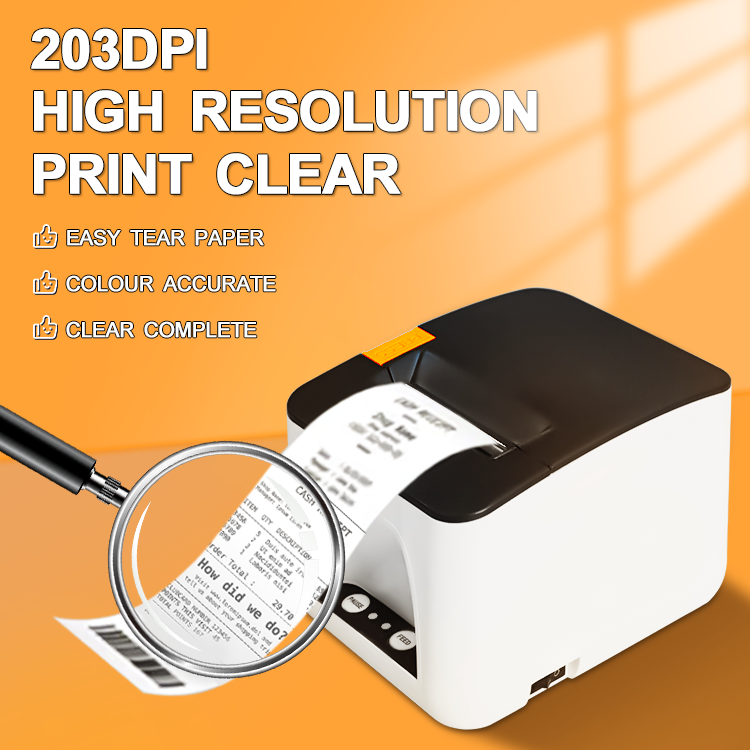

Sharp and Precise Prints: With a resolution of 203dpi, this printer delivers crisp and clear text, barcodes, and graphics on receipts and labels. The high-quality prints enhance readability and professional presentation, meeting the demands of various business applications.
Versatile Connectivity and Compact Design: Featuring a USB interface, the HCC-TL24U can be easily connected to computers and other devices for seamless printing. Its compact design saves valuable space, making it an ideal choice for businesses with limited counter or workspace.
Technical Parameters
Specification
Printing Method | Thermal Line | |
Resolution | 8 dots/mm(203dpi) | |
Printing Speed | 100mm/s (Thermal Label Paper); 127mm/s (Normal Thermal Paper) | |
Effective Printing Width | 48mm/56mm | |
Paper Width | 25-60mm | |
Paper Roll Diameter | Max 56×Ø80mm | |
Print Font | Codepage,: ANK: 9 x17 / 12 x24; Chinese: 24 x 24 | |
Driver | Windows/Linux/Android | |

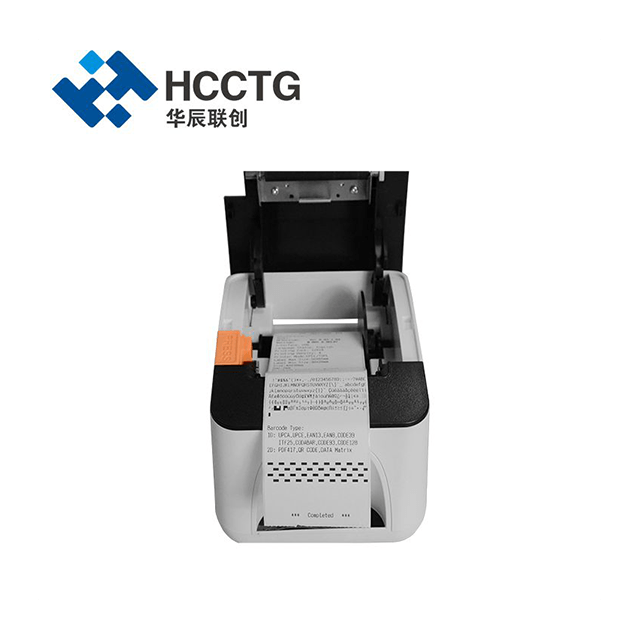

Barcode | 1D | UPC-A, UPC- E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128 |
2D | PDF417, QRCODE, Data Matrix | |
Character Set | ASCII, GB18030(Chinese), GB12345, Shift JIS(Japanese) BIGS, Codepage | |
Interface | USB | |
Power Supply | DC12V±5%, 2A | |

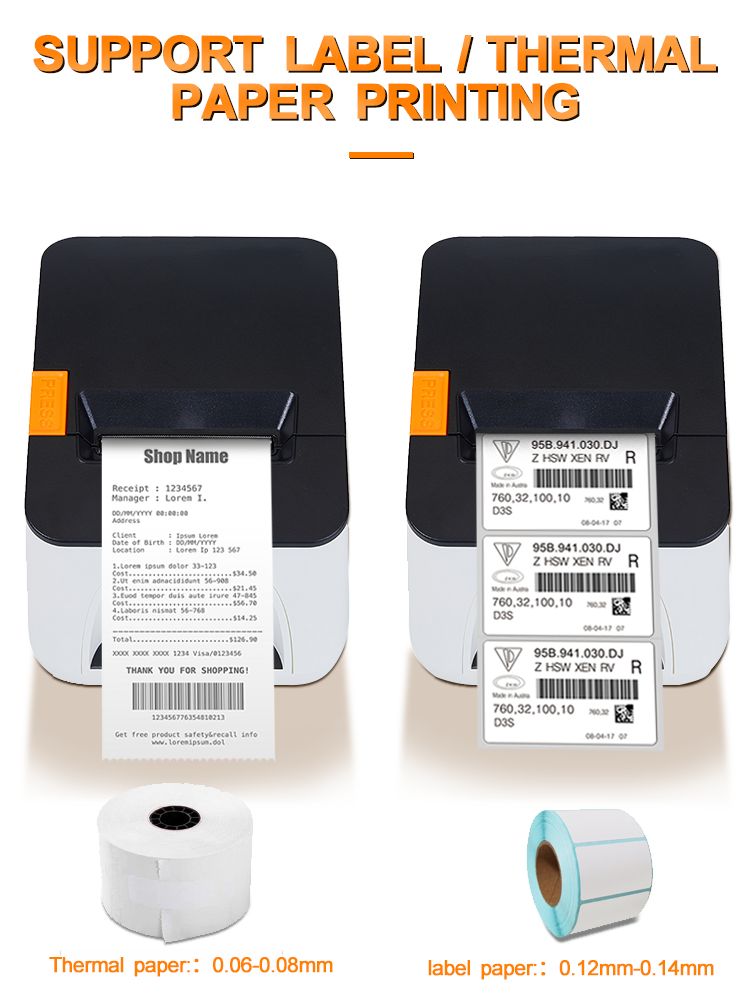

Paper Thickness | 0.06mm ~0.08mm(Normal Thermal Paper) 0.12~0.14mm(Thermal Label Paper) | |
Outline Dimension | 160x130x115mm(L×W×H) | |
Operating Temp/Humidity | 5~50°C/10~80% | |
Storage Temp/Humidity | -20~60°C /10~90% | |
Dimension | 160mm×130mmx115mm(LxWxH) | |
Weight | 580g (NO Paper) | |
THP | 50KM | |
Product Uses
Retail Point of Sale (POS) systems: Thermal receipt printers are commonly used in retail stores to print customer receipts quickly and efficiently.
Restaurants and Hospitality: They facilitate smooth transactions and order processing in restaurants, cafes, and hotels, improving customer service.
Ticketing and Event Management: Thermal printers are employed in ticketing systems for events, concerts, and public transportation to issue tickets swiftly.
Product Video
https://www.youtube.com/watch?v=Y8On-3k7kWA
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
