Product Introduction

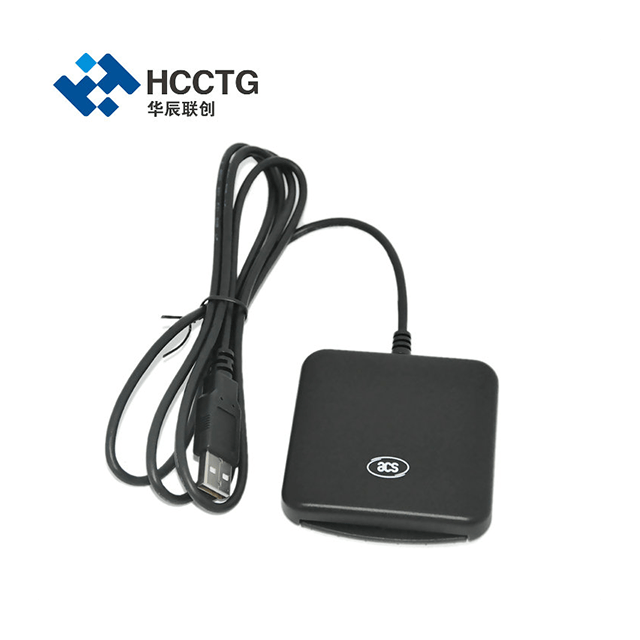

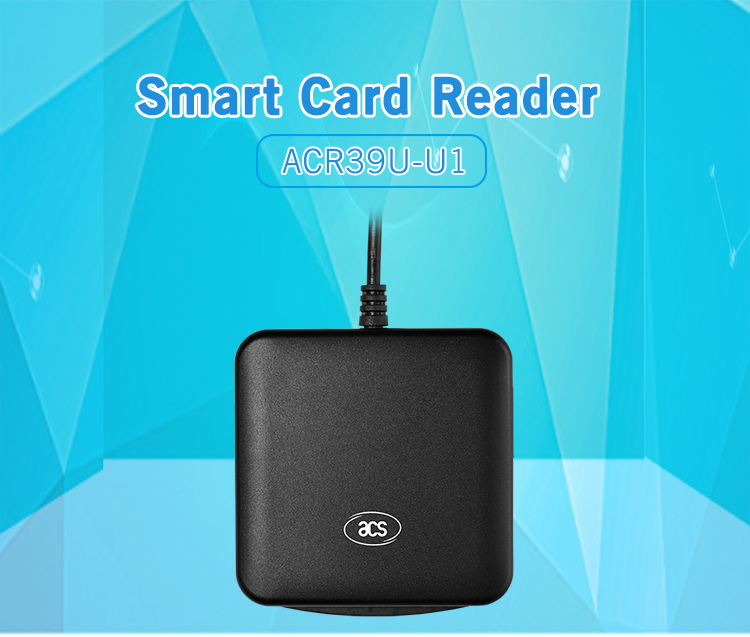

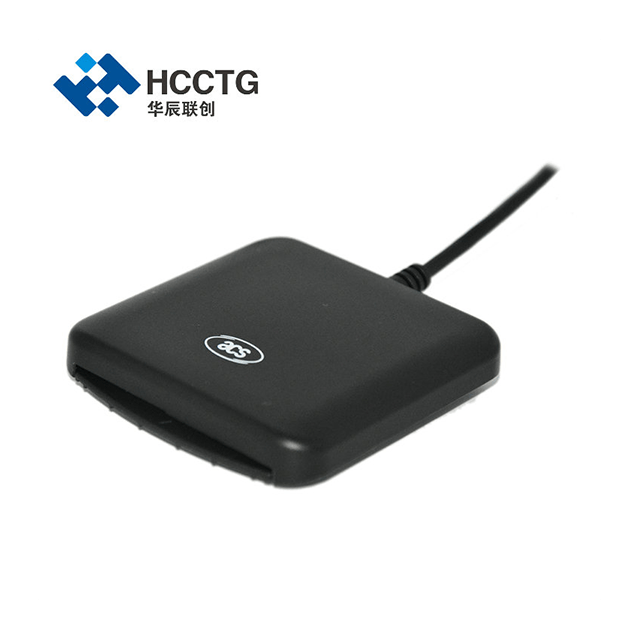

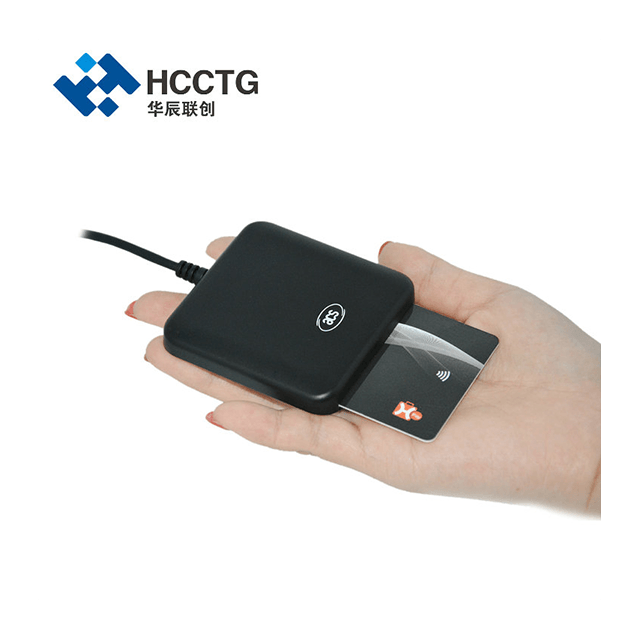

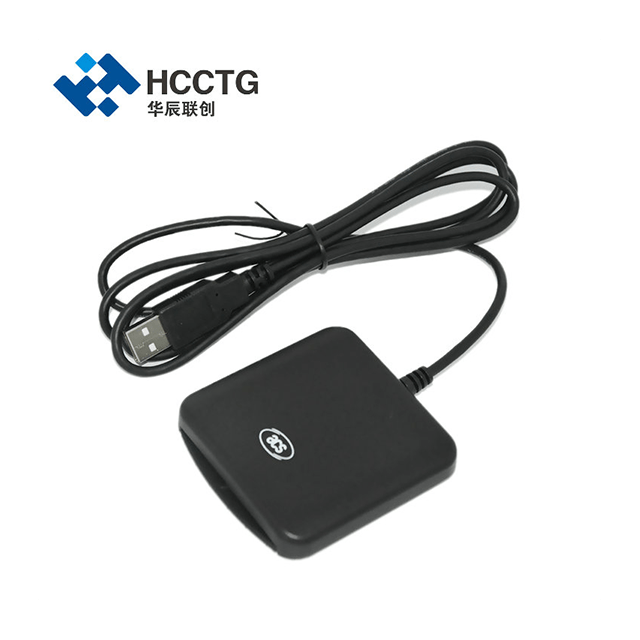

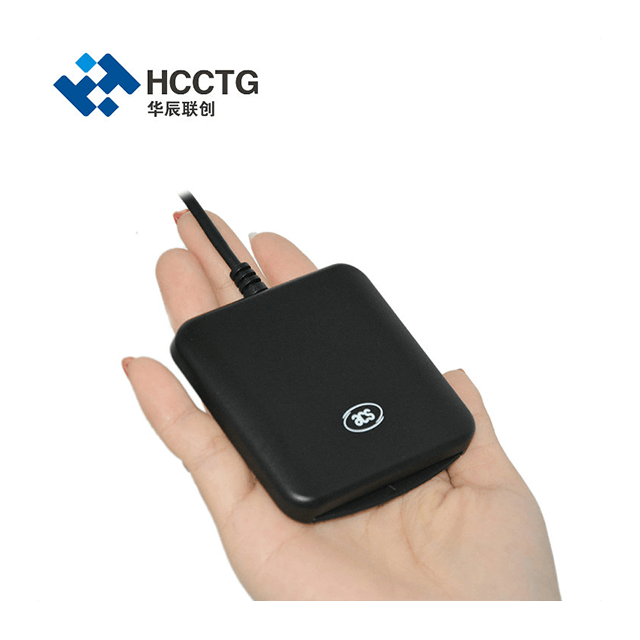

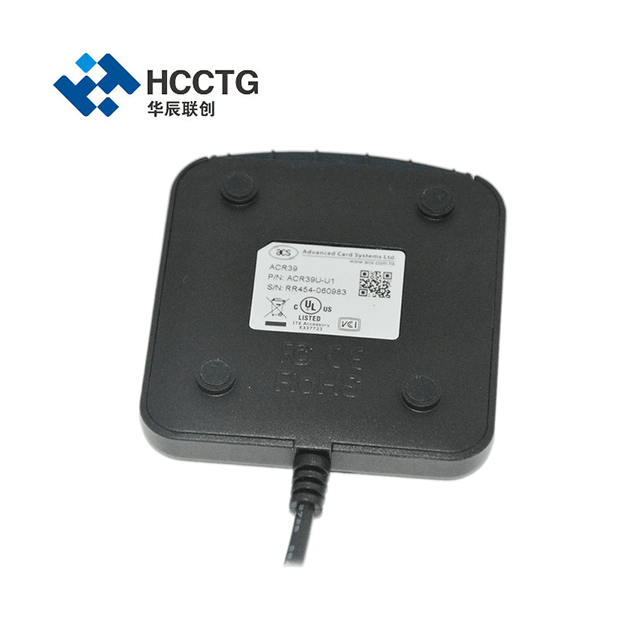

The ACR39U-U1 smart card reader also offers advanced security features that ensure the safety of your data. With support for EMV smart cards and various other smart card types, this ACS card reader is capable of handling even the most complex smart card-based applications. And with support for multiple interfaces, including USB and PC/SC, it's easy to integrate this reader into your existing system.

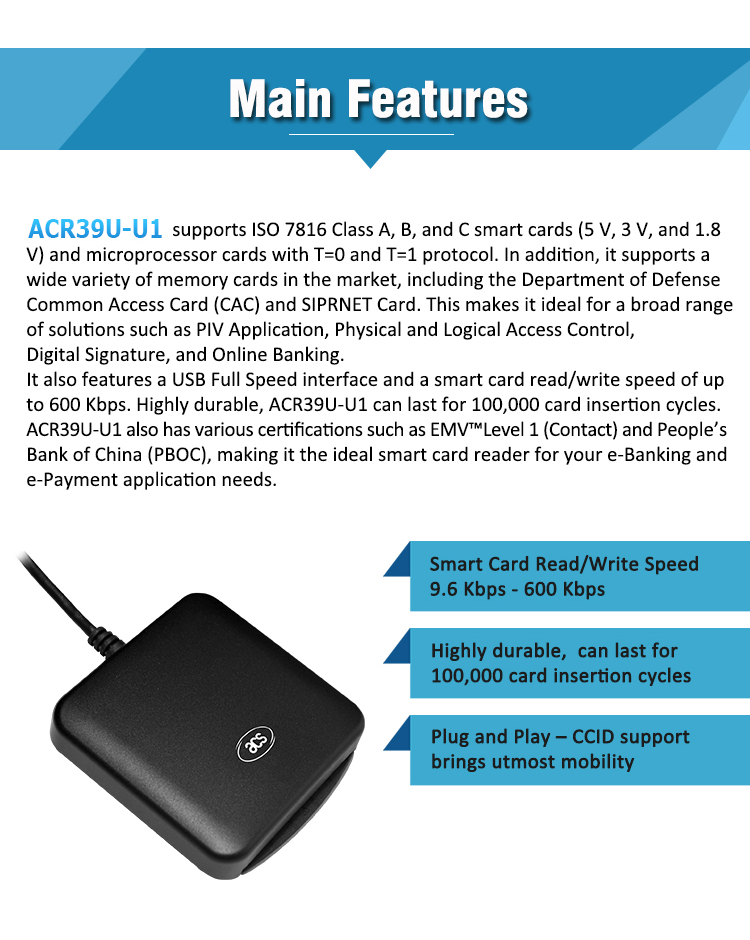

Product Advantage
Smart Card Reader:
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
Supports CAC
Supports SIPRNET Card
Supports J-LIS Card
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short-Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later
Technical Parameters
Specification
Dimensions | 72.2 mm (L) × 69.0 mm (W) × 14.5 mm (H) |
Weight | 60g |
Color | Black (Matte) |
Protocol | USB CCID |

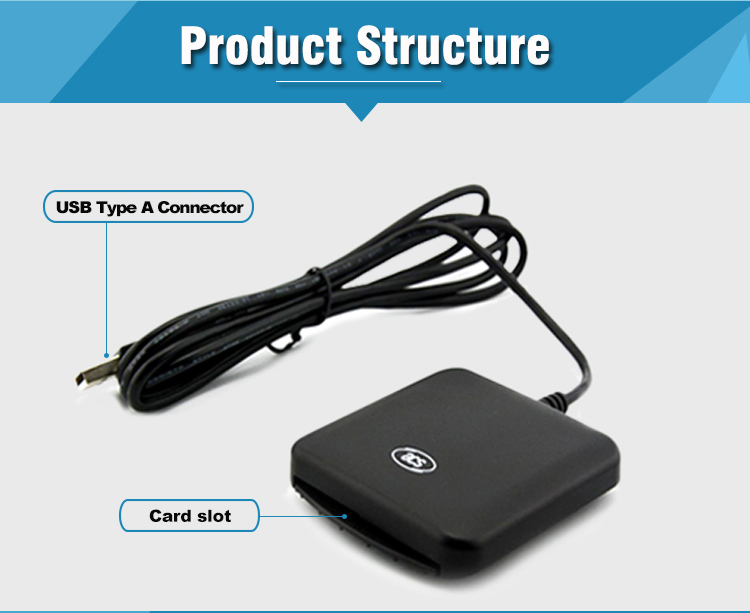

Connector Type | Standard Type A |
Power Source | From USB port |
Speed | USB Full Speed (12 Mbps) |
Supply Voltage | 5 V |
Cable Length | 1.5 m (Fixed) |
Number of Slot | 1 Full-sized Card Slot |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.8 MHz |
Card Connector Type | Contact |
Card Insertion Cycles | Min.100,000 |
LED | Green |
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
Temperature | 0 °C – 60 °C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |
Certifications/Compliance
| EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL |

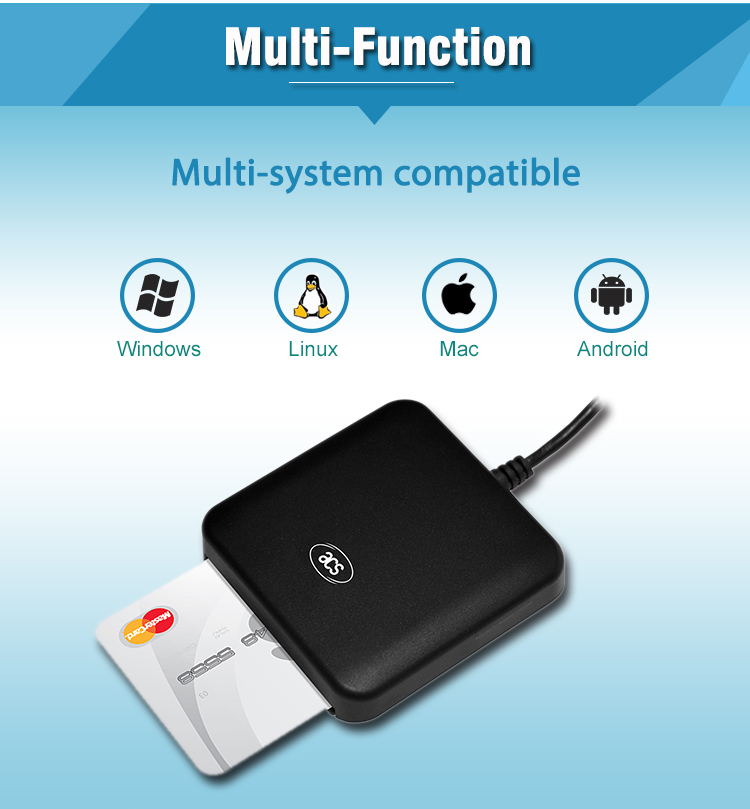

Device Driver Operating System Support
| Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 LINUX/MAC/ANDROID |
Product Uses
Access control systems: Smart card readers are utilized in secure access control setups for buildings, offices, and restricted areas, enabling authorized personnel to enter using their smart cards.
Public transportation: Smart card readers facilitate seamless payment and ticketing systems for buses, trains, and subways, enhancing efficiency and reducing cash transactions.
E-commerce and online banking: Smart card readers enable secure online transactions by authenticating users during digital payments and internet banking activities.
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
