ACS USB CCID Contact Smart Card Reader ACR40U

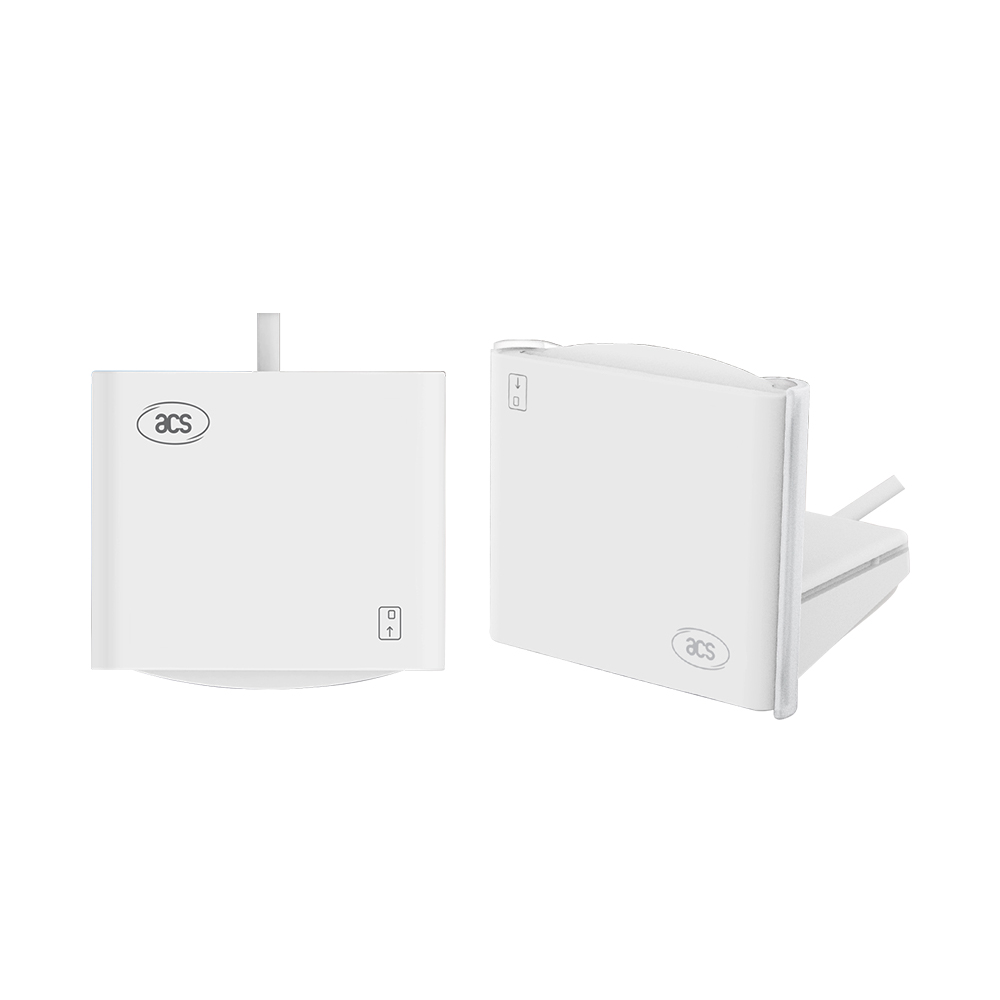

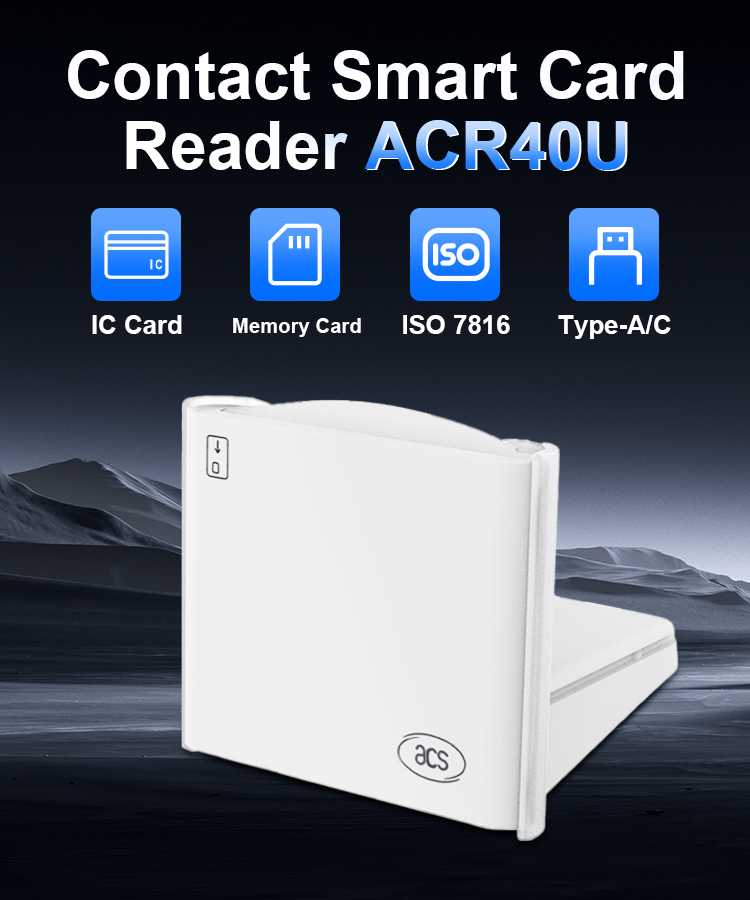

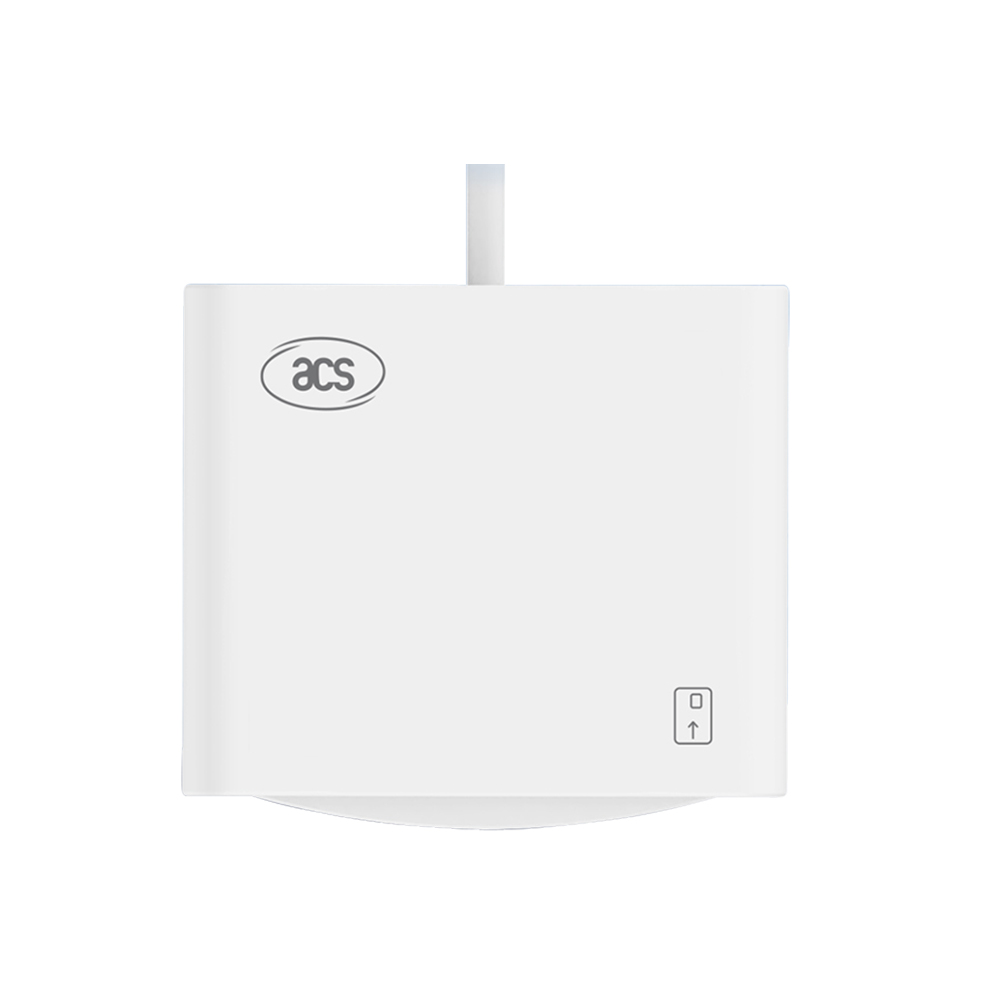

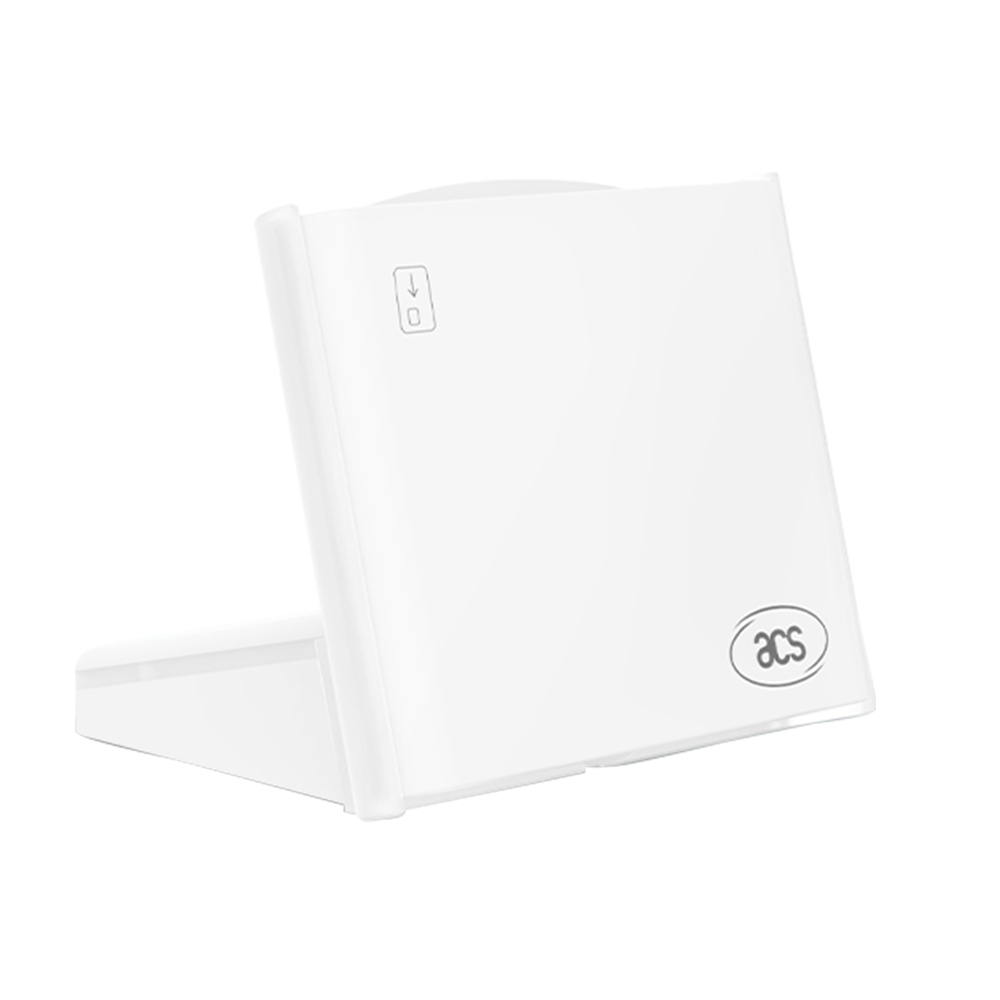

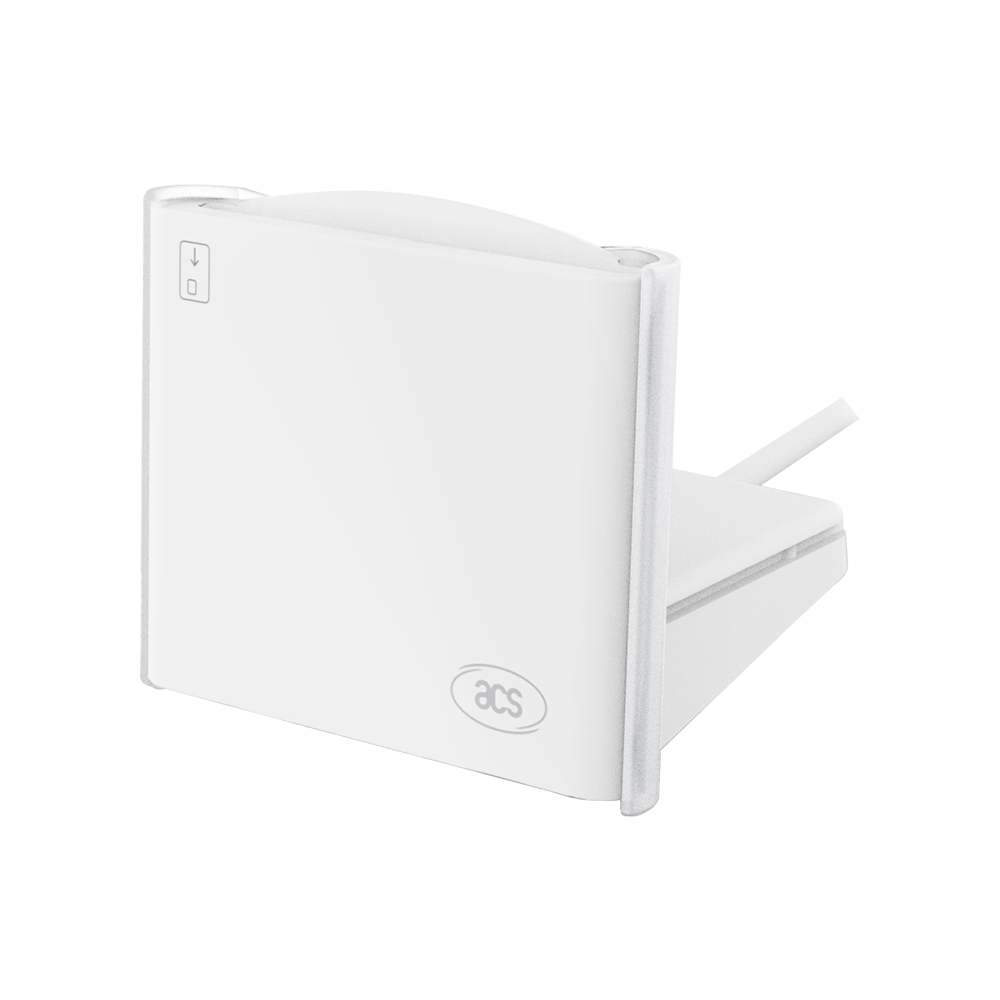

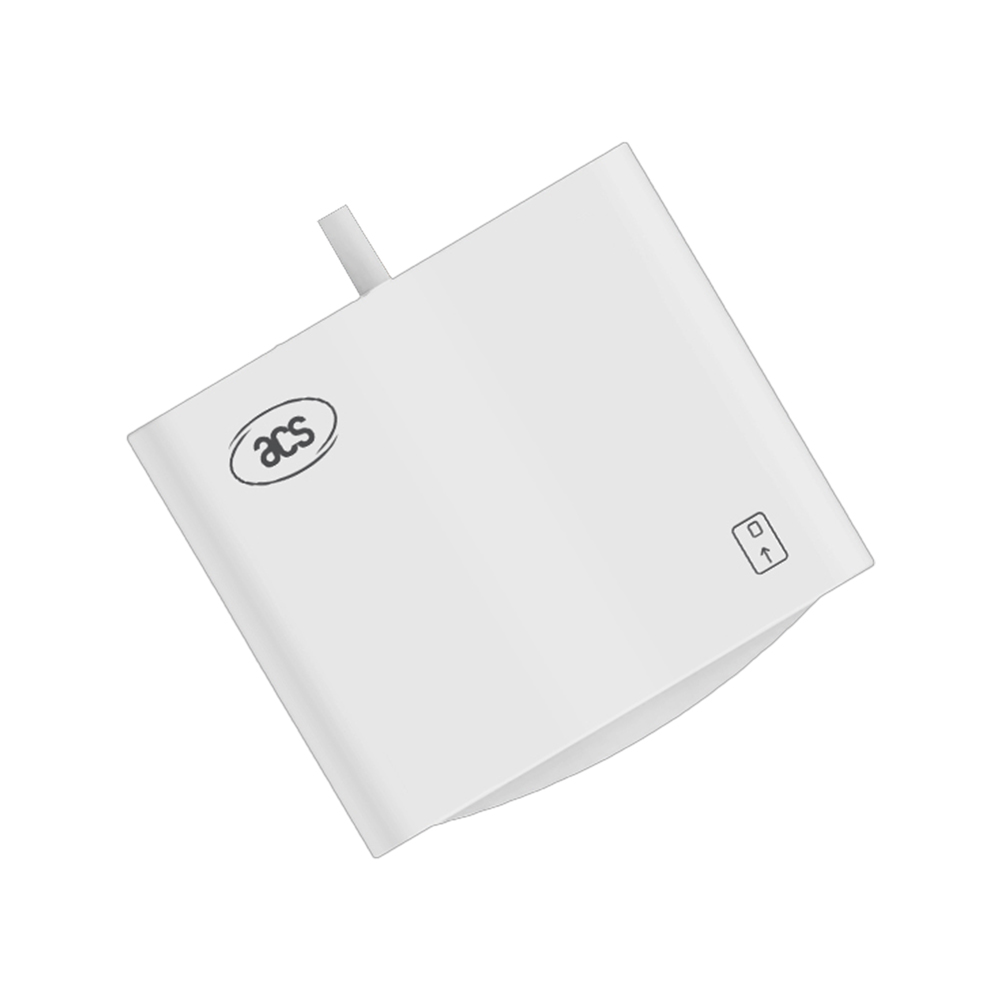

The ACR40U from ACS is a compact USB contact smartcard reader that supports all ISO 7816 microprocessor-based smartcards as well as numerous popular memory cards. Housed in a sleek white case, this highly durable desktop reader is the latest evolution of the popular ACR39, including a second LED for user feedback, on-device user data storage and support for remote firmware upgrade. The ACR40 chipset supports a wide range of operating systems including Windows, Linux and MacOS, IOS, iPadOS and Android.

Card Connector:	Contact

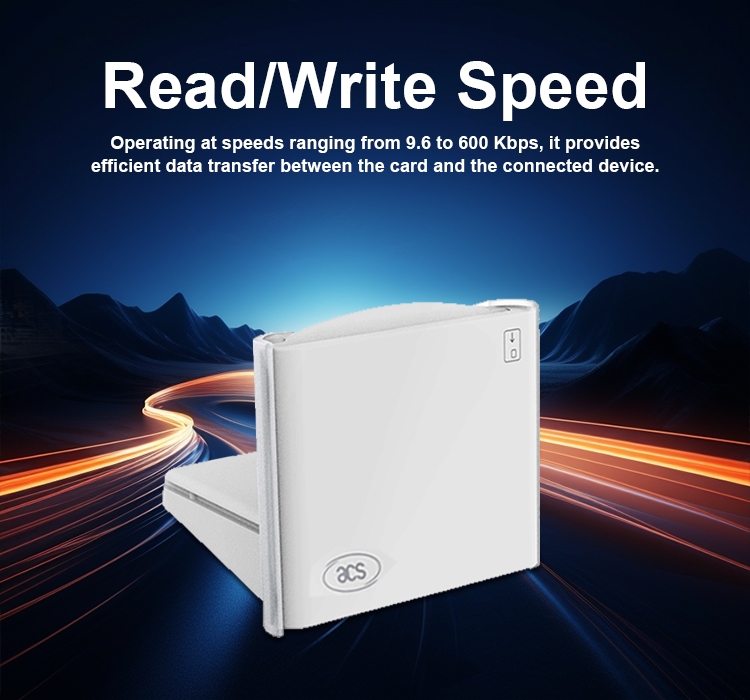

Read/Write Speed:	9.6 – 600 Kbps
Protocol:	USB CCID
PC-Linked Mode:	PC/SC
Availability:

Quantity:



Inquire Add to Basket

Model:
ACR40U
Brand:
ACS

ACS ACR40U Smart Card Reader Driver for Windows, Linux, macOS, iOS, iPadOS, Android, Solaris

ACR40U banner

The ACR40U features two LED lights, indicating card and reader status. Exciting new additions include firmware upgradability and on-device user data storage, catering to various application scenarios. The ACR40U ensures compliance with CCID, PC/SC, and Microsoft® WHQL standards. It offers compatibility with multiple operating systems such as Windows®, Linux®, macOS, iOS, iPadOS, and Android™.

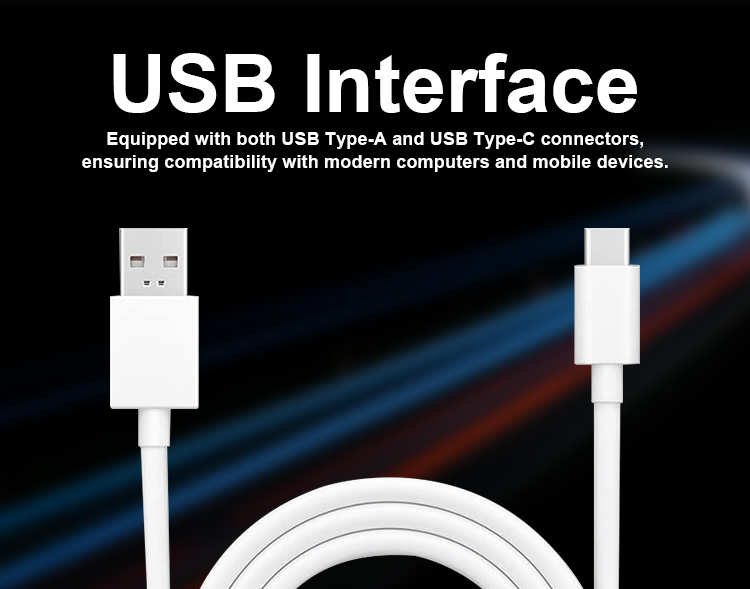

Furthermore, both USB Type-A and Type-C interface options are available, allowing for seamless connectivity and expanding the reader's versatility and convenience

ACR40U(1) ACR40U(2) ACR40U(3) ACR40U(4) ACR40U(8) ACR40U(5) ACR40U(7) ACR40U(6) ACR40U(9)

Features:

ISO 7816 Class A, B and C (5 V, 3 V and 1.8 V);
Microprocessor Card (T=0, T=1);
Memory Card;
MyKad, CAC, J-LIS, SIPRNET Cards;
Supports Firmware Upgrade Supports User Data Storage;
Certified for international regulations:
CE, FCC, UKCA, VCCI, RoHS, REACH, WEEE, UL 62368, IEC/EN 62368, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), KC, J-LIS, TAA, Microsoft® WHQL

Application:

E-Goverment
e-Banking and e-Payment e-Healthcare
Public Key Infrastructure
Network Security Access Control
Loyalty Program

USB CAC Reader Authentication Card Reader Banking Card Reader Online Payment Card Reader Government ID Card Reader Loyalty Card Reader Healthcare Card Reader E-commerce Card Reader Cashless Payment Card Reader Ticketing Card Reader

Related Products

HCCTG ISO14443 Contactless Mifare Card Reader/Writer ACR1281U-C8

VAS WalletMate Mobile Wallet NFC Reader ACR1252U-MW for Android

USB 13.56 MHz ISO 14443 MIFARE NFC Tags Reader for Access Control ACR1552U-M1

Portable USB SIM-size Contact Smart Card Reader ACR40T

PC/SC Compact USB EMV Smart Card Reader ACR39T-A1

Contact Smart Card Interface

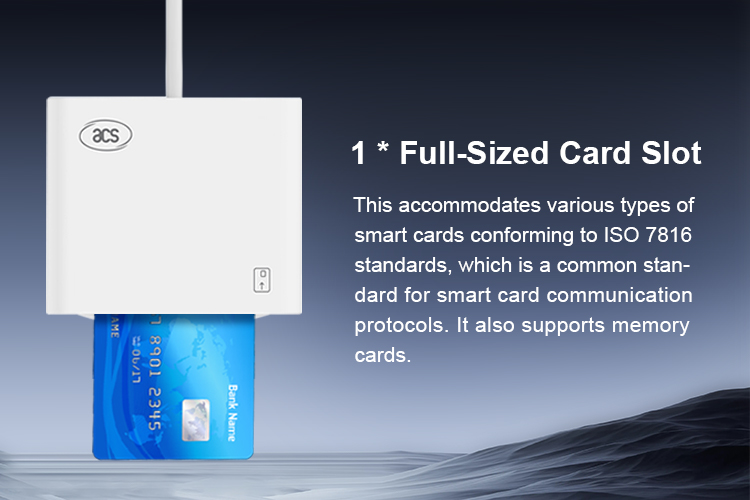

Number of Slot(s)	1 Full-Sized Card Slot
Supported Card Types	ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V), Microprocessor Card (T=0, T=1), Memory Card, MyKad, CAC, J-LIS, SIPRNET Card
Supply Current	Max. 50 mA
Read/Write Speed	9.6-600 Kbps
Clock Frequency	4.80 MHz; Operates Up to 16MHz
Card Connector	Contact
Card Insertion Cycles	Min.200,000
PPS (Protocol and Parameters Selection)	Supported
Short Circuit Protection	Supported
Protocol	USB CCID
Connector Type(s)	Standard Type-A, Type-C
USB Interface	USB 2.0 Full Speed (12Mbps) Compatible with USB 3.0
Supply Voltage	5 V
Cable Length	1m (Fixed)
PC-Linked Mode	PC/SC
Firmware Upgrade	Supported
User Data Storage	Supported (Max 64 bytes)

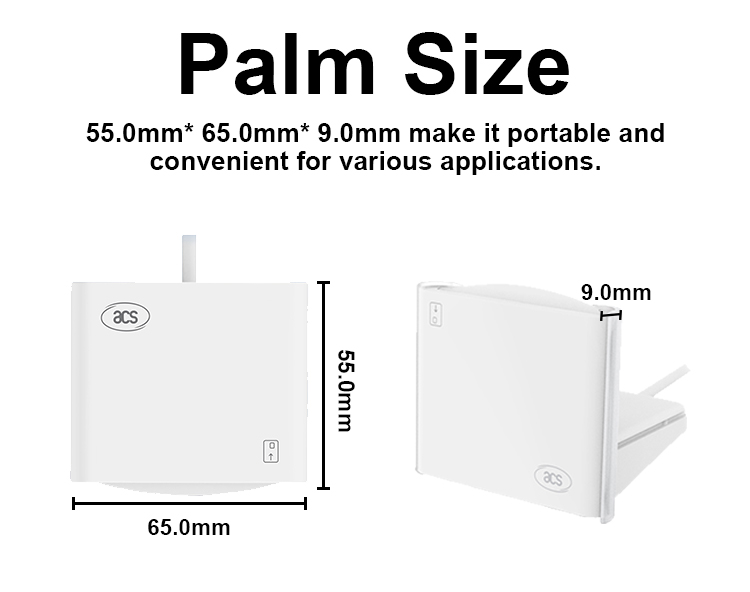

Dimensions	55.0mm(L) × 65.0mm(W) × 9.0mm(H)
Weight	40.0 g ± 5.0 g
Available Colour(s)	White
LED	Blue, Green
Temperature	0 - 65°C
Humidity	95% (Non-Condensing)
MTBF	600,000 Hours
Certifications	CE, FCC, UKCA, VCCI, RoHS, REACH, WEEE, UL 62368, IEC/EN 62368, EMV™ Level 1 (Contact), PBOC Level 1(Contact), KC, J-LIS, TAA, Microsoft® WHQL
Compliances	USB CCID, PC/SC
Supported OS	Windows® , Linux® , macOS, iOS, iPadOS, Android™, Solaris™

Contact Smart Card Interface
Number of Slot(s)	1 Full-Sized Card Slot
Supported Card Types	ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V), Microprocessor Card (T=0, T=1), Memory Card, MyKad, CAC, J-LIS, SIPRNET Card
Supply Current	Max. 50 mA
Read/Write Speed	9.6-600 Kbps
Clock Frequency	4.80 MHz; Operates Up to 16MHz
Card Connector	Contact
Card Insertion Cycles	Min.200,000
PPS (Protocol and Parameters Selection)	Supported
Short Circuit Protection	Supported
Protocol	USB CCID
Connector Type(s)	Standard Type-A, Type-C
USB Interface	USB 2.0 Full Speed (12Mbps) Compatible with USB 3.0
Supply Voltage	5 V
Cable Length	1m (Fixed)
PC-Linked Mode	PC/SC
Firmware Upgrade	Supported
User Data Storage	Supported (Max 64 bytes)
Dimensions	55.0mm(L) × 65.0mm(W) × 9.0mm(H)
Weight	40.0 g ± 5.0 g
Available Colour(s)	White
LED	Blue, Green
Temperature	0 - 65°C
Humidity	95% (Non-Condensing)
MTBF	600,000 Hours
Certifications	CE, FCC, UKCA, VCCI, RoHS, REACH, WEEE, UL 62368, IEC/EN 62368, EMV™ Level 1 (Contact), PBOC Level 1(Contact), KC, J-LIS, TAA, Microsoft® WHQL
Compliances	USB CCID, PC/SC
Supported OS	Windows® , Linux® , macOS, iOS, iPadOS, Android™, Solaris™
