| Operating Frequency: | |
|---|---|
| Anti-Collision: | |
| Protocol: | |
| Quantity: | |
ACR1552U-MW
ACS
The WalletMate Mobile wallet NFC Reader is designed to facilitate mobile NFC applications. Certified by Apple and Google VAS (value-added service) protocols, the WalletMate could bring ultimate cardless user experiences by supporting various virtual passes such as loyalty cards, tickets, and staff / student ID cards on Android platforms. With the VAS protocol, users can enjoy an agile and convenient tap-to-go experience as the host terminal could select a specific wallet pass from the user's mobile through a unique merchant ID.
The WalletMate is developed based on 13.56MHz, it supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and ISO 18092 – compliant NFC tags. It is certified by the NFC forum, making it capable of the three NFC modes, namely: card reader / writer, card emulation and peer-to-peer communication.
Compliant with both CCID and PC/SC, this plug-and-play USB NFC device allows interoperability with different devices and applications. It is thus ideal for integrating into various systems to support both physical smart cards and virtual wallet passes

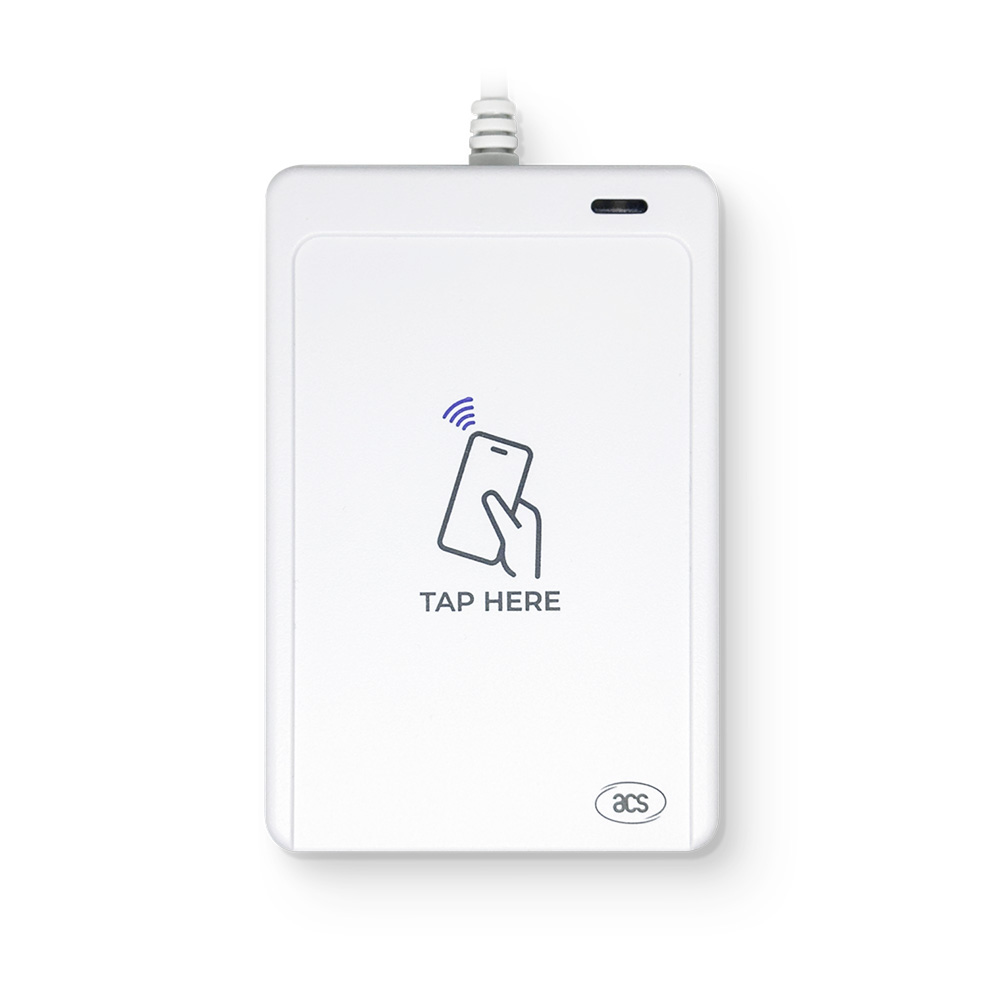

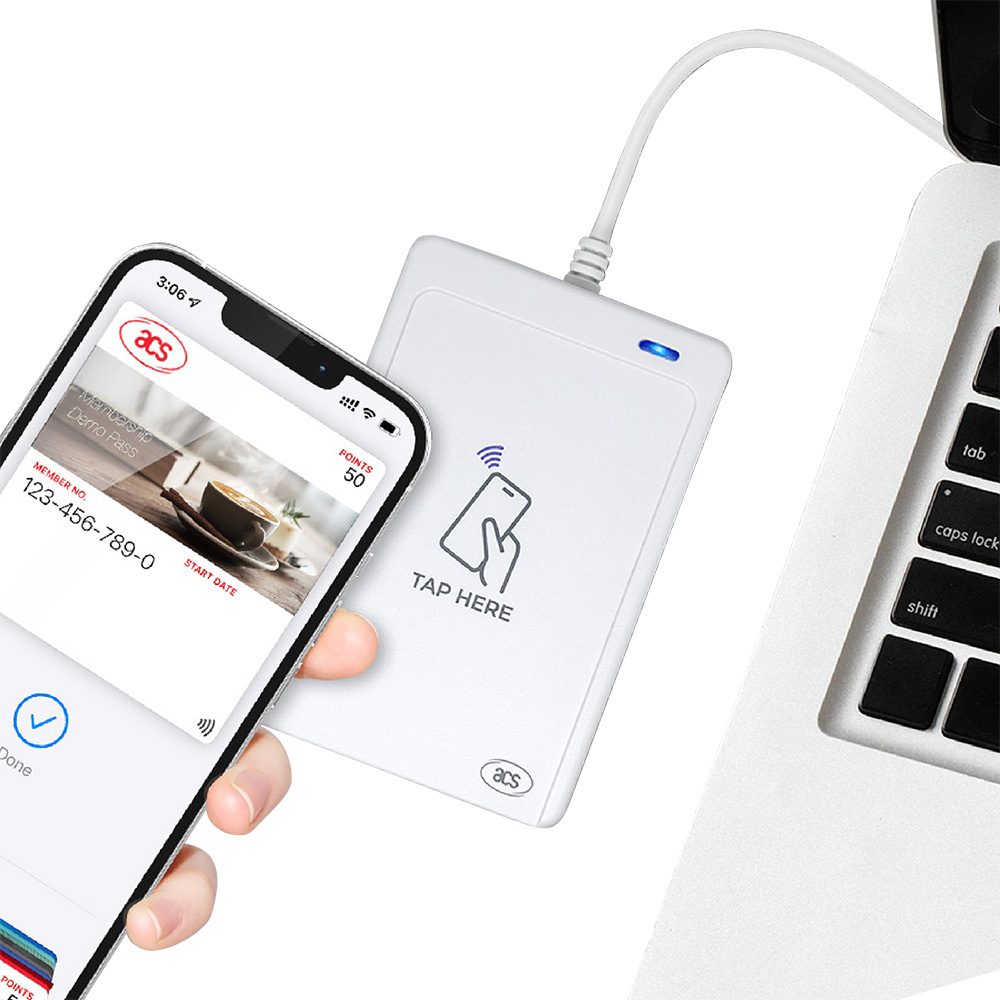

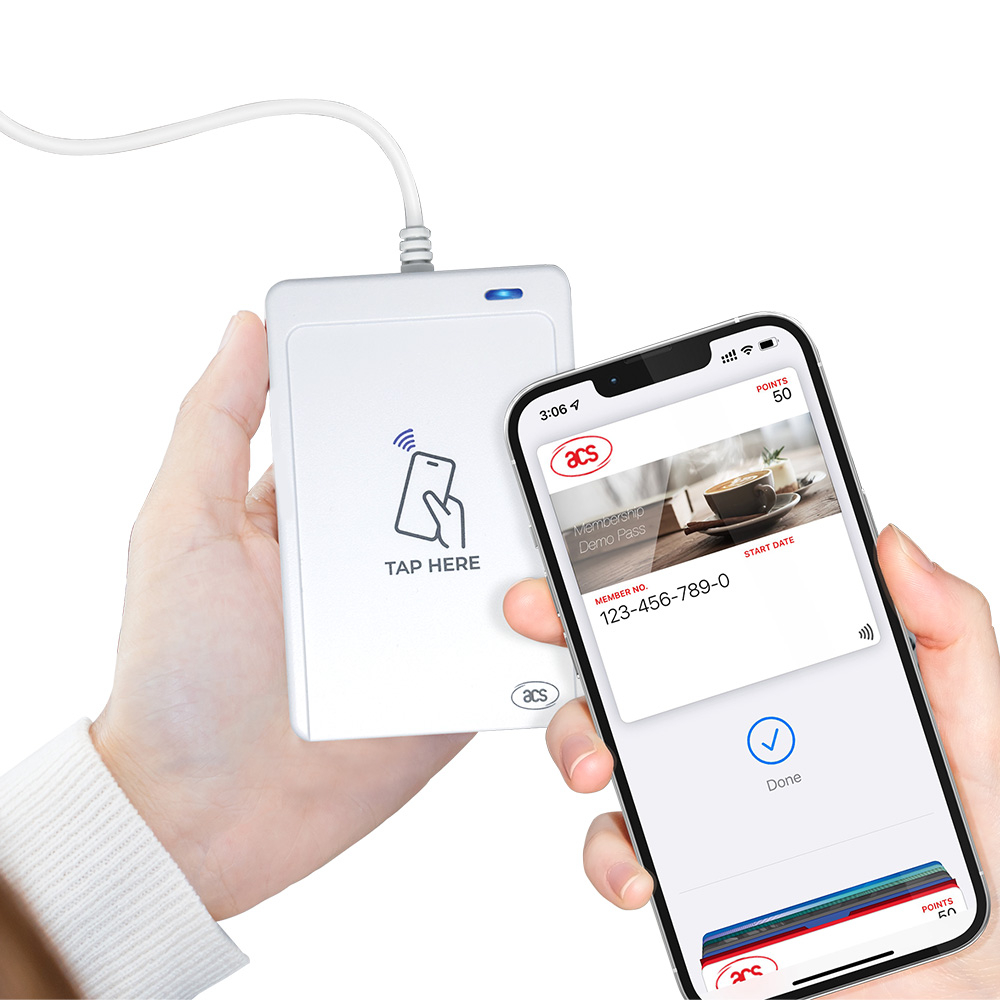

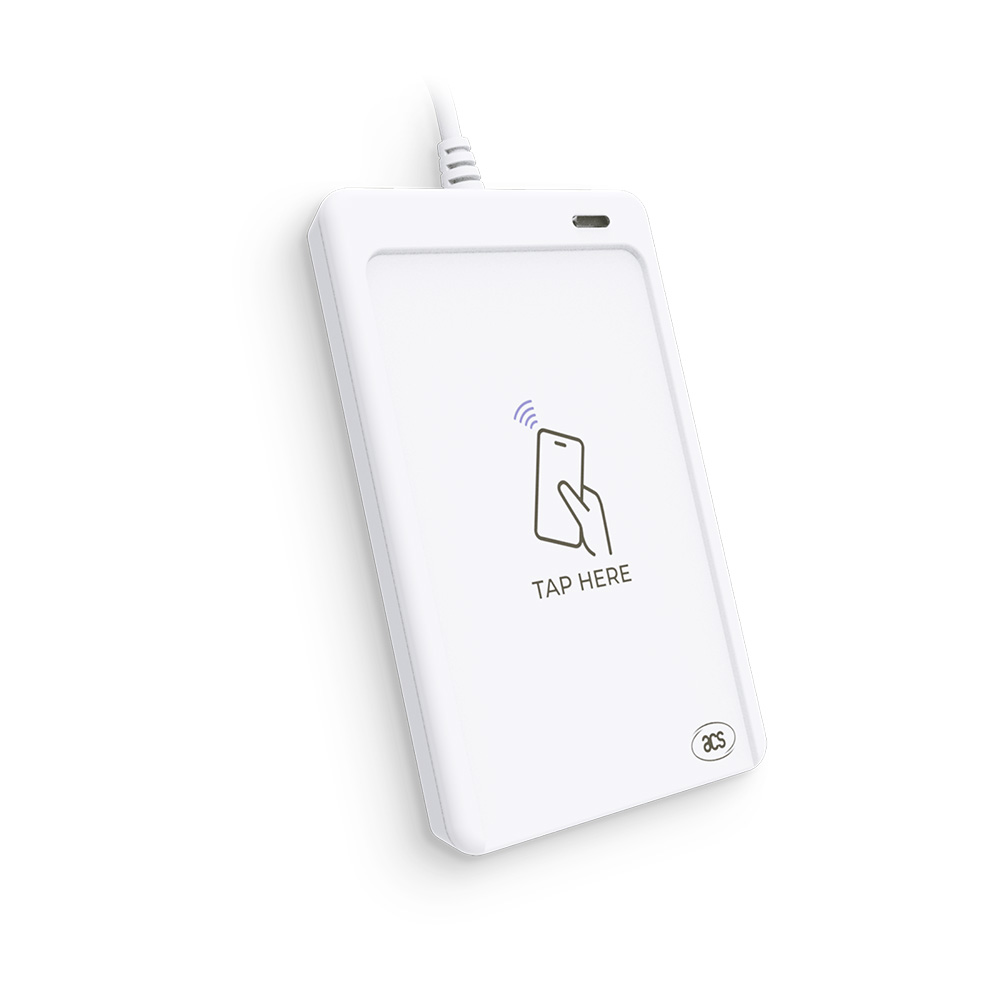

Product Show:
Features:
ISO 14443 Type A & B
ISO 15693
ISO 18092 NFC
MIFARE® (T=CL), FeliCa, NFC Tags
SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
Certified by Apple and Google, work with their respective VAS (Value-added service) protocols
Support ECP1.0 and ECP 2.0
Private Key (LTPK) stored inside secure element for both Apple VAS and Google Smart Tap
Smart Card Reader/Writer, Keyboard Emulation, Card Emulation
Certified for international regulations
Mean time between failures (MTBF) up to 500k Hours
Windows®, Linux®, macOS, Android™
Specifications
| Contactless Smart Card Interface | |
| Supported Card Types | ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC,MIFARE Classic®, MIFARE® DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz |
| Operating Frequency | 13.56 MHz |
| Reading Distance | Up to 70 mm (Depending on tag type) |
| Read/Write Speed | 106/212/424/848 kbps(ISO 14443) 26 kbps(ISO 15693) |
| Anti-Collision | Yes |
| Supported NFC Mode | NFC Reader / Writer, Peer-to-Peer, Card Emulation |
| Host Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-A |
| Speed | USB 2.0 Full Speed (12 Mbps) compatible with USB 3.0 |
| Supply Voltage | 5 V DC |
| Current Consumption | Max. 300mA |
| USB Firmware Upgrade | Supported |
| SAM Card Interface | |
| Standard | 1 * ISO 7816 Class A (5V, 3V) Standard SIM size slot |
| Read/Write Speed | 13.4 kbps – 1,250 kbps |
| Clock Frequency | 5 MHz, up to 10MHz (Upon request) |
| Protocol | T=0, T=1 |
| Physical Characteristics | |
| Dimension (L * W * H) | Main Body: 98 * 65 * 12.8 mm Antenna size: 50 * 40 mm |
| Weight (±5 g) | 86g ± 5 g |
| Available Colour | White |
| USB Cable Length | 1 m |
| Buzzer | 1 * Programmable Buzzer (Mono-tone) |
| LED | 1 * Programmable LED (Blue & Green) |
| Temperature | -20 - 70°C |
| Humidity | Max. 90% (Non-condensing) |
| MTBF | 500,000 Hours |
| Certifications | Apple VAS, Google Smart Tap, NFC Forum Certification Mark, IEC/EN 62368, CE, UKCA, FCC, J-LIS, VCCI, TELEC, KC, BIS, RoHS, REACH, WEEE, Microsoft® WHQL |
| Compliances | USB CCID, PC / SC |
| Supported OS | Windows®, Linux®, macOS, Android™ |
