| Quantity: | |
|---|---|
Product Introduction

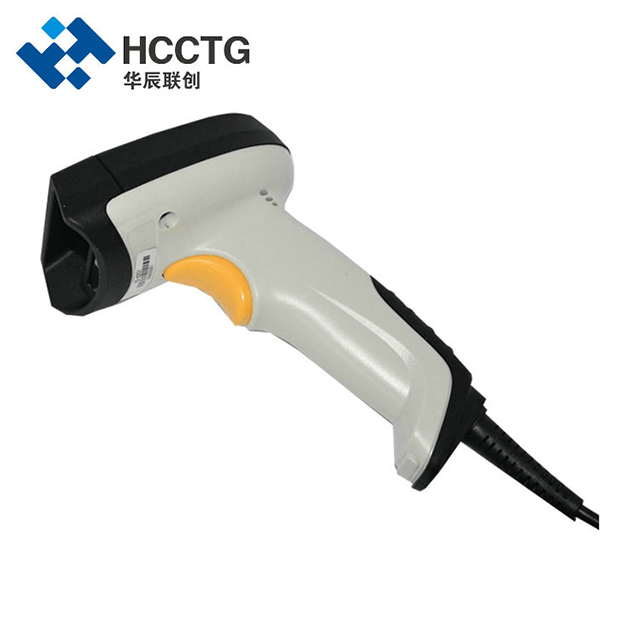

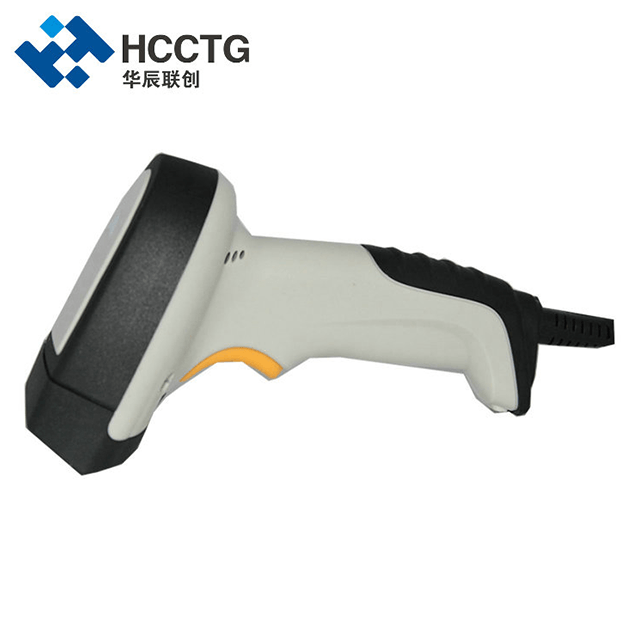

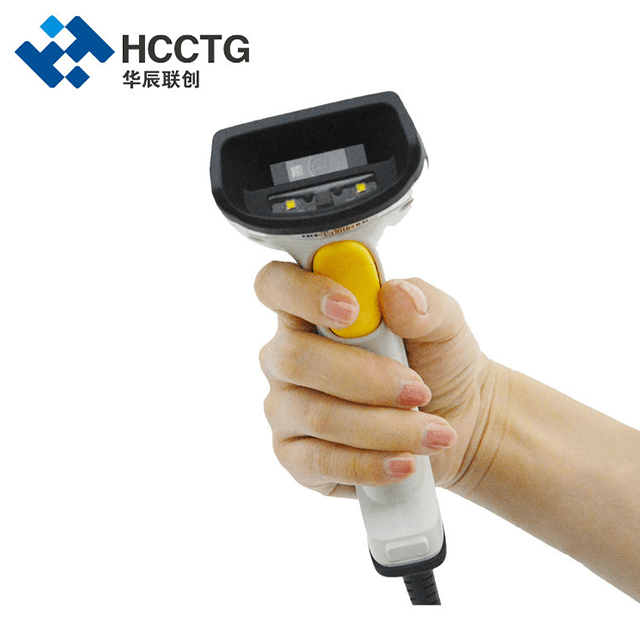

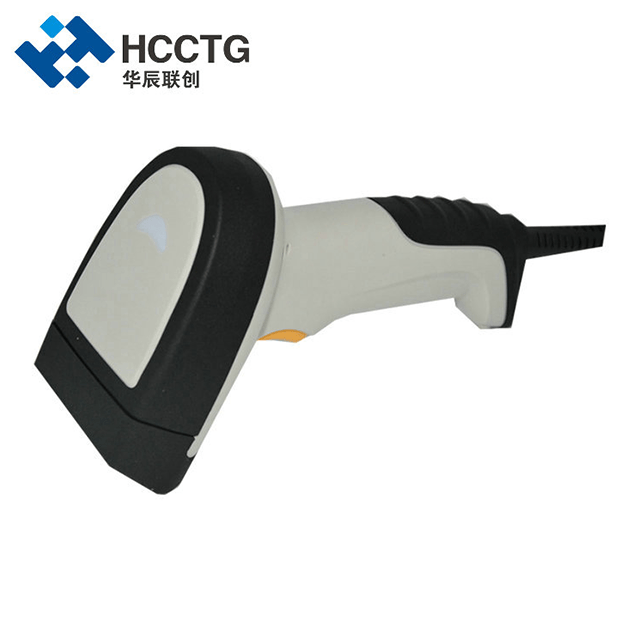

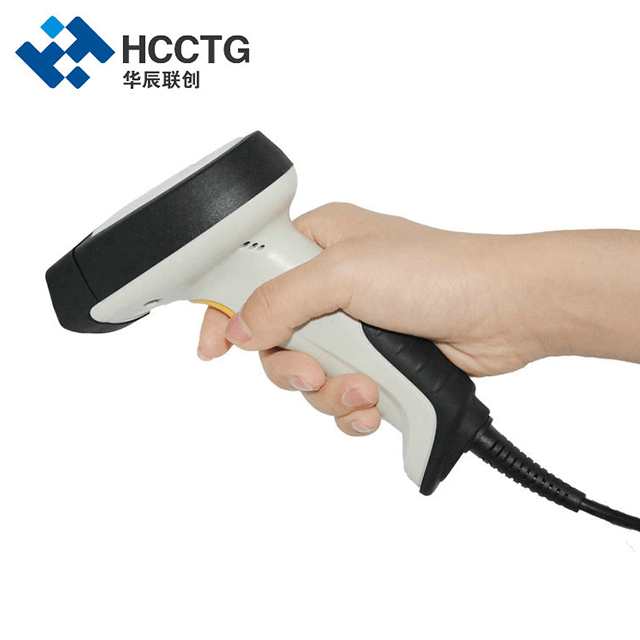

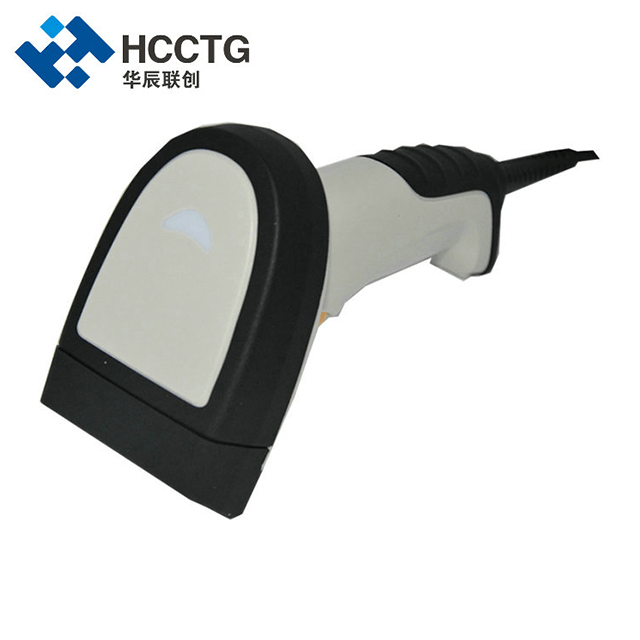

The HS-6203 is built to meet the most demanding scanning requirements, providing consistent scanning performance in a completely dark environment, as well as over an extended temperature range. The HS-6203 is based on solid state technology that meets the most stringent standards for exposure, as well as shock and vibration
Product Advantage
Quickly and accurately identify 1D code and 2D code
Green low power consumption compatible with various types of equipment
Rich application scenarios
Ergonomic design
Comprehensive quick reading ability
Sensing read response fast and sensitive
Humanized Lighting & Focus Design
Reliable and durable structural design
Compatible with multiple systems
Stable, precise, convenient, practical, and efficient
Technical Parameters
Specification
Performance parameter | ||
Image Sensor | CMOS | |
Pixel | 640*480 CMOS | |
illumination | White light led | |
Reading code system | 2D | PDF417, QR Code, Data Matrix |
1D | Code128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, Code 39, Codabar, Code 93, Code 11, MSI-Plessey, GS1-DataBar | |
Reading accuracy | ≥4mil | |
Bar code sensitivity | tilt | ±65°@ 0°Roll and 0° Skew |
Rotate | ±360°@ 0°Pitch and 0° Skew | |
deflection | ±60°@ 0°Roll and 0° Pitch | |
Data interface | Usb hid-kbw interface, usb virtual serial port, usb hid-pos interface, rs-232 interface | |
Field of view | 28° horizontal and 21.5° vertical | |
Typical reading depth of field | Code 39 | |
5mil 6-8cm | ||
15mil 4-15cm | ||
Physical parameter | ||
Size | 166mm(W)×107mm(D)×71mm (H) | |
Weight | 190g (including USB cable) | |
Prompt mode | Buzzer, led indicator | |
Working current | 210mA | |
Stand-by current | 70mA | |
Environmental parameters | Operating temperature | -20℃~+50℃ |
storage temperature | -40℃~+70℃ | |
Relative humidity | 5%~95% (no condensation) | |
Accessories list | USB cable (2m) | Usb hid-kbw interface, usb virtual serial port, usb hid-pos interface |
Product Uses
Retail inventory management: Barcode scanners enable efficient tracking and recording of products, optimizing stock levels and minimizing errors in retail stores.
Logistics and shipping: Barcode scanners streamline package handling, ensuring accurate sorting, and timely delivery of parcels in logistics operations.
Healthcare and medicine: Barcode scanners aid in managing medical supplies, patient identification, and medication administration, enhancing safety and efficiency in healthcare settings.
Product Video
https://www.youtube.com/watch?v=Vo-N5wyOnKw
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
