Quickly and accurately identify 1D code and QR code
| Quantity: | |
|---|---|
HS-2012
HCCTG
Auto scan barcode scanner wired barcode scanner embedded qr code scanner module

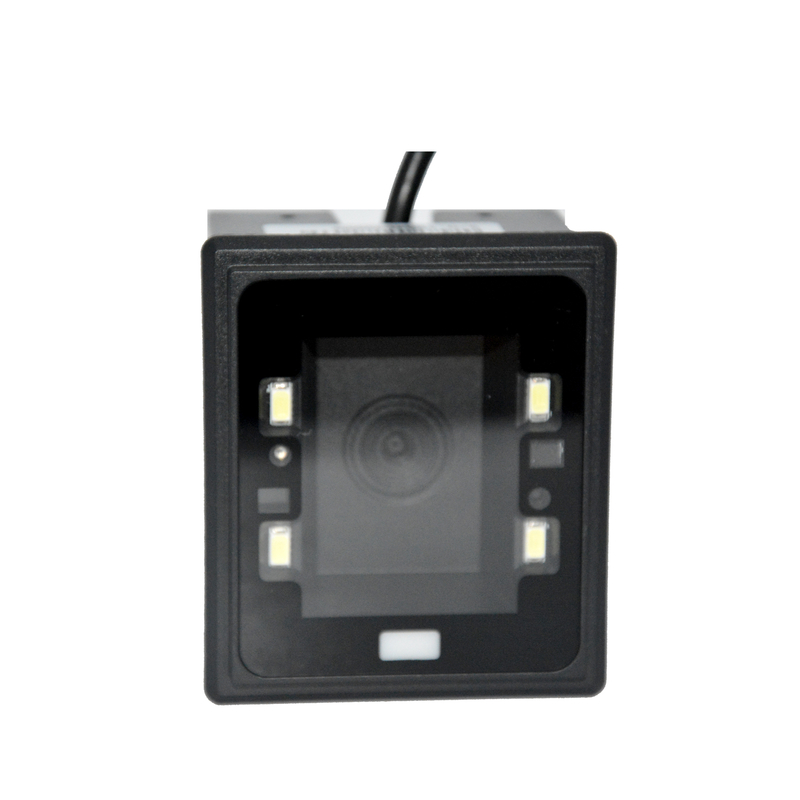

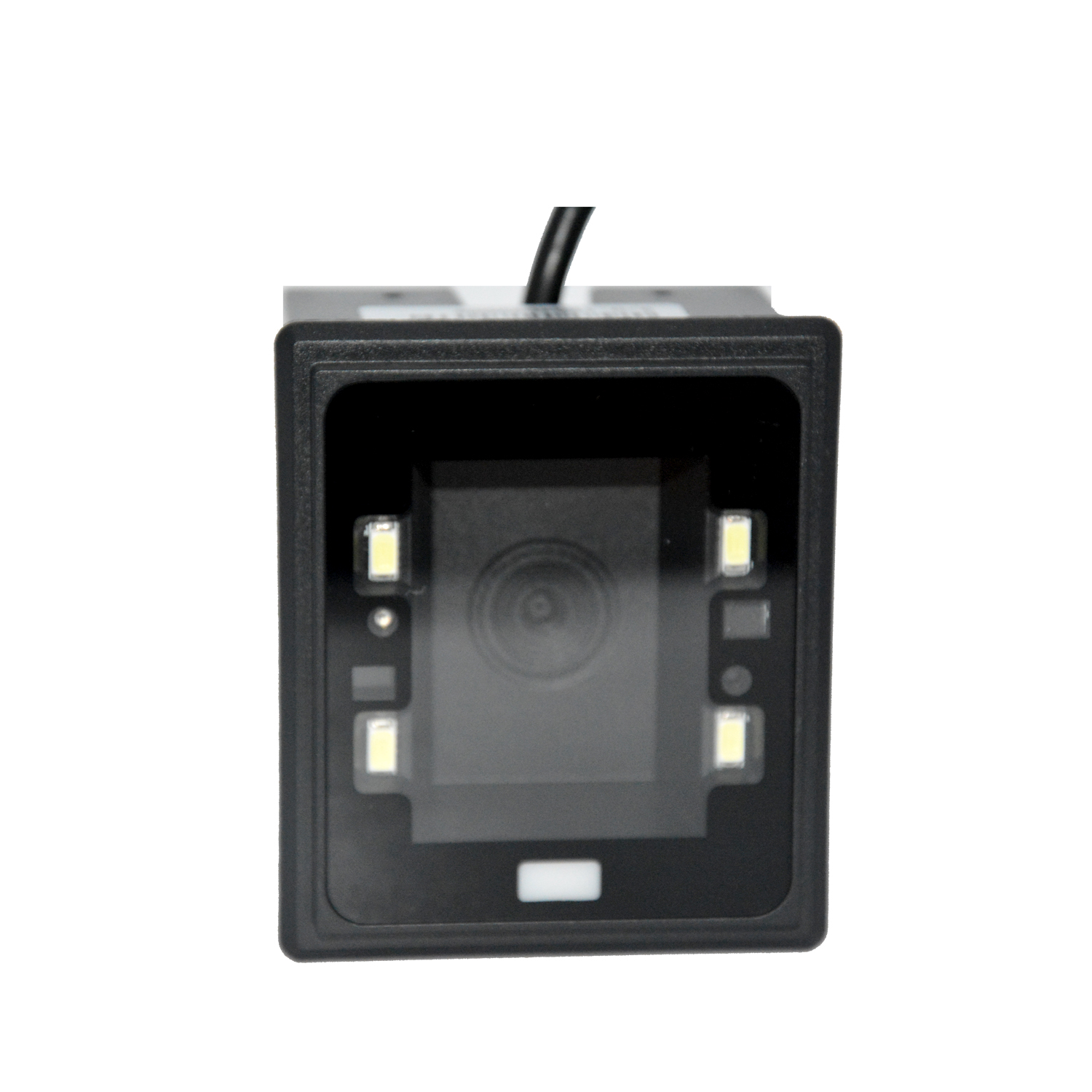

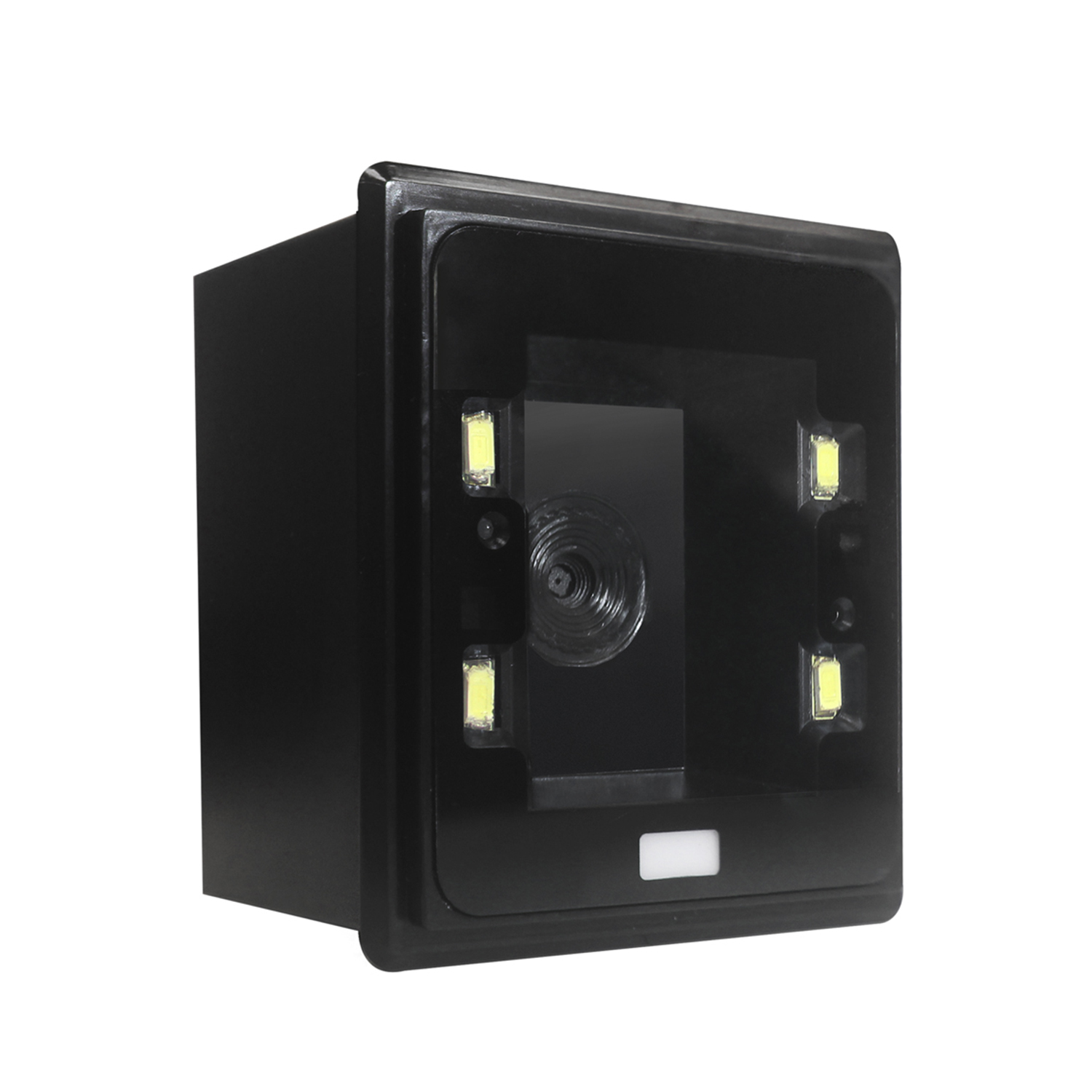

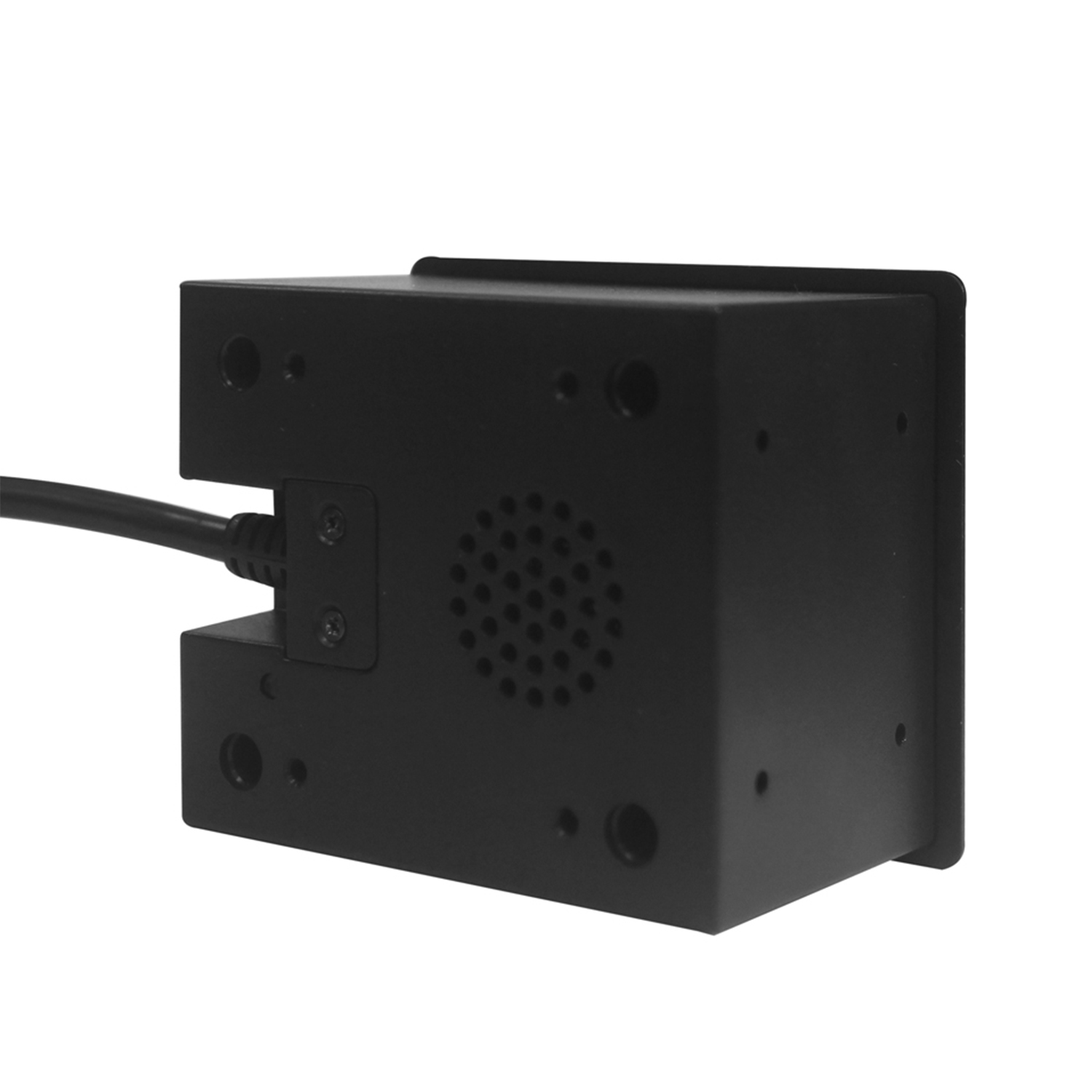

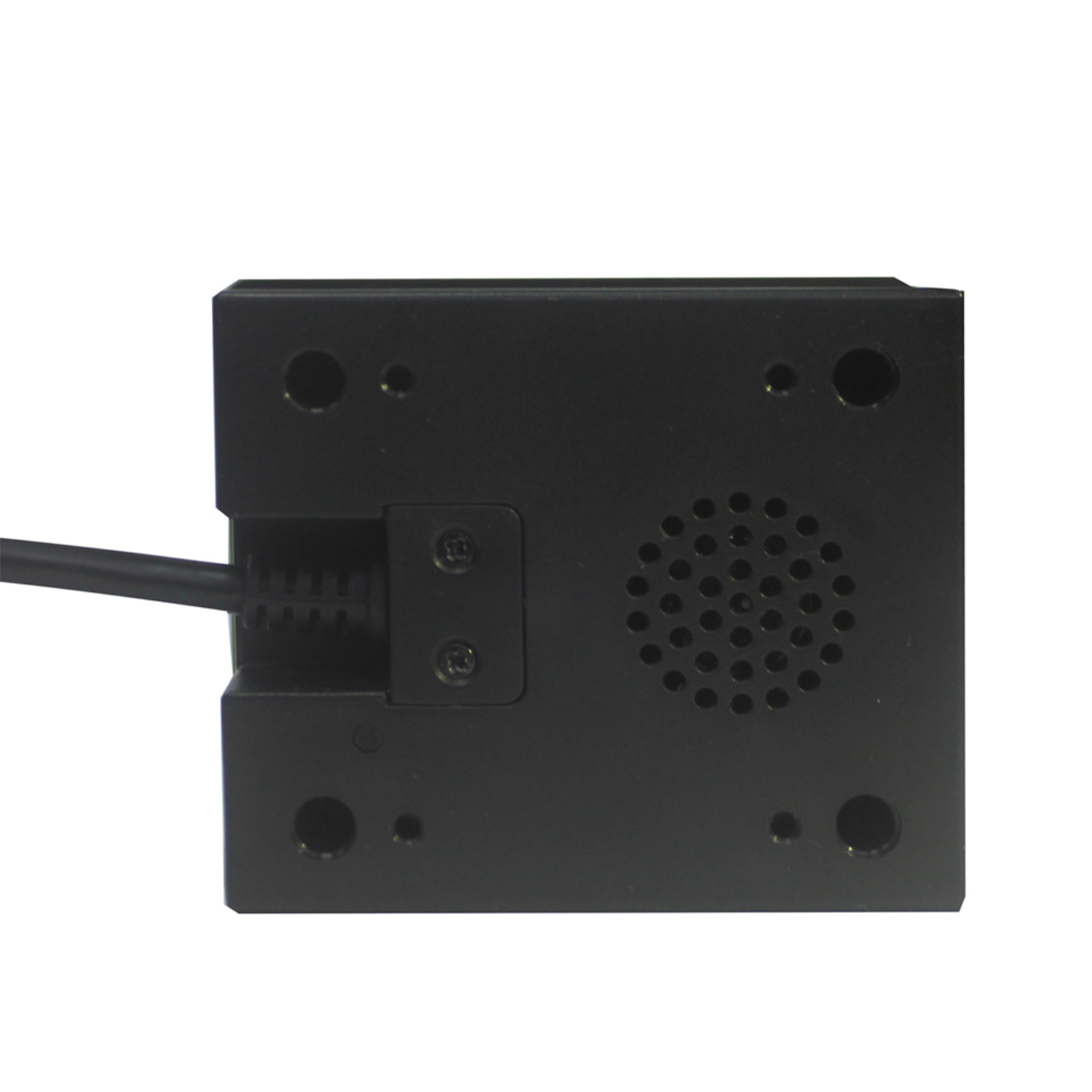

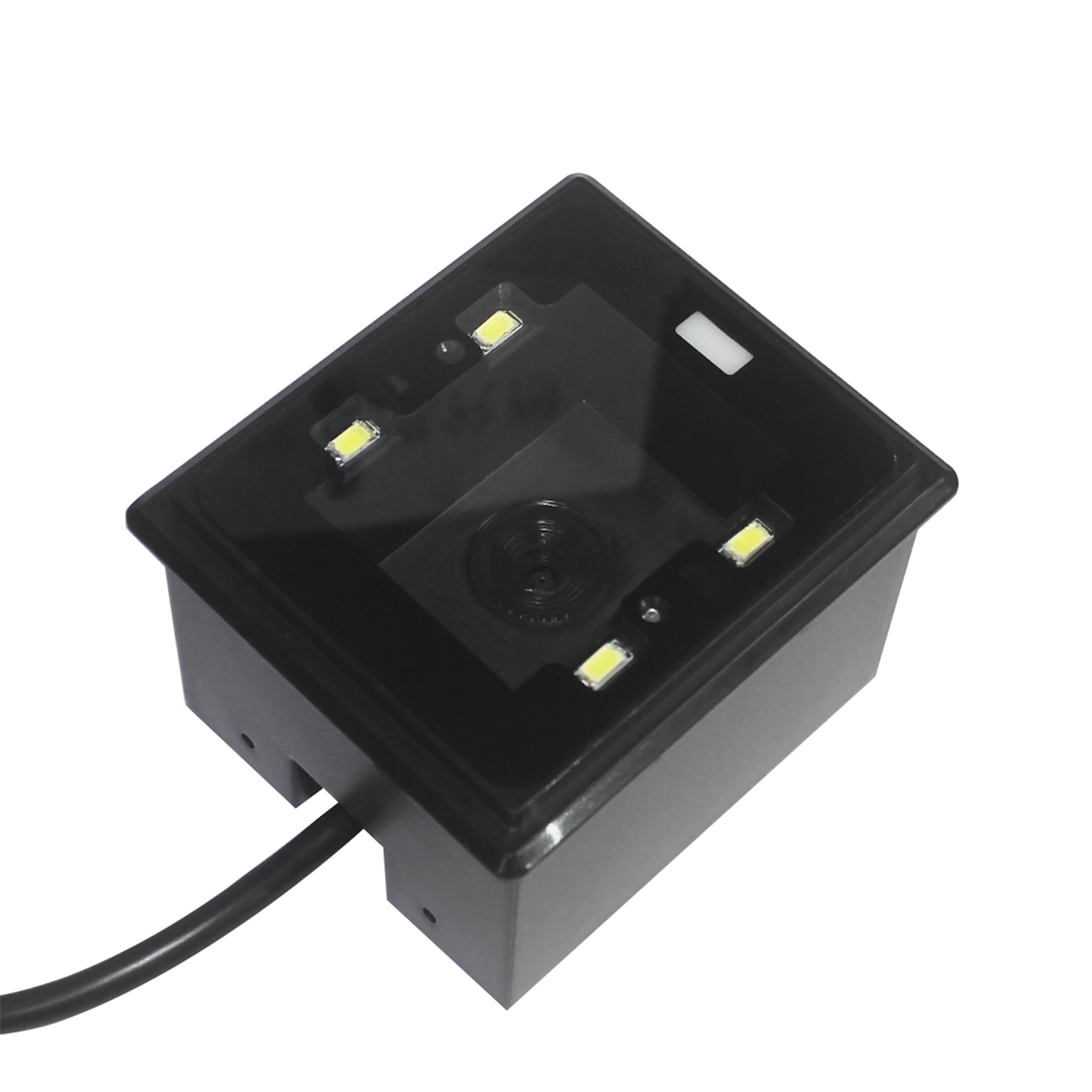

HS-2012 is a high-performance scanning box that can easily read all kinds of 1D barcodes and read 2D QR barcodes at high speed. HS-2012 has a very high scanning rate for linear barcodes. For paper barcodes and barcodes on the display, HS-2012 can also easily scan and handle various scanning applications.
The HS-2012 is built to meet the most demanding scanning requirements, providing consistent scanning performance in a completely dark environment as well as over an extended temperature range. HS-2012 is based on solid state technology that meets the most stringent standards for exposure, as well as shock and vibration.
Quickly and accurately identify 1D code and QR code
Green low power consumption
Rich application scenarios
Ergonomic design
Stable, precise, convenient, practical, and efficient
Compatible with multiple systems
Specification
Performance parameter | |
Image Sensor | CMOS |
Pixel | 648*488 CMOS |
Illumination | White light led |
Reading code system | 2D:PDF417,QR Code,Data Matrix |
1D:Code128,EAN-8,EAN-13,UPC-E,UPC-A,Interleaved 2 of 5, Matrix 2 of 5,Industrial 25,Code 39, Codabar, Code 93, Code 11,MSI-Plessey,GS1-DataBar | |
Reading accuracy | ≥5mil |
Bar code sensitivity | Tilt:±65°@ 0°Roll and 0° Skew |
Rotate:±360°@ 0°Pitch and 0° Skew | |
Deflection:±60°@ 0°Roll and 0° Pitch | |
Data interface | USB HID/KBW interface，USB virtual serial port interface,RS-232 interface |
Field of view | 28° horizontal and 21.5° vertical |
Typical reading depth of field | Code 39 5mil 6-8cm 15mil 4-15cm |
Physical parameter | |
Size (length * width * height) | 78.4*67.2*37.8mm (Figure 1) |
Weight | 181.5g (including USB cable) |
Prompt mode | Buzzer,LED indicator |
Electrical parameters | |
Voltage | Operating 5VDC ± 5% |
Current | Working current 210mA Stand-by current 70mA |
Environmental parameters | |
Operating temperature | -20℃ ~ +50℃ (-4°F~122°F) |
Storage temperature | -40℃ ~ +70℃ (-40°F~176°F) |
Relative humidity | 5%~95% (no condensation) |
Accessories list | |
Data line | Cable (2m) USB(HID-KBW,Virtual serial port) and RS232 interface at optional |
