HS-205M5 can quickly identify all types of 1D codes and QR codes
| Quantity: | |
|---|---|
HS-205M5
HCCTG

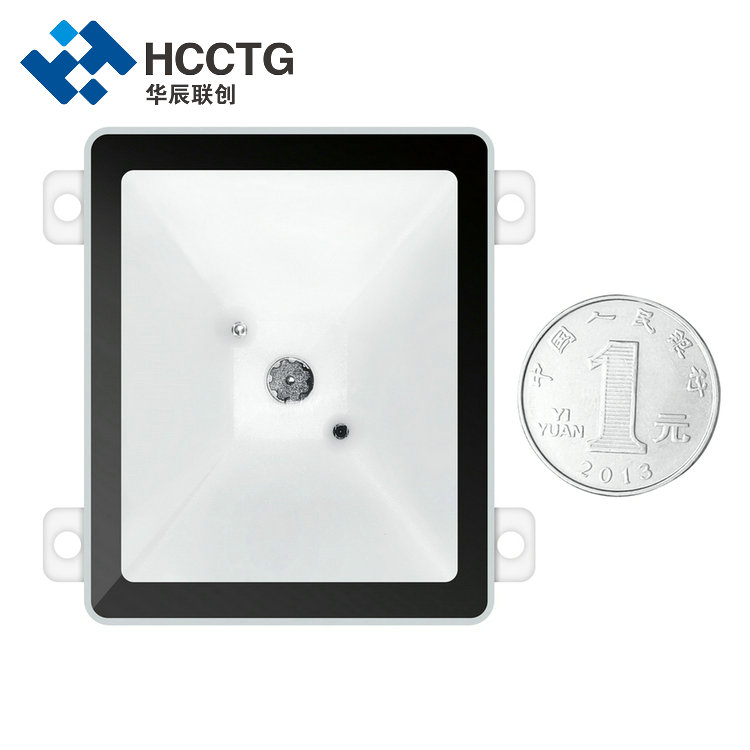

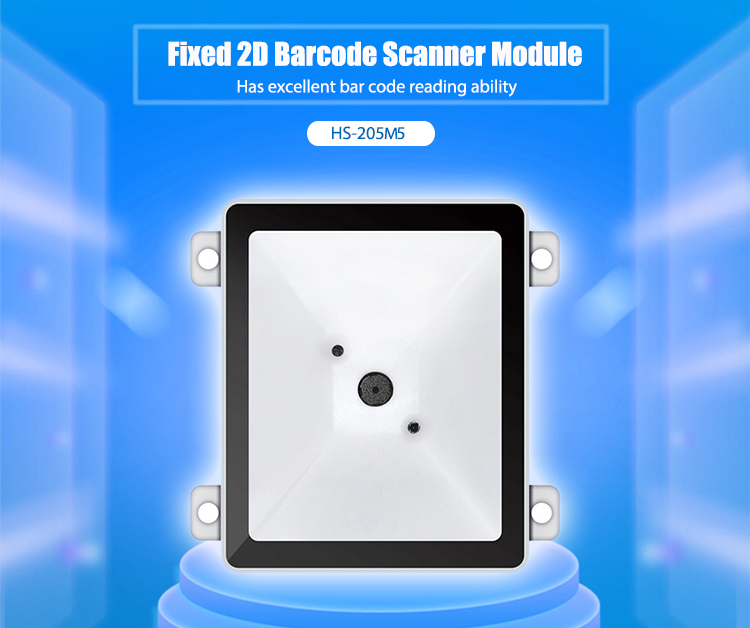

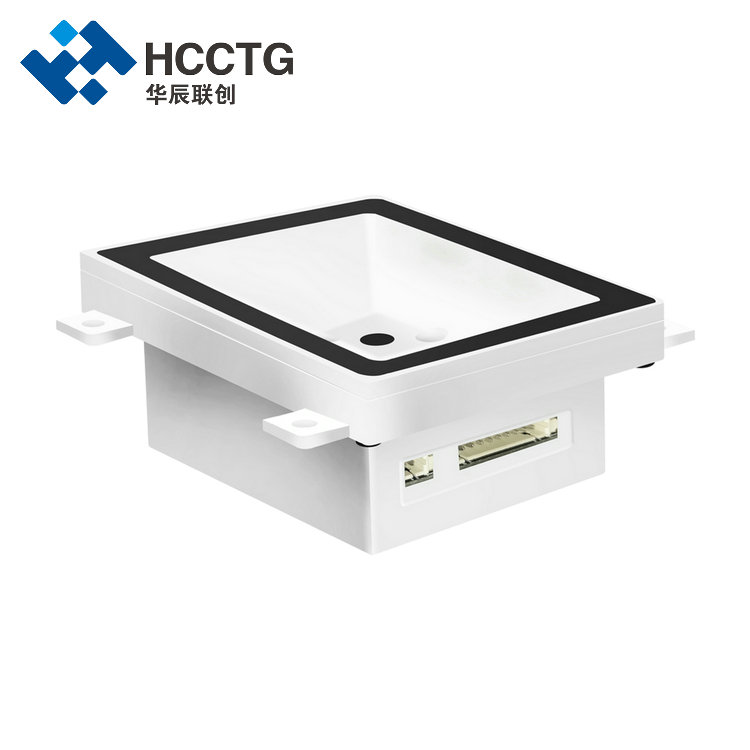

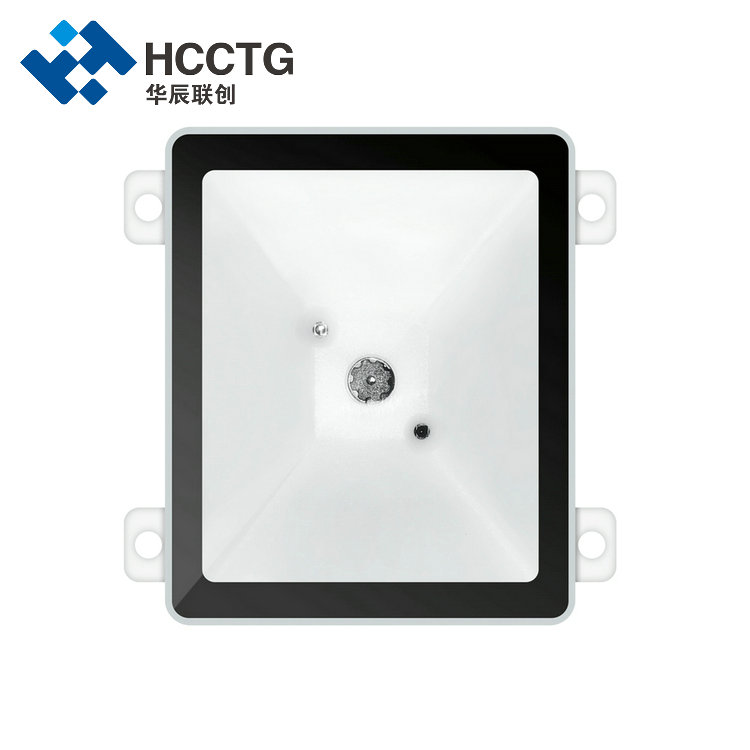

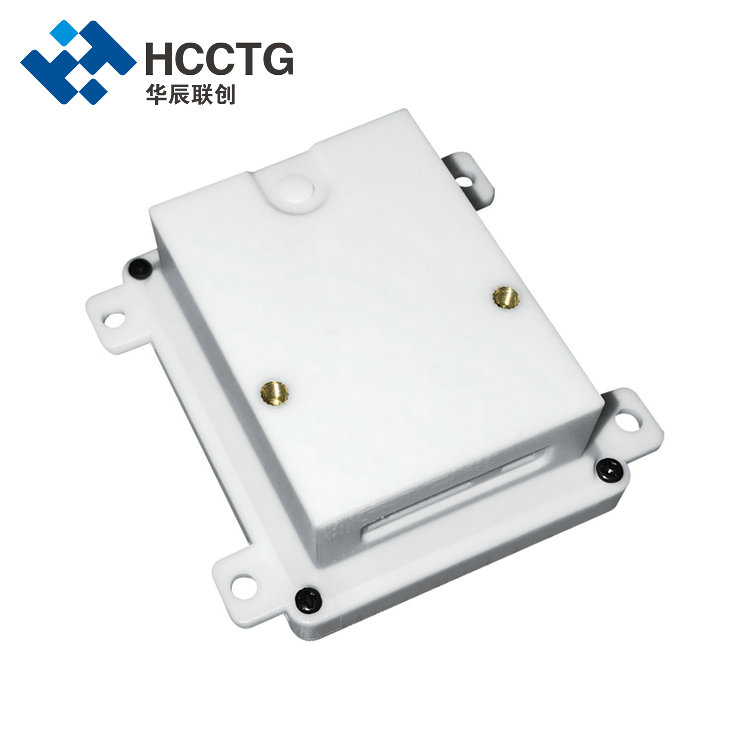

OEM Embedded 2D Barcode Scanner Module For Vending Machine HS-205M5
HS-205M5 uses an intelligent image recognition algorithm to easily decode common 1D and 2D codes and was designed to consume unbelievably low electric power while maintaining their productivity.

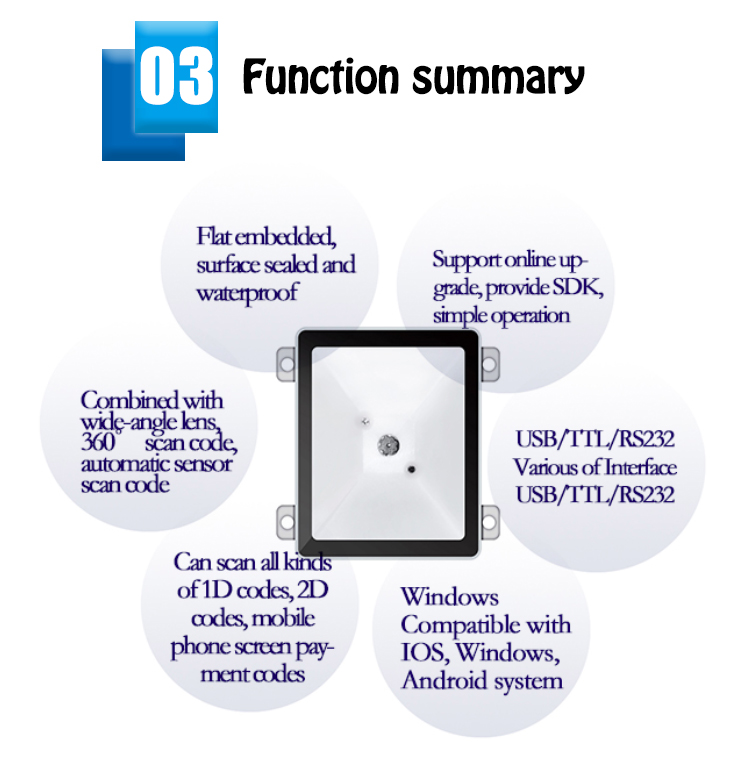

Feature:
Compact and flexible application
Rich application scenarios
Easy secondary development design
Powerful and easy to personalize
Compatible with multiple systems
Specification
Performance parameter | |
Image Sensor | 640*480CMOS |
Ambient light intensity | 0~100000 Lux |
Flashlight | No lighting mode, reading light mode, constant light mode |
Reading code system | 1D:Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISSN,ISBN,UPC-E,UPC-A,Interleaved2of5,ITF-6,ITF-14,Matrix2of5(EuropeanMatrix2of5),Industrial25,Standard25,Code39,Codabar,Code93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited,RSS-Expand |
2D: PDF417,Data Matrix,QR,Micro QR | |
Reading accuracy | ≥5mil |
Typical reading depth of field | QR CODE( 30MIL):0-15CM |
CODE 128 (10MIL):0-12CM | |
Bar code sensitivity | Tilt: ±60°@ 0°Roll and 0° Skew |
Rotate: ±360°@ 0°Pitch and 0° Skew | |
Deflection:±55°@ 0°Roll and 0° Pitch | |
Minimum contrast | ≥30% |

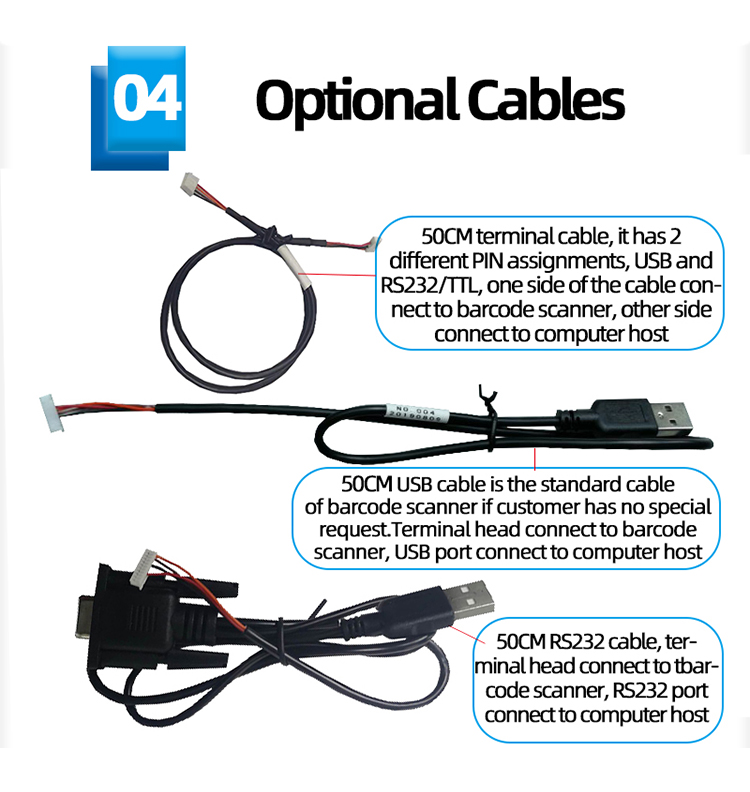

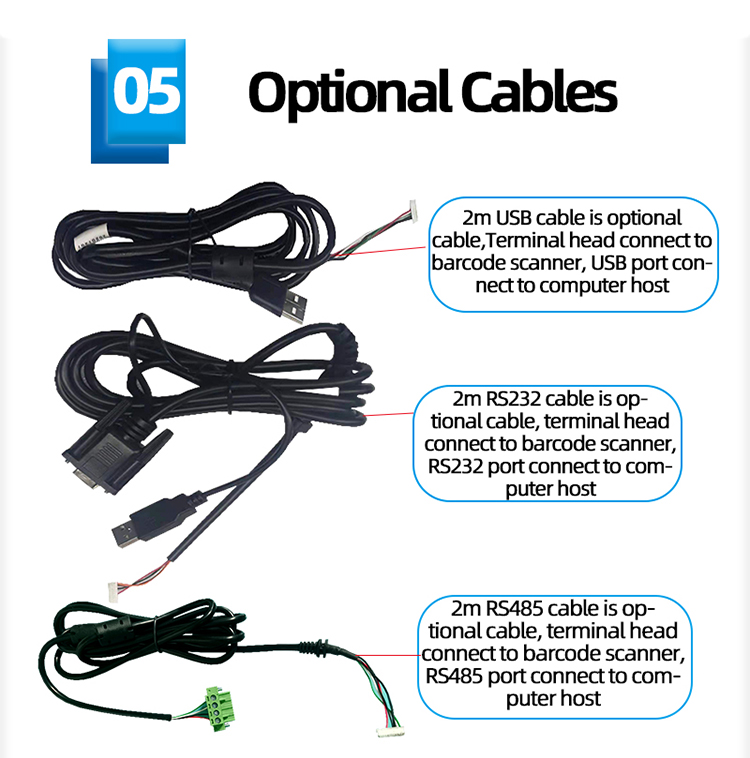

Data interface | Terminals |
Physical parameter | |
Size | 65*61*28.5mm (length * width * height) |
Weight | 38.3g (module host only) |
Prompt mode | Buzzer, led indicator |
Current | Working current:152mA |
stand-by current:62mA | |
Environmental parameters | Operating temperature:-20℃~+50℃ |
storage temperature:-40℃~+70℃ | |
Relative humidity:5%~95% (no condensation) | |
