Product Introduction

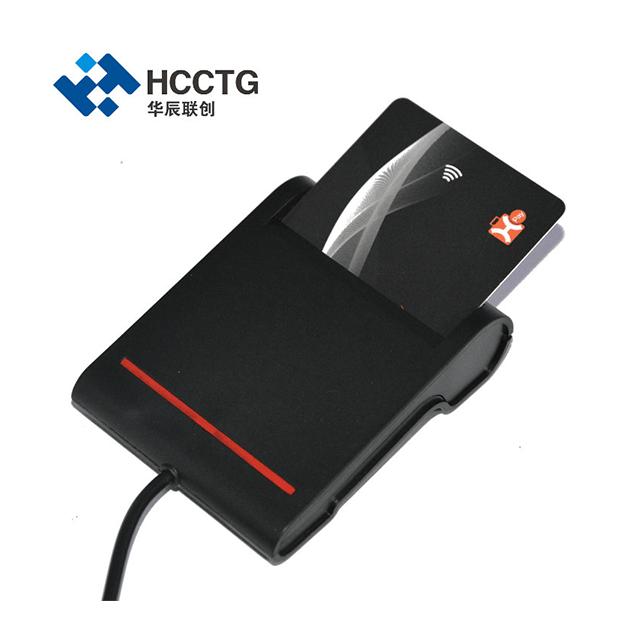

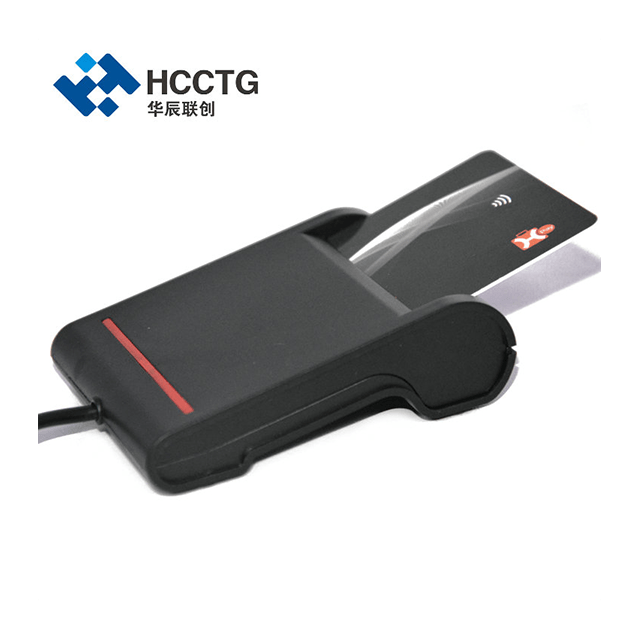

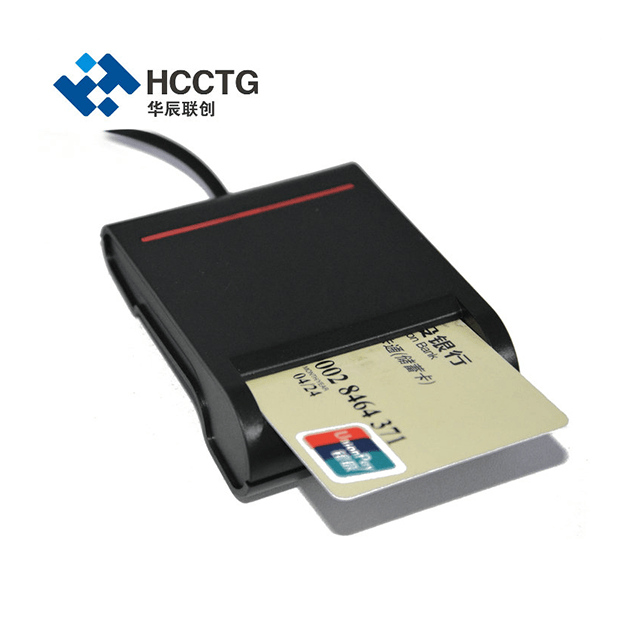

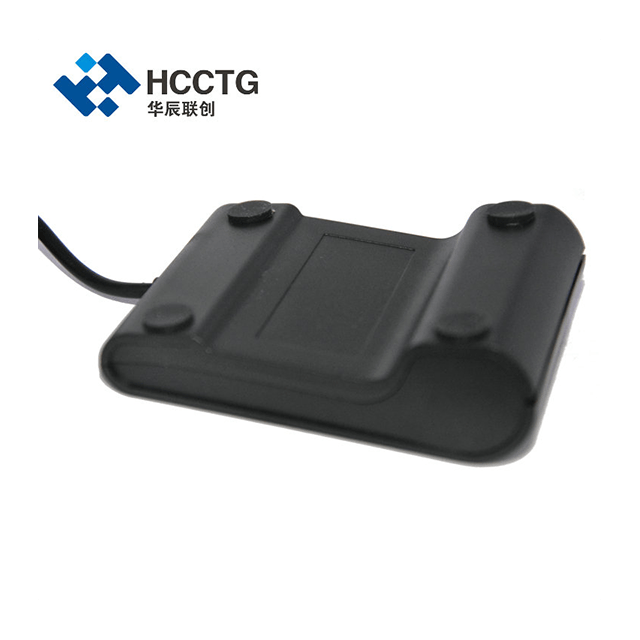

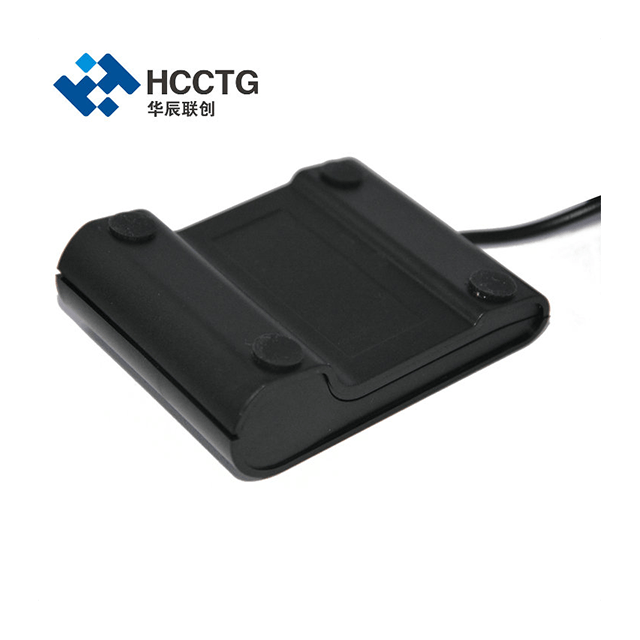

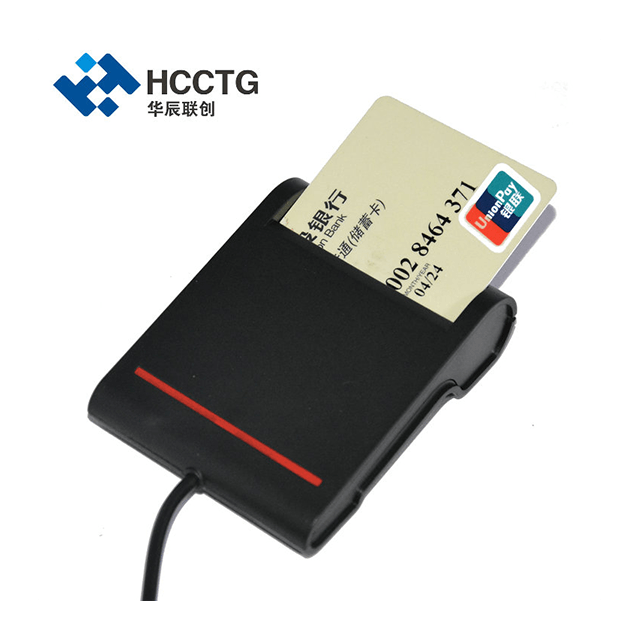

DCR30 card reader supports 5V, 3V and 1.8V Smart Cards, ISO 7816 Class A, B and C, its transmission speed up to 12 Mbps (USB 2.0 full speed), it's widely used in many areas, such as personal identification, financial transactions, access control, authentication, loyalty, etc.
Product Advantage
Secure and Versatile Smart Card Reading: The EMV L1 USB ISO7816 Contact Smart Card Reader DCR30 ensures secure and reliable smart card reading, complying with ISO7816 standards. It supports various contact smart cards, enabling flexible usage across multiple applications.
High-Speed Data Transmission: With its EMV Level 1 certification, the DCR30 facilitates high-speed data transmission, ensuring swift and efficient card processing. This feature is crucial for time-sensitive operations, such as banking, authentication, and identification processes.
Plug-and-Play Convenience: The DCR30 is designed with plug-and-play functionality, allowing seamless integration with various systems and devices. It eliminates the need for complex installations and configuration, making it user-friendly and suitable for both personal and professional applications.
Technical Parameters
Specification
Host Interface | USB 2.0 CCID (also compliant with USB 1.1) |
Transmission Speed | 12 Mbps (USB 2.0 full speed) |
Power Supply | Bus powered |
Standards | ISO 7816 T=0, T=1 |
Protocols | 2-wire: SLE 4432/42 (S=10), |
AT88sc1608/ 153, AT24c128/ 256 | |
ST: M14C16, M14C04 | |
Card Size | ID-1 (full-size) |
Smart Card Interface Speed | 420 Kbps (when supported by card) |
Smart Card clock frequency | Up to 5 MHZ |
Supported card types | 5V, 3V and 1.8V Smart Cards |
Iternal Memory | 1MB |
Power to Smart Card | 60 mA |
Status Indicator | YES |
Customer specific logo or label | On request |
Customer specific colors | On request |
PC/SC Driver Support | Windows® 98 / ME, 200 / XP (32bit), 2003 Server Windows® CE 5.0 (depending on hardware) Windows® Vista (32bit / 64bit) Windows® 7/ 8/10/ Mac OS Linux® (need Micro USB to USB Adapter) Android |
Operating temperature | 0º-55ºC / 32-131ºF |
Operating humidity | 10-90% rH |
Composition | ABS |
Connector cable | 100 cm / 70.9" |
Durability | 100.000 insertions |
Meantime between failure (MTBF) | 500.000 hours |
Item Dimension(L*W*H) | 85mm*65mm*9.5mm |
Certification | CE/ FCC/ RoHS/EMV L1 certificate and reach standard |
Product Uses
Access control systems: Smart card readers are utilized in secure access control setups for buildings, offices, and restricted areas, enabling authorized personnel to enter using their smart cards.
Public transportation: Smart card readers facilitate seamless payment and ticketing systems for buses, trains, and subways, enhancing efficiency and reducing cash transactions.
E-commerce and online banking: Smart card readers enable secure online transactions by authenticating users during digital payments and internet banking activities.
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
