POS80B
HCCTG
Product Introduction

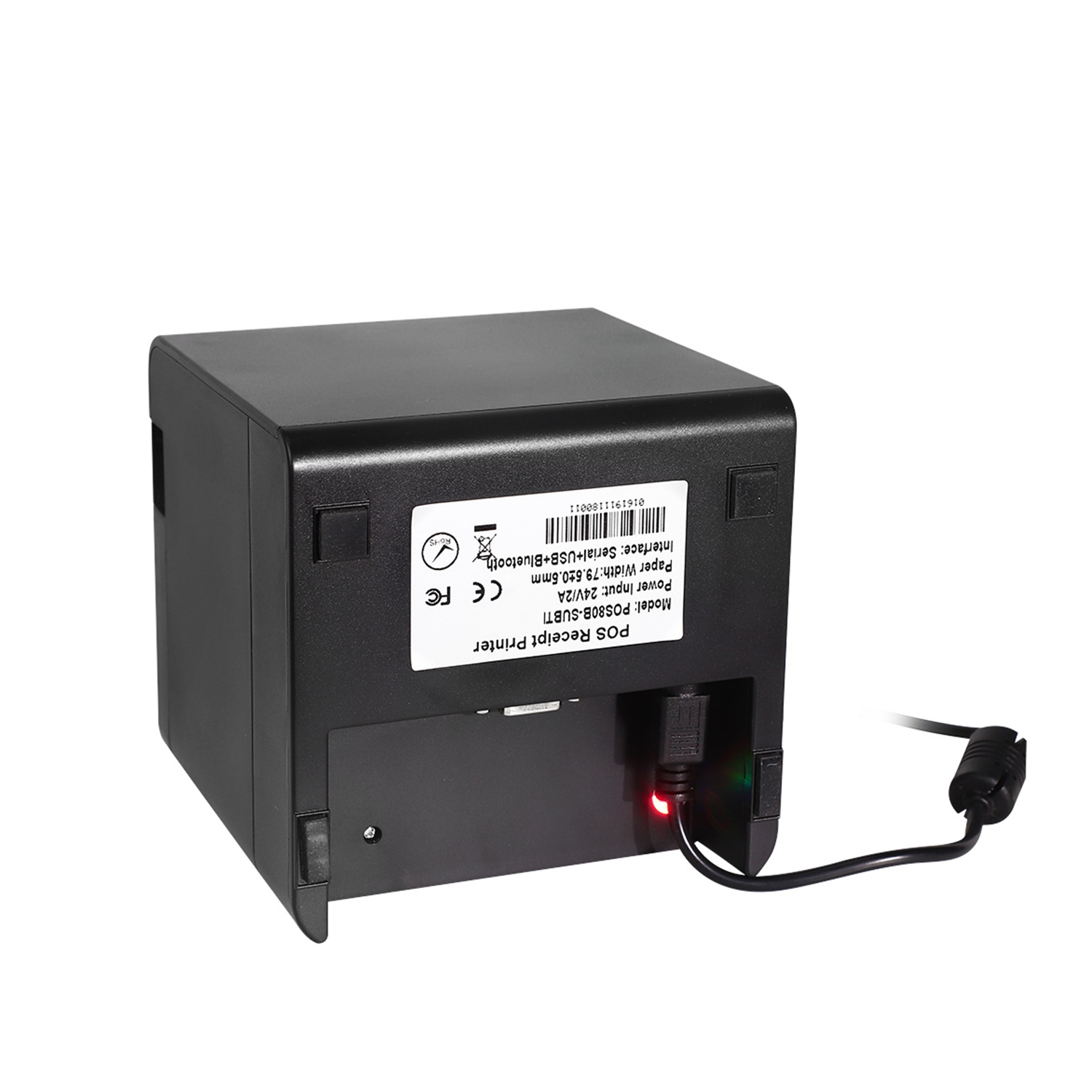

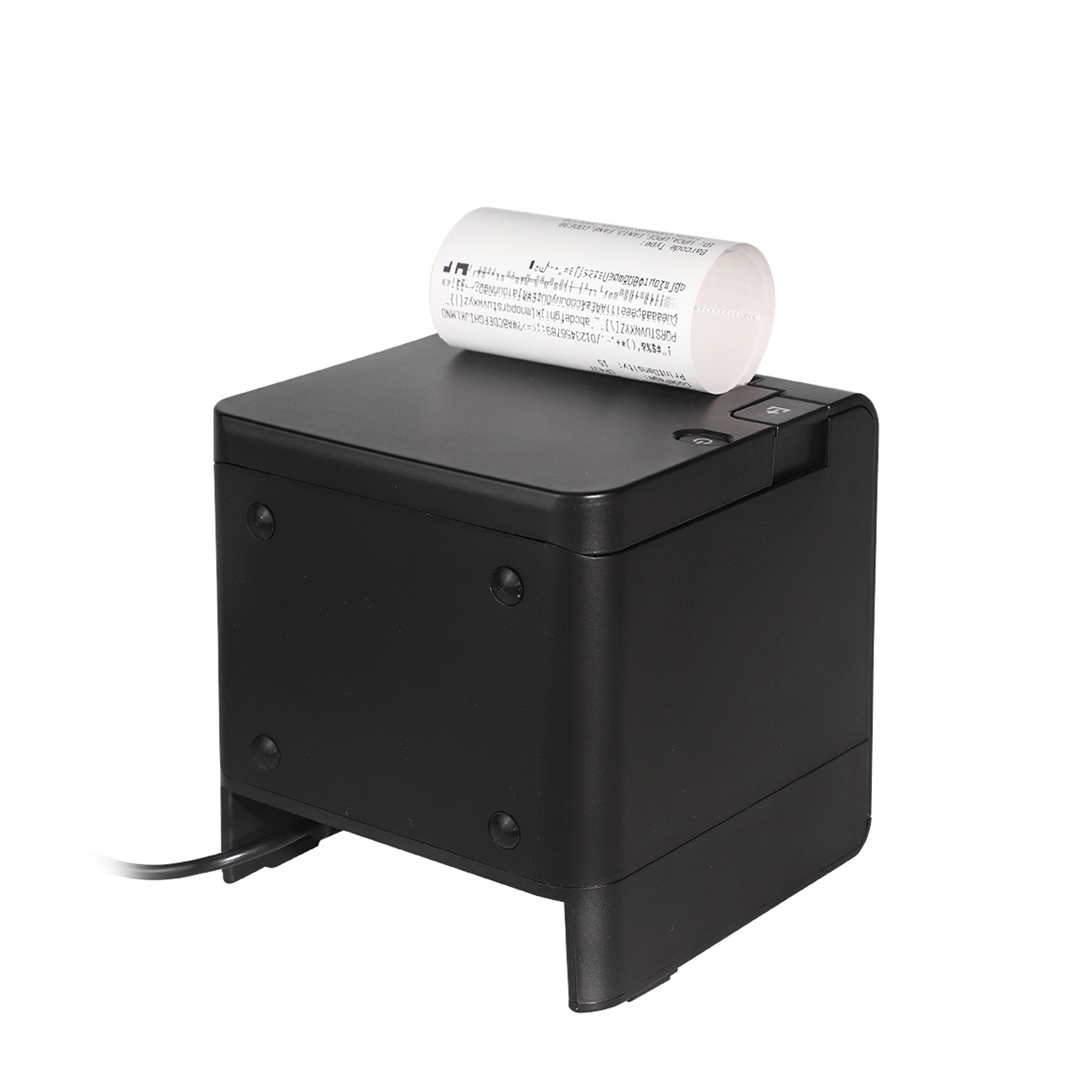

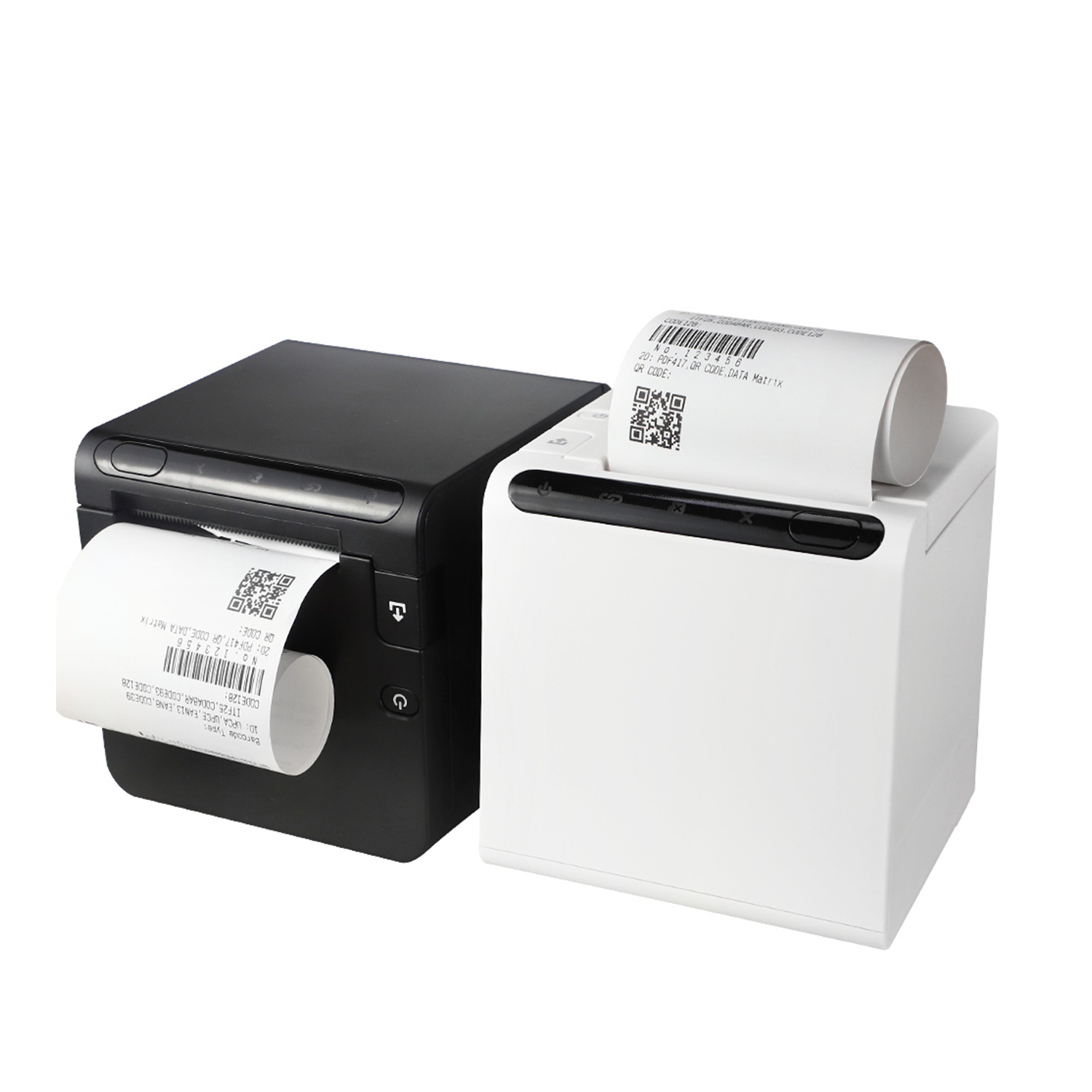

The HCC-POS80B POS receipt printer has a Built-in USB, Ethernet Connections, includes anAuto-Cutterand comes in Black. Besides, it is a direct thermal receipt printer. This simplified mPOS solution is designed for quick, easy printing of receipts, labels, and other roll paper media at your point-of-sale (POS) counters.
Product Advantage
1. Extremely compact and smart design;
2. Flexible placement, front and upside paper exit;
3. Innovative structure to ensure cutter jam free;
4. Easy paper loading, Easy operation and maintenance;
5. High speed at 250/300mm/s;
6. Printing space saving to reduce paper cost;
7. Support 58/80mm paper width;
8. LED directly shows printer status;
9. Various interfaces USB/Serial/Ethernet/Bluetooth/wifi/Cloud for option;
10. Support various Windows OS, Linux and OPOS driver;
11. Compatible with ESC/POS command
12. Support Windows/Android/IOS DEMO&SDK
13. Support Cloud Printing
Technical Parameters
Print Method | Direct thermal line |
Print Speed | 250MM/S(default) 300MM/S(max.) |
Effective Print Width | 72mm |
Font | Dot Density: 576 dot/ line(max.) |
Character Size ANK Character Font A: 12*24, Font B: 9*17, 24*24 | |
1D:UPCA/UPCE/JAN13(EAN13)/JAN8(EAN8/CODE39/ITF/CODABAR/CODE93/CODE128 | |
2D:QR Code, PDF417 | |
Print Paper | Paper Type: Thermal paper Paper Width: 57.5±0.5mm/79.5±0.5mm Outer Diameter: 83mm(max.) Paper Thickness: 0.06~0.08mm Loading Method: Drop-in easy paper loading |
Reliability | Print Head: 100km Auto Cutter: 1,500,000 times |
Print Command | Compatible with ESC/POS |
Driver | Win9X/Win ME/Win2000/Win NT/Win XP/Win Vista/Win7/Linux/OPOS/Android/IOS |
Interface | Serial+USB/Serial+USB+Ethernet/Serial+USB+Bluetooth/Serial+USB+WiFi/Serial+USB+WiFi+Bluetooth/Serial+USB+LAN+Cloud/Serial+USB+WIFI+Cloud/Serial+USB+LAN+WIFI+Cloud |
Power Adaptor | DC 24V/2A |
Cash Drawer Power | DC 24V/2A |
Auto Cutter | Full or Partial Cut |
Physical parameters | Net Weight: 1.2kg (without paper roll) Dimension: 127*127*129mm Color: Black/white |
Operating Temp | 0~50°C |
Storage Temp | -20-60℃ |
Operating Humidity | 10~80% |
Storage Humidity | 10%-90% (No condensation) |
Product Uses
Retail Point of Sale (POS) systems: Thermal receipt printers are commonly used in retail stores to print customer receipts quickly and efficiently.
Restaurants and Hospitality: They facilitate smooth transactions and order processing in restaurants, cafes, and hotels, improving customer service.
Ticketing and Event Management: Thermal printers are employed in ticketing systems for events, concerts, and public transportation to issue tickets swiftly.
