Product Introduction

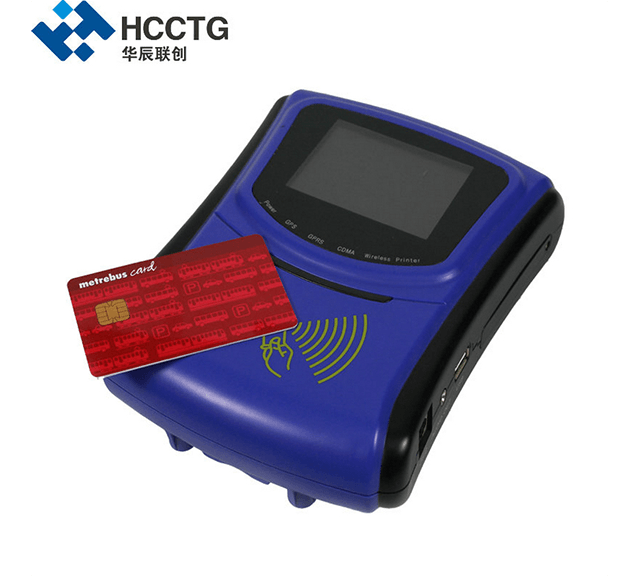

HCL1306 is made of industrial grade material, fully adapt to special circumstances on bus sealed, dust proof, waterproof, shockproof and anti-electromagnetic interference, besides, it's dedicated built-in voltage regulator module, voltage overload protection.
Product Advantage
WIFI Communication + USB data acquisition, support remote upgrading
Contactless smart card, read/write capability, light display for reading card
Live voice prompts, supports 15 kinds of voice prompts: such as “student card”, “employee card”
Support Mifare1 card, CPU card, support PBOC3.0 bank standards
With Thermal printing module, can connect to POS58 slip printer
Optional GPS positioning module, for global positioning satellite positioning;
Great stability of data storage, data kept as long as 10 years even after power outage
Card Capacity: 91,880,000pcs;
Can check the nearest 20 records, to prevent ticket payment dispute.
Technical Parameters
Specifications
Model | HCL1306 bus POS terminal |
Dimension | 200*151*61.5mm |
Material | Engineer in Plastics,Anti static electricity coating design, be protected form high-frequency interference |
Display | 3.5 inch LCD display,320x240 |
Operating system | Linux 2.6 system |
CPU | N32905 processor, ARM9 core @ 240MHZ |
Memory | 32MBytes SDRAM, 128MB NAND Flash |
Data capacity | 259840pcs of detailed data for console storage, unlimited data at GPRS storage |
Card capacity | 91,880,000pcs |
Black list | 91,880,000pcs (download thru PC with USB) |
Working Voltage | DC 8V-50V |
Operating temperature | -25℃~65℃ |
Storage temperature | -40℃~85℃ |
Humidity | 0-90% RH non condensing |
Lighting | Red, Green light |
Sound prompt | Buzzer, single channel speaker (voice report) |
Voice report prompt | 16KHz,16bit single channel voice report prompt |

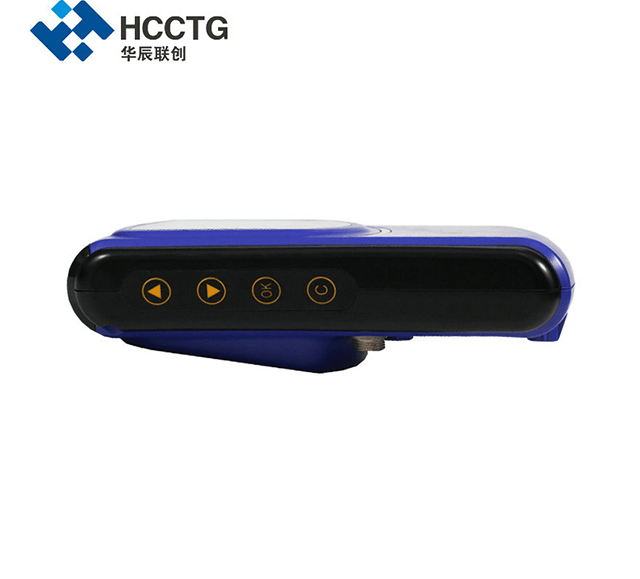

Keypad | 4 command buttons |
RFID | Can read and write ISO14443 TYPE A/B Electronic tag(Incl Combi-card) |
Read card distance | 0~50mm |
Supporting card | Mifare 1 card, CPU card, Union Pay IC card |
Frequency | 13.56MHz |

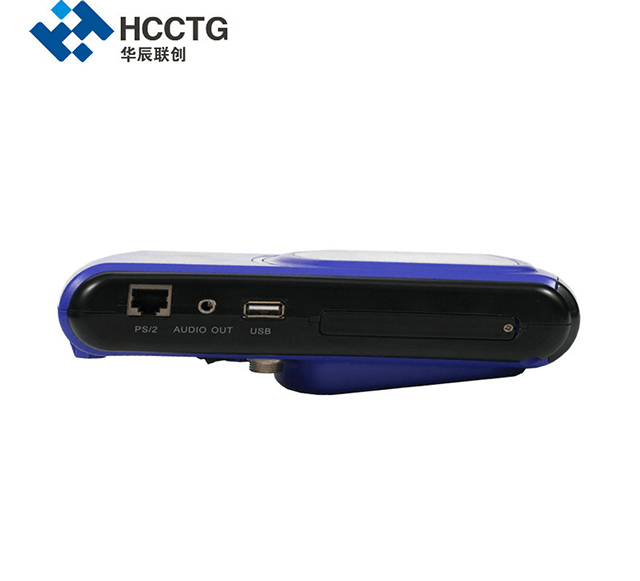

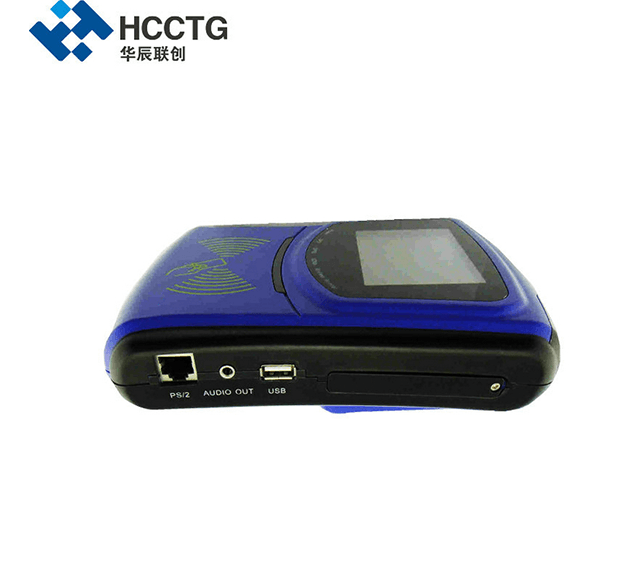

Interfaces/Connectors | RS232, USB |
Card slot | SIM*1, SAM*4 |
Printer modules | Can be connected to slip printer-POS58 |
Width of receipt | Based on printer configuration |
Positioning mode | GPS |
Power consumption | ≤10W |
Communication Modules | GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) |
WIFI | Supporting 802.11n/b/g standards,150Mbps,2.4Ghz |
Union Pay | Compatible for PBOC3.0 Union Pay card |
Upgrading | Connect USB to PC, upgrade with GPRS |
Data collection | WIFI, GPRS, USB, 2D Barcode scanner |
Product Uses
Public Transport: Bus validators facilitate seamless fare collection, enabling efficient boarding and fare processing for passengers on buses, ensuring accurate revenue collection for transit agencies.
Contactless Payments: Bus validators support various contactless payment methods like NFC cards and mobile wallets, enhancing user convenience and reducing transaction times.
Fare Integration: Validators integrate with multi-modal transport systems, allowing passengers to use the same card or payment method across different modes of transportation.
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
