Product Introduction

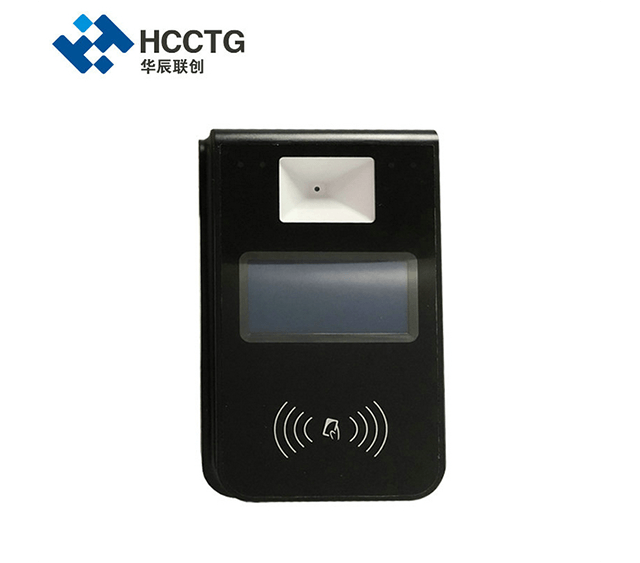

P18-L2C is with the integrated smart card readers, graphical LCD, audio and LED indicators, P18-L2C Bus Validator is perfectly suitable for various types of automatic fare collection systems, with GPS features, the P18-L2C enables you to locate the vehicle and set fare flexibly with reference to distances. It's with the barcode scanner built-in, it can support multiple cashless payment methods. Besides, the P18-L2C supports bank card payment by EMV certificate.
Product Advantage
32-bit ARM Cortex-A7 528 MHz
512 MB DDR
8 GB EMMC
External 64 MB SPI Flash
8 KB FRAM
Linux 3.0 OS
160×80 dot matrix LCD display with backlight
4.3 inch
4 LED Status Indicators
2 function keys
Support power switch
Built-in buzzer
Built-in audio speaker
Contactless smart card interface
Technical Parameters
Specifications
OS | Linux 4.9 |
Processor | 32-bit ARM Cortex-A7 528GHz |
Memory | |
DDR (RAM) | 512 MB |
EMMC (Flash) | 8 GB |
SPI Flash | 64 MB |
FRAM | 8 KB |
Power | |
Supply Voltage | 9 – 48 V DC |
Supply Current | Max. 2A |
Over Voltage Protection | Supported |
Over Current Protection | Supported |
Connectivity | |
RS232 | 3 lines R*D, T*D and GND without flow control |
RS485 | 3 lines A, B and GND |
Ethernet | Built-in 10/100-base-T with RJ45 connector |
USB | USB 2.0 Host Full Speed |
GSM/GPRS/EDGE | 900 MHz/1800 MHz |
Dual Band UMTS/HSDPA/HSPA+ | B1/B8 |
Dual Band TD-SCDMA | B34/B39 |
Four-Band FDD-LTE | B1/B3/B7/B8 |
Four-Band TDD-LTE | B38/B39/B40/B41 |
WiFi | IEEE 802.11 b/g/n |
GPS | Supported |
Barcode Scanner | |
1D Barcode Scanning | Supported |
2D Barcode Scanning | Supported |
QR Code Scanning | Supported |
Contactless Smart Card Interface | |
Standard | ISO-14443 A & B part 1-4, ISO-18092 |
Protocol | Mifare® Classic Protocols, T=CL, FeliCa |
Smart Card Read /Write Speed | Up to 424 kbps |
Operating Distance | Up to 50 mm |
Operating Frequency | 13.56 MHz |
SAM Card Interface | |
Number of Slots | 4 ID -000 slots |
Card connect slot | Contact |
Standard | ISO/IEC 7816 Class A, B (5V, 3V) |
Protocol | T=0, T=1 |
Smart Card Read /Write Speed | 9,600-115,200 bps |
Firmware Upgrade Interface | |
Firmware Upgradeable through | RS232 |
Built-in Peripherals | |
LCD Display | 160×80 dot-matrix LCD display with backlight, 4.3 inch |
Speaker | Supported |
Buzzer | Supported |
LED Status Indicators | 4LEDs for indicating status (from left most: blue, yellow, green, red) |
Other Features | Real Time Clock |
Working environment | Temperature: -20℃～60℃ |
Humidity: 5℅～93℅(Non-condensing) | |
Storage environment | Temperature:－30℃～80℃ |
Humidity: 5℅～95℅(non-condensing) | |
Physical Specifications | |
Dimensions | 227mm×140mm×99mm |
Case Color | Black |
Weight | 880g |
Certifications/Compliance | ISO-7816, ISO-14443, QPBOC L1, QPBOC L2, CE, FCC, RoHS, Contactless EMV L1/L2, IK08/EN50155, IP54 |
Product Uses
Public Transport: Bus validators facilitate seamless fare collection, enabling efficient boarding and fare processing for passengers on buses, ensuring accurate revenue collection for transit agencies.
Contactless Payments: Bus validators support various contactless payment methods like NFC cards and mobile wallets, enhancing user convenience and reducing transaction times.
Fare Integration: Validators integrate with multi-modal transport systems, allowing passengers to use the same card or payment method across different modes of transportation.
Product Video
https://www.youtube.com/watch?v=ibdby8Gt7DU
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
