Product Introduction

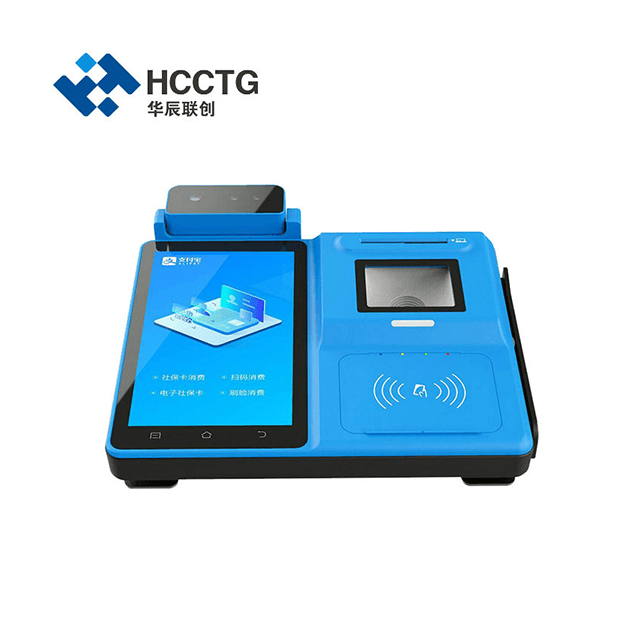

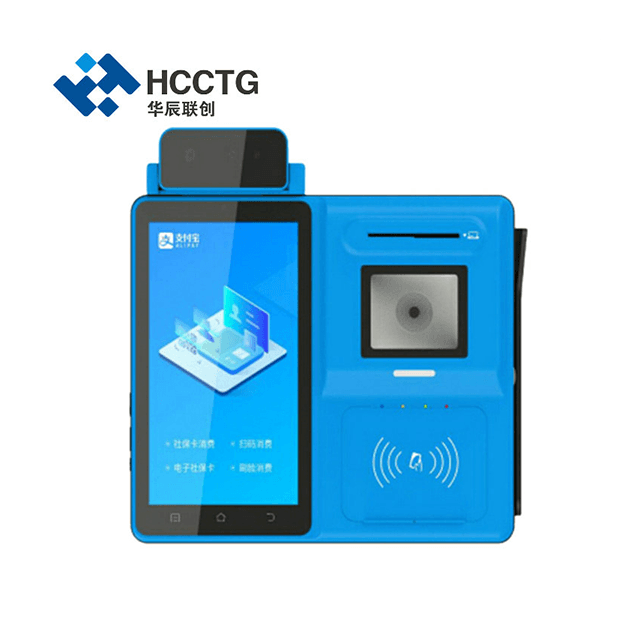

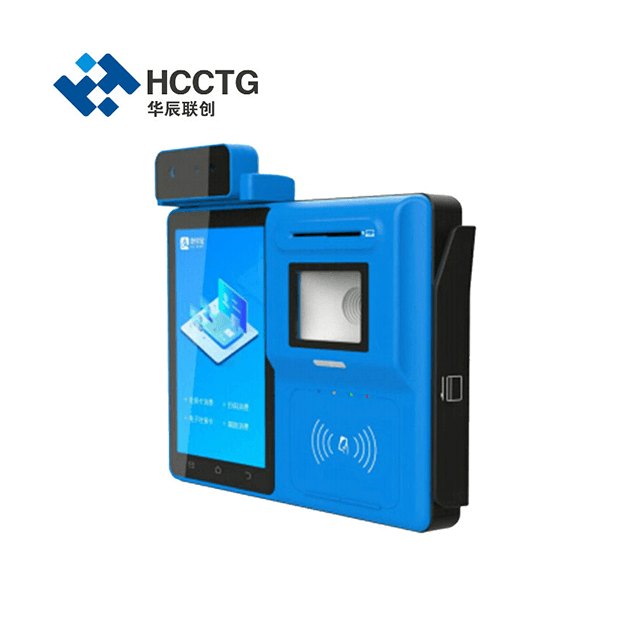

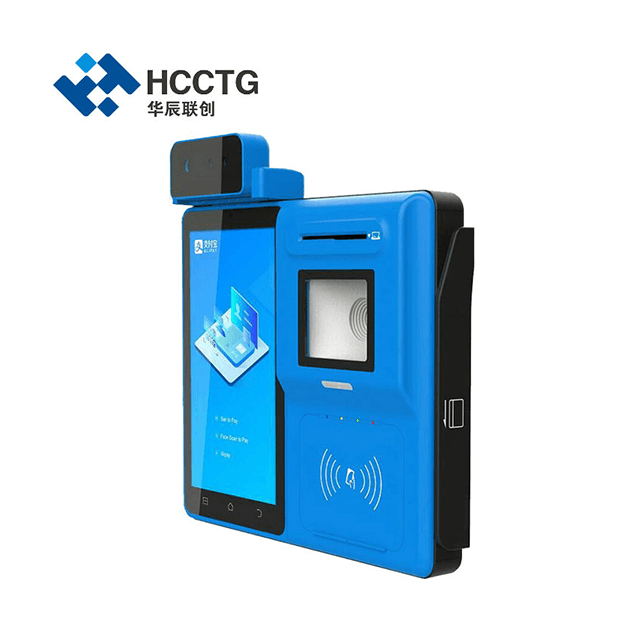

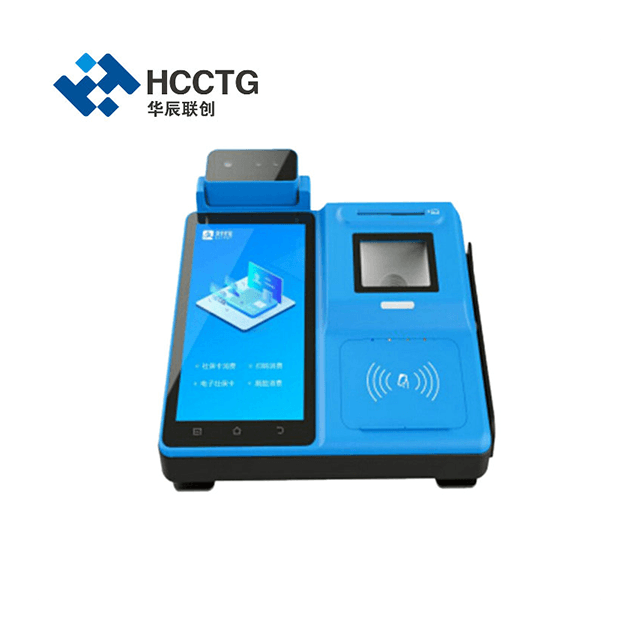

The Z90-N Android payment terminal is second generation of Z90. With powerful CPU and big memory, it can install complicated payment application inside. Developed based on Android technology, it supports any contactless card following the ISO 14443-4, any chip card following ISO7816 reading / writing, and Magnetic stripe card reading.
Product Advantage
Comprehensive Payment Solution: The Public Transport Mifare Card Android 2D Barcode Payment Terminal Bus Validator Z90-N offers a versatile payment solution. It supports Mifare cards, Android 2D barcodes, and various contactless payment methods, enabling seamless and convenient fare collection for public transport systems.
Advanced Technology and Efficiency: Equipped with cutting-edge technology, the Z90-N boasts fast and accurate payment processing. Its Android-based system ensures smooth operations, while the 2D barcode scanner enhances ticket validation efficiency, reducing passenger waiting times.
Robust and Reliable Design: The Z90-N is designed to withstand the rigors of daily public transport use. Its durable construction and reliable performance ensure long-lasting operation even in demanding environments, making it a dependable choice for transportation authorities and service providers.
Technical Parameters
Specifications
Items | Description |
Operating System | Android 7.1 |
CPU | ARM Cortex-A53 64 bit (8 core),1.8GHz |
Storage | 2GB LPDDR3+16GB eMMC |
Display | 7inch capacitive touch sreen,resolution 720P(720x 1280),IPS |
TP | G+G,full fitting design |
Indicators | 4 colors,blue,yellow, green, red,controllable |
Key | Menu,HOME、back ( touch screen key ) Volume +/- Power key (one-off,working/resting,restart) |
Buzzer | Support |
Volume | Support Can be adjusted |
MIC | Support |
Ethernet | 10M/100M,Adaptive |
WIFI | IEEE 802.11 a/b/g/n/ac 2.4G/5G double frequency |
Wireless communication | TD_LTE: B34/38/39/40/41 FD_LTE: B1/3/5/8 TD_SCDMA:B34/39 WCDMA: B1/B8 EVDO: BC0 CDMA: BC0 GSM: 900/1800MHz |
Bluetooth | BT2.1+EDR/3.0/4.1LE/4.2BLE |
Physical interface | 1.USB A×1 2.TYPE C USB×1 3.RJ11×1 4.RJ45 |
Magnetic stripe card reading | 1/2/3 track card reading support |
Chip card reader/writer | 1 IC chip card reader |
ISO/IEC 7816 compliance | |
T=0,T=1 CPU card support,AT24 series,4442,4428, T=0:9600-38400bps,T=1:9600-115200bps, 1.8v/3v/5v voltage | |
Contactless card reading/writing | ISO/IEC 14443 compliance,TypeA/B,Mifare support, Card reading distance 5CM-10CM |
QR code | Support |
SAM socket | 4 SAM socket,ISO/IEC 7816compliance,5V/3V/1.8Vsupport |
SIM socket | 2 SIM socket |
TF | 1 TF socket |
Built-in front camera | Resolution 500W pixels |
3D camera (Optional) | USB 3D camera support, USB2.0 compliance ,working voltage:5V±5% |
GPS | GPS support |
RTC | Support |
Battery | 3.7V 5000mAH |
Power | 5V/4A,TYPE C |
Working environment | Temperature: -20℃～70℃ |
Relative Humidity: 5℅～95℅ (non-condensing) | |
Storage environment | Temperature: -20℃～70℃ |
Relative Humidity: 5℅～95℅ (non-condensing) |
Product Uses
Public Transport: Bus validators facilitate seamless fare collection, enabling efficient boarding and fare processing for passengers on buses, ensuring accurate revenue collection for transit agencies.
Contactless Payments: Bus validators support various contactless payment methods like NFC cards and mobile wallets, enhancing user convenience and reducing transaction times.
Fare Integration: Validators integrate with multi-modal transport systems, allowing passengers to use the same card or payment method across different modes of transportation.
Product Video
https://www.youtube.com/watch?v=TQauOLKTkKE&t=8s
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
5. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers ca
