CM30
HCCTG
5 Inch Unattended Payment Terminal EMV PCI Contact & Contactless Automated Payment Terminal For Vending CM30
Features:
New-generation Unattended Experience
1. Large Screen of 5.0 inch TFT IPS LCD
2. resolution 1280*720
3. Pin on Glass NFC
Robust and Reliable
Designed to perform in the harshest of outdoor environments with IP54, IK08 certificates
Accept Any Payment
SoftPOS + EMV/PCI dual verion bring you flexibility for various scenarios
Rich Connectivity:with the addition of MDB interfaces
BT,WIFI, 4G connectivity, the CM30 extends its connection capabilities and enables to add optional modules to enhance flexibility
A Future-proof Platform
The Android-based platform sustains endless possibilities
Specification
Basic Characteristics | |
OS | Safedroid OS (based on Android 14.0,Android 11 optional) |
CPU | Quad-Core ARM Cortex-A53 2.0GHz |
ROM | 32GB ROM EMMC |
RAM | 2GB RAM LPDDR |
Display | 5.0 inch TFT IPS LCD, resolution 1280*720 |
Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |
Dimensions | 152*93*41mm |
Weight | 418g |
Keys | 2xPhysical keys |
Input | Chinese/English, and supports handwriting and soft keyboard |
Interfaces | |
Micro SD Card Slot | 1 Pcs |
SIM Card Slot | 2 Pcs Micro SIM |
PSAM Card Slot | 4 Pcs Conforms to ISO7816 standard |

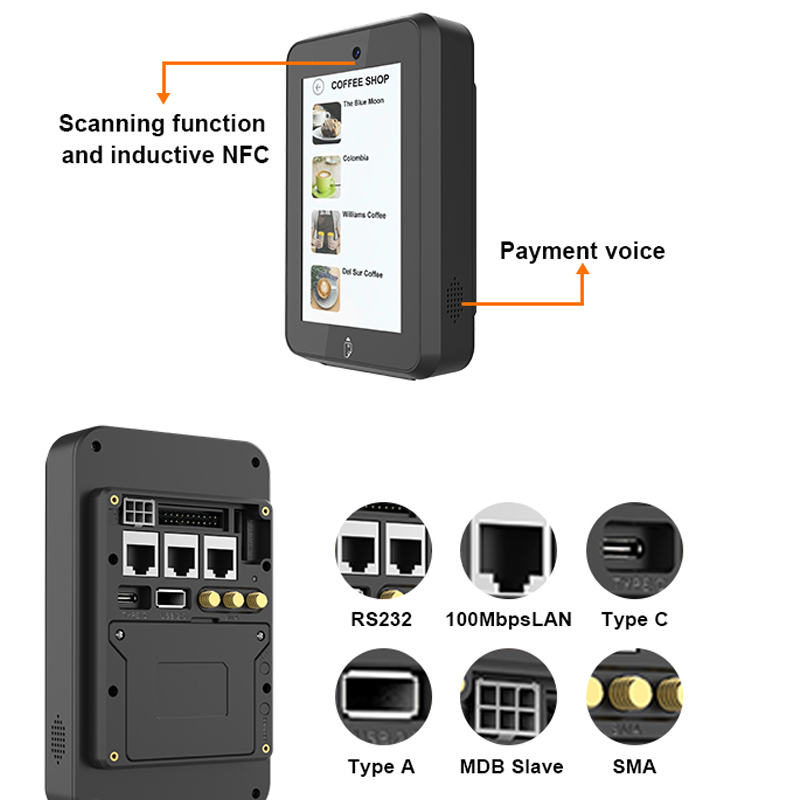

Peripheral Ports | 1*RS232 1*LAN, 100Mbps 1*USB Type A, USB2.0 HOST 1*USB Type C, USB2.0 1*MDB Slave 3*SMA, External antenna |
Power | |
DC | 12v-48V DC (via MDB Slave / RS232) |
Radio Communication | |
WIFI | IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz |
Bluetooth | BT 5.0 and earlier |
Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo |
4G(3G/2G) | European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 |
Environment | |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -30°C to 70°C |
Humidity | 5% to 95% Relative Humidity, Non-Condensing |
Payment | |
Contactless Card Reader | Supports 14443A /14443B |
Smart Card Reader | Supports ISO7816 standard |
Certification | |
Electromagnetic | IP/IK Certified CE, Rohs, FCC, GMS EMV, PCI, PAYPASS, PAYWAVE, AMEX(optional) |
Expansion and peripherals | |
Camera front | 5MP |
Audio | Speaker, Mic, Buzzer |
Physical Protection | |
IP/IK Certified | IP54, IK08 |
