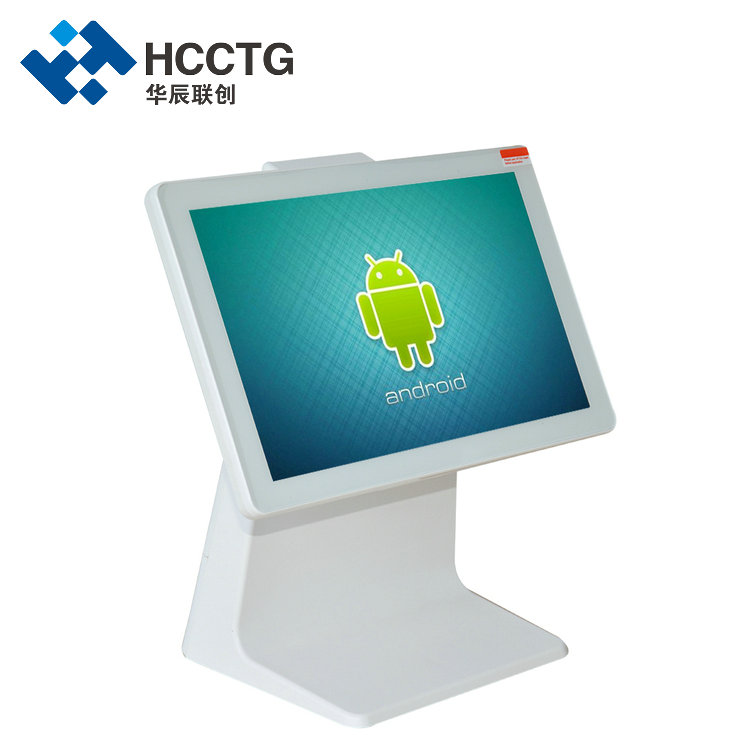

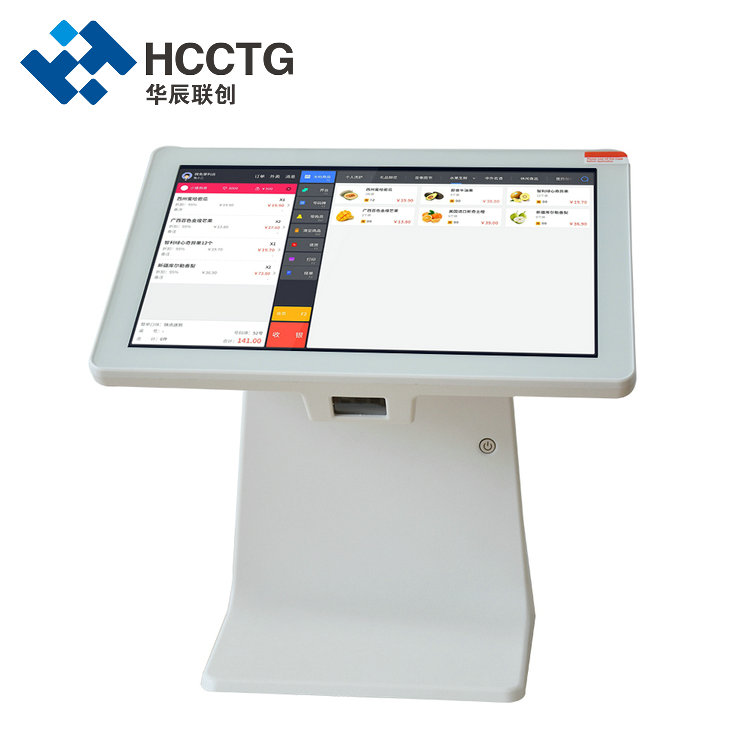

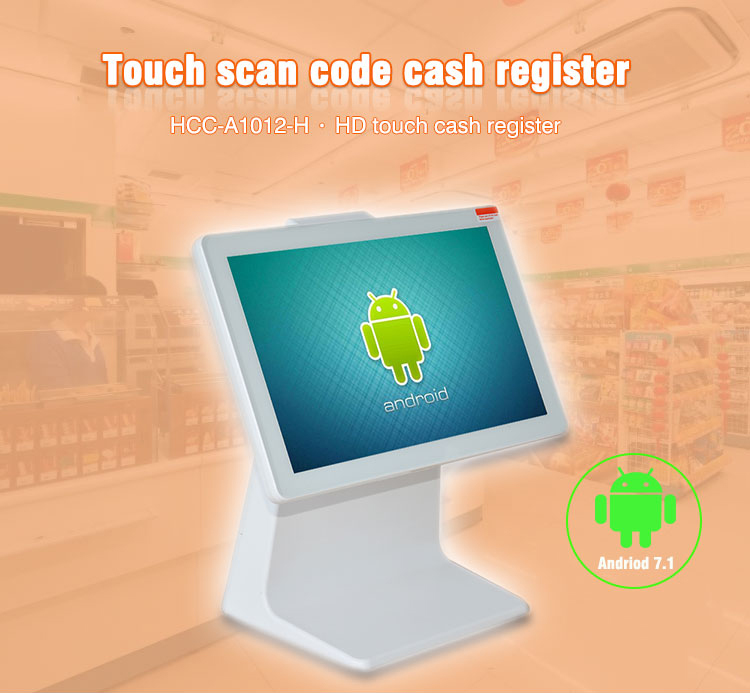

HCC-A1012-H The screen is Horizontal，design for supermarket,retail and other business payment.
Item No.:
HCC-A1012-HProduct origin:
Guangdong, ChinaColor:
WhiteGoods_stock:
300Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

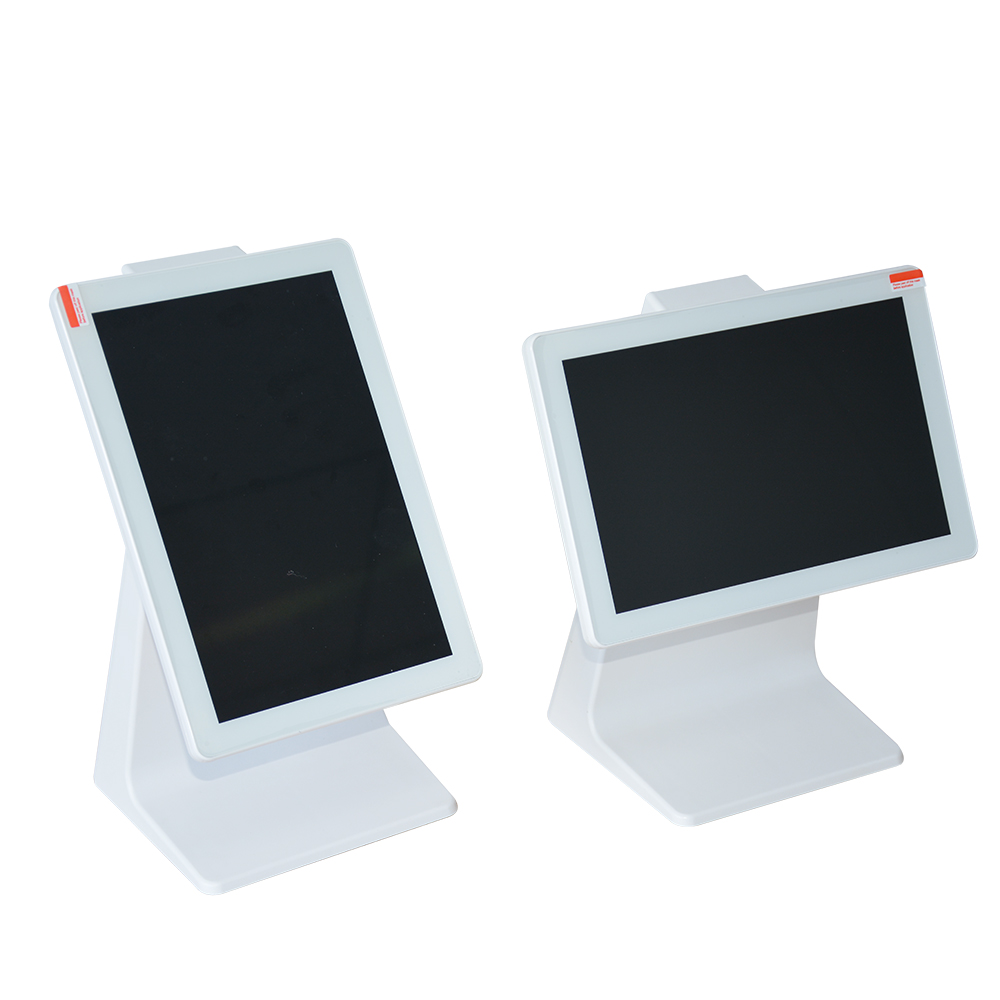

Capacitive touch screen display tablet pos terminal

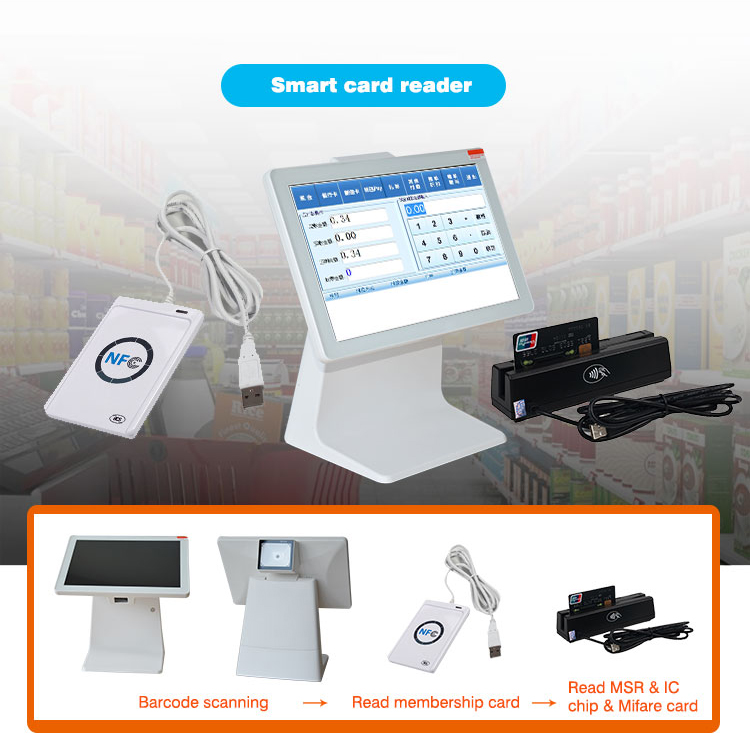

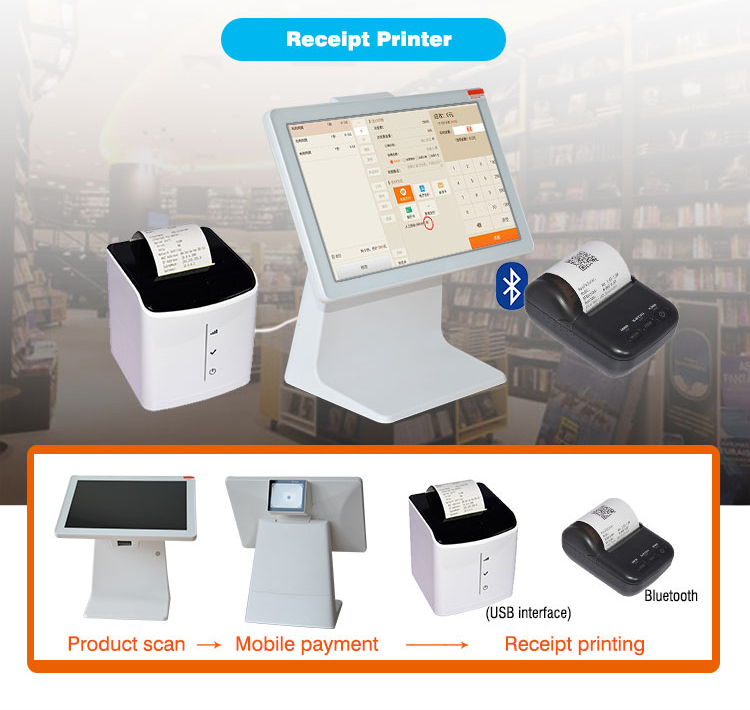

HCC-A1012 can provide a wide range of peripheral equipment, so as to have flexibility. Peripheral device options include: MSR/card reader, fingerprint/biometric card reader, RFID card reader, printer, cash drawer, etc. Through the external connection, small ticket printing, barcode scanning, payment card reading, and a full set of cashier tasks can be realized. By separating the data cable into the base behind the terminal, the peripheral cable management can be kept tidy.
Features
Specifications
| System | Andriod 7.1 |
| CPU | RK3288, 4x ARM Cortex-A17 @ 1.8 GHz |
| GPU | ARM Mali-T760 MP4 |
| RAM/Storage | 2G/8G |

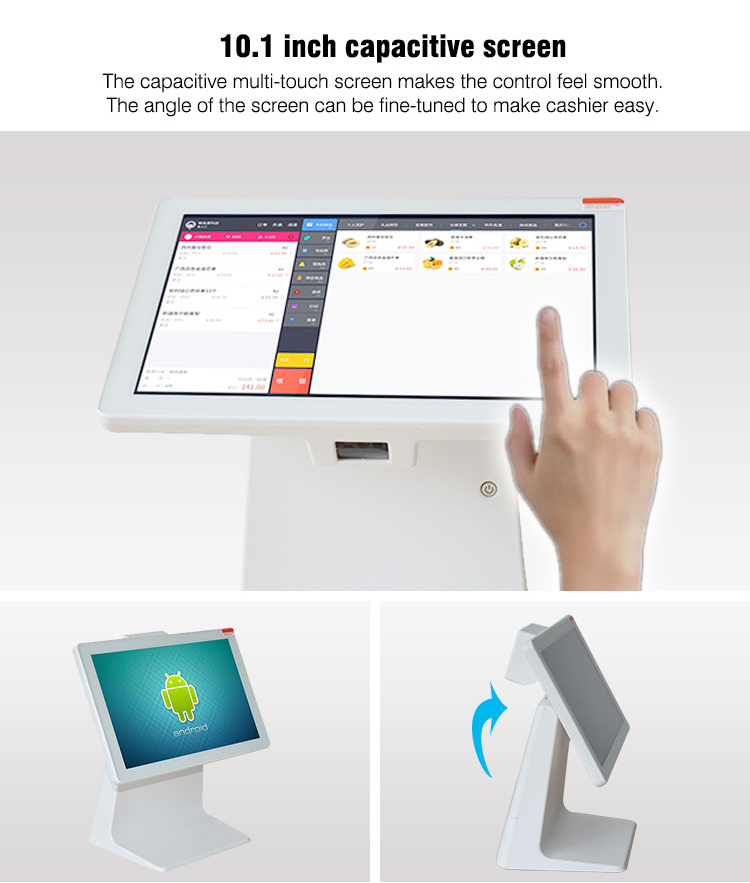

| Display | Size:10.1 inch Resolution:1280*800 Type:Capacitive |
| Speaker | Built-in 2W speaker |
| Dimension | 169*157*310(L*W*H)(Without camera) |
| Environment | Working temperature:-10°C~40°C Storage Temperature: -20°C-55°C Humidity: 20%・90% RH |
| Communications | WIFI:IEEE 802.11b/g/n Bluetooth:BT2.1+EDR/3.0/4.0/4.1/4.2 B Ethernet:10/1 OOM adaptive |
| Weight | Net Weight:1.2kg Gross Weight:1.9kg |

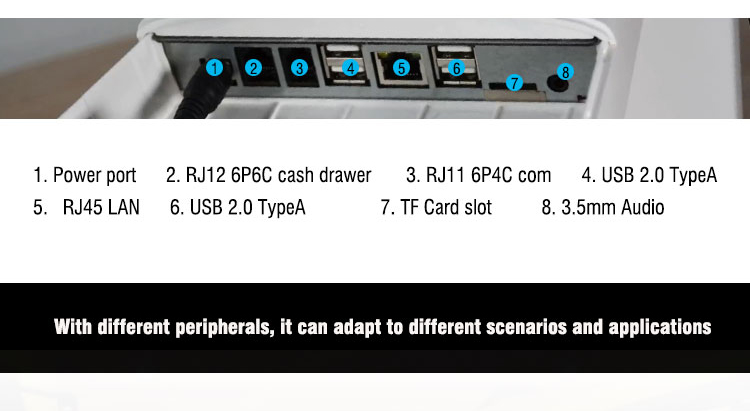

| Ports | 1* SIM Card slot(optional) 1* RJ12 6P6C cash drawer |
| 1*TF Card slot 1* RJ11 6P4C com | |
| 1* 3.5mm Jack 4* USB 2.0 TypeA | |
| 1* Power port 1* RJ45 LAN | |

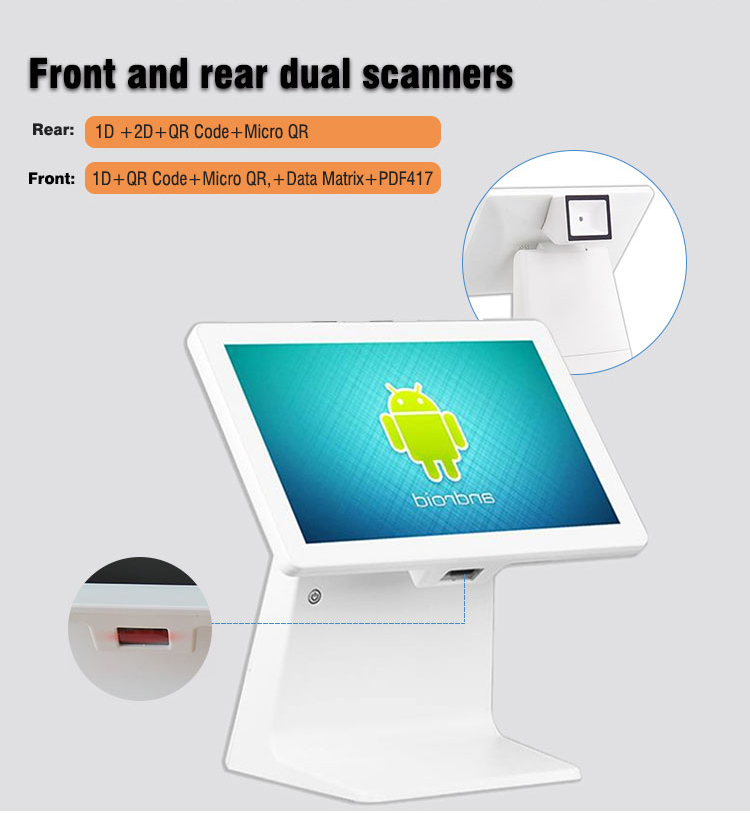

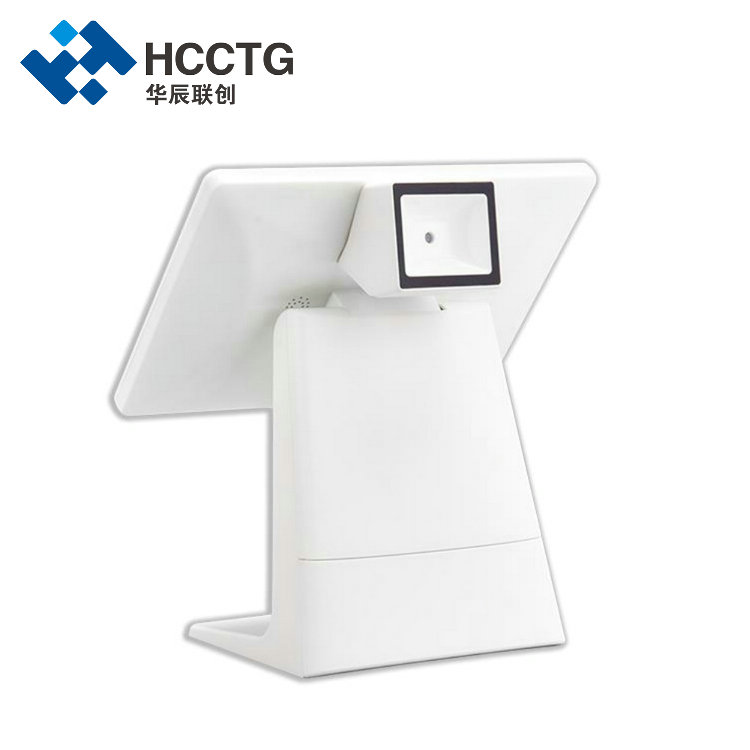

| Rear scanner module | |
| Prompt mode | Buzzer, LED indicator |
| Trigger mode | Command trigger, automatic induction trigger, continuous trigger |
| Setting method | Scan code setting, command setting |
| Interface | USB HID keyboard |
| Recognition angle | Rotation 360°, left and right tilt ±45°, front and back tilt ±45°, recognition accuracy >5mil |
| Reading code | 1D: Code128,Code39,EAN,UPC,Code93,ISBN-13,Interleaved 2 of 5 |
| 2D: QR Code | |
| Front Scanner Module | |
| Prompt mode | Buzzer, LED indicator |
| Trigger mode | Command trigger, automatic induction trigger, continuous trigger |
| Setting method | Scan code setting, command setting |
| Interface | USB HID keyboard |
| Recognition angle | Rotation 360°, left and right tilt ±45°, front and back tilt ±45°, recognition accuracy >5mil |
| Reading code | 1D: Code 128, EAN-13, EAN-8、UPC-E,UPC-A,ISBN,ISSN,Code 11,ITF-25 (Interleaved 2 Of 5), Code39,Code93,Code32,Codabar, Matrix 2 of 5, Industrial 25,IATA25,MSI Plessey |
| 2D: QR Code,Micro QR, Data Matrix,PDF417 | |
