HS-6201 has comprehensive quick reading ability
| Quantity: | |
|---|---|
HS-6201
HCCTG

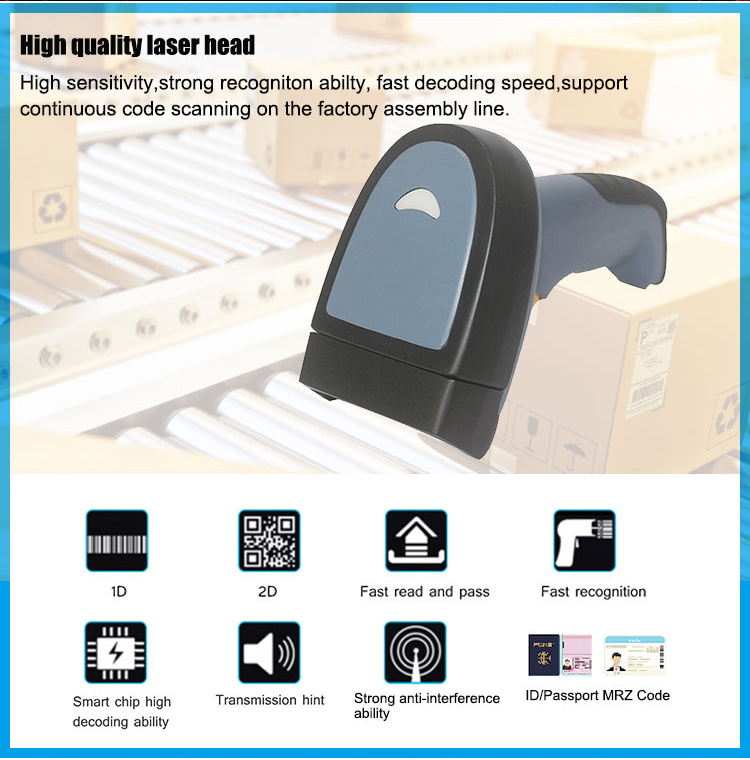

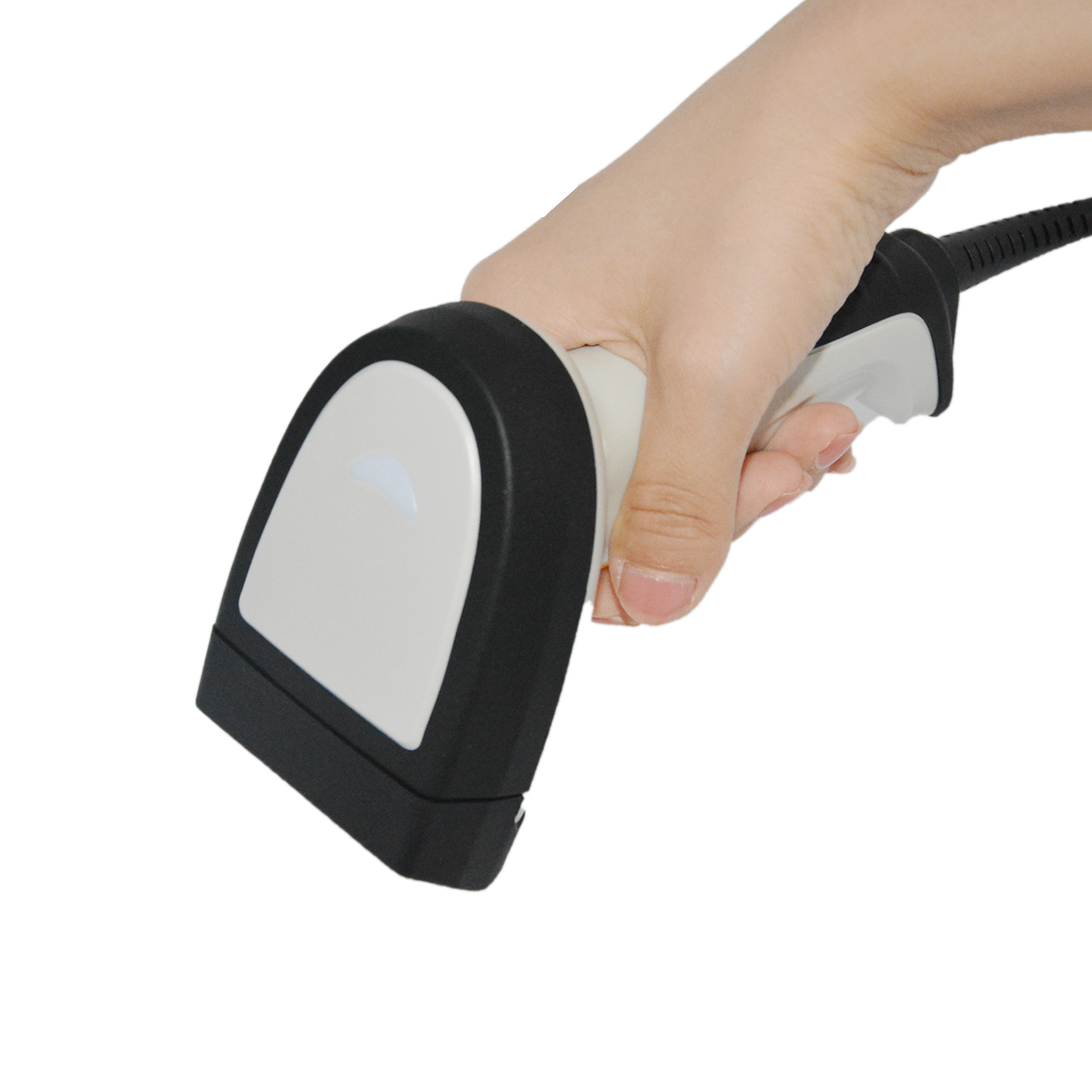

Handheld Industrial Barcode Scanner 1D/2D Barcode Reader for Business
The HS-6201 scanner module is designed to utilize the nation's cutting-edge intelligent identification algorithm, which is known for its exceptional accuracy and efficiency. Building on this foundation, our team of experts has taken the initiative to develop a comprehensive set of advanced barcode reading algorithms tailored specifically for the HS-6201 scanner module. These algorithms have been designed to address the challenges associated with reading smaller size and higher version barcodes, which are becoming increasingly common in modern applications.
The new algorithms have been rigorously tested and optimized to ensure that they can effectively read a wide range of barcode types, including QR codes, Data Matrix codes, and PDF417 codes, among others. Furthermore, these algorithms are capable of reading barcodes from various materials, such as paper, plastic, and glass, making them highly versatile and suitable for diverse environments.
Specification
Image Sensor | CMOS |
Read Accuracy | ≥3mil |
Pixel | 1280 × 960 Motion tolerance* 2 m/s |
Scanning Performance | Lighting White LED/Red LED |
Field of view | Horizontal 40.5°, Vertical 30.4° |
Focus Laser 650nm Symbol Contrast | ≥25% |

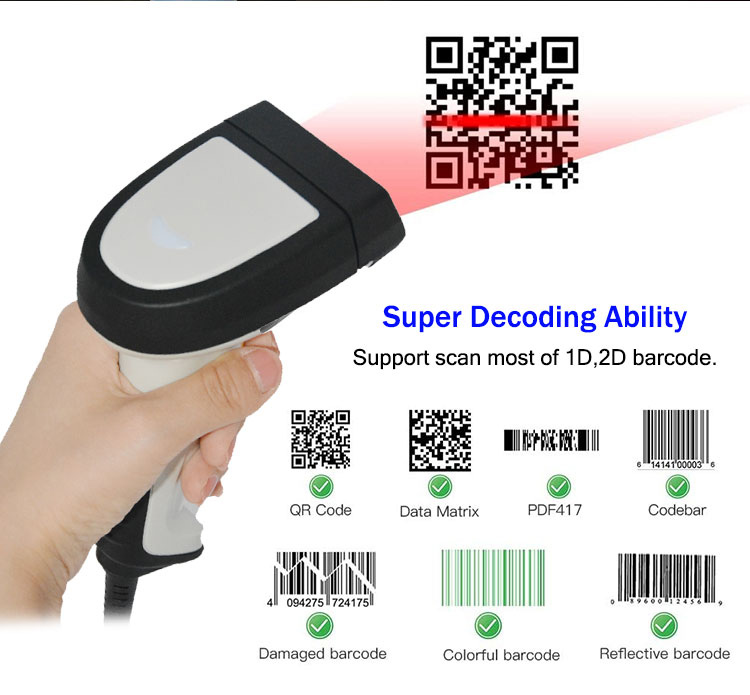

Reading code system | 2D PDF417, QR Code,Data Matrix,Chinese Sensible Code, etc. 1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6,ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. |

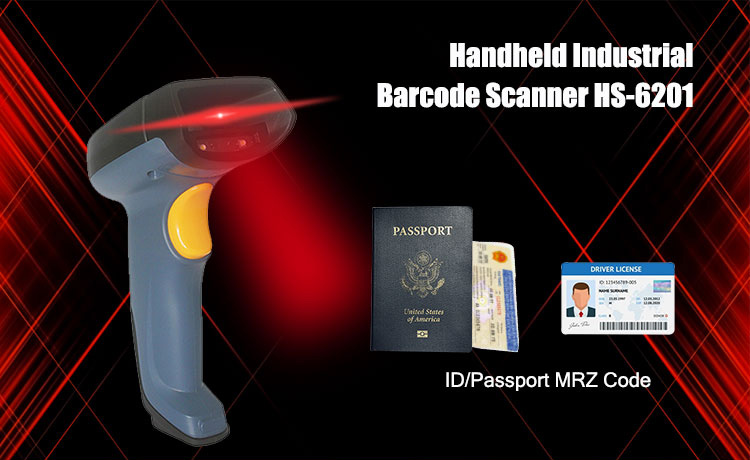

OCR | Support MRZ reading |
Typical Reading Depth of Field | EAN-13(13mil) 25mm~155mm 40mm~410mm Code 39(5mil) 50mm~100mm 110mm~250mm PDF 417(6.7mil) 40mm~105mm 115mm~190mm Data Matrix(10mil) 40mm~110mm 100mm~250mm QR Code (15mil) 35mm~155mm 70mm~280mm |
Barcode sensitivity | Pitch ± 50° Tilt 360° Skew ±50° |
Sleep current | 2mA |
Working temperature | -20°C~ 60°C |
Relative humidity | 5% to 95% (non-condensing) |
Communication Interface | RS-232,USB, PS/2 Prompt Mode Buzzer, LED Indication, Vibrator |

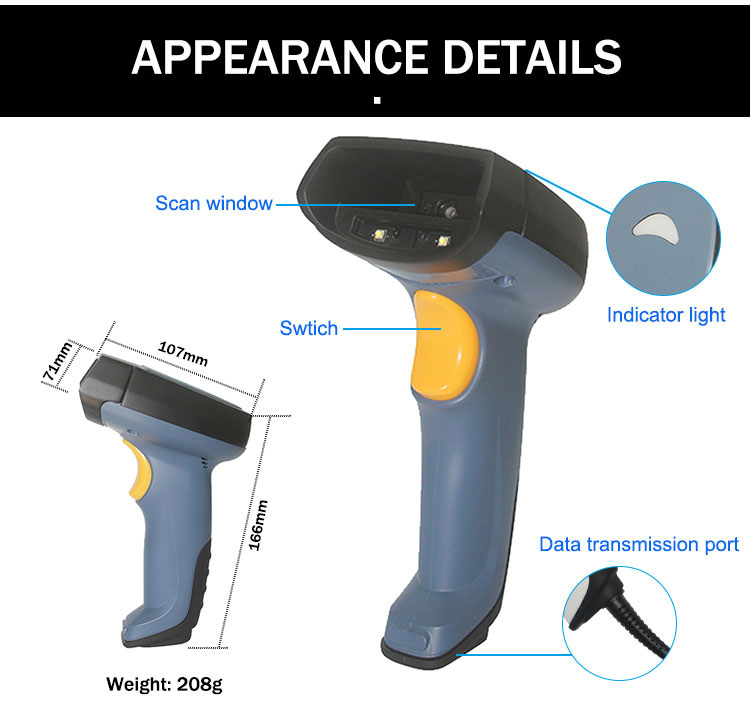

Appearance size | 166 (W) × 107 (D) × 71 (H) |
Operating voltage | 5 VDC ± 5% |
Weight | 208g Rated power consumption 1251mW (typical) |
Electric current | @ 5 VDC |
Operating Current | 266mA (typ.) |
Standby Current | 109mA |
Operating temperature | -20°C~50°C |
Electrostatic protection | ±16kV (air discharge), ±8kV (direct discharge) |
Storage temperature | -40°C~+70°C |
Impact resistance | Drop height 1.8 meters |
Relative humidity | 5%~95% (non-condensing) |
Protection class | IP42 |
International Certification | FCC Part15 Class B,CE EMC Class B |
Accessories List Data | Data cable, USB |
USB data cable for connecting the unit and the message receiving main engine | RS-232 RS-232 data cable (optional) for connecting this unit and the message receiving main engine PS/2 PS/2 data cable (optional) for connecting the unit and the message receiving main engine |
Power adapter | 5V power adapter (optional), with RS232 data cable to power the device Output: DC 5V, 1.5A |
Input | AC 100~240V, 50~60Hz |
Technique support | smart sensor support, Data editing function Support |
