KB84 has 84 fully programmable keys and mag-stripe reader could be set per request.
Item No.:
KB84Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

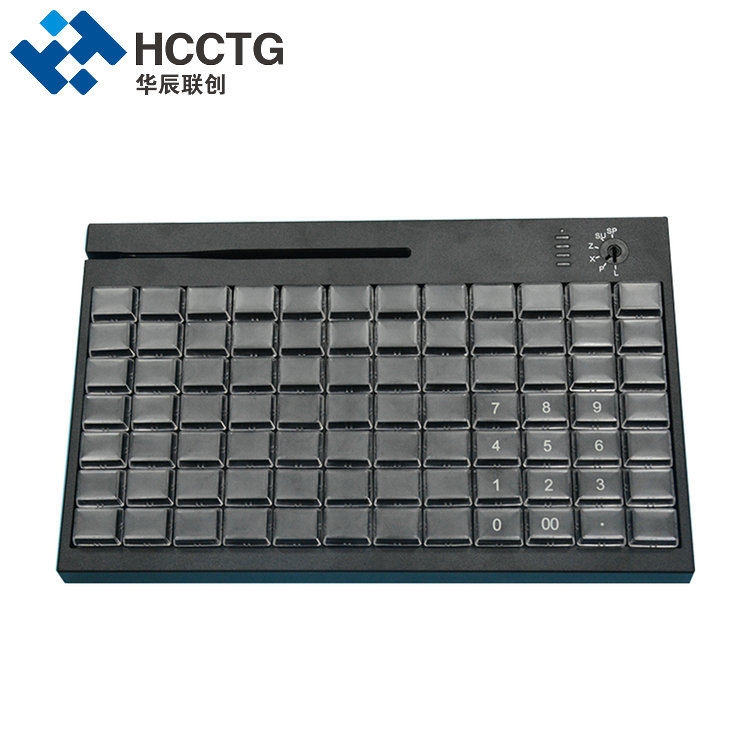

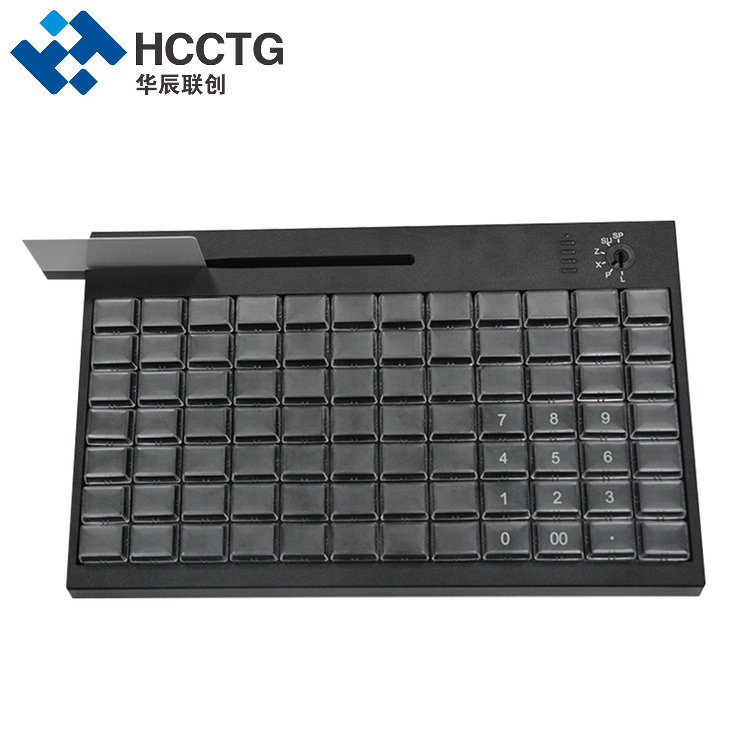

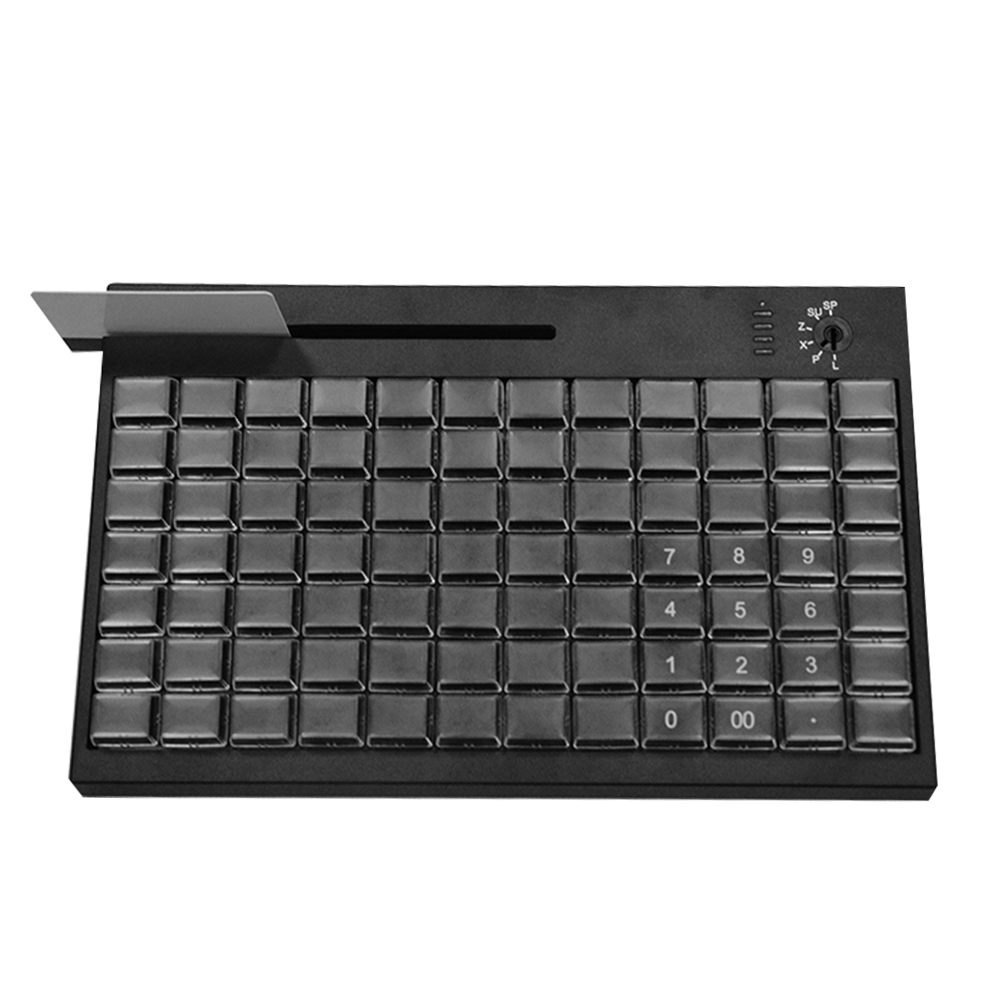

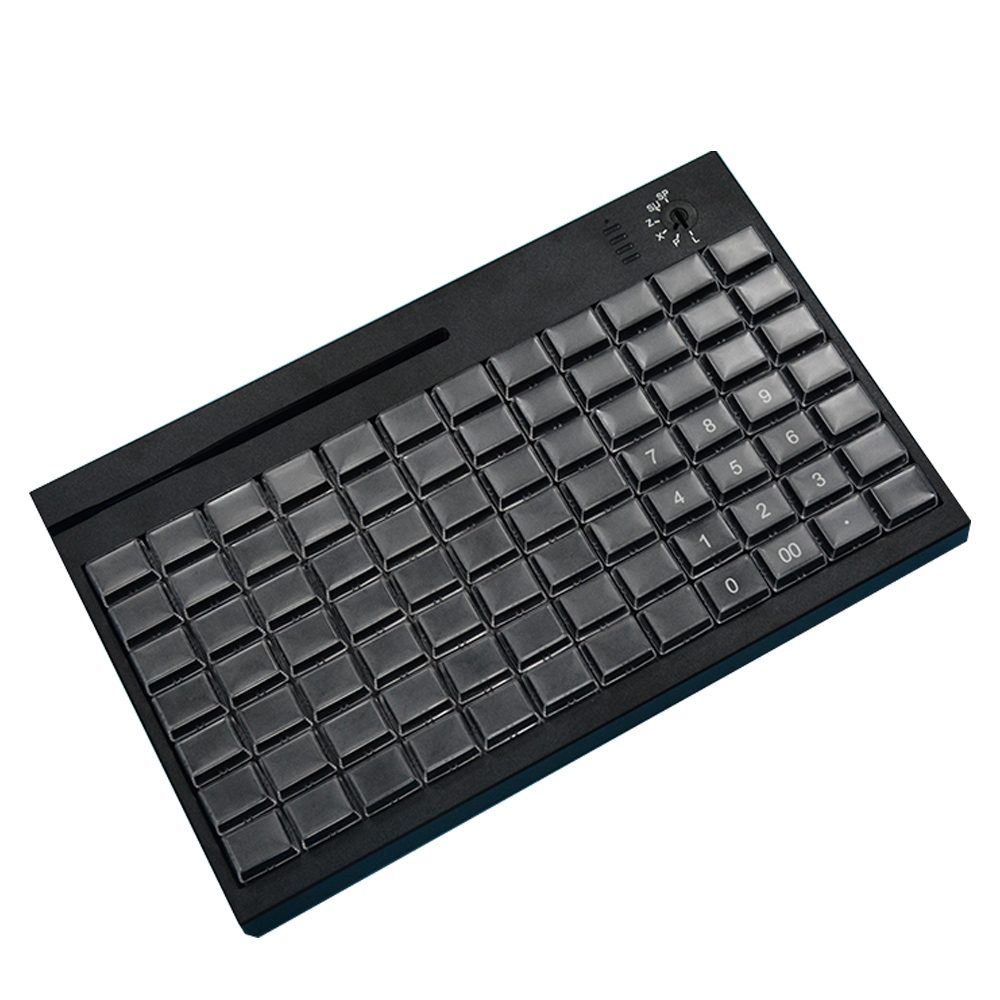

USB 84 Keys POS Programmable Keyboard With Magnetic Stripe Card Reader KB84
84-Keys programmable keyboard is specially designed for most dedicated applications, such as banking system, POS system etc.
Specification
| Number of keys | 84 keys | |
| Key type | Waterproof membrance switch,Service life 12 million times | |
| Key stroke | 4.0±0.5mm | |
| Key strength | 60±20cN | |
| Interfac/Power(RJ45) | PS/2 | +5VDC±10%/<100mA |
| USB | +5VDC±10%/<100mA | |
| Indicator/Buzzer | Power,Num,Caps,SCR,MSR Sound and light prompt | |
| Firmware online upgrade | Convenient to meet the user's differentiated needs | |
| Programmable Features | ||
| Programmable keys number | All keys | |
| Multi layer programming | Max.six layer,Facilitate permission management | |
| Time delay programming | 1ms-500ms optional,Can be inserted at any position | |
| Software adaptation platform | Support USB programing for Window ME/ 9X/2K/ XP/ 7/ 8/10/ 11 | |
| Data storage | All data can be retained for eeprom without additional battery | |

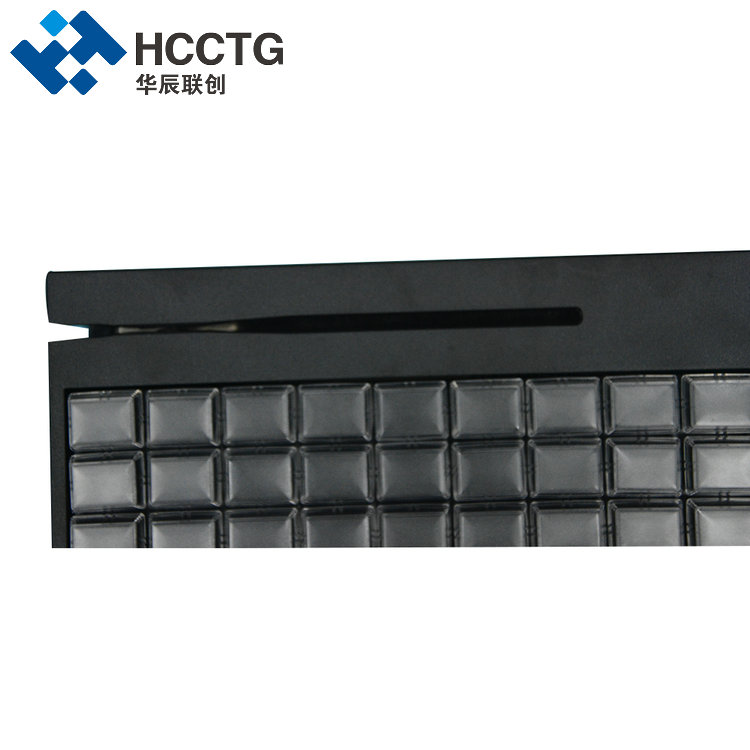

| Magstripe Reader Features | ||
| Card Standard | Comply with IOS7812,IBM standards,AAMVA,JIS-2 | |
| Programmable | Track,Prefix and Suffix characters,Enter | |
| Card Track | Track1 | 210BPI,max 76 characters |
| Track2 | 210BPI,max 107 characters/75BPI,max 37 characters | |
| Track3 | 210BPI,max 107 characters | |
| Swipe speed and Magnetic head life | 10~180cm/sec./50 million times | |
| Other | ||

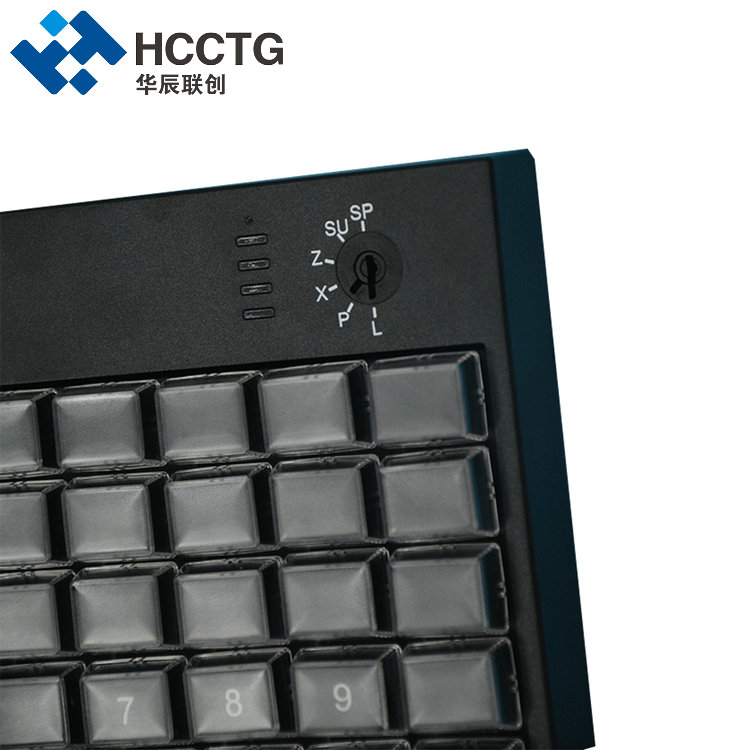

| Electronic Lock | Support 6-seg. lock to meet permission management | |
| Environment | Operation | Temperature:0°C~50°C(32°F~122°F),Humidity:10%~90% |
| Storage | Temperature:-20°C~50°C(-4°F~131°F)Humidity:10%~90% | |
| Physical Parameters | Dim./Weight | 300(L)*185(D)*44(H)mm,including MSR/1104.5g(NW) |
| Box./Weight | 385(L)*196(D)*57(H)mm,including All Parts+MSR/1330.6g(GW) | |

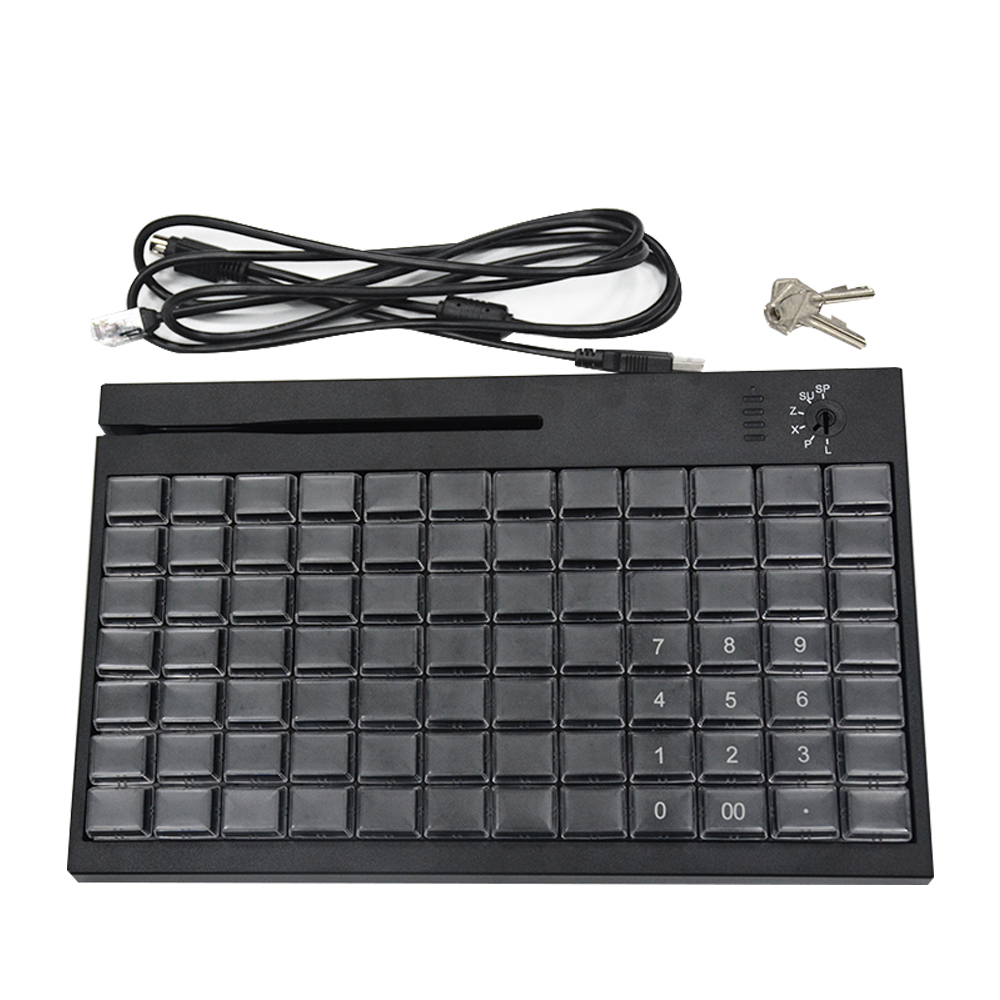

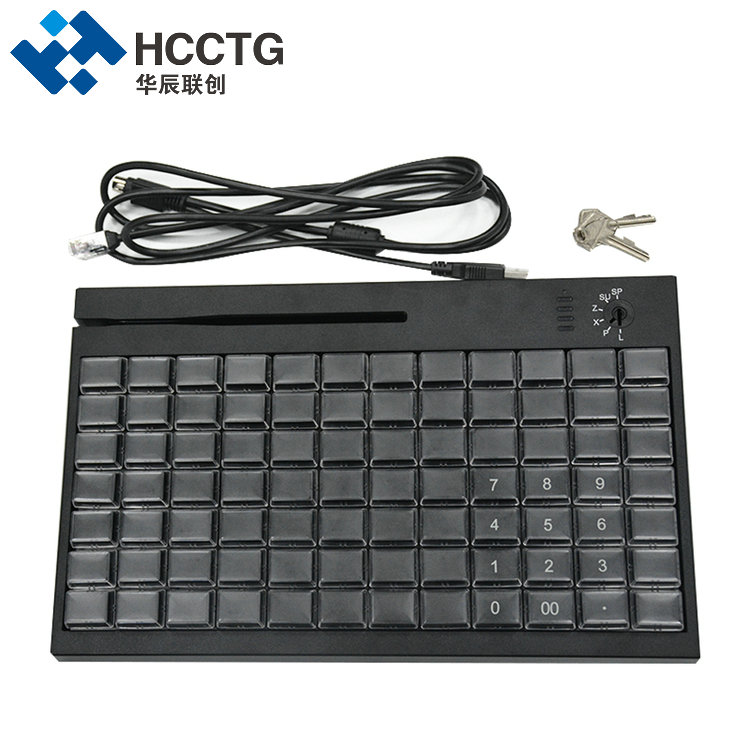

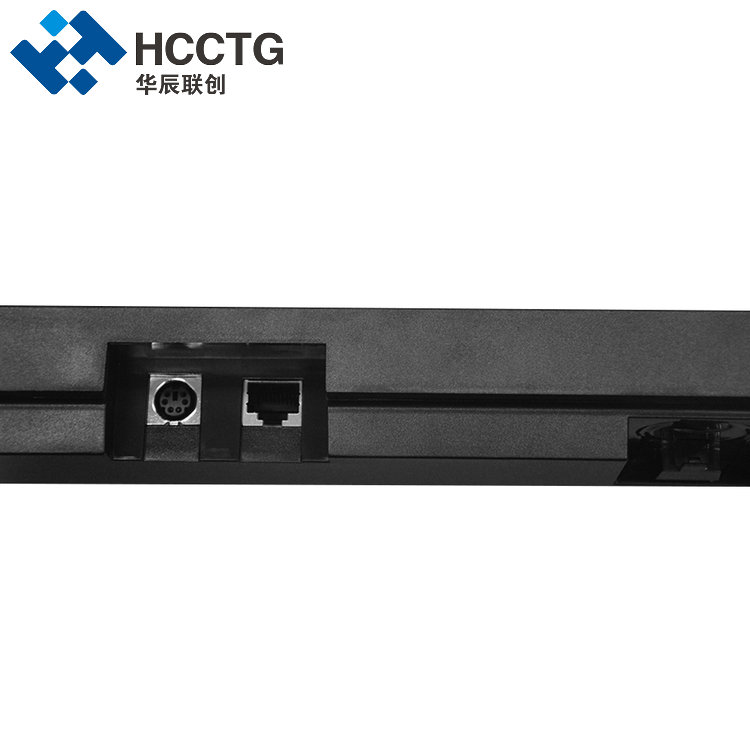

| Parts | Interface Cable: RJ45Y(USB&PS/2), Keycap Pull ring,1.25 Keycap, Elec.Lock key | |
| With PS/2 keyboard expansion port | ||
