Z90PD supports PBOC Level 1 and PBOC Level 2, and it can be applied in banking, transportation, healthcare, government and retail sector.
Item No.:
Z90PDProduct origin:
Guangdong, ChinaColor:
GreyGoods_stock:
3000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|
PBOC ISO 7816&14443 Smart POS PinPad For Banking Z90PD

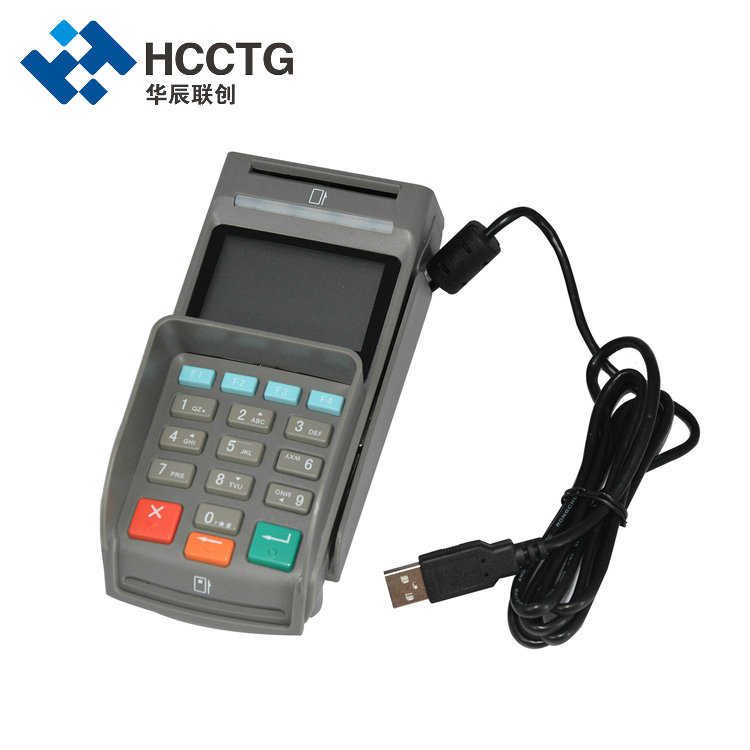

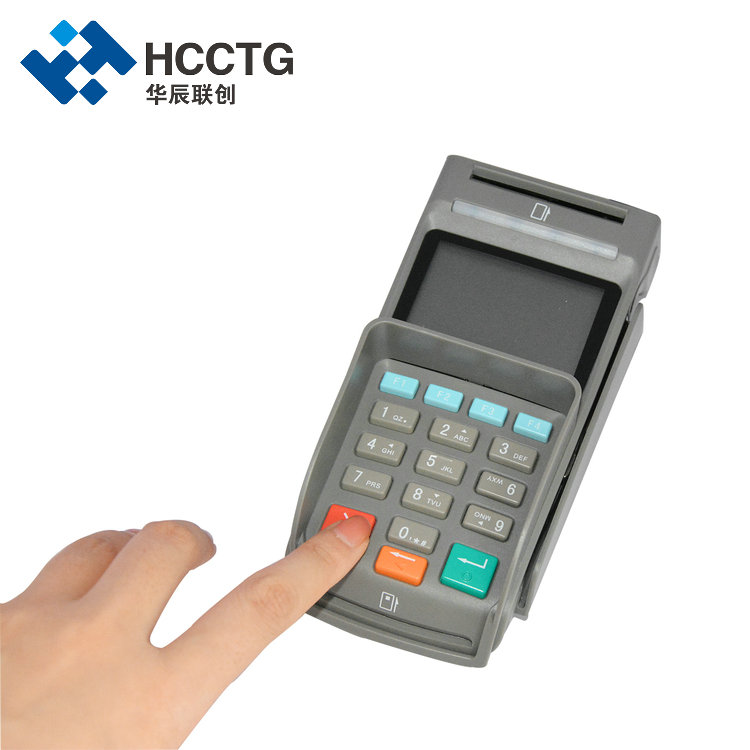

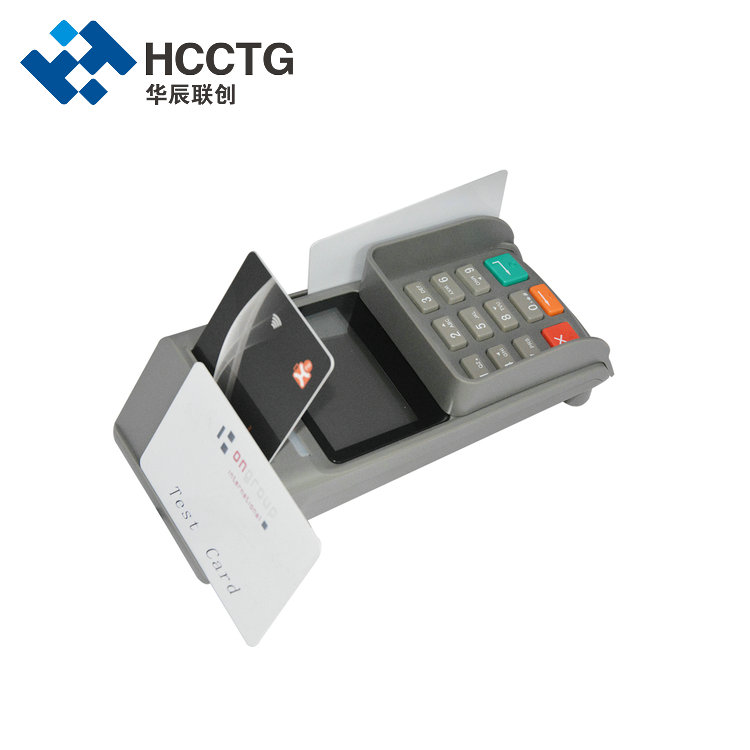

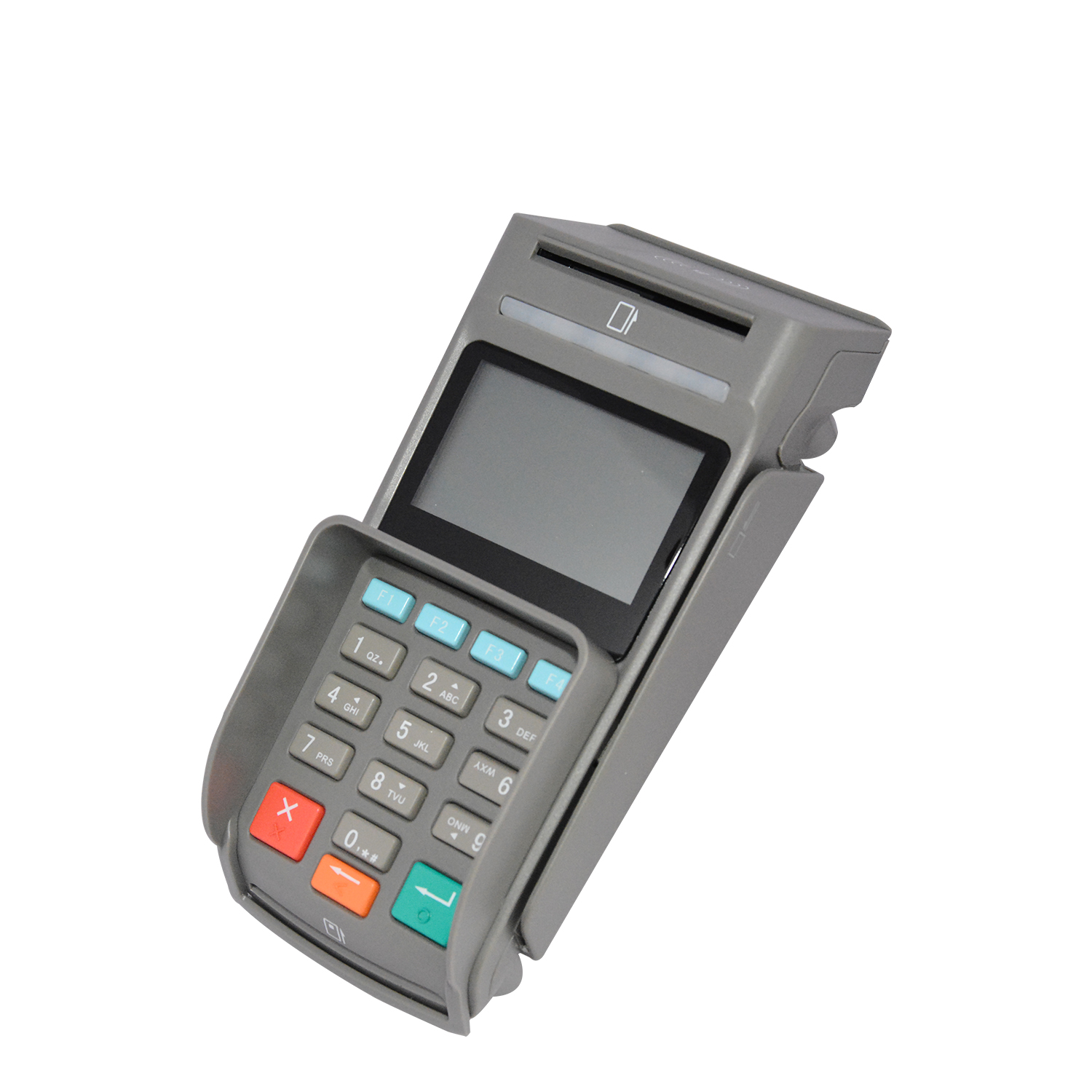

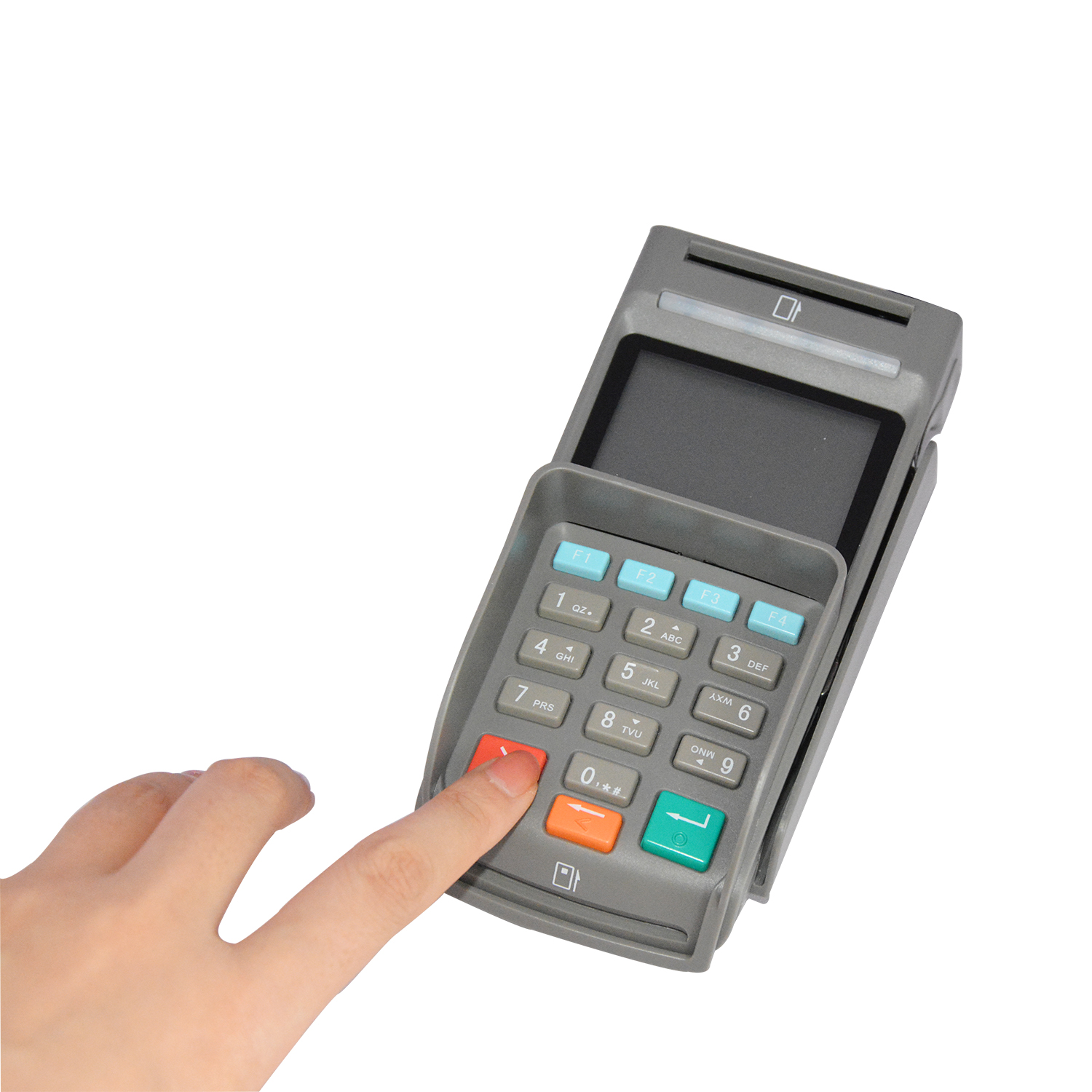

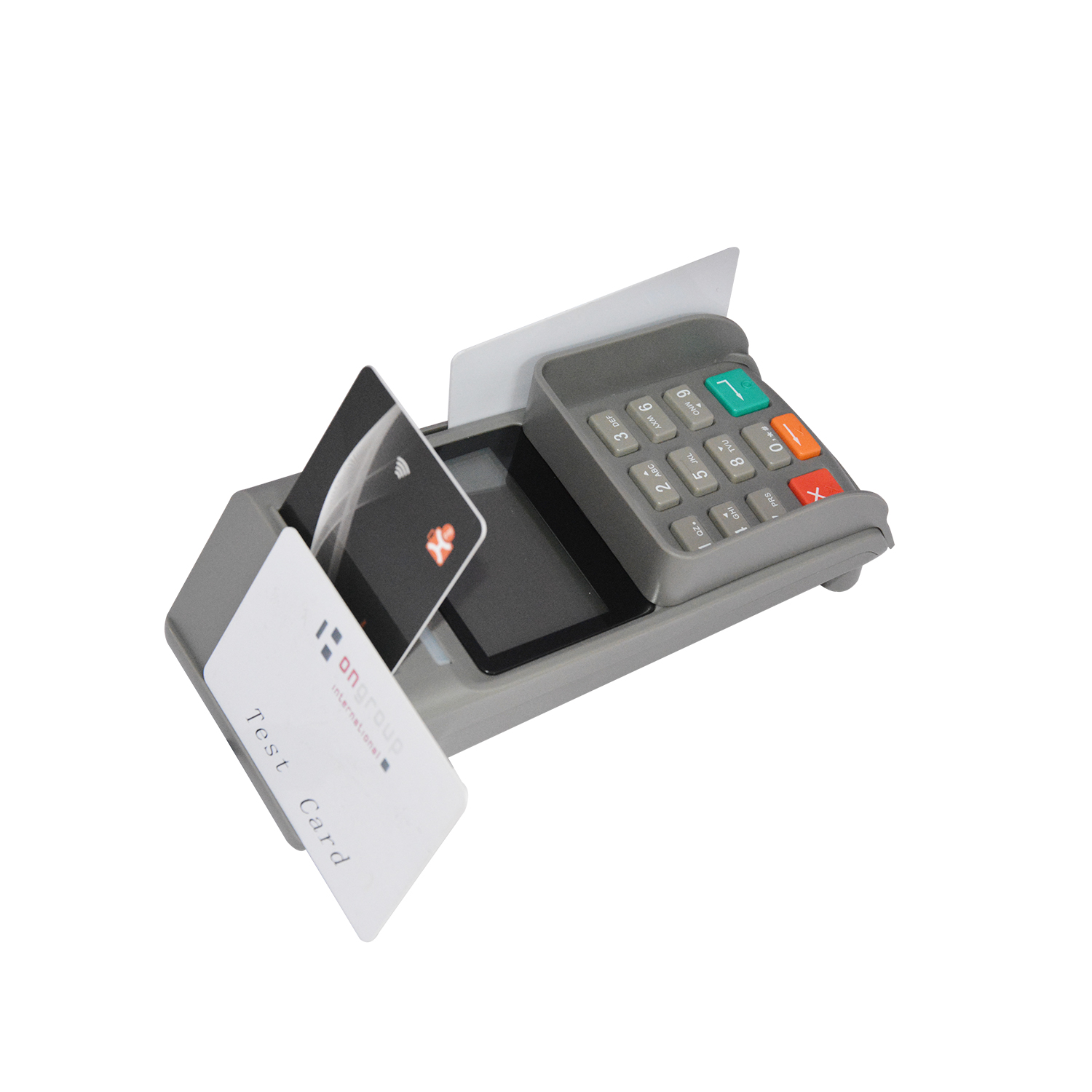

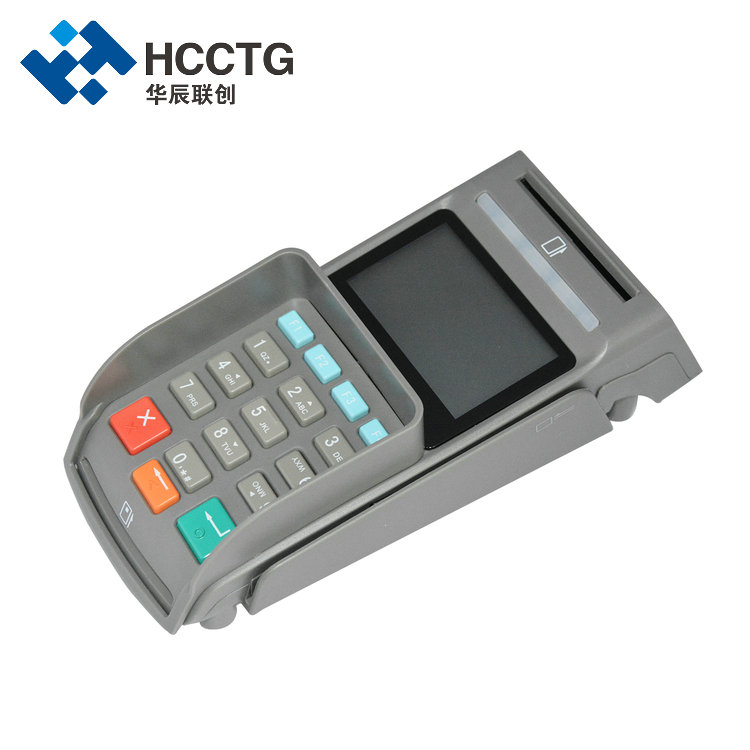

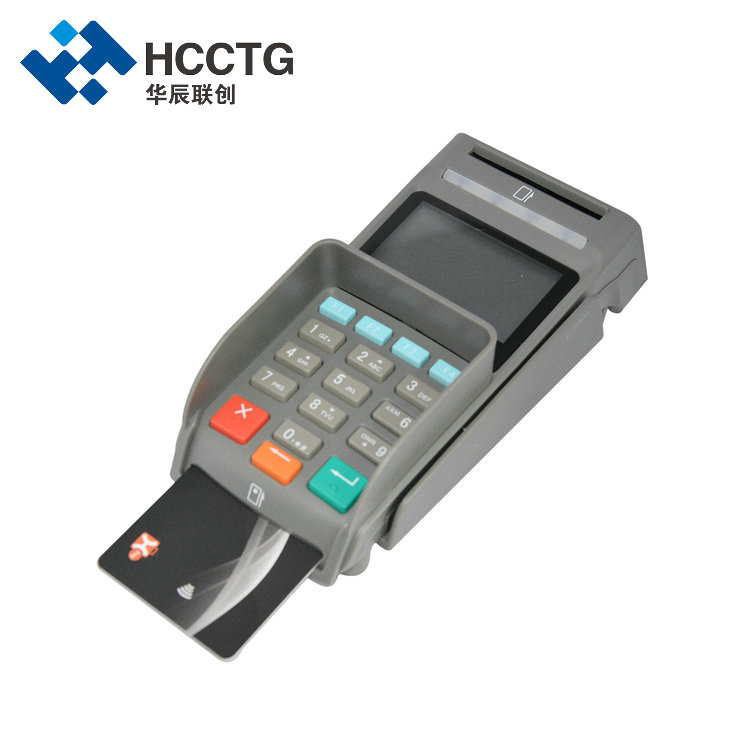

Z90PD is an All-In-One desktop PIN-pad reader that combines contact smart card, magnetic stripe and contactless technologies. It has LED indicators, 128 x 64 high-resolution graphical LCD, buzzer.
Features
Specification
| Physical Specifications | |
| Case Color | Black or Grey |
| Weight | 310g |
| Memory | |
| Memory | 2 KB Flash |
| Power | |
| Power Source | Battery |
| Supply Voltage | 5 V DC |
| Supply Current | Max. 500 mA |
| USB Interface | |
| Type | Type A, USB full speed |
| Power Source | From USB |
| Speed | 12 Mbps |
| Firmware | Upgradable through USB interface |
| Interface Class | HID compliance |
| Cable Length | 1.5 m fixed cable |
| Contactless Smart Card Interface | |
| Standard | ISO-14443 A & B part 1-4 |
| Protocol | Mifare ClassicProtocols, T=CL |
| SmartCardRead /Write Speed | 106 kbps |
| OperatingDistance | Up to40 mm |
| Operating Frequency | 13.56 MHz |
| Contact Smart Card Interface | |
| Number of Slots | 1 or 2 ID-1 Slots |
| Standard | ISO/IEC7816 ClassA,B, C (5V,3V, 1.8V) |
| Protocol | T=0; T=1 |
| Supply Current | Max. 50 mA |
| Short Circuit Protection | (+5) V /GND on all pins |
| Card Connector Type | ICC Slot 0: Landing |
| SmartCardRead /Write Speed | 9,600-115,200 bps |
| Card Insertion Cycles | Min. 200,000 |
| SAM Card Interface | |
| Number of Slots | 4 ID-000 slots |
| Card ConnectorType | Contact |
| Standard | ISO/IEC7816 Class B (3V) |
| Protocol | T=0; T=1 |
| SmartCardRead /Write Speed | 9,600-115,200 bps |
| Magnetic Stripe Card Interface | |
| Standard | ISO 7811 |
| Track 1/2/3, Bi-directional | |
| Reading | Supported |
| Built-in Peripherals | |
| Keypad | 17 keys |
| LCD Display | 128×64 dot-matrix LCD display with backlight |
| Buzzer | Monotone |
| LED StatusIndicators | 4 LEDs for indicating status (from left most: blue, yellow, green, red) |
| PIN-pad Encryption | |
| Algorithm | DES/3DES |
| Standard | X9.8, X9.9 |
| Operating Conditions | |
| Temperature | 0°C –50°C |
| Humidity | 5% to93%, non-condensing |
| Certifications/Compliance | ISO/IEC7816, ISO/IEC 14443,PBOC Level 1, PBOC Level 2 |
| Supported Operating Systems | Windows XP, Windows 7, Windows 8.1, Windows 10 |
