DCR30 supports ISO7816 Class A, B and C, and USB2.0 CCID host interface.
Item No.:
DCR30Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

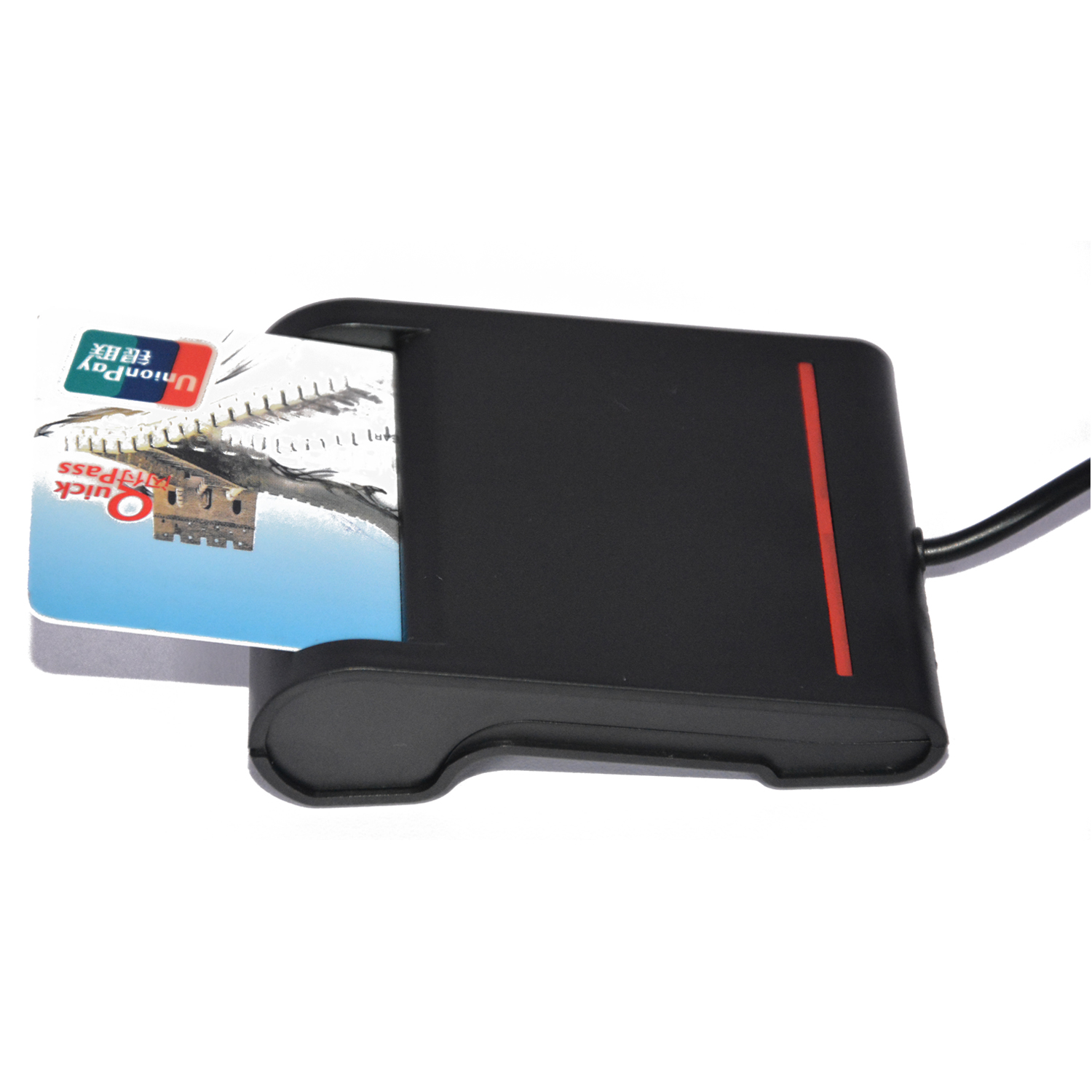

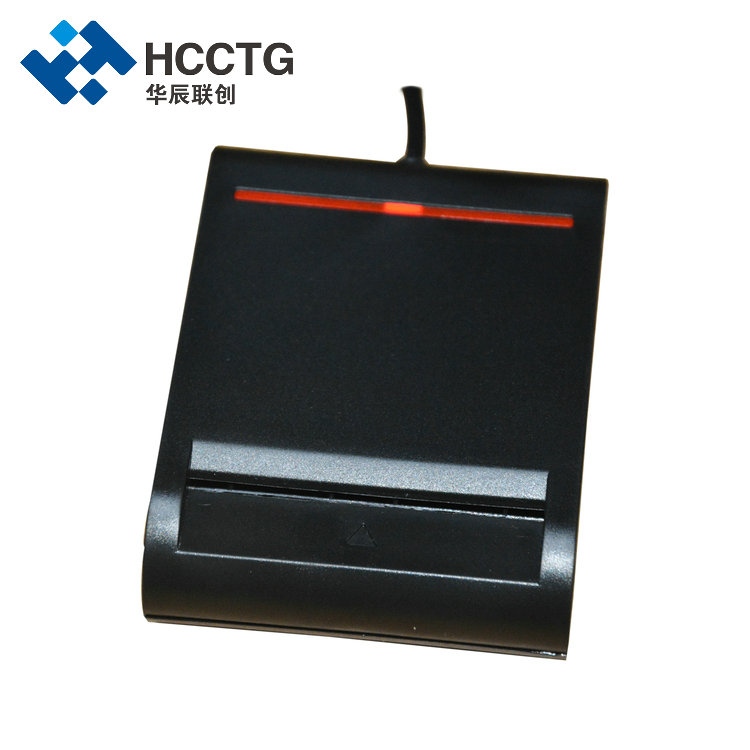

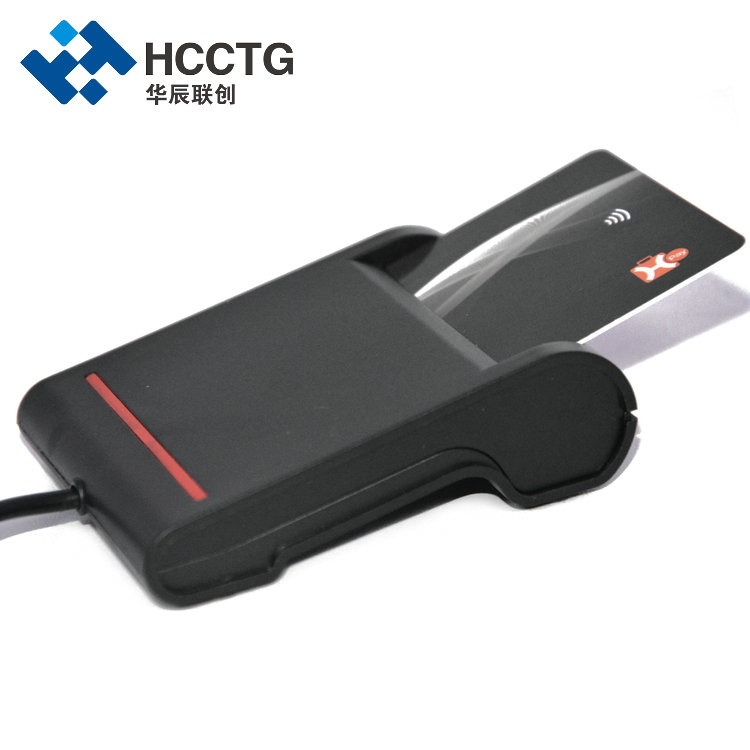

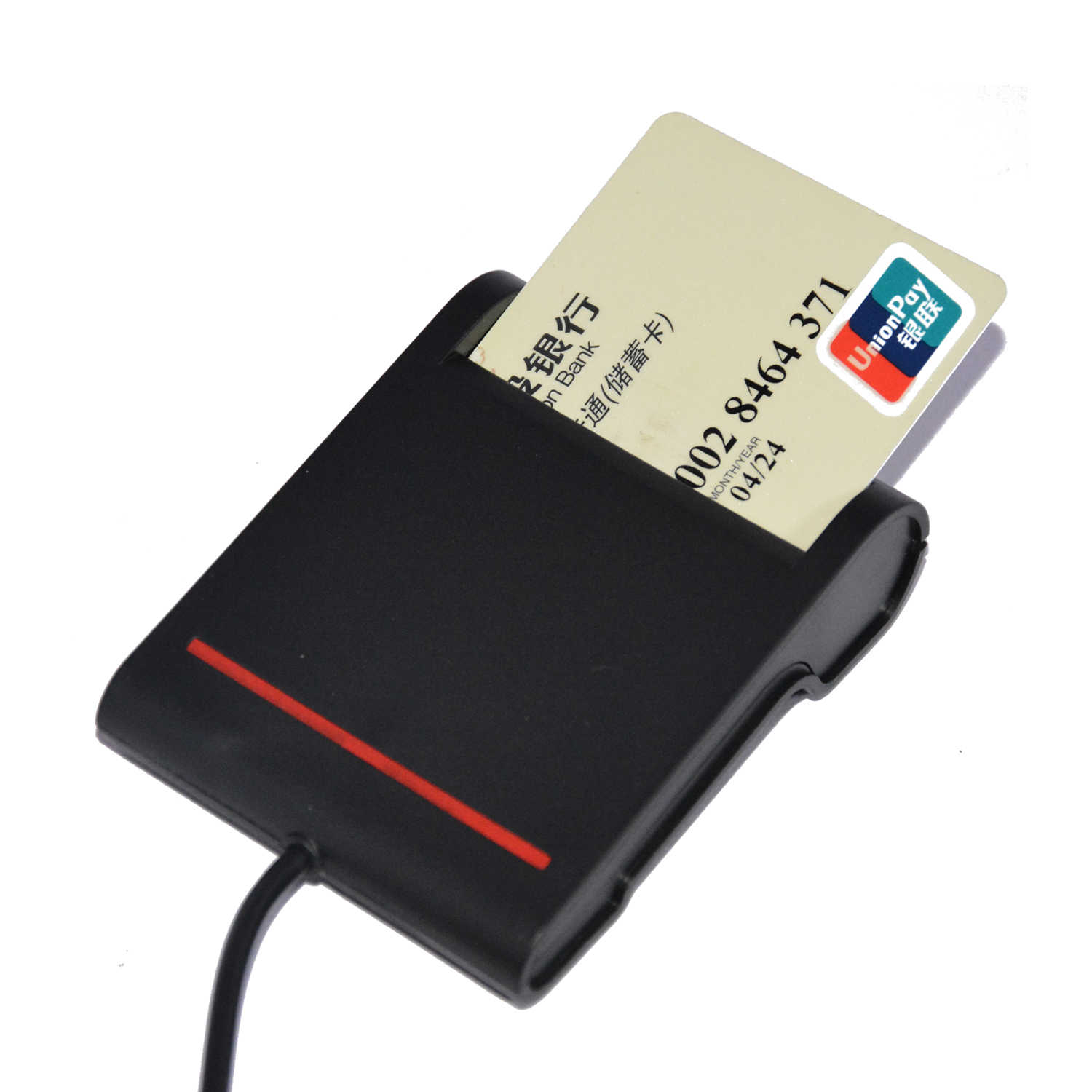

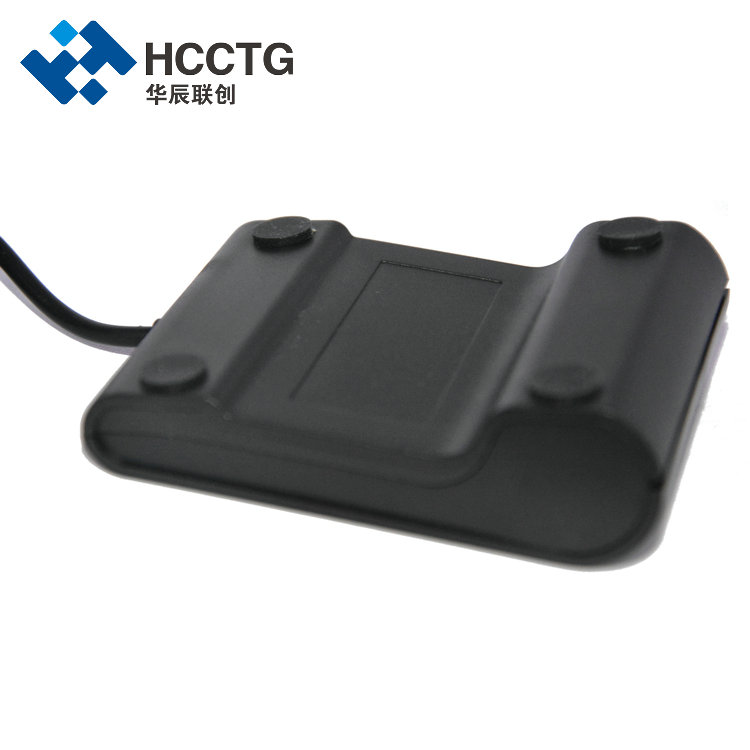

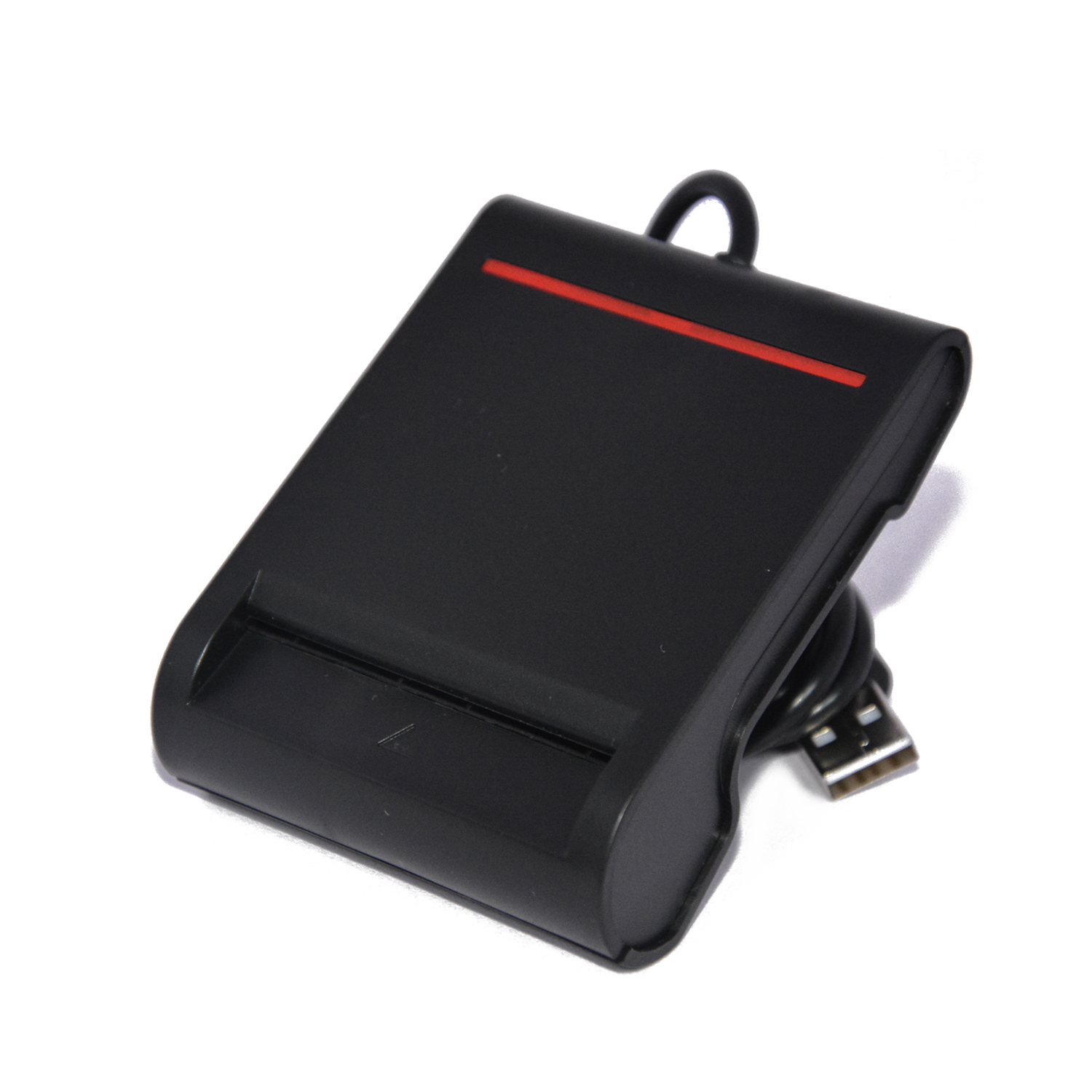

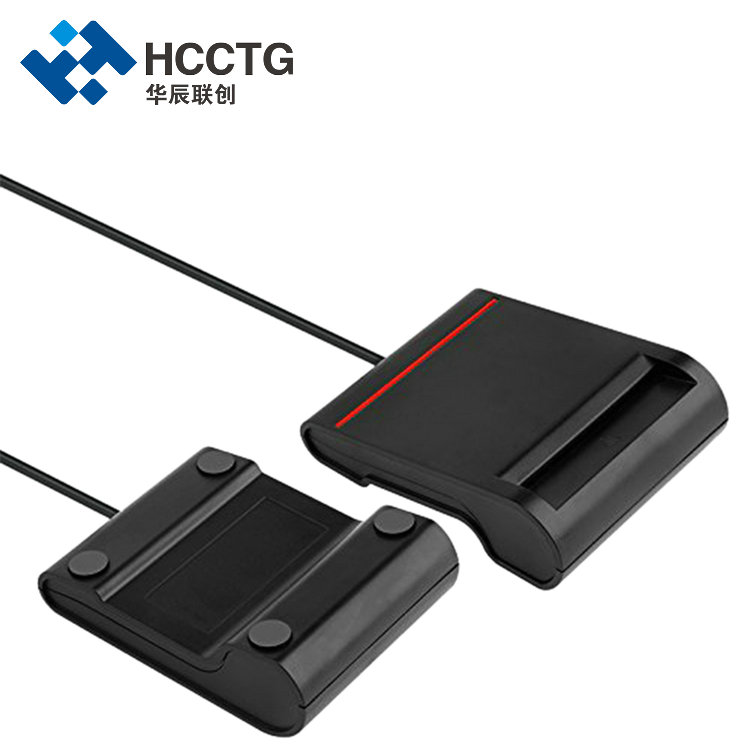

420kbps ISO7816 EMV L1 Contact Smart Card Reader DCR30
DCR30 has CE/ FCC/ RoHS/EMV L1 certificate and reach standard, its transmission speed up to 12 Mbps (USB 2.0 full speed), it's widely used in many areas, such as personal identification, financial transactions, access control, authentication, loyalty, etc.
Specification
| Host Interface | USB 2.0 CCID (also compliant with USB 1.1) |
| Transmission Speed | 12 Mbps (USB 2.0 full speed) |
| Power Supply | Bus powered |
| Standards | ISO 7816 T=0, T=1 |
| Protocols | 2-wire: SLE 4432/42 (S=10), |
| AT88sc1608/ 153, AT24c128/ 256 | |
| ST: M14C16, M14C04 | |
| Card Size | ID-1 (full-size) |
| Smart Card Interface Speed | 420 Kbps (when supported by card) |
| Smart Card clock frequency | Up to 5 MHZ |
| Supported card types | 5V, 3V and 1.8V Smart Cards |
| Iternal Memory | 1MB |
| Power to Smart Card | 60 mA |
| Status Indicator | YES |
| Customer specific logo or label | On request |
| Customer specific colors | On request |
| PC/SC Driver Support | Windows 98 / ME, 200 / XP (32bit), 2003 Server Windows CE 5.0 (depending on hardware) Windows Vista (32bit / 64bit) Windows 7/ 8/10/ Mac OS Linux(need Micro USB to USB Adapter) Android |
| Operating temperature | 0º-55ºC / 32-131ºF |
| Operating humidity | 10-90% rH |
| Composition | ABS |
| Connector cable | 100 cm / 70.9" |
| Durability | 100.000 insertions |
| Meantime between failure (MTBF) | 500.000 hours |
| ItemDimension(L*W*H) | 85mm*65mm*9.5mm |
| Certification | CE/ FCC/ RoHS/EMV L1 certificate and reach standard |
