The animal tag reader W91 is an RFID wireless reader that supports electronic tags in EMID, FDX-B (ISO1784/85) and conventional barcode/two-dimensional code scanning formats.
Item No.:
W91Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

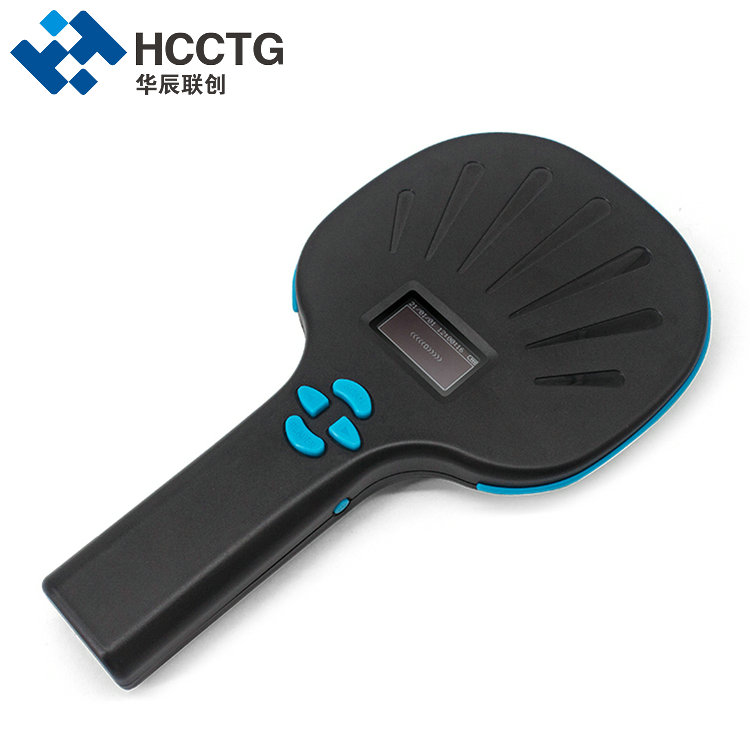

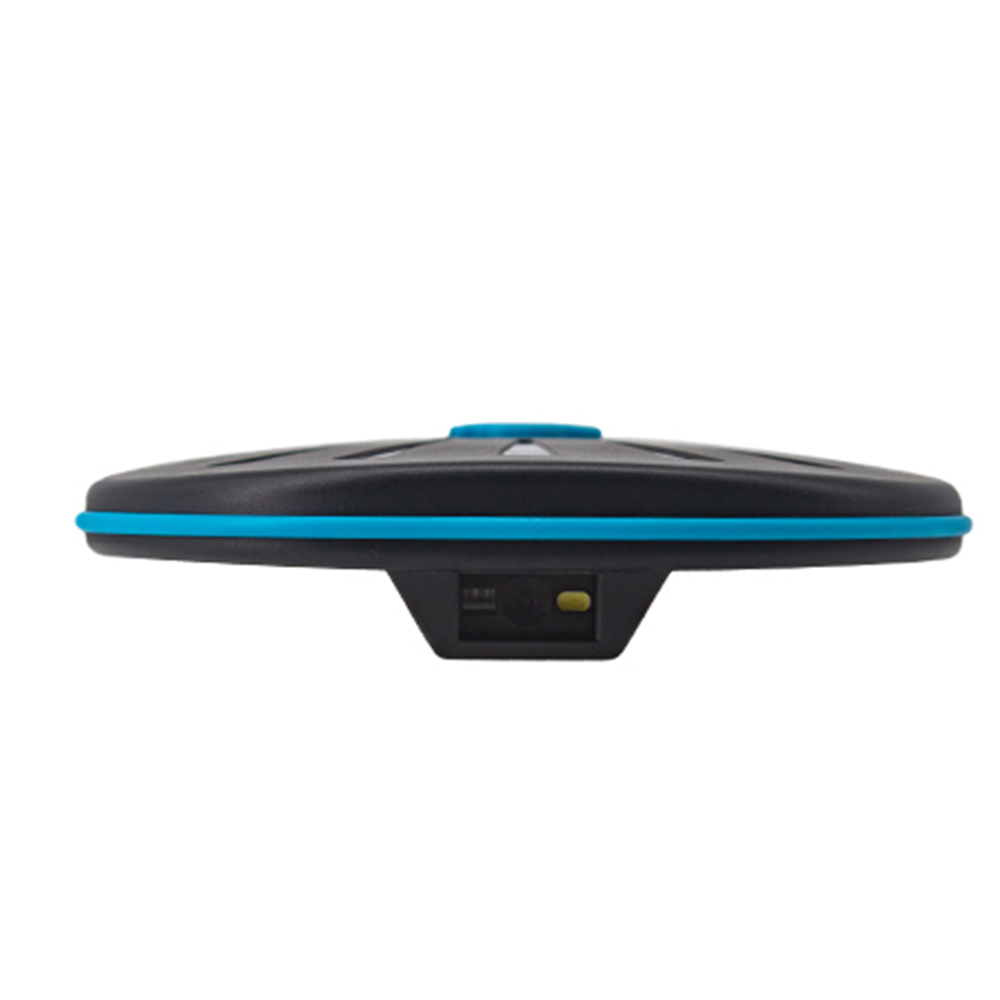

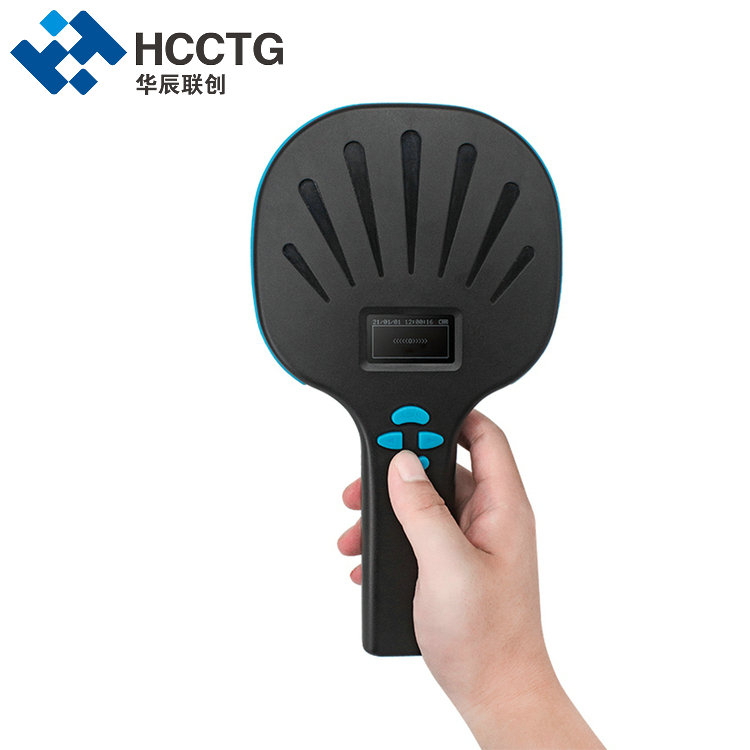

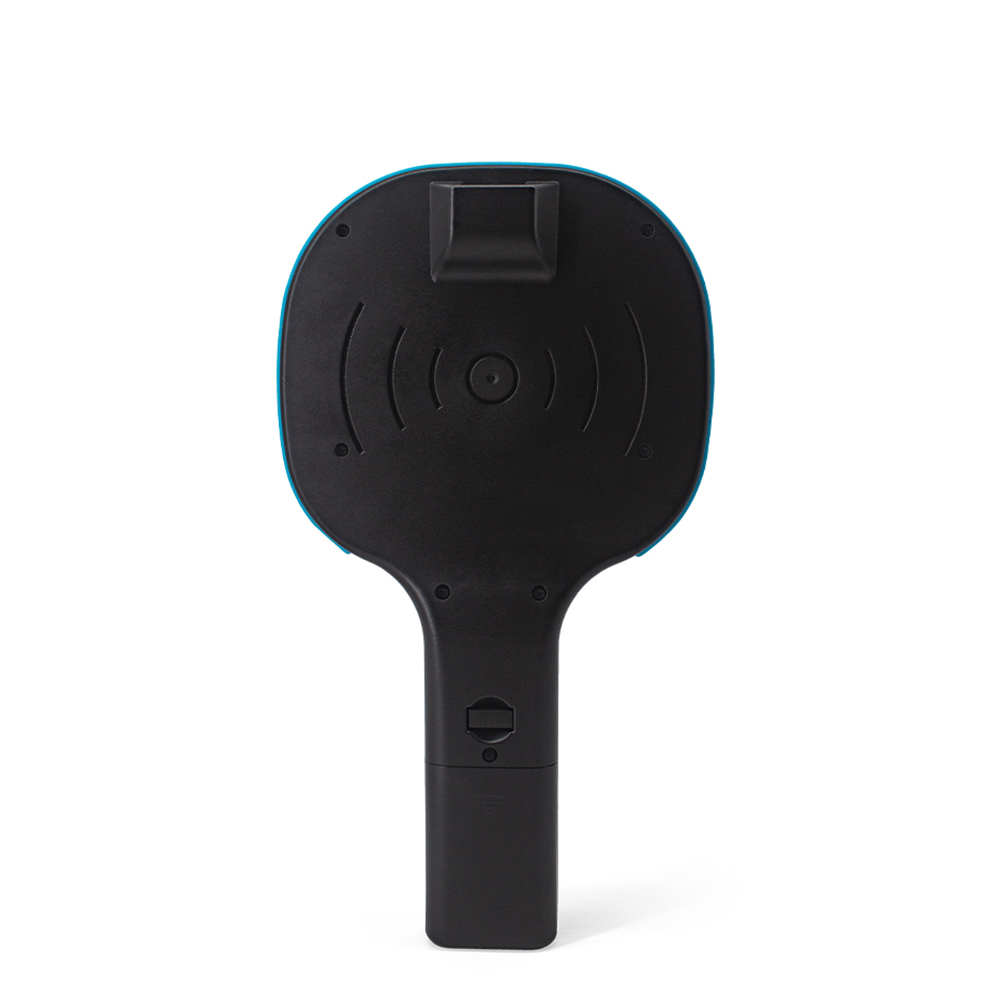

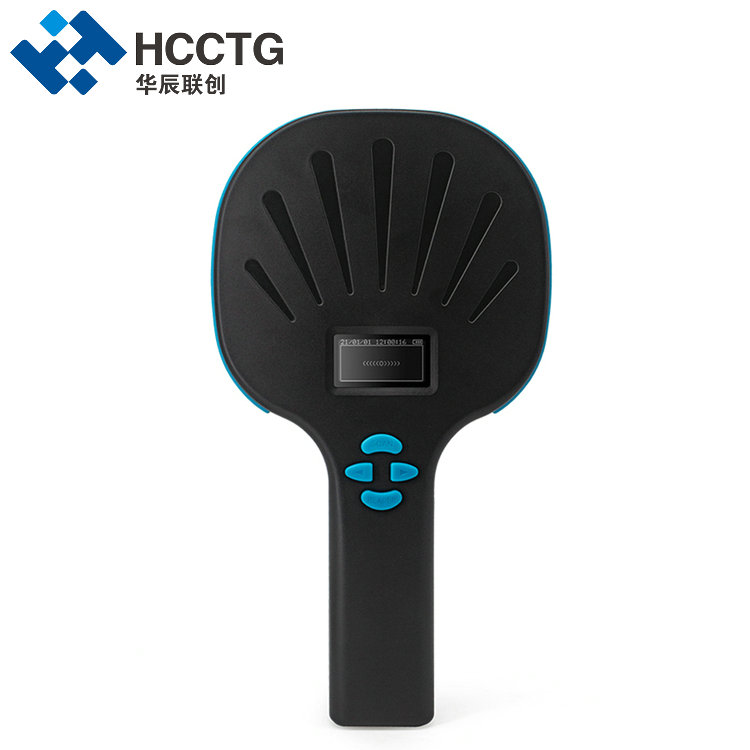

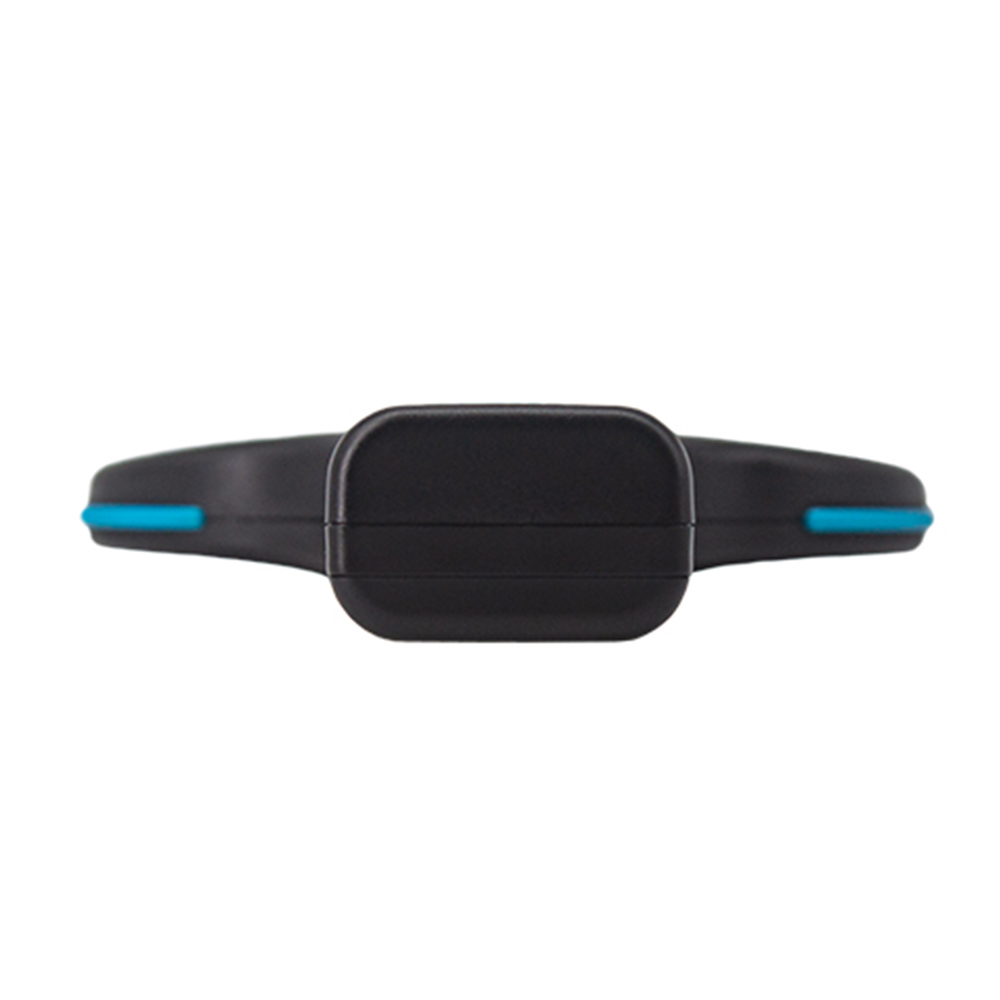

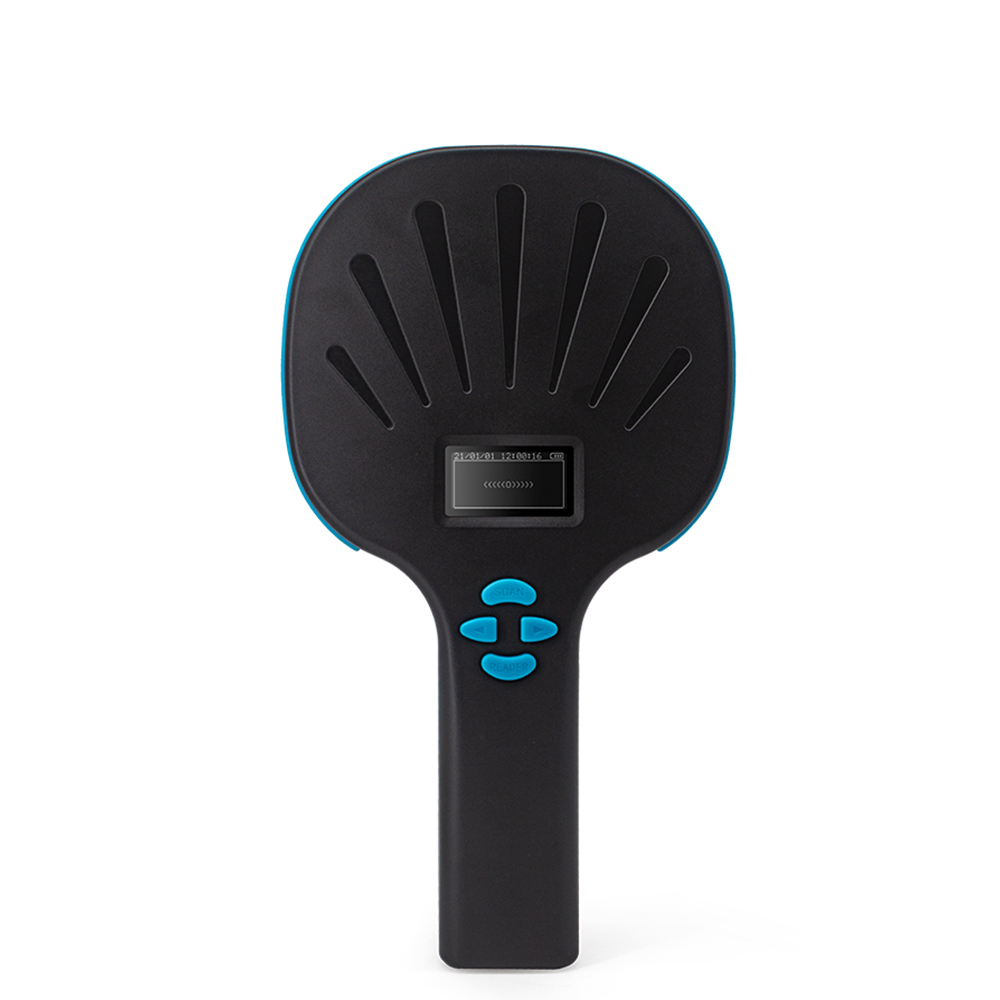

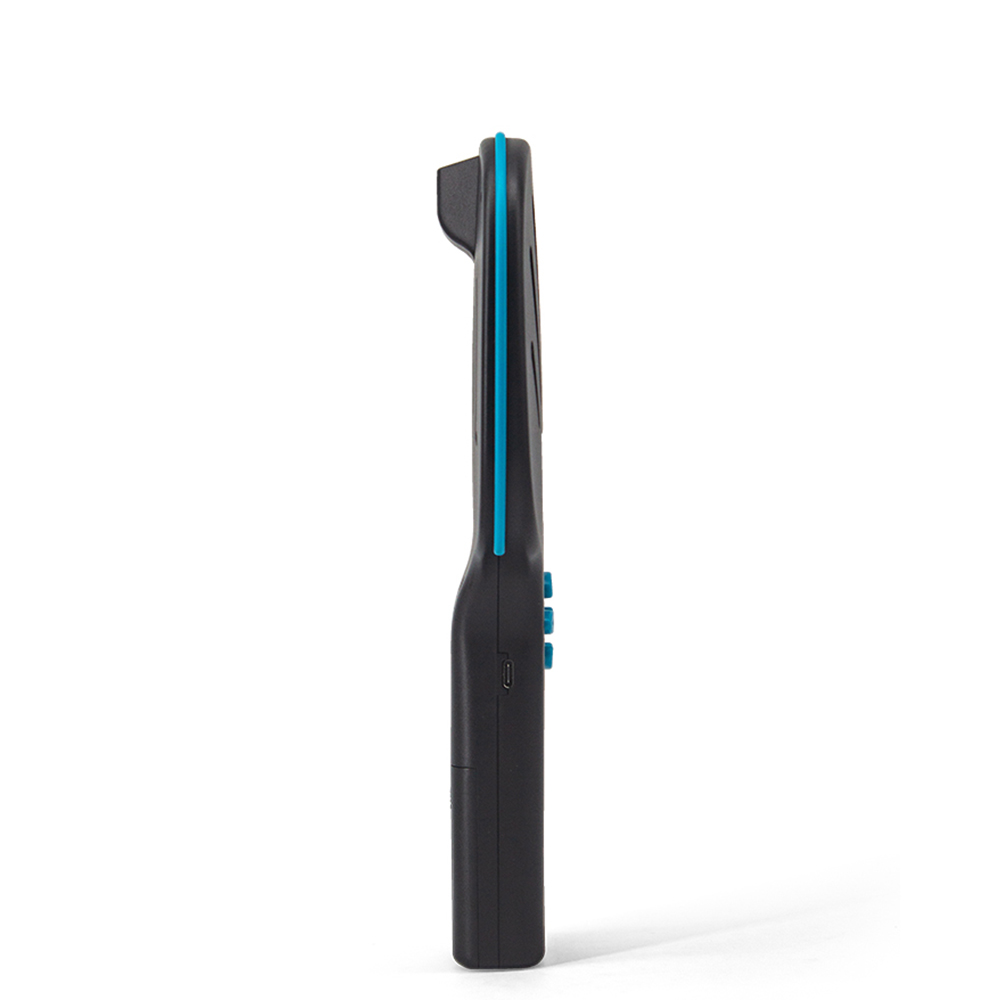

134.2KHz/125KHz Bluetooth Animal Tag Reader Handheld Pet Microchip Scanner W91
W91 uses a high-brightness OLED display, which can be clearly displayed in indoor and outdoor strong light conditions. With its own storage function, it can store up to 6000 tags, which can be uploaded to the computer via USB data cable, wireless, and Bluetooth.
The product performance is stable, the operation is simple, and it is suitable for small animal management, traceability management, warehousing inventory, and material management.
| Operating frequency | 134.2khz/125khz |
| Label format | EMID, FDX-B (ISO11784 / 85) |
| Read/ write rag | 2-12mm glass tube label > 15cm 30mm animal ear mark > 25cm (related to label performance) |
| Standard | ISO11784 / 85 |
| Reading time | < 100ms |
| scan resolution | 640 x 480, pixels |
|
Support code system | 1D:UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, Code 39, CodeBar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, Code 93, Code 11 (USD-8), RSS-14 2D:PDF417, QR code, DataMatrix (ECC200) |
| Signal indication | 128*64 high brightness OLED screen, buzzer |
| Power supply | 4.8V (lithium battery) |
| Storage capacity | 6000 pieces of information |
| Communication interface | Type -c, Wireless 2.4G, Bluetooth |
| Working temperature | - 10℃~ 50℃ |
| Storage temperature | - 30℃~ 70℃ |
| Package size | 28.5cm X 17cm X 5cm |
| Weight | 300g |
