HCC3300 supoorts ISO14443 A&B / EMV2000 Level 1 / PBOC 3.0 standard.
Item No.:
HCC3300Product origin:
Guangdong, ChinaColor:
WhiteShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

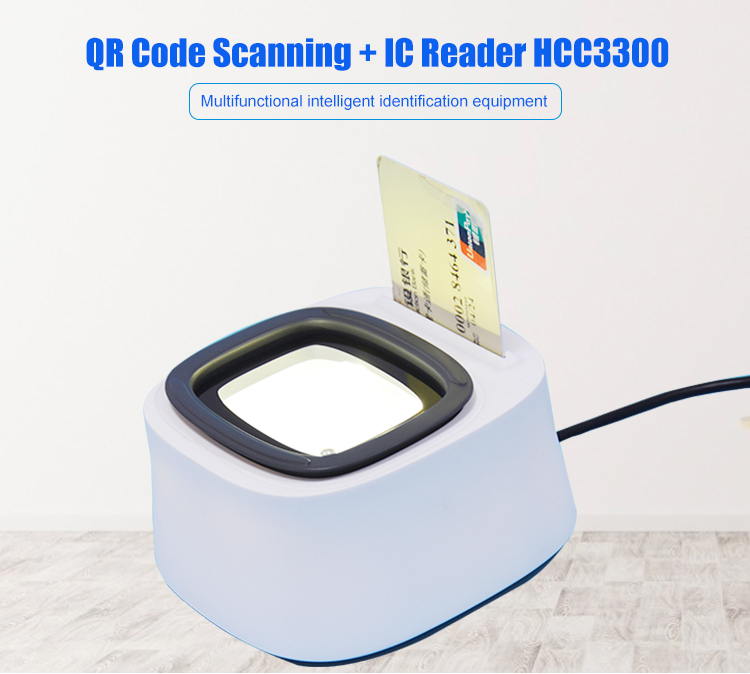

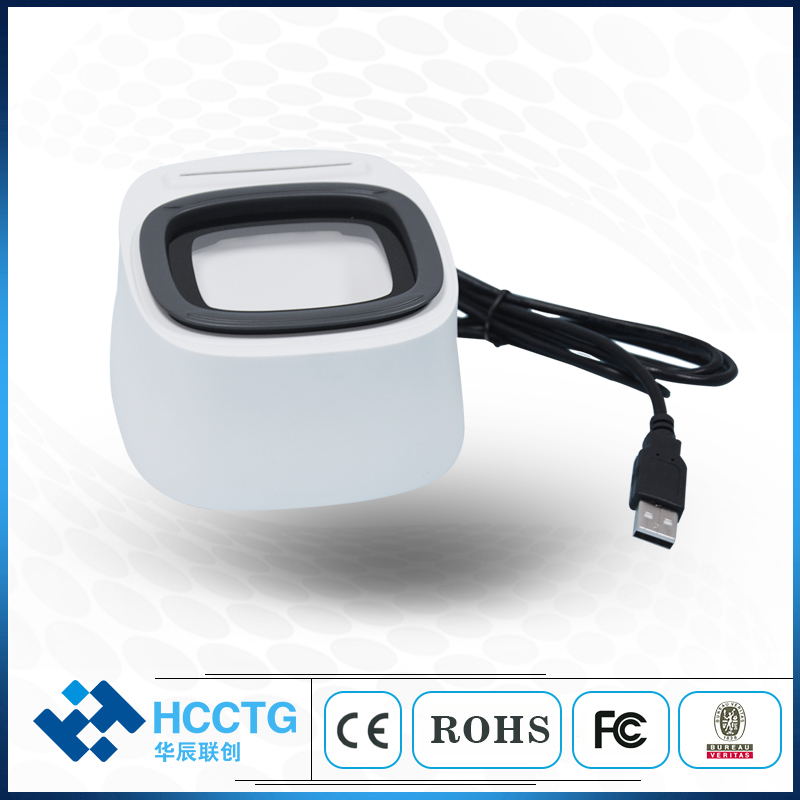

Unionpay ISO7816 Mifare Supermarket Mobile Payment Box HCC3300
The HCC3300 mobile payment box is a cutting-edge device that offers comprehensive functionality for seamless payment experiences. Designed to support ISO7816/ISO14443 A/B, EMV2000, and PBOC2.0 specifications, this versatile box enables secure transactions with enhanced compatibility. It features two SAM card sockets that can be extended, allowing for added flexibility and customization.
With its USB interface, the HCC3300 supermarket scanning box can easily connect to PCs and other related equipment, ensuring smooth integration into existing systems. It also excels in various industries, including finance, social security, industrial and commercial taxation, transportation, securities, post, and telecommunications. This makes it a reliable choice for applications in supermarkets, where it functions as an efficient scanning box, enhancing checkout processes.
Additionally, the HCC3300 mobile payment box supports contactless mobile payment applications, catering to the growing demand for convenient and secure transactions. Its advanced barcode scanning capabilities further bolster its versatility, providing reliable scanning solutions for a range of industries.
Specification
| Main Technical Feature | |
| Power Supply | USB Bus / DC: +5V±10% 300mA. |
| Consumption | Current / operating Typical 250mA Max |
| 150mA Standby | |

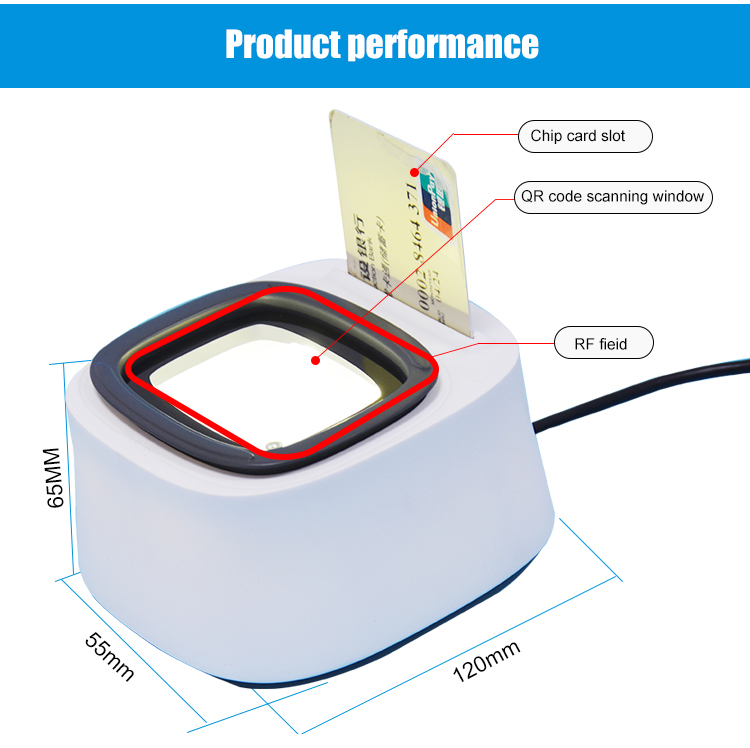

| Outline | 120* 55* 64.9(L*W*H)mm |
| Temperature | Operation: -10ºC to 60ºC; Storage: -30ºC to 70ºC |
| Humidity | Operation: 10 to 85%; Storage: 10 to 90%, Non-Condensing. |
| QR Code Scanning Feature | |
| Image sensor | 640H * 480V 30fps |
| Field of view angle | Horizontal: 65° Diagonal: 81° Vertical: 61° |
| Deflection angle | Horizontal: ±50° Vertical: ±50°Whirling: 360° |
| Motion tolerance | 3m/s |
| Code system support | 1D: Code128 / Code32 / Code 39 / Code 93 / EAN 13 / EAN 8 / EAN / UCC128 / ISBN13 / ISMN / ISSN / Logmars / NVE18 / PZN7 / PZN8 / service-id / SSCC 18 / UPC 12 / UPCA / DPD / UPU S10 / Swedish Postal Shipment ItemID |
| 2D: PDF417 / QR Code / Data Matrix / Royal Mail Cmdm Mailmark / PPN / Swiss QR Code | |
| Read Rate | 50ms |
| Recognition Accuracy | 5mil |
| Contrast | ≥25% |
| Reading mode | Trigger / Sensing / Continuous |
| Reading material | Screen / Paper / Metal / PVC film |
| Ambient light | 0~100,000LUX |
| Interface | Mode 1:RS232:9600 Baud, None Parity, 8 bits |
| Mode 2:USB HID Keyboard (default). | |
| Mode 3:USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits | |
| IC Technical Feature | |
| Interface | Mode 1:RS232:9600 Baud, None Parity, 8 bits |
| Mode 2:CCID - PC/SC on USB (default). | |
| Mode 3:USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits | |

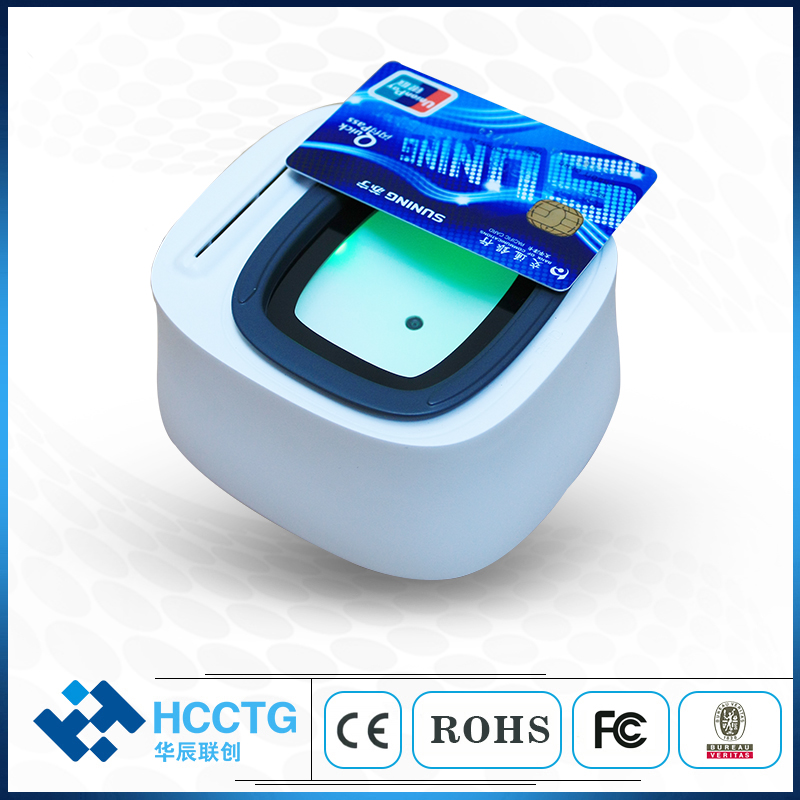

| Contact IC | |
| Standard | ISO7816 / EMV2000 Level 1 / PBOC 3.0 |
| Card Voltage | 5V / 3.3V / 1.8V.selecting the nominal card supply voltage according to ISO / IEC7816-3. |
| Protocol | T=0 / T=1 |
| IC Holder | 8 contacts, short circuit protection, pressure: 0.4n ± 0.1n. Holder life: > 200,000 times |
| Communication rate | 9600bps~38400bps, support PPS |
| Protection | Short-circuit protection |

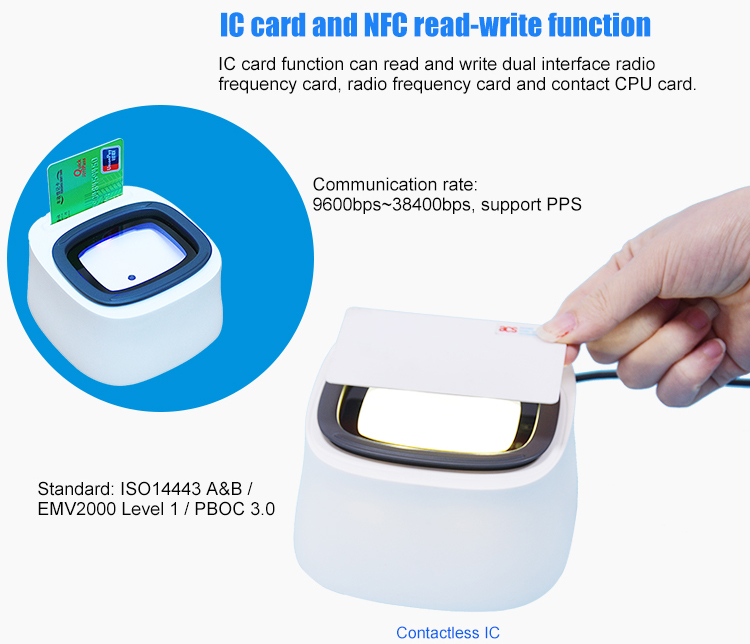

| Contactless IC | |
| Standard | ISO14443 A&B / EMV2000 Level 1 / PBOC 3.0 |
| Support Card | SmartCPU Card / Mifare one 1K / 4K |
| Protocol | T = CL |
| Frequency | 13.56MHz |
| Effective range | 0~30mm |
| Communication rate | 106K / 212K / 424K bps, support PPS |
