DCR38-UM supports ISO/IEC 7816 Part 1 to 4, EMV 2011 Ver 4.3 Level 1 standard.
Item No.:
DCR38-UMProduct origin:
Guangdong, ChinaColor:
WhiteShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

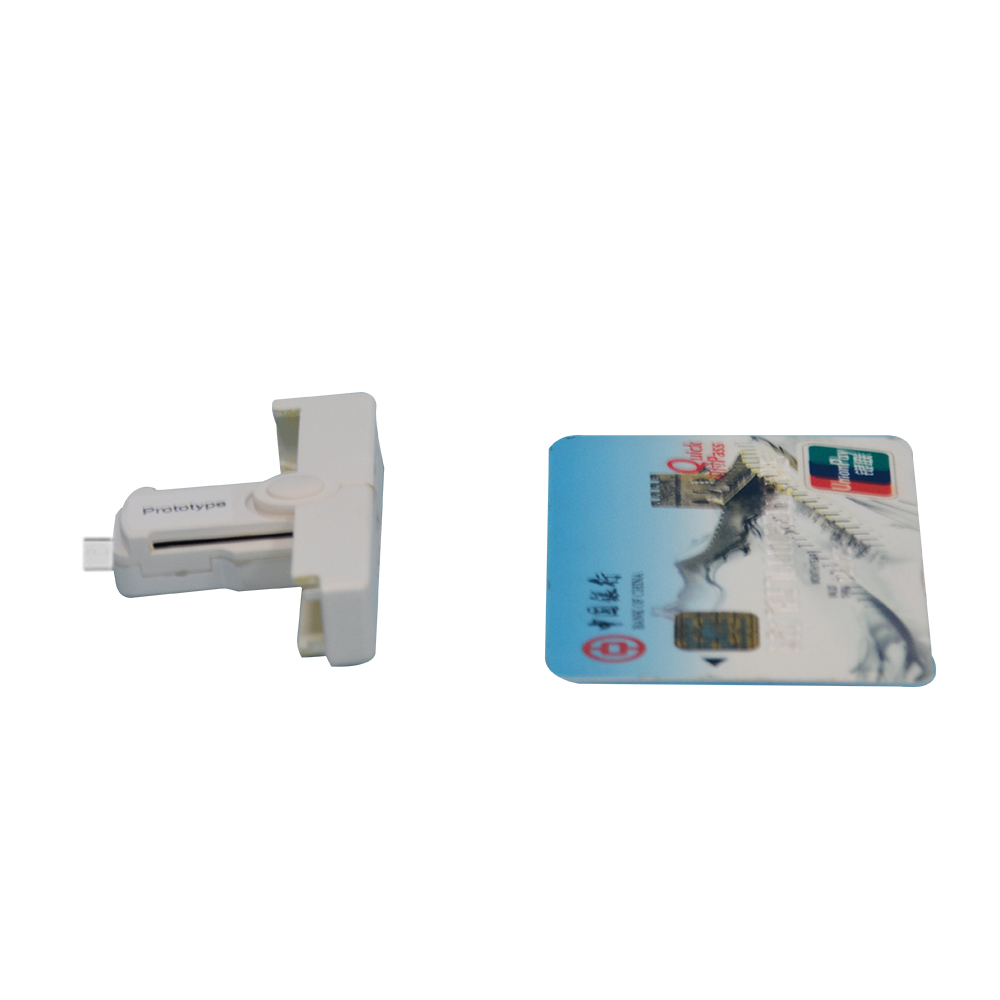

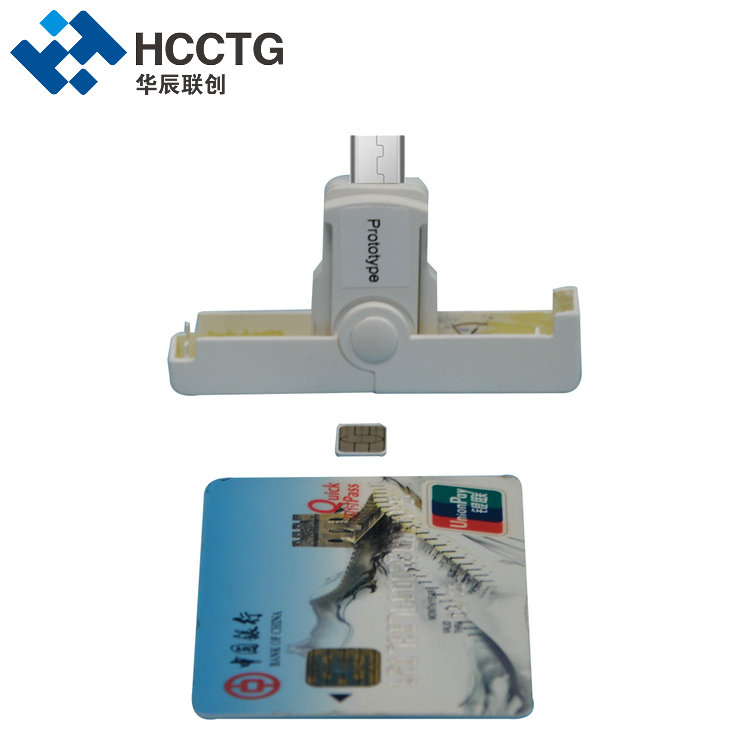

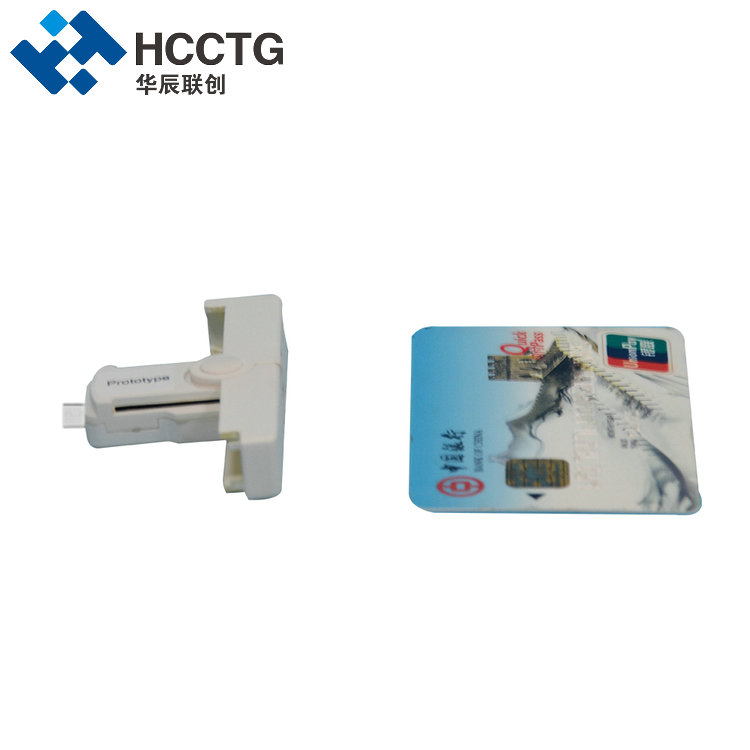

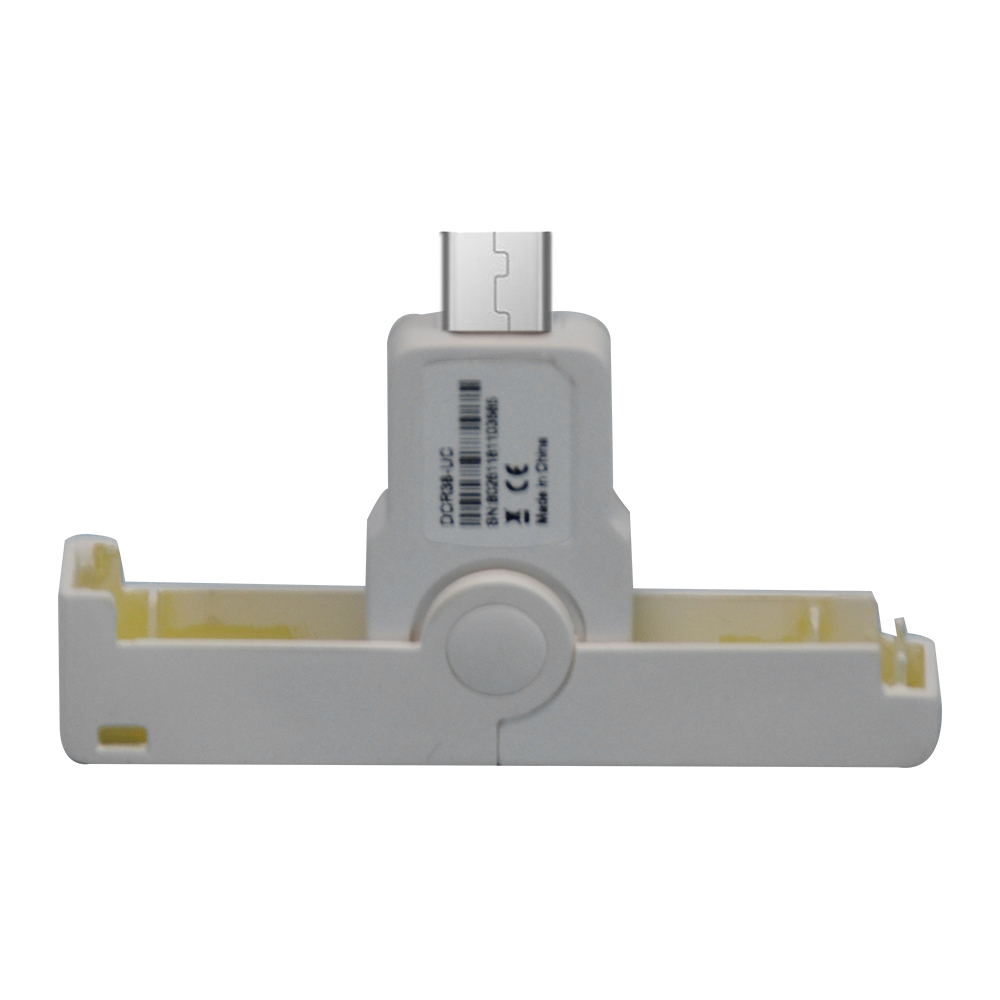

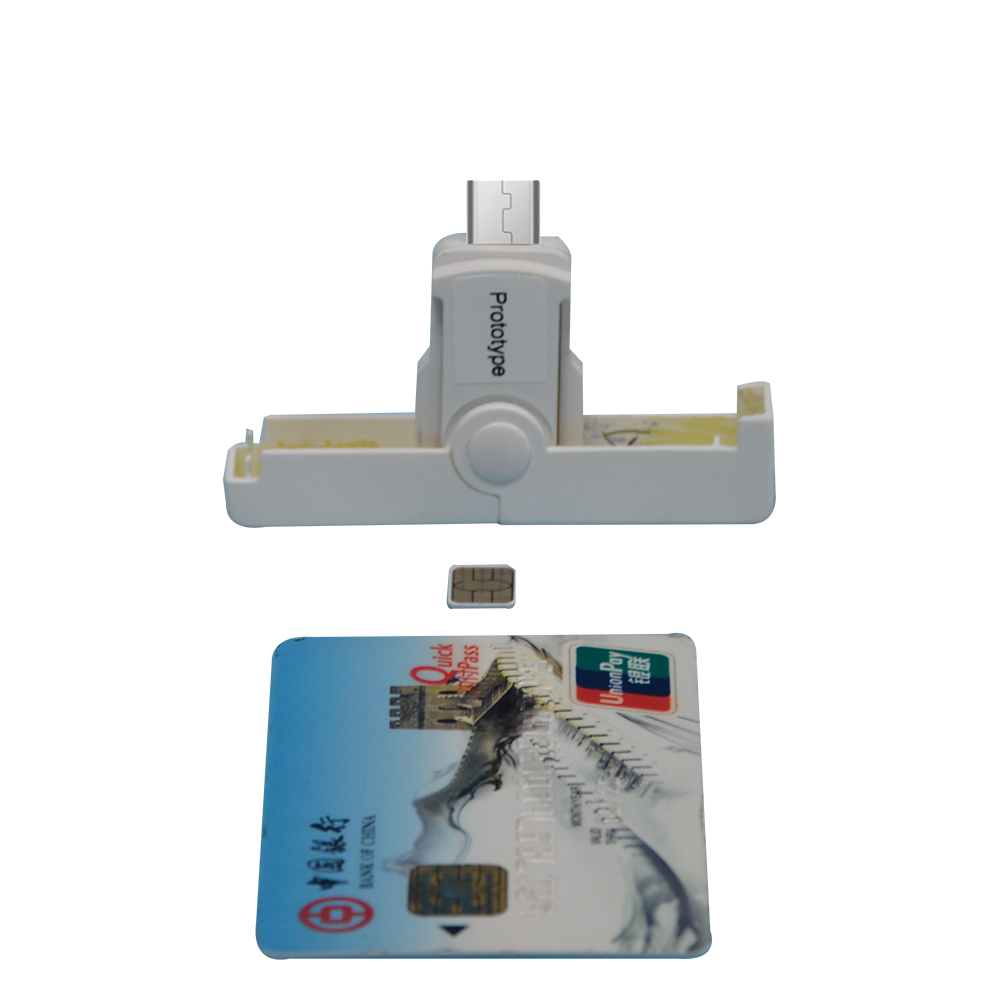

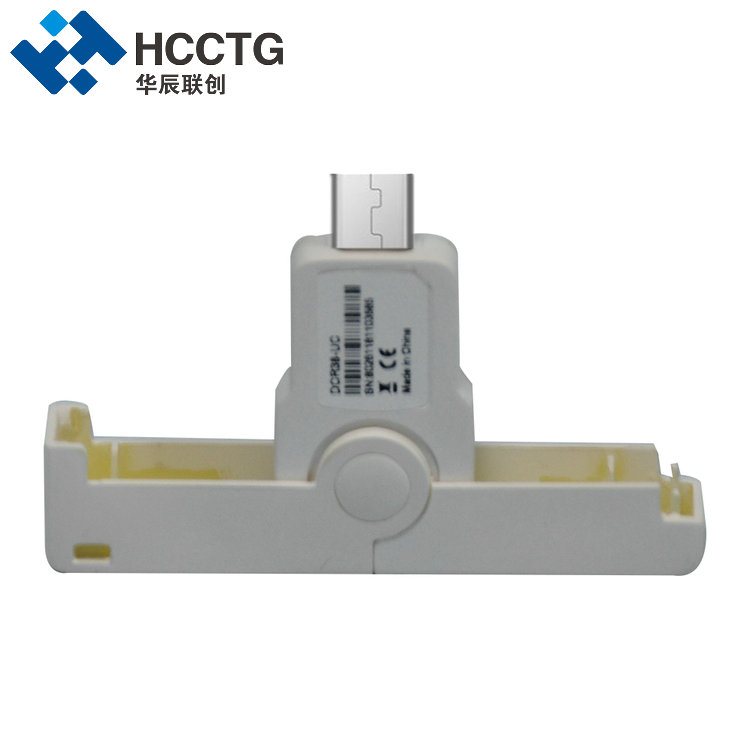

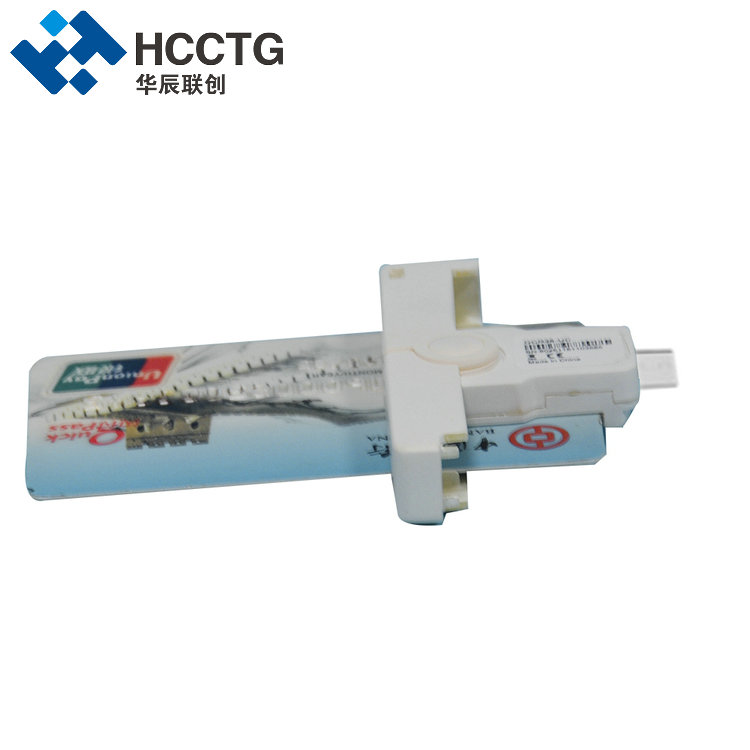

PC/SC CE ROHS Contact IC Chip Smart Card Reader DCR38-UM
DCR38-UM is also the first smart card reader in the industry that offers the reversible type C connector, improving on-the-go user experience. The extended card data transmission rate of up to 600 kbps with the support of TA1=97 enables the shortest possible transaction time for maximum end-user convenience.
With DCR38-UM, the end user experiences convenience, transaction-time efficiency, security, and reliability for applications such as network login, Windows authentication and Single Sign-On (SSO), banking and cashless payment applications, as well as high-security use cases for federal governments.
(Type C Reversible USB Connector)
Features
Specification
| Host Interface | Micro USB Full speed (12Mbps) | |
| Smart Card Interface | ||
| Supported Standards | ISO/IEC 7816 Part 1 to 4 EMV 2011 Ver 4.3 Level 1 | |
| Supported Tag ICs | All major ISO/IEC 7816 compliant Smart Card IC support | |
| Smart Card Protocols | T=0, T=1 | |
| Smart Card Interface Speed | Up to 600 kbps (depending on card) TA1=97 | |
| Smart Card Clock Frequency | ISO/IEC 7816 compliant; Operates up to 16 MHz | |
| Supported Smart Card Types | 5V, 3V, and 1.8V, ISO/IEC 7816 Class A/B/C | |
| Power to Smart Card | 60mA in Class A; 55mA in Class B; 35mA in Class C | |
| Smart Card Detection | Card present switch Automatic power on/off Short circuit protection | |
| Card Size | ID-1 or ID-4 | |
| Contact Type | Sliding Contact Socket (ID-1 8 pin or ID-4 6 pin) | |
| Driver and Software | | |
| PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: Windows XP/Vista/7/8/10 (32 and 64 bit); Windows Server 2003/2008/2012; Windows CE 6.0/7.0 MacOS 10.5.x, - 10.15.x Linux 2.4.x, 2.6.x, 3.x, 4.x, 5.x (32 and 64 bit) Android 4.0 and higher | |
|
Software | PC/SC API CT-API (through wrapper on top of PC/SC) | |
| Operating Conditions | | |
| Power Supply | Bus-powered USB | |
| Power Consumption | < 6mA, excluding smart card; <500μA in standby mode | |
| Dimensions | 49 x 22 x 13.5 mm | |
| Weight | 15g | |
| Operating Temperature Range | 0° to 50°C (32° to 122°F) | |
| Storage Temperature Range | -20° to 60°C (-4° to 140 F) | |
| Operating Humidity Range | Up to 95% RH non-condensing | |
| Durability | Sliding Contact 100,000 card insertions | |
| MTBF | 300,000 hours | |
| Connector | Micro USB connector | |
| Status Indicator | LED | |
| LED | SmartOS | |
| Firmware In-Field Upgradeable | No | |
| Certifications and Compliances | | |
| Systems/Standards | ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft HCK | |
| Regulatory/Environmental | CE, RoHS | |
