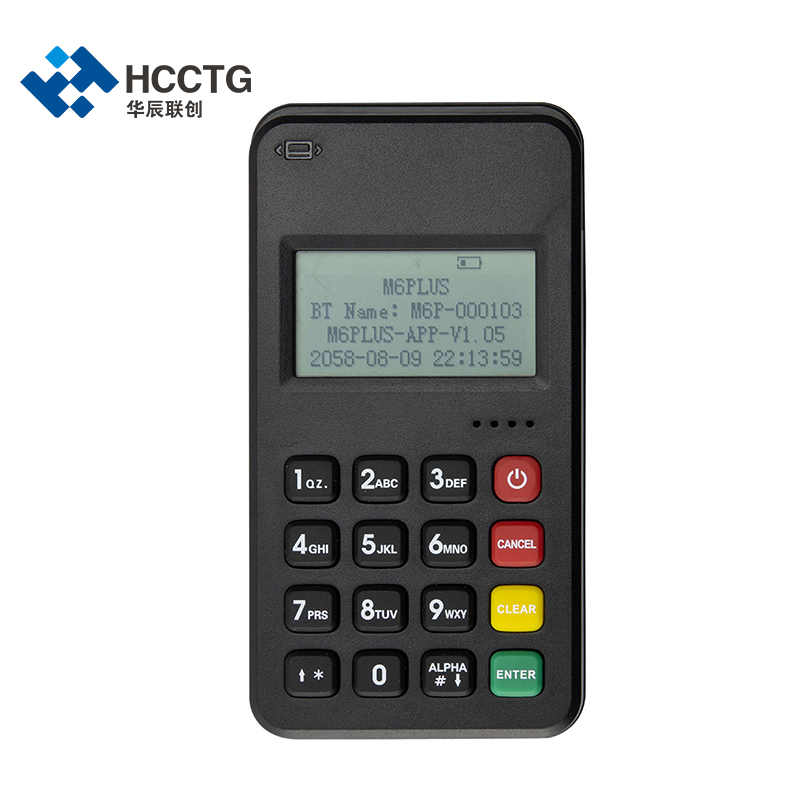

MPOS M6 PLUS is an innovative mobile payment terminal, connects with mobile phones and other smart devices via Bluetooth.
Item No.:
M6 PLUSProduct origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|
EMV PCI Magnetic Stripe/Contact/Contactless Card Payment Pin MPOS M6 PLUS

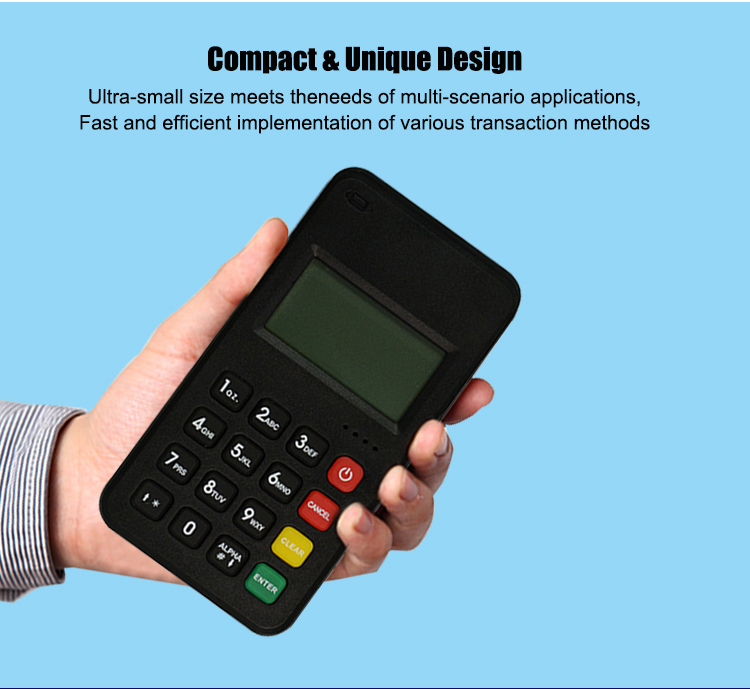

MPOS M6 PLUS combined with multiple applications and networks while providing portable intelligent mobile inquiry solution, it is small and portable, simple operation, safe and reliable.
It is well compatible with external access to the Cash register system, Electronic Voucher Distribution, E-Voucher, E-Payment, E-Wallet, Money Transfer, Mobile Money, Mobile Payment, Mobile Recharge in Banks, Securities centers, Retail Stores, Restaurants, Lotteries, Clothing stores.
Features
Specification
| Processor | 32-bit ARM Processor |
| Memory | 256KB SRAM+512KB Flash External Storage: 4MB Flash |
| Display | 128*64 lattice LCD display |

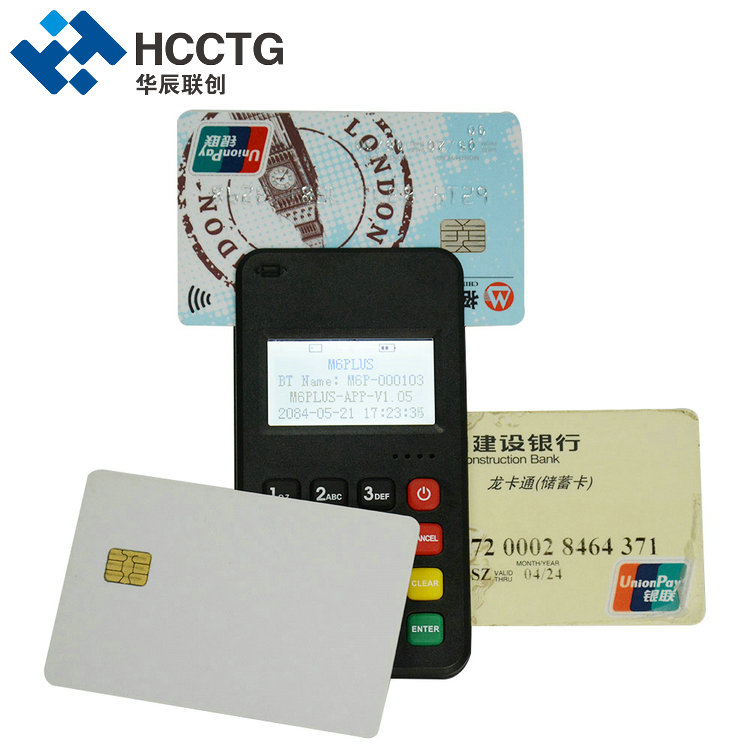

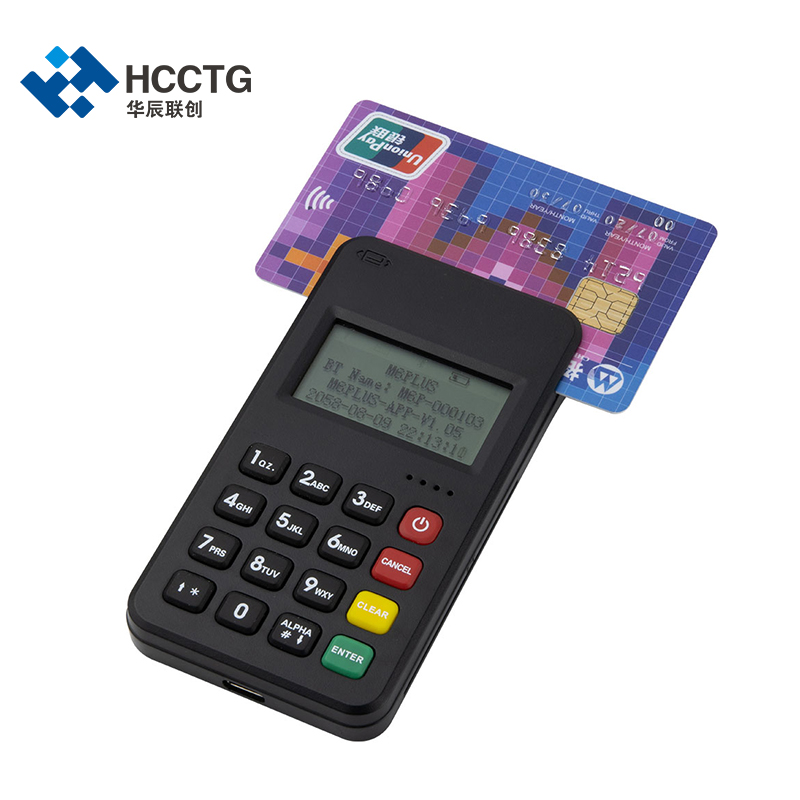

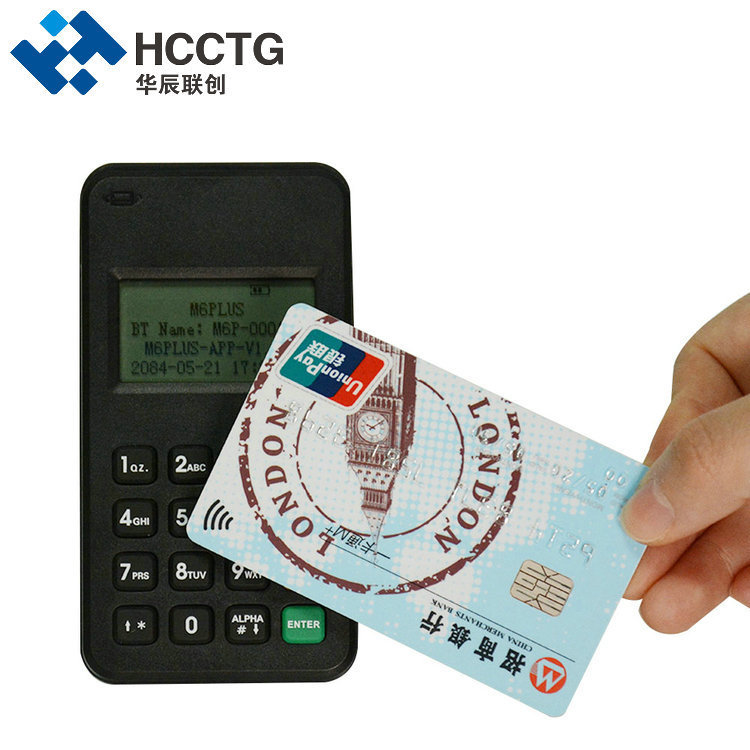

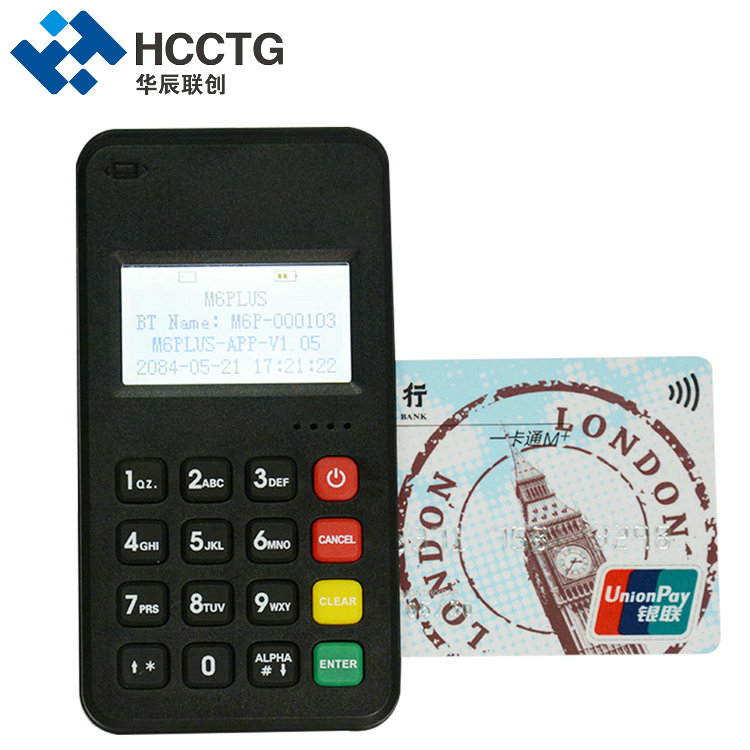

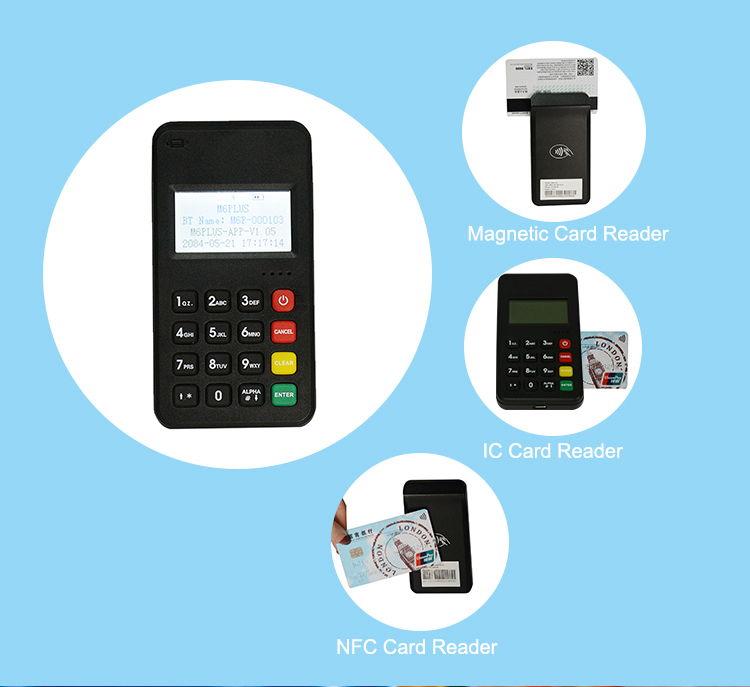

| Support CardType | IC card (ISO 7816) NFC card (ISO 14443A/B) Magnetic card with track 1/2 (Track1/2/3 at optional) |

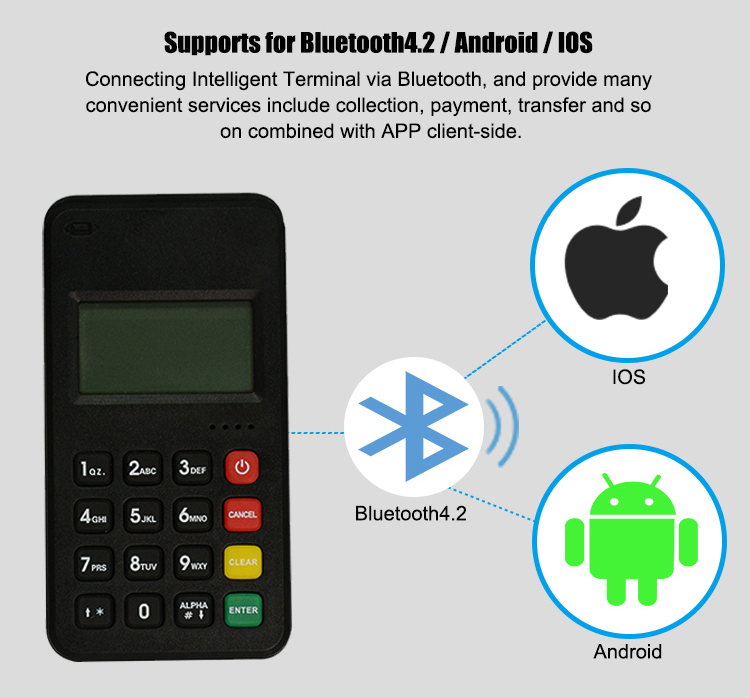

| Communication | Bluetooth4.2, WiFi(optional) |
| Battery | 300mAh,3.7V |
| Keys/Buttons | 10 numeric keys,5 function keys,1 power on/off key |
| Audio | 1 Buzzer |
| Camera | Optional |
| Ports | 1 USB Type-C |

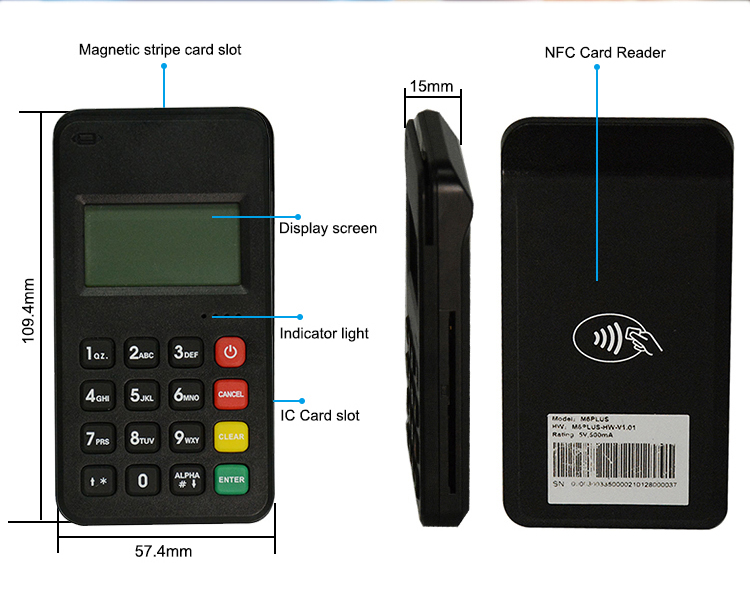

| Physical | 109.4*57.4*15mm , 80g(including battery) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Humidity | 10%~93%Relative Humidity, Non-condensing |
| Accessories | 1 USB Cable |
| Certifications | PCI PTS 6.x, SRED EMV L1 & L2 EMV Contactless L1 Visa paywave Mastercard contactless Mastercard TQM CE RoHS |
