EMV ISO7816 Contact IC Smart Card Reader Writer With Type C USB ACR39U-UF


ACR39U-UF This palm-sized reader features a USB Type C connector. The USB Type C Connector features reversible plug orientation and cable direction to fit mobile to device product designs for future smart card applications.

  • Item No.:

    ACR39U-UF
  • Product origin:

    Guangdong, China
  • Color:

    Black
  • Shipping port:

    Shenzhen/Guangzhou/HongKong
  • Lead Time:

    1
  • Product Details


Smart Card Reader Description:

ACR39U-UF supports ISO 7816 smart cards and various memory cards, as well as microprocessor cards with T=0, T=1 protocols.

The Iogear USB common access smart card reader is suitable for CAC middleware and offers secure access. This card reader incorporates LED display to show system operation and power status. It features main card, auxiliary card interfaces and 8-pin connectors for reliable connectivity. It supports popular memory cards including SLE 4404, 4418, 4428, 4442, 4443 and I2C. It is compatible with Microsoft USB-CCID driver. The plastic casing ensures durability. This card reader is ideal to use as a communications medium between the EMV smart card and a host in secure systems such as those used by government, banking and health care.


USB 2.0 Full Speed Interface

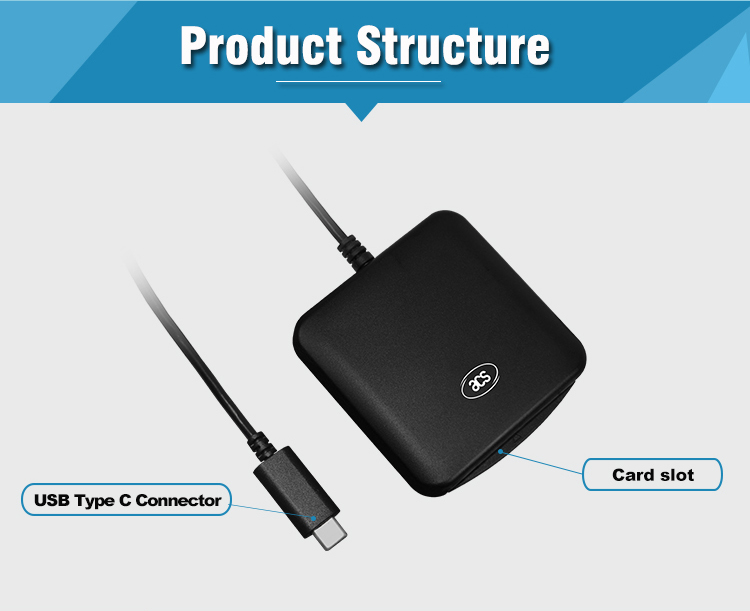

USB Type C Connector

Plug and Play – CCID support brings utmost mobility

Smart Card Reader:

Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

Supports CAC

Supports SIPRNET Card

Supports J-LIS Card

Supports microprocessor cards with T=0 or T=1 protocol

Supports memory cards

Supports PPS (Protocol and Parameters Selection)



Specification

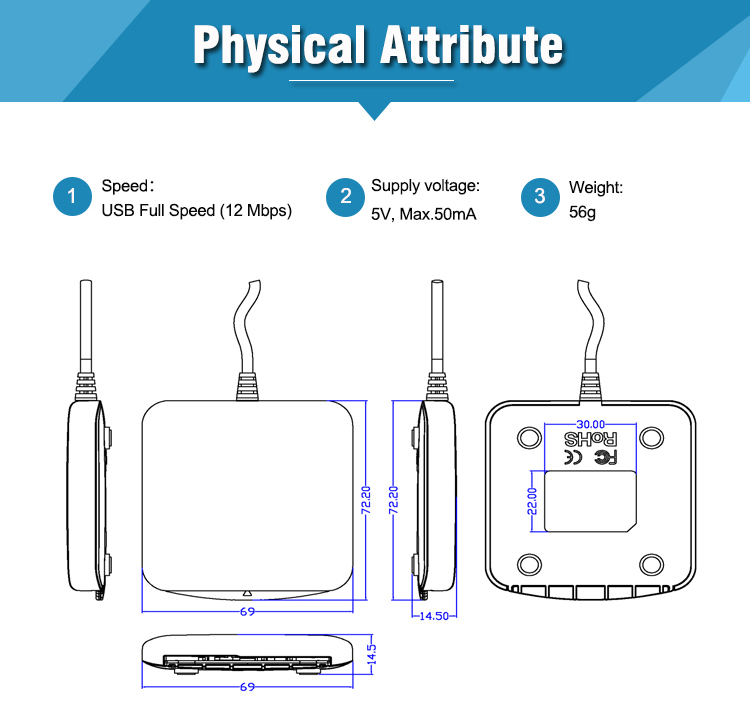

Dimensions

72.2 mm (L) × 69.0 mm (W) × 14.0 mm (H)

Contact Smart Card Interface

Number of Slots: 1 Full-sized Card Slot

Standard: ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol: T=0; T=1; Memory Card Support

Others: CAC, PIV, SIPRNET, J-LIS Smart Cards

Compliance / Certifications

EN 60950/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, EMV Level 1 (Contact), TAA (US), J-LIS (Japan), VCCI (Japan), PBOC (China), CE, FCC, WEEE, RoHS 2, REACH

Microsoft® WHQL

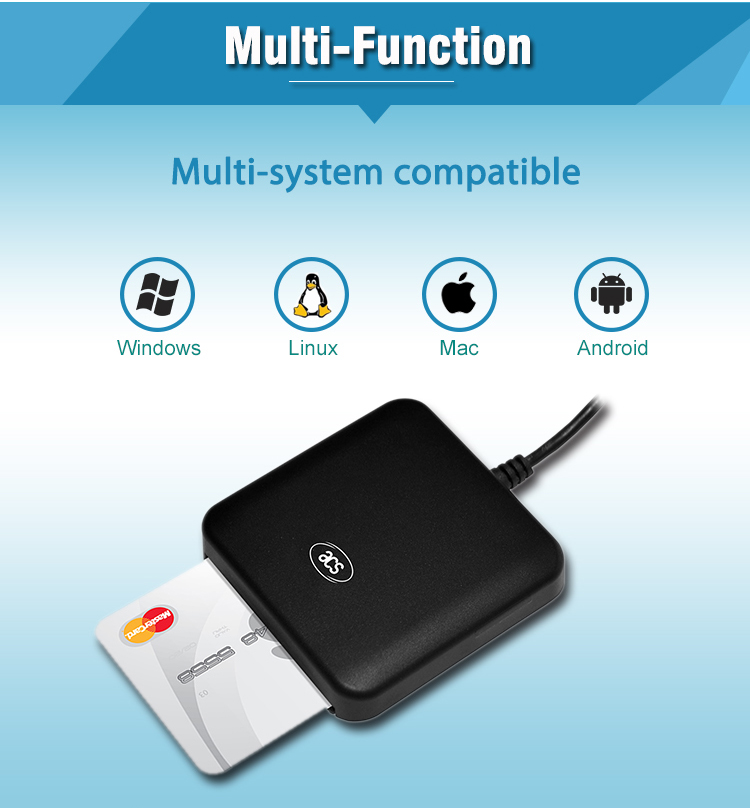

Operating System Support

Windows®

Linux®

Mac OS®

Android™

Solaris
