DCR38-UC supports ISO/IEC 7816 and reversible USB type C connector, it's popular with new laptops and mobile devices.
Item No.:
DCR38-UCProduct origin:
Guangdong, ChinaColor:
WhiteGoods_stock:
1000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

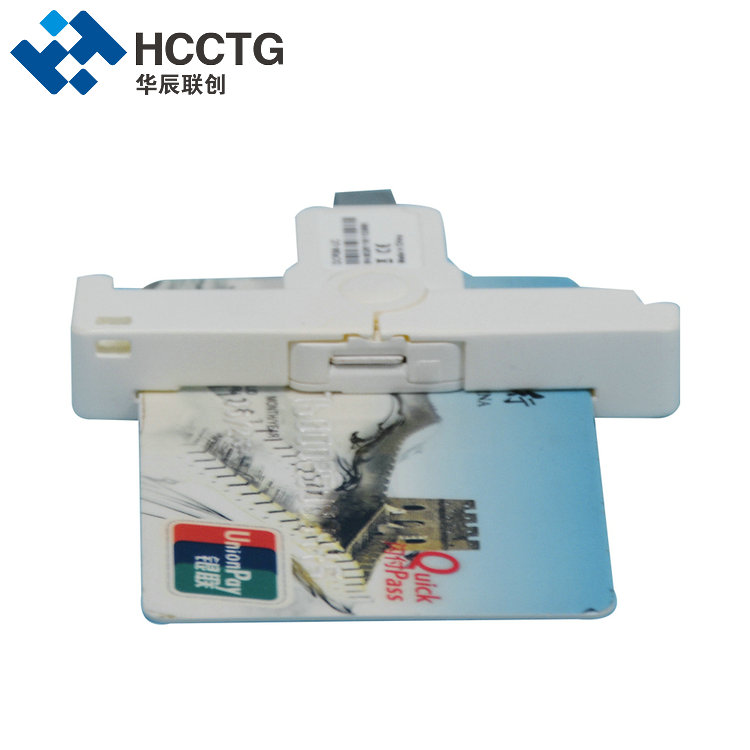

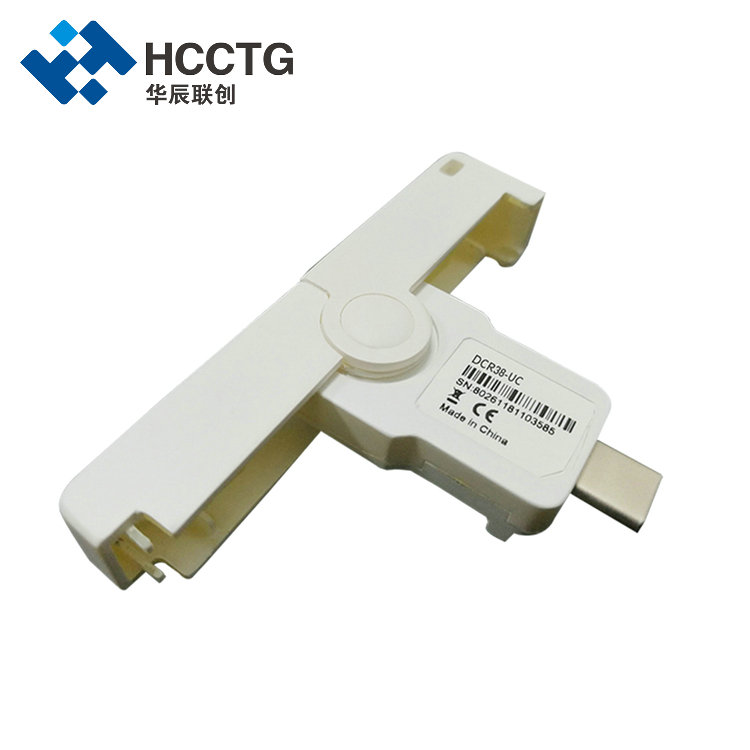

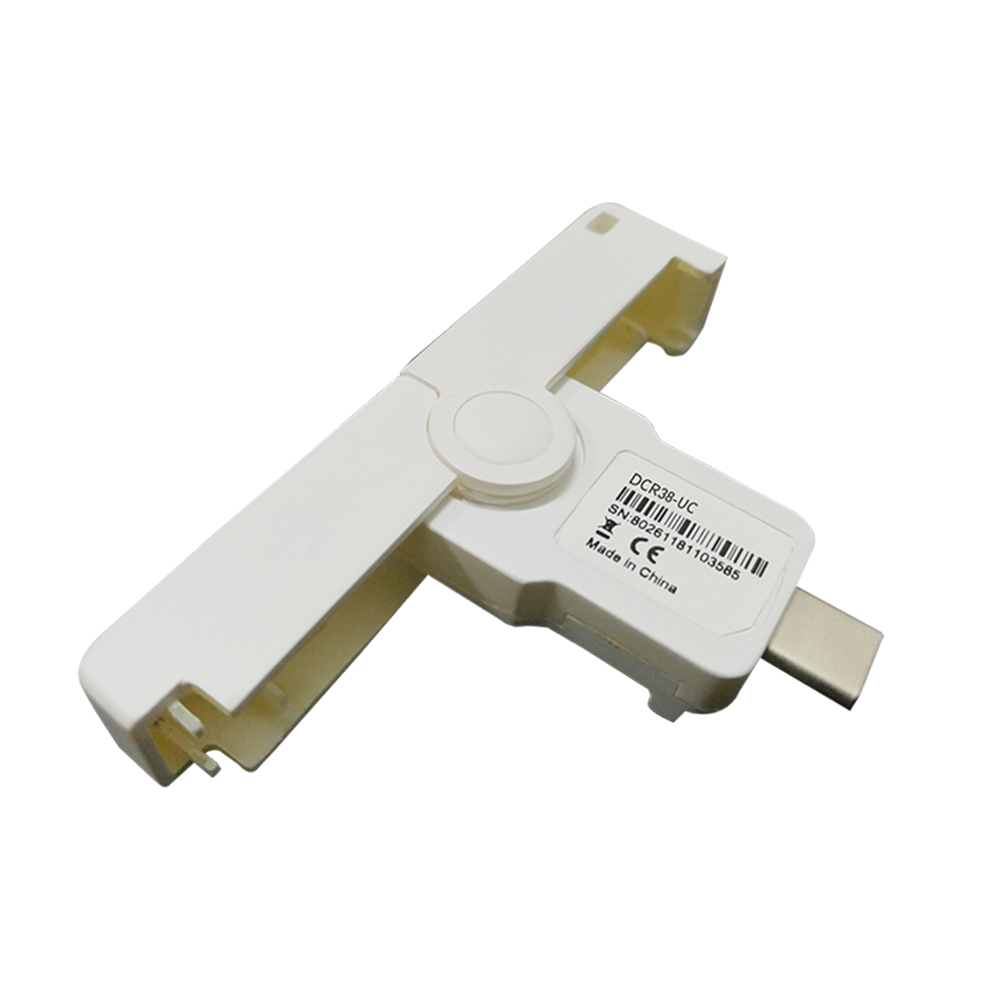

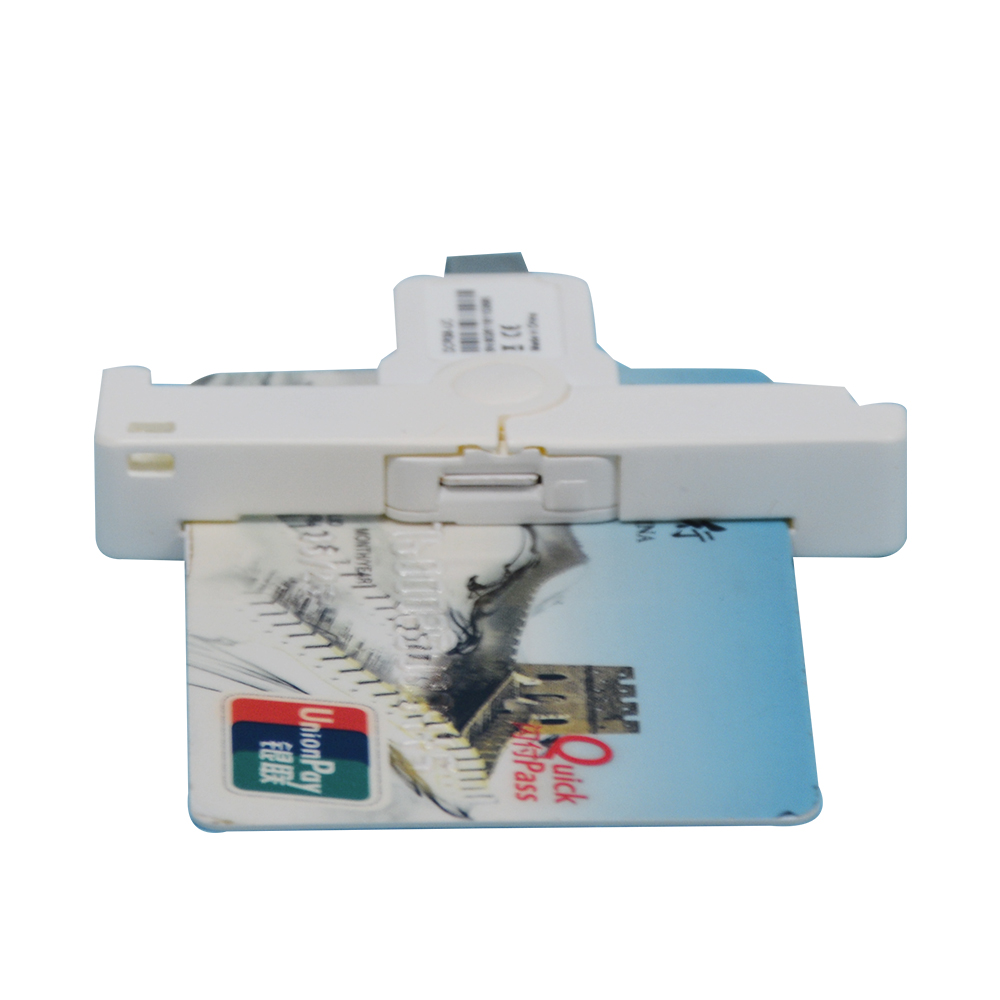

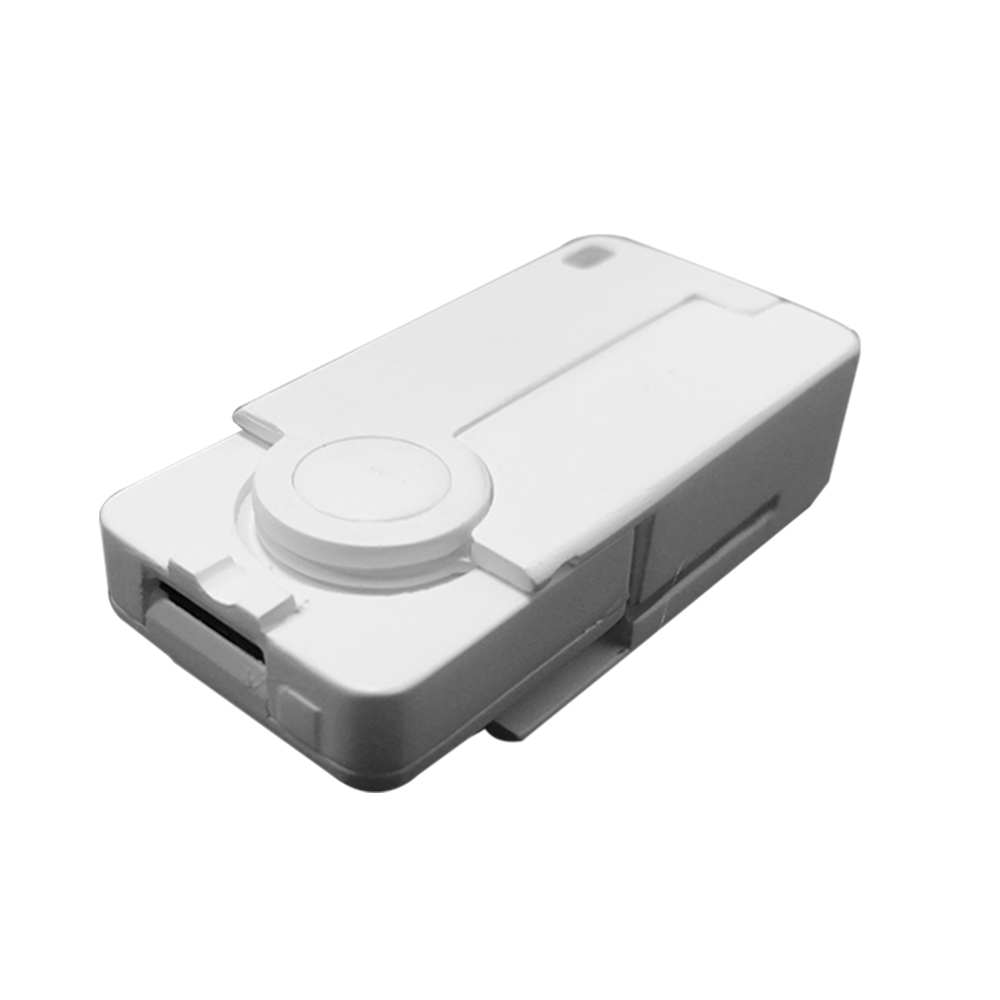

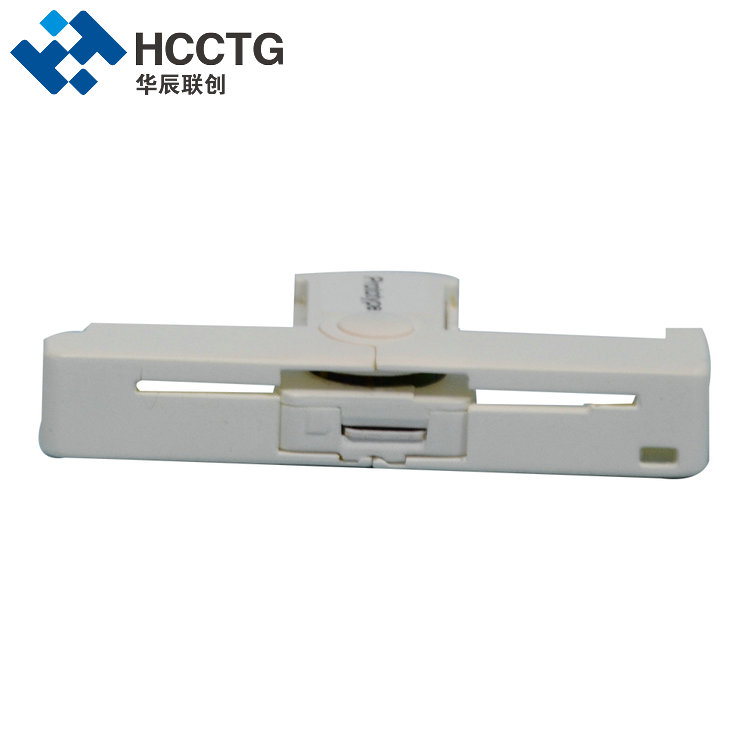

PC/SC ISO7816 USB Contact SIM Card & Smart Card Reader DCR38-UC
DCR38-UC contact card reader provides full compliance with all major industry standards, such as ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL, this smart card reader works seamlessly with virtually all contact smart cards and PC operating systems.
With DCR38-UC, the end user experiences convenience, transaction-time efficiency, security, and reliability for applications such as network login, Windows authentication and Single Sign-On (SSO), banking and cashless payment applications, as well as high-security use cases for federal governments.
Features
Specification
| Host Interface | USBTYPE C Full speed (12Mbps) |
| Smart Card Interface | |
|
Supported Standards | ISO/IEC 7816 Part 1 to 4 EMV 2011 Ver 4.3 Level 1 |
| Supported Tag ICs | All major ISO/IEC 7816 compliant Smart Card IC support |
| Smart Card Protocols | T=0, T=1 |
| Smart Card Interface Speed | Up to 600 kbps (depending on card) TA1=97 |
| Smart Card Clock Frequency | ISO/IEC 7816 compliant; Operates up to 16 MHz |
| Supported Smart Card Types | 5V, 3V, and 1.8V, ISO/IEC 7816 Class A/B/C |
| Power to Smart Card | 60mA in Class A; 55mA in Class B; 35mA in Class C |
| Smart Card Detection | Card present switch Automatic power on/off Short circuit protection |
| Card Size | ID-1 or ID-4 |

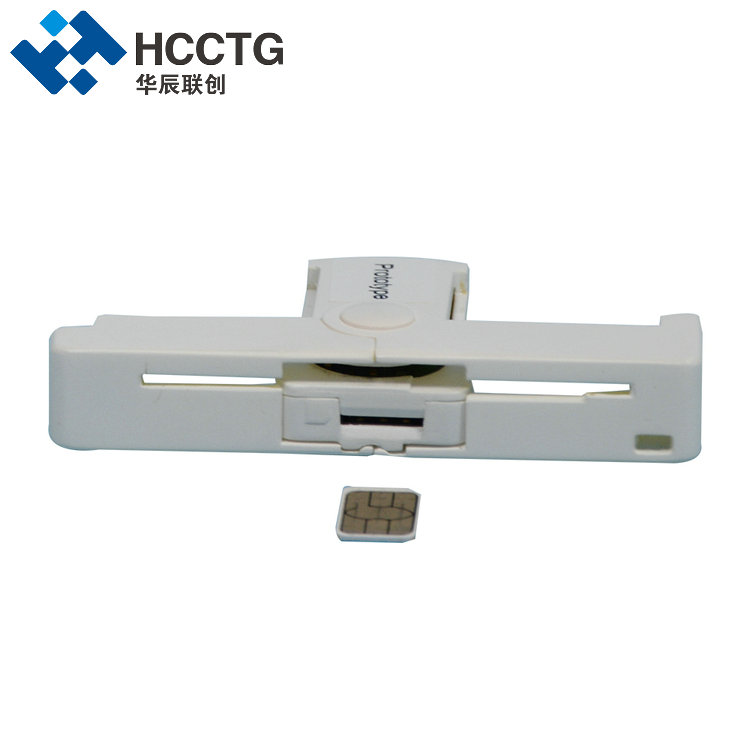

| Contact Type | Sliding Contact Socket (ID-1 8 pin or ID-4 6 pin) |
| Driver and Software | |

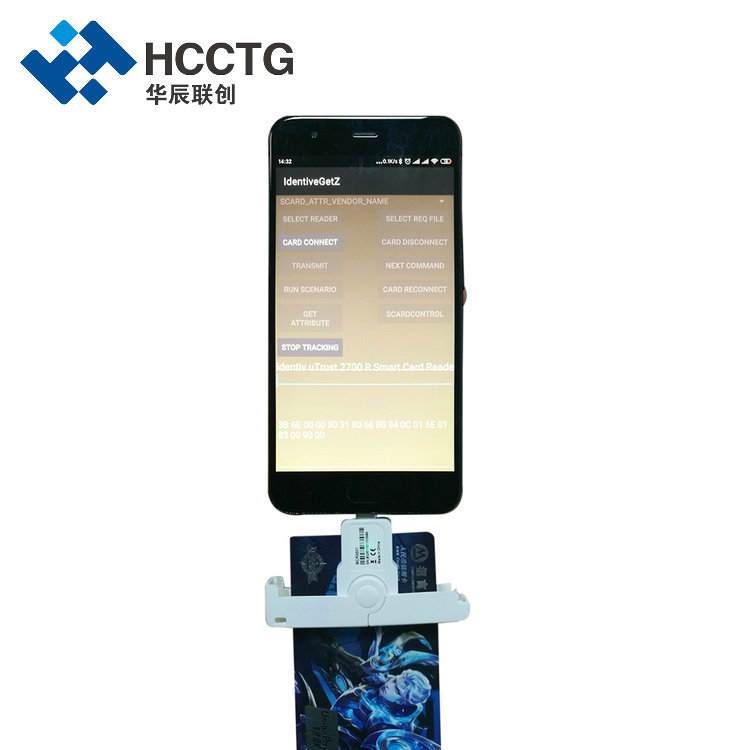

| PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: Windows XP/Vista/7/8/10 (32 and 64 bit); Windows Server 2003/2008/2012; Windows CE 6.0/7.0 MacOS 10.5.x, - 10.15.x Linux 2.4.x, 2.6.x, 3.x, 4.x, 5.x (32 and 64 bit) Android 4.0 and higher |
| Software | PC/SC API CT-API (through wrapper on top of PC/SC) |
| Operating Conditions | |
| Power Supply | Bus-powered USB |
| Power Consumption | < 6mA, excluding smart card; <500μA in standby mode |
| Dimensions | 49 x 22 x 13.5 mm |
| Weight | 15g |
| Operating Temperature Range | 0° to 50°C (32° to 122°F) |
| Storage Temperature Range | -20° to 60°C (-4° to 140 F) |
| Operating Humidity Range | Up to 95% RH non-condensing |
| Durability | Sliding Contact 100,000 card insertions |
| MTBF | 300,000 hours |

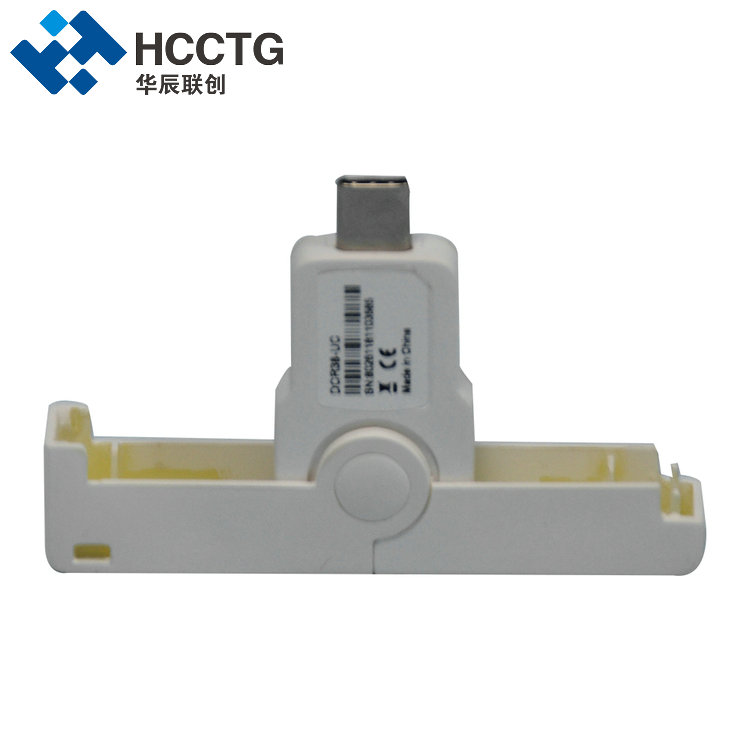

| Connector | USB Type C connector |
| Status Indicator | LED |
| LED | SmartOS |
| Firmware In-Field Upgradeable | No |
| Certifications and Compliances | |
| Systems/Standards | ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft HCK |
| Regulatory/Environmental | CE, RoHS |
