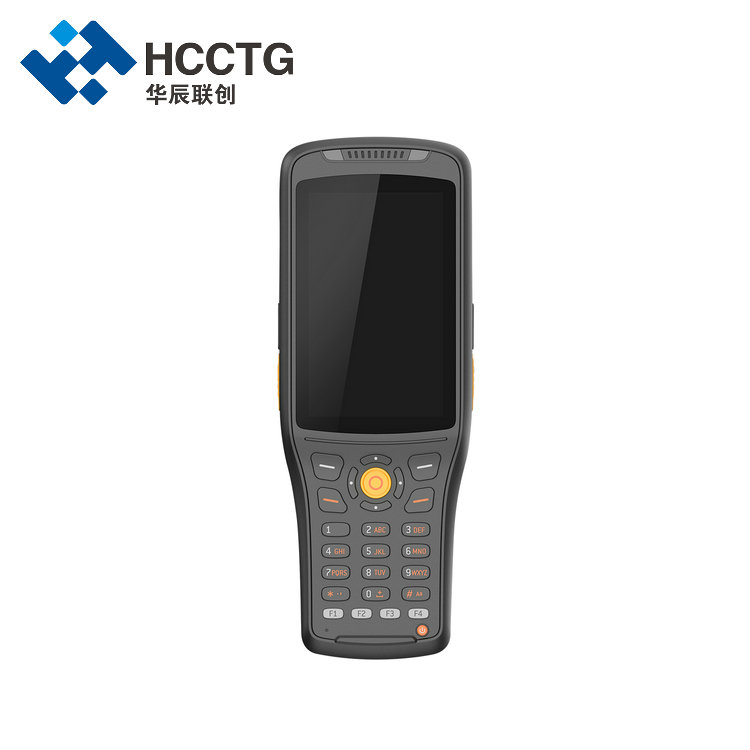

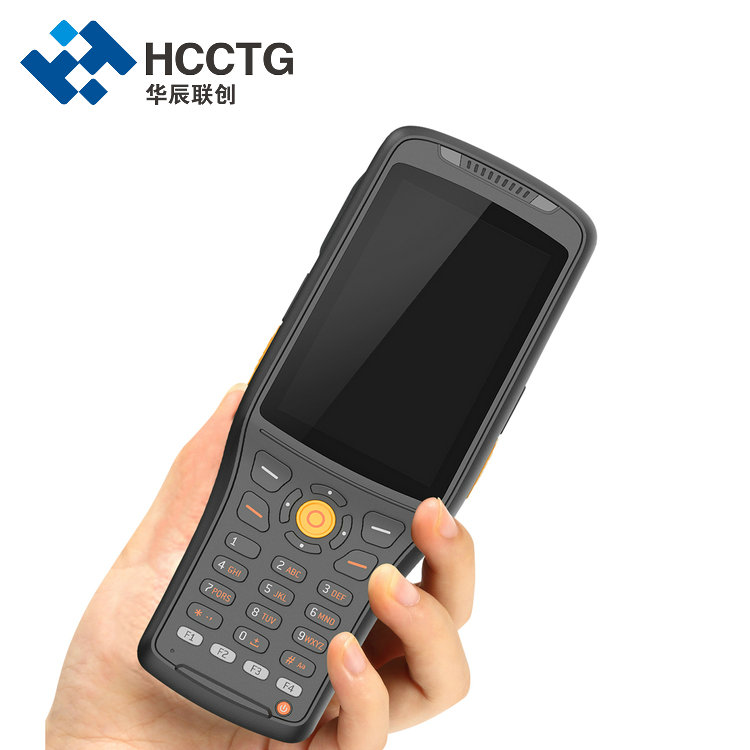

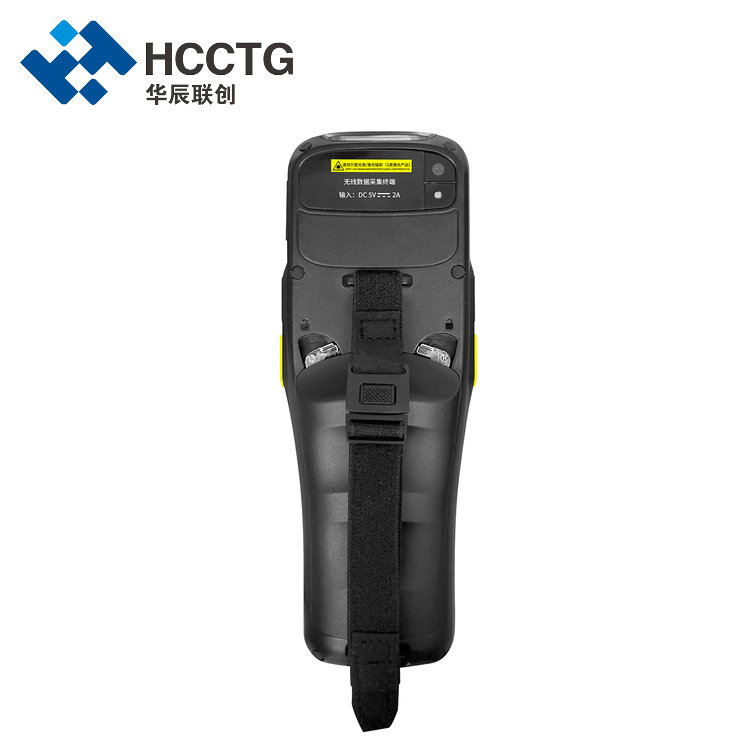

Android 9.0 industrial rugged handheld pda for inventory barcode checking

3.2'' IPS Touch Screen+Corning Gorilla Imager Window+13MP/5MP Camera+NFC Optional

  • Item No.:

  • Product origin:

    Guangdong, China
  • Color:

  • Goods_stock:

  • Shipping port:

  • Lead Time:

  • Product Details

Rugged Handheld Terminal:

Powerful Application Performance:Android 9.0, 1G+16G, Micro SD/TF card slot, 64 bit Quad-core with superior data processing capability to run multiple tasks simultaneously, smooth operation.

Built to Last:3.2 inch IPS 480*800 PX with Multi-point touch capacitive screen, Support multi-touch, support wet hand and glove operation, with IP65 water and dustproof capability.

Diverse transmission functions: Support 4G/3G/ Wi-Fi/ Bluetooth, signal stability which does not easily lose connectivity.

You can use the SDK we provide to customize your software



ARM Cortex-A53 64-bit Quad-core processor 2.0GHz

Operation System

Android 9.0


1GB RAM + 16GB ROM (Optional 2+16, 3+32, 4+64)

Expansion Slot

PSAM x 2; TF x 1; Micro SIM x 2; POGO Pin x 1; Type -C x 1


3.2 inch IPS display with 480×800 resolution

Touch Panel

Support multi-touch, support wet hand and glove operation


Rear: 13MP, front: 5MP, auto focus with LED fill light

Imager Window

Corning Gorilla


30 keys in total, front keys 26, side keys 4


4.35V 5200 mAh Lithium polymer battery

Power Adaptor

The Word Standard:input 100-240V;output DC5V 2A

Audio Frequency

Built-in microphone


Vibration Tip/LED Tip/Audio Tip

Vibration Motor

Built-in programmable vibration motor

Size & Weight

182.49mm x 65.56mm x 25.59 mm, 320g (including battery)


2G: GSM (850/900/1800/1900MHz)
3G: WCDMA  (850/900/1900/2100MHz)
4G: TDD-LTE  (B38/B39/B40/B41)
4G: FDD-LTE  (B1/B3/B5/B7)


Wi-Fi 802.11a/b/g/n


Bluetooth 4.0 (transmission distance: 5~10 meters )



1D Scanning

Optical resolution ≥ 4 mil, scanning depth of field 3.81 cm - 60.98 cm, scanning angle 47°± 3°(standard), scanning speed 102 times ± 12 times per second (compatible with mainstream brands)

1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5,Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post, etc.

2D Scanning

Optical resolution ≥ 3 mil, optical resolution omnidirectional,

scanning speed 300 times/s

1D: Can read 1D barcodes;

2D: PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin code, etc.


NFC: support 13.56 MHz; support ISO14443A/14443B/15693 protocol, reading distance: 2~5cm


UHF: support 840-960MHz UHF RFID, reading distance: 2 meters

Supports reading and writing of EPC C1/G2, 18000-6C protocol cards and tags

Standard Accessories

Battery, power adapter, USB cable, hand strap

Charging Interface

1 Type-C interface

Optional Accessory

Charging cradle

Development Tool

Android Studio+Eclipse

Programming Language


Operating Temperature

-25℃ ~ 55℃

Storage Temperature

-40℃ ~ 70℃


5% ~ 95% (non-condensation)

Drop spec

Multiple 1.2m drops to tile over concrete
