HS-E7 has color screen, 433 wireless connection and USB data cable can be connected and uploaded in two ways, it's very easy to use.
Item No.:
HS-E7Product origin:
Guangdong, ChinaColor:
BlackGoods_stock:
3000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

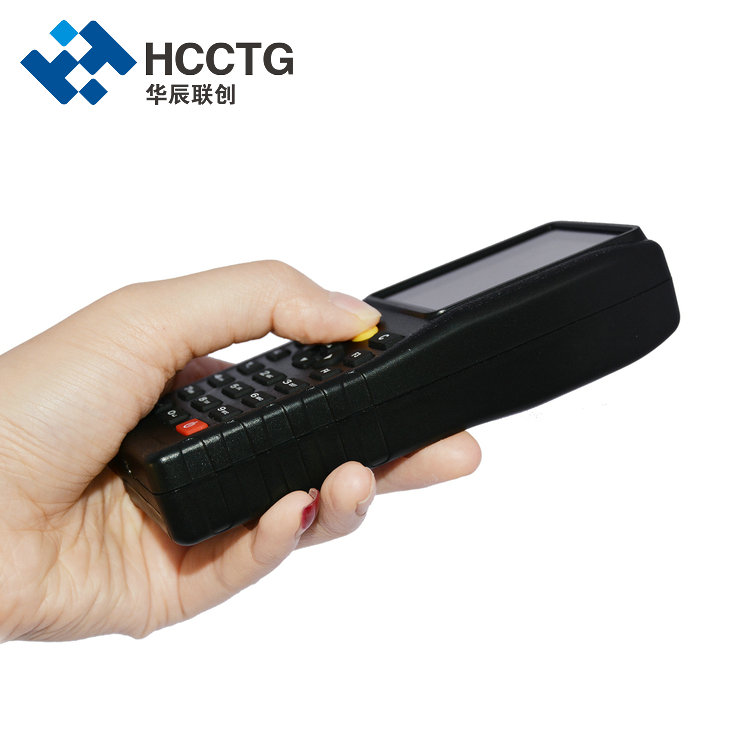

Wireless 1/2D Barcode Scanner Data Collector Handheld PDA HS-E7
HS-E7 is simple and easy to use, perfect for scanning bar code, quantity, warehouse and order number. No background, direct cursor output to computer documents, just like typing and it's with 2800 Ma rechargeable lithium battery.
Specification
| Main Unit | |
| Color | Black |
| OS | OBM built-in program |
| CPU | Single-core |
| CPU frequency | 72MHz |
| keypad | T9 numeric keypad |
| Input | Hardware buttons |
| Memory | |
| RAM | 16KB |
| ROM | 16MB (100000+ item records can be saved) |
| memory card | N/A |
| Screen | |
| Size | 2.4’’ |
| Color | Color LCD (65536 colors) |
| Resolution | 240*320 |
| Touch screen | N/A |
| Physical | |
| Battery | Rechargeable Lithium-ion(3.7V,2800mAh) |
| Working time | 16 hours |
| Standby | 15 days |
| Dimension | 138mm×60mm×30mm |
| Material | ABS + silicone |
| Charging indicator | LCD |
| Working current | 160mA |
| Standby current | 8mA |
| Safety standard | National laser safety standard Class II |
| EMC | CE & FCC DOC compliance |
| Scanning | |
| Light source | 650nm |
| Light type | Single beam |
| Decode rate | 48±2 scans/second |
| Resolution | 3mil |
| Scan width | 20mm@window,220mm@200mm |
| Depth of field | 0～250mm (0.33mm,PCS 90%) |
| Print contrast | Min.30% reflectivity |
| Scan type | Continuous scan / manual scan |
| Error rate | 1/5 million |
| Indicator | Beeper,LCD |
| Barcode supported | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, etc. |
| Optional: Industrial 2 of 5,GS1 Databar, QR code, Data Matrix, PDF417 | |
| Transmission | |
| Wi-Fi | N/A |
| Bluetooth | N/A |
| Cable | USB 2.0 |
| Wireless freq | 433MHz |
| Environment | |
| Storing Temperature | -20℃～60℃ |
| Working Temperature | 0℃～45℃ |
| Humidity | 5%～95% |
| Lumination | Max.5,000 Lux (Fluorescence) |
