HQ51 supports for Android 9.0 system and 1D/2D, NFC and other functional modules to meet the application needs of multiple industries.
Item No.:
HQ51Product origin:
Guangdong, ChinaColor:
BlackGoods_stock:
2000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

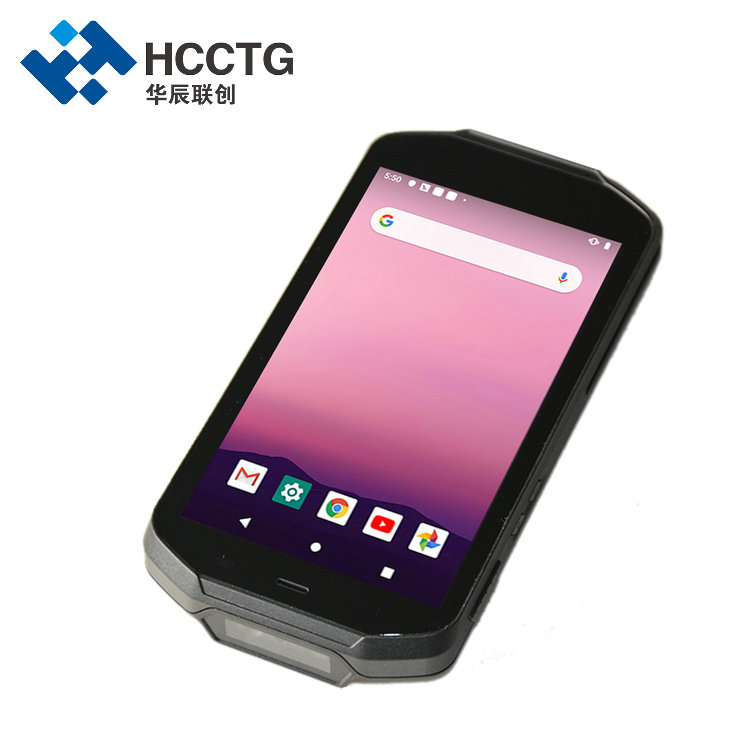

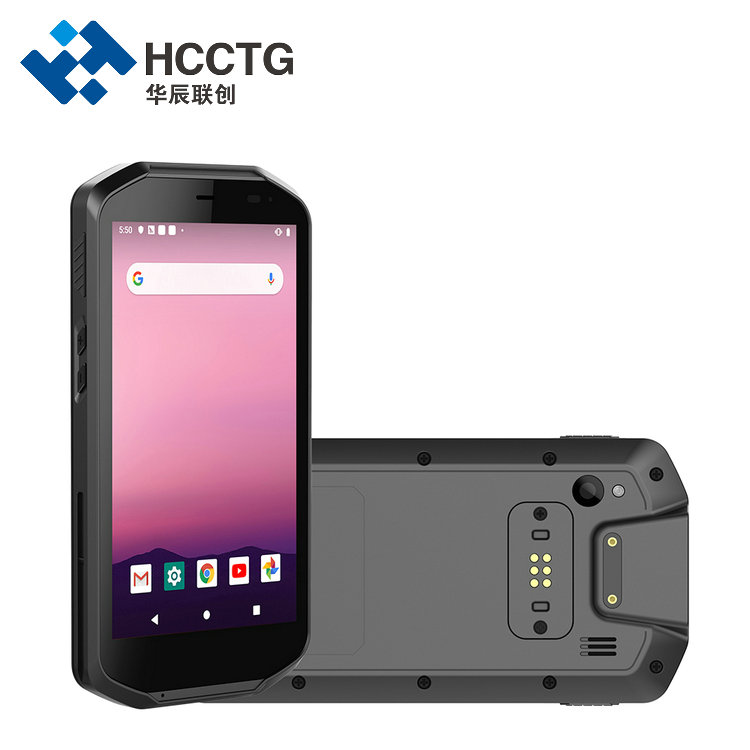

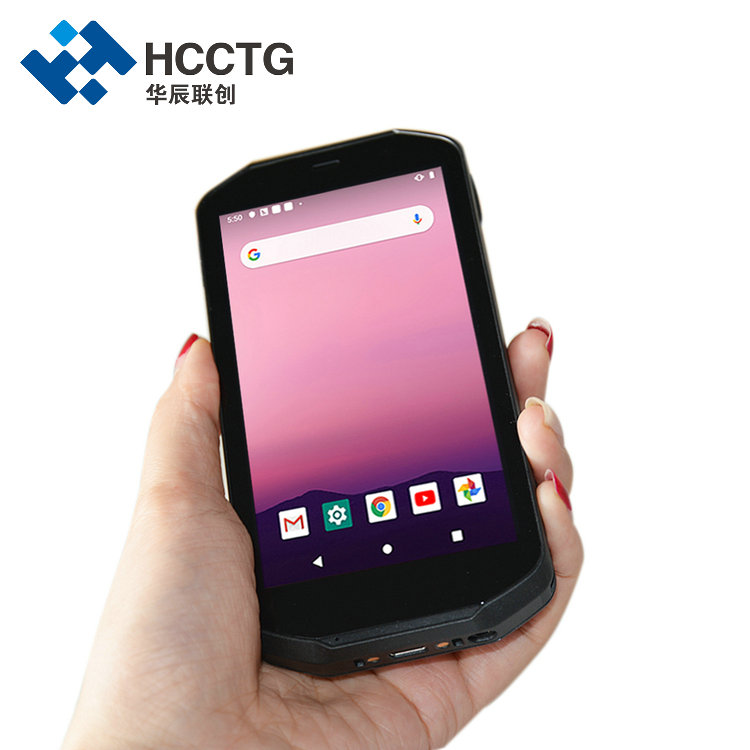

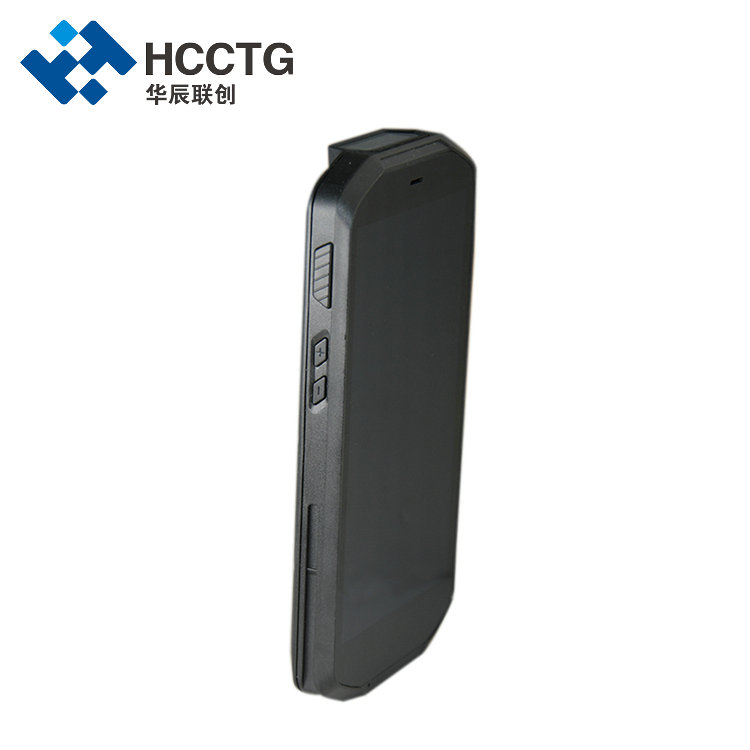

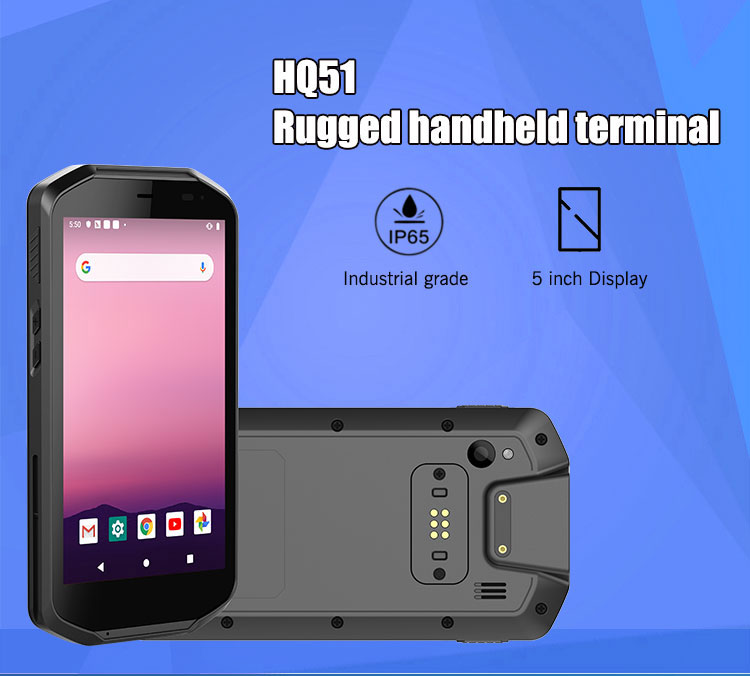

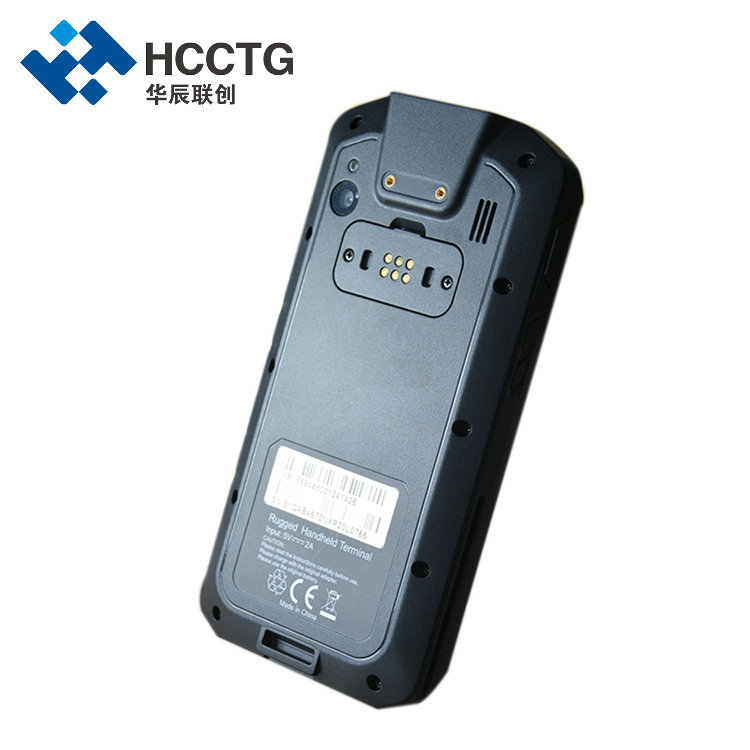

5 Inch Handheld Android PDA Data Collector Perfect For Warehouse HQ51
HQ51 is equipped with 4000mAh large capacity battery, the machine has a endurance of 4 hours, IP65 high protection level, in accordance with MIL-STD-810G. Besides, it also supports 1D/2D, NFC and other functional modules to meet the application needs of multiple industries.
HQ51 data collector terminal is widely used in logistics, transportation, healthcare, finance, retail, electric power, livestock, manufacturing, security, warehousing, large-scale exhibition, etc.
Features
Specifications
| Basic parameters | Dimension | 147.7 x 74 x 16.4mm |
| Weight | Device unit: 220g | |
| Device Color | Black (frant and rear Panel: black) | |
| LCD | 5inch IPS 16:9,720*1280 | |
| Touch Panel | 5 points Capacitive，G+F | |

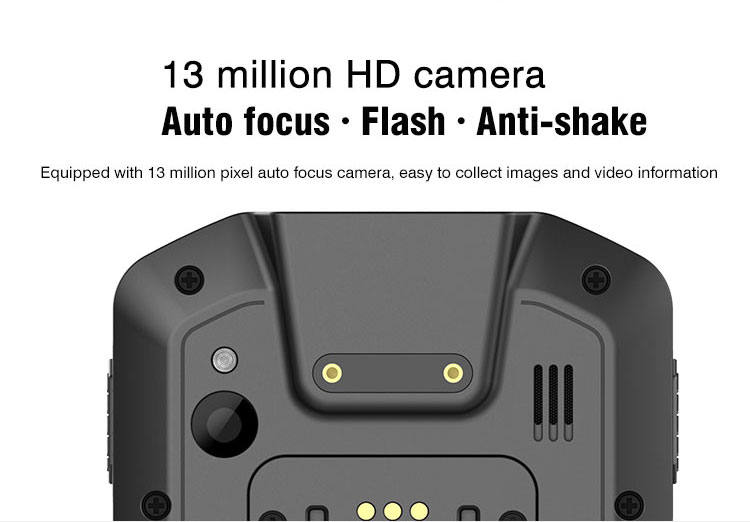

| Camera | Rear 13MP | |

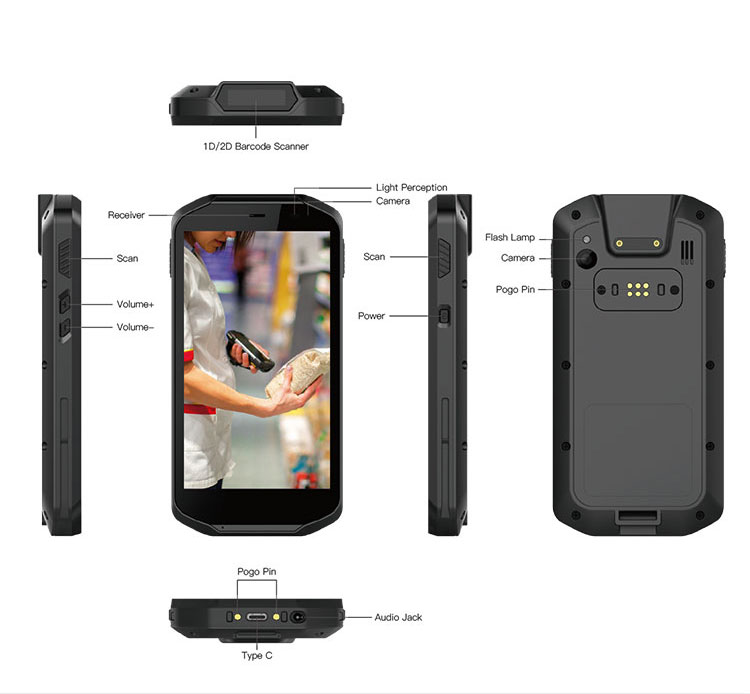

| I/O | TF Card x 1 SIM Card x 1 Type C x 1 8Pin back shell x 1, 2Pin machine buttom x 1 Φ3.5mm standard earphone jack x 1 | |
| Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/2A | |
| GPS | Support: GPS+Glonass | |

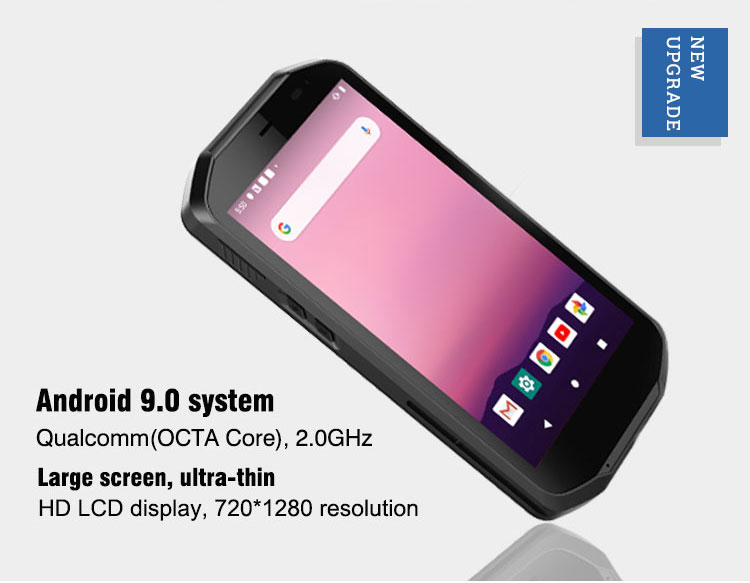

| Performance parameter | CPU | Qualcomm(OCTA Core), 2.0GHz |
| OS | Android 9.0 | |
| RAM | 4GB LPDDR3 | |
| ROM | 64GB | |
| Battery | Capacity | 3.85V/4000mAh |
| Type | Built-in Lithium-ion polymer battery | |
| Endurance | 4.5hrs (default 50% volumn,default 200 nit, play 1080P HD video) | |
| Network connections | WIFI | 2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac) |
| Bluetooth | BT4.0 (BLE) class1 transmission distance：10m | |
| 2G/3G/4G | CMCC 4M: LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8 | |
| Reliability | Operate Temperature | -10 °C ~ 55 °C |
| Store Temperature | -20 °C ~ 60 °C
| |
| Humidity | 95% Non-Condensing | |
| IP Grade | IP65 | |
| Data Collection

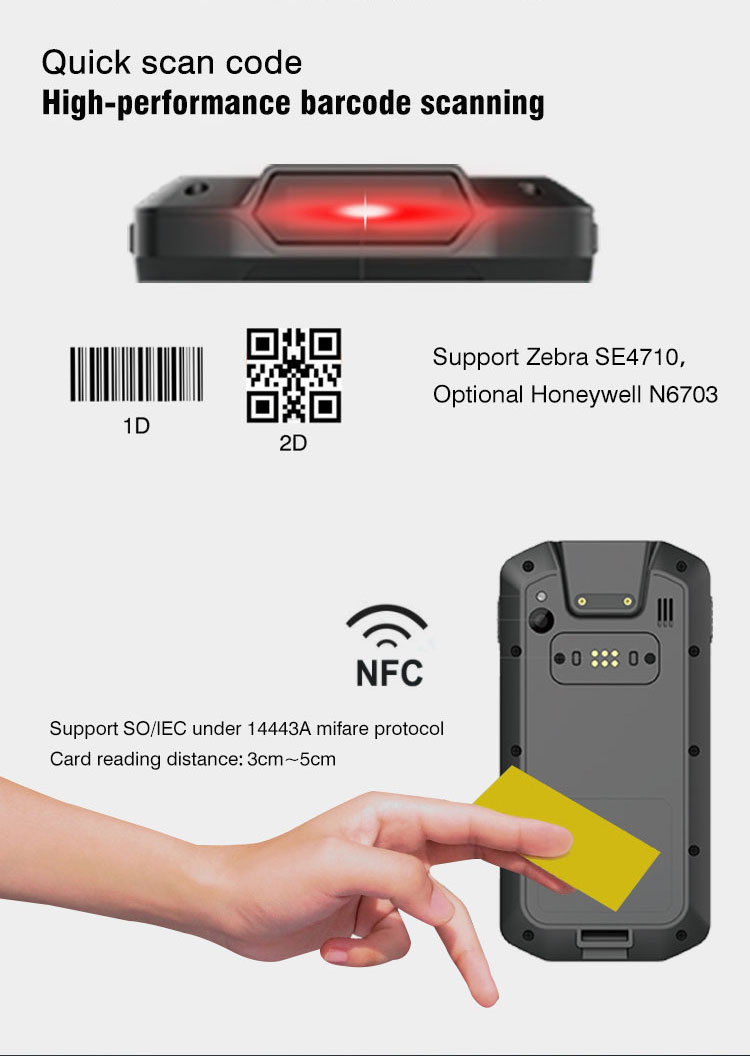

| NFC | Support SO/IEC under 14443A mifare protocol, Card reading distance:3cm~5cm
|
| 1D | Support Zebra SE4710，Optional Honeywell N6703 | |
| 2D |
| |

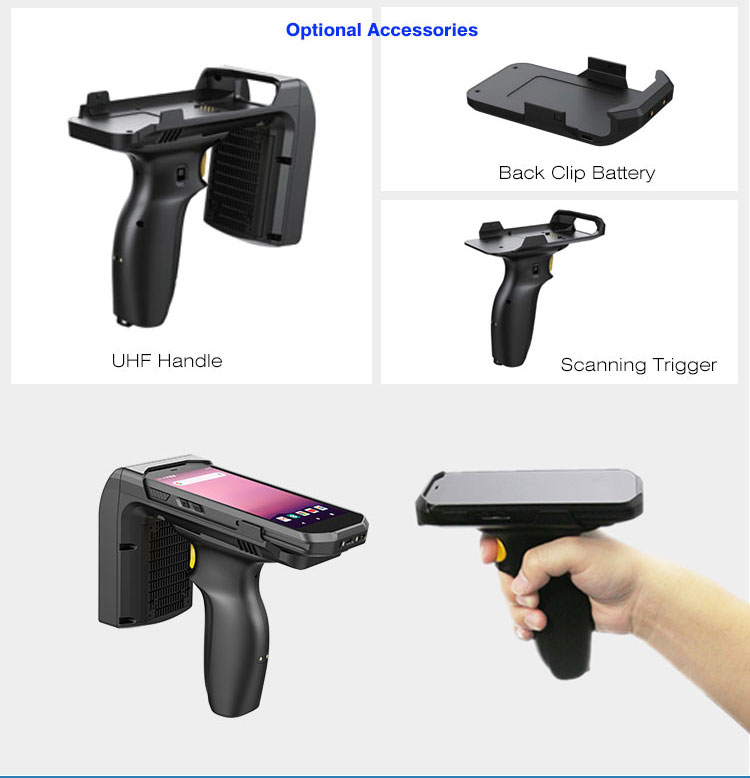

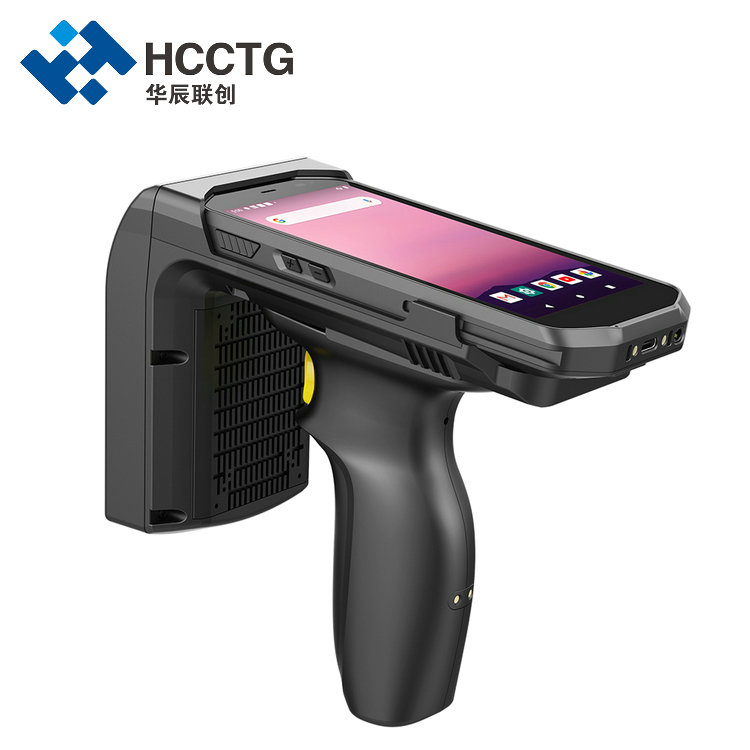

| Optional Accessories | Back Clip Battery Docking Charger Scanning Trigger Docking Charger Multiple Charging Dock | |
