HS-640 is a professional face temperature measurement green code scanner.
Item No.:
HS-640Product origin:
Guangdong, ChinaColor:
SilverShipping port:
Shenzhen/Guangzhou/HongKongLead Time:

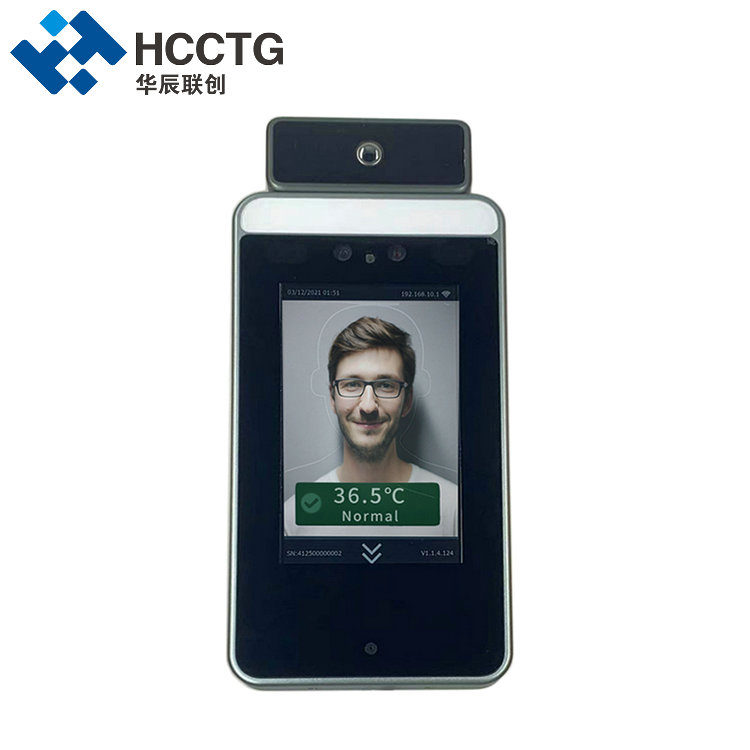

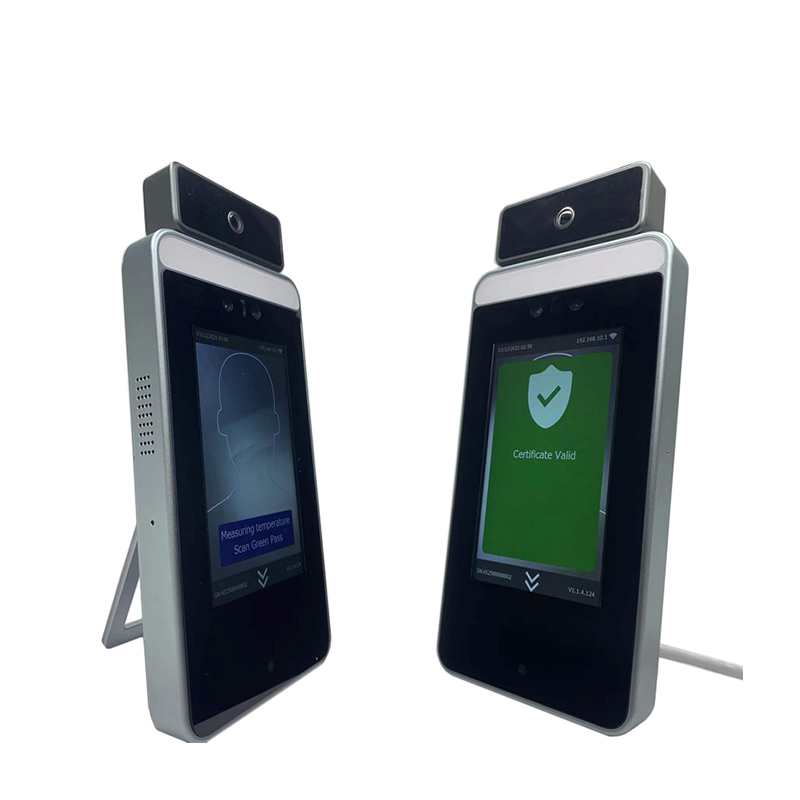

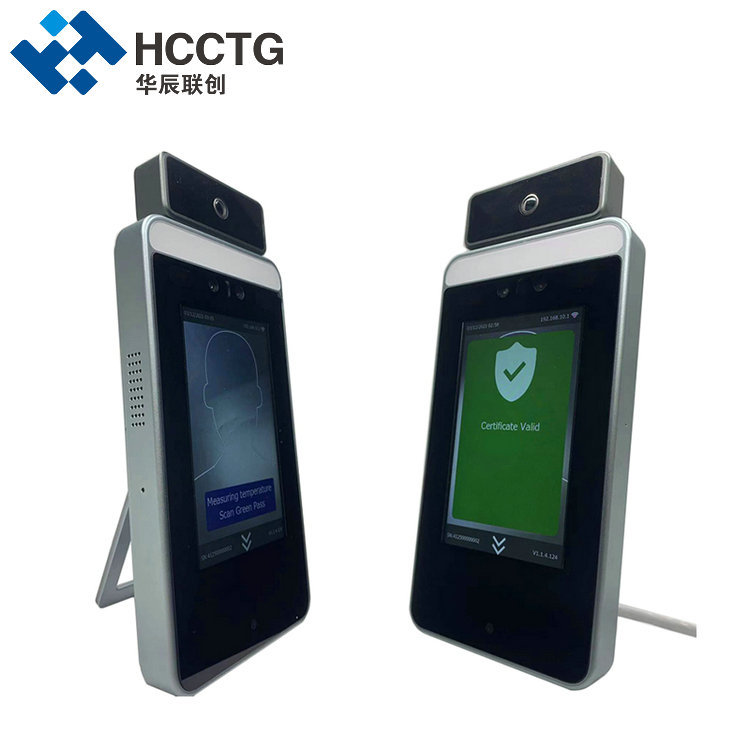

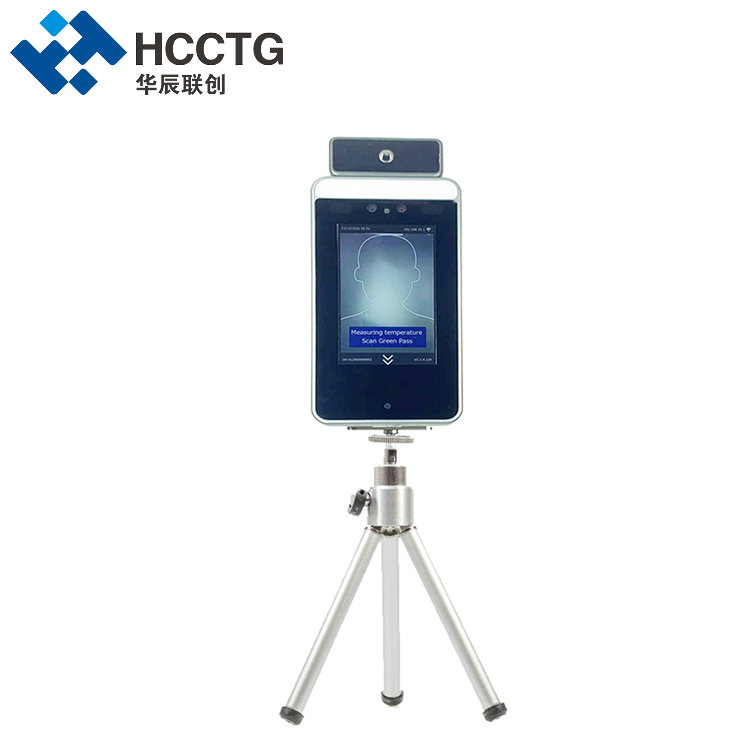

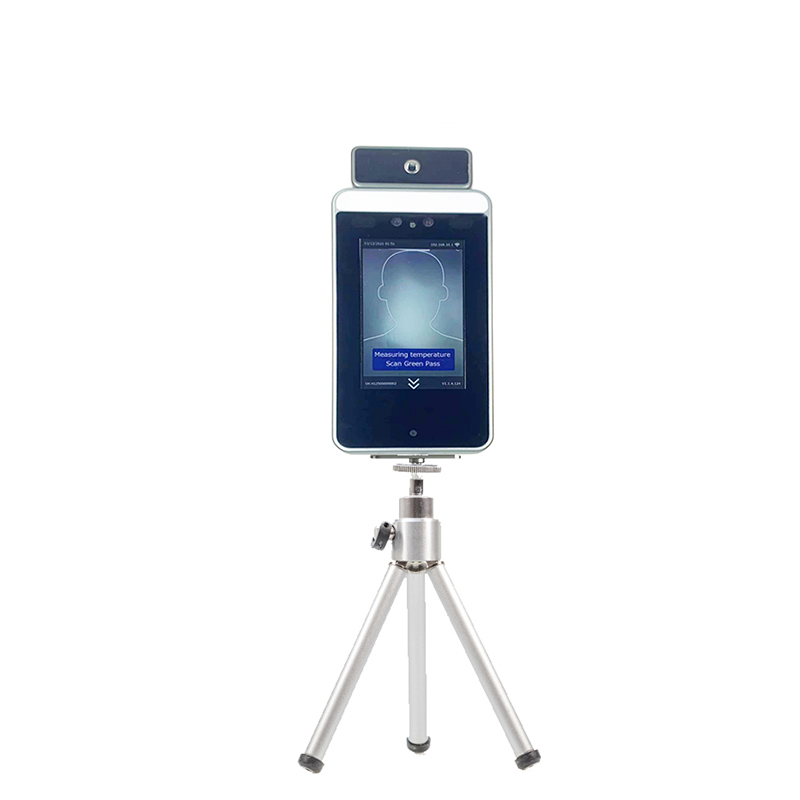

26.4 Inch Facial Recognition Body Temperature Detection Green Pass Scanner For Access Control HS-640
HS-640 supports live body detection, face recognition. Pass when body temperature is normal, intelligent over-temperature alarm, support face + temperature reporting at the same time; Support relay access control/sound and light alarm switch; It can quickly scan the two-dimensional epidemic prevention code, support EU Corona QR Code scanning, 4.3-inch ultra-clear screen, easy to observe the results of verification display, and equipped with voice reminders.
The metal shell is fully covered, and multiple assembly holes are designed, which is more convenient to apply to various different demand scene configurations. Besides, it can be used in conjunction with control systems such as access control and gates.
Features
Specification
| Display | 4.3 inch |
| Interface | MIPI |
| Audio | Vioce output (Support customize by MP3 file) |
| WIFI | 2.4GHz IEEE802.11 b/g/n |
| Multi-language | Italian, French, German, Greek, English, Romanian, Spanish |
| RAM | 128MB |
| Storage | EMMIC 8GB |
| Thermal Imaging | |
| Resolution | 32*32 |
| FOV | 33° |
| Temperature measurement accuracy | Repeatability accuracy can reach±0.3℃ |
| Distance | ≤0.7m, the best temperature measurement distance≤50cm |
| Detector | Thermopile plane sensor |
| Induction method | Microbolometer |
| Video Resolution | 1280*720 (binocular), H.264 |
| Face recognition library | 1000 pcs |
| Number of identification and temperature measurement | 100,000 data records |
| Performance parameters | |
| Image sensor | CMOS |
| DPI(W*H) | 640px * 480px |
| Angle | level: 68° vertical: 51°diagonal: 84.8° |
| Sensitivity | Tilt:±60° rotate:±60° deflection:360° |
| Power Supply | 5V/2A |
| Button RST | Reset button |
| Working Temperature | -10℃~ 60℃ |
| Relative humidity | ≤95%(No condensation) |

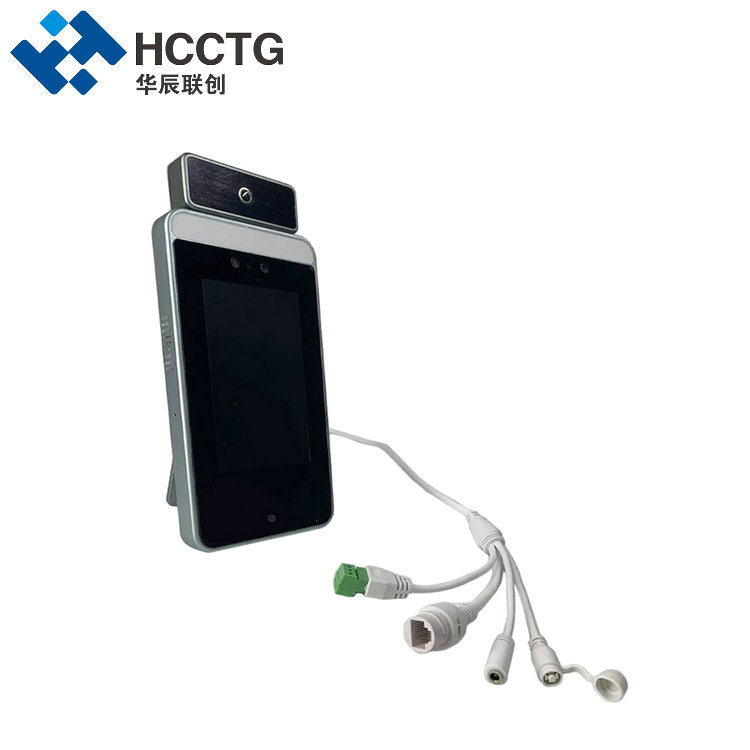

| Interface | Network*1, Relay alarm/access(open/close)*1, DC power*1 |
| Appearance size | 86.8*192*20.6(L*W*D)mm |
| Weight | 416g |
| Package (Standard) | 215*110*80(L*W*D)mm |
| Package weight | 650g |
