HD5 is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards.
Item No.:
HD5Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

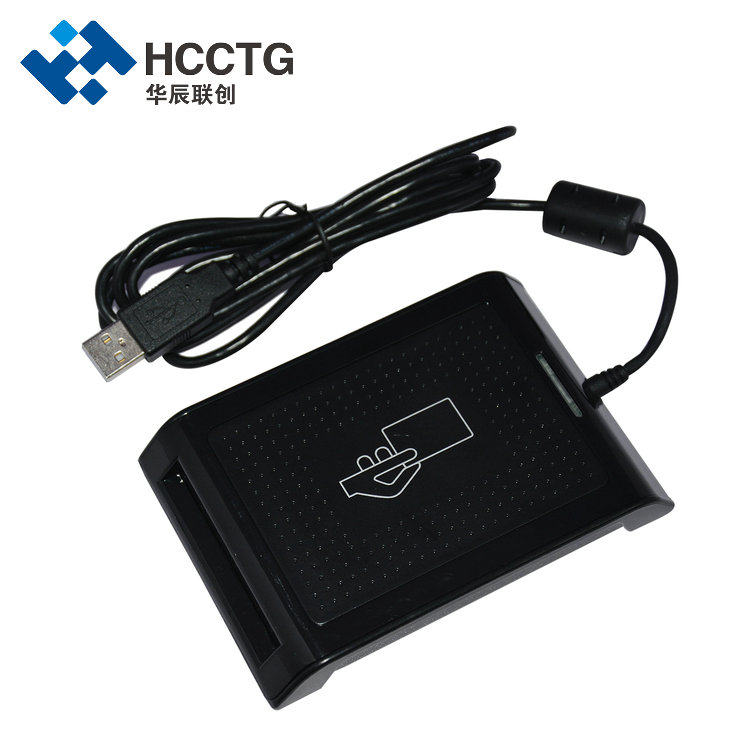

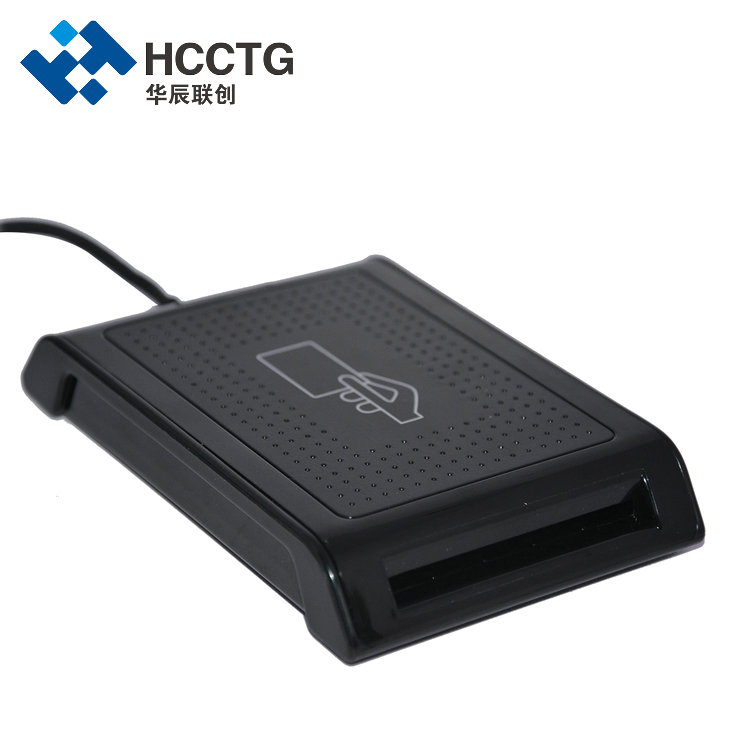

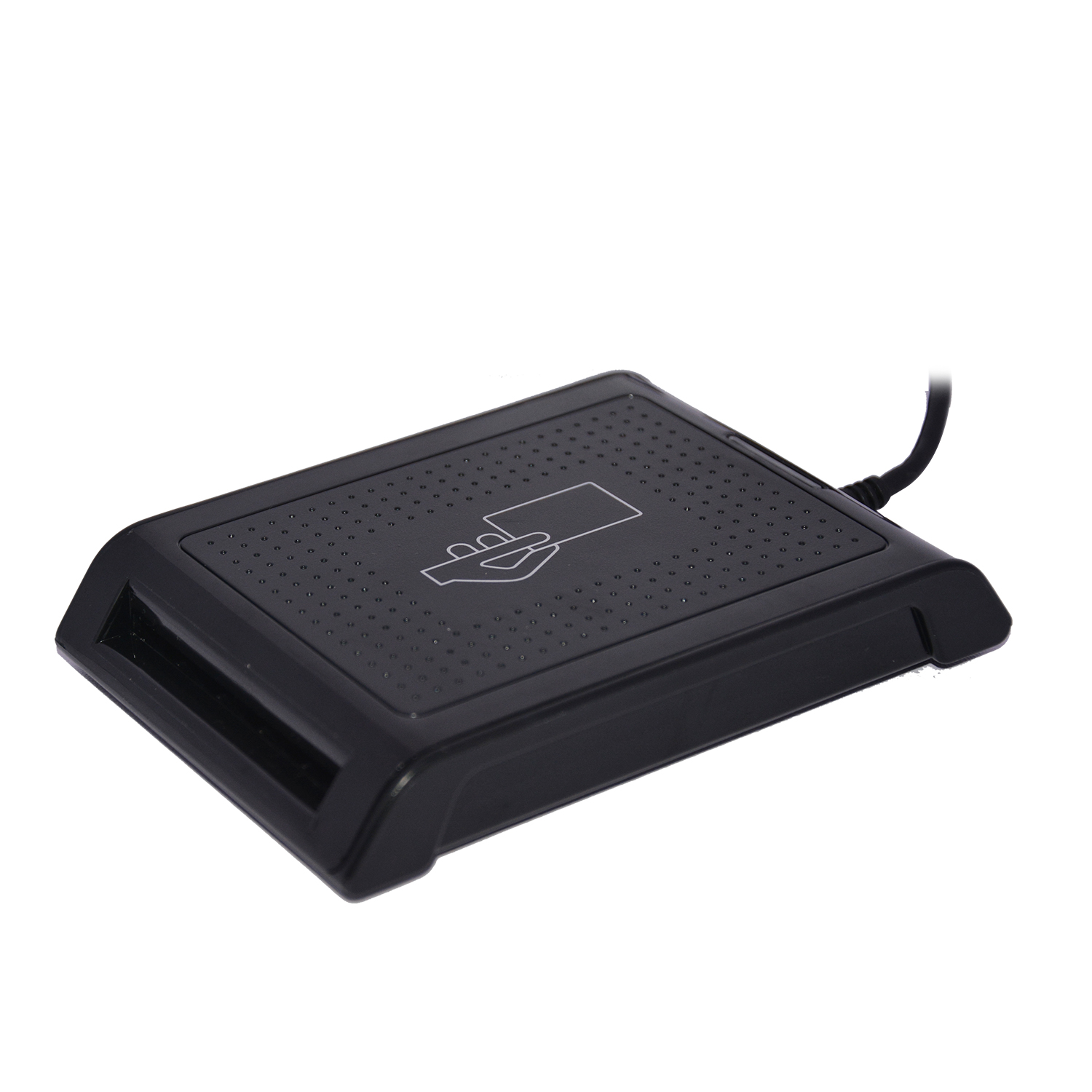

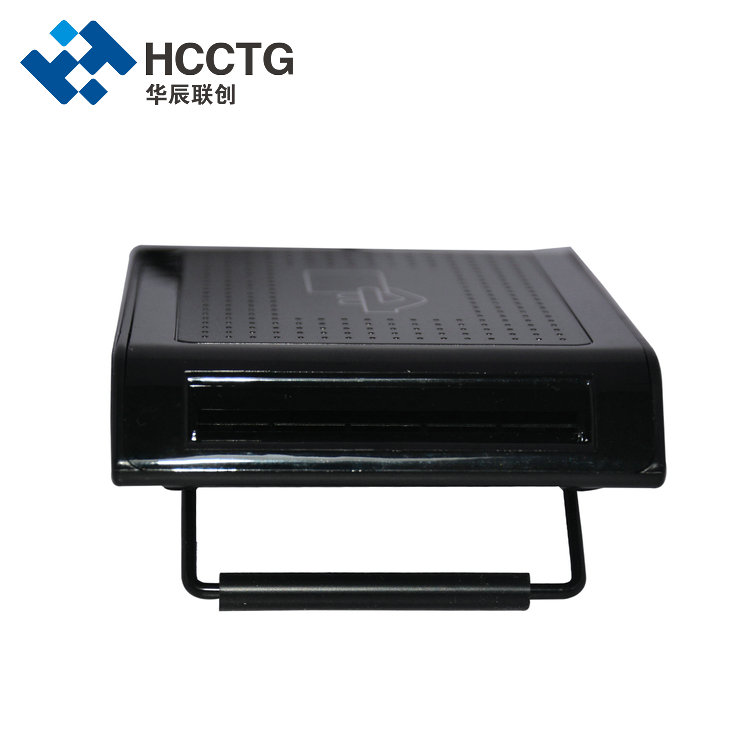

PC/SC USB Contact IC & Contactless NFC Smart Card Reader HD5

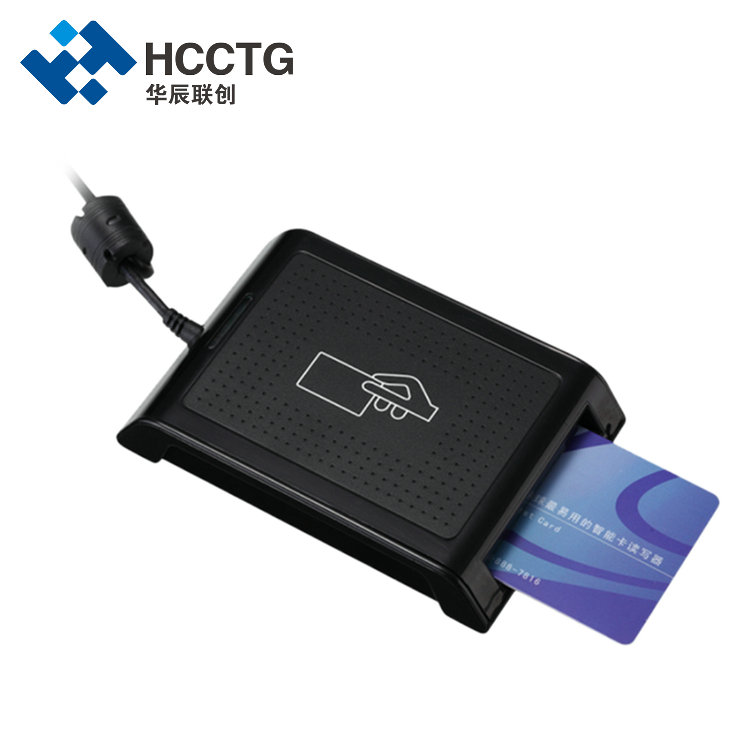

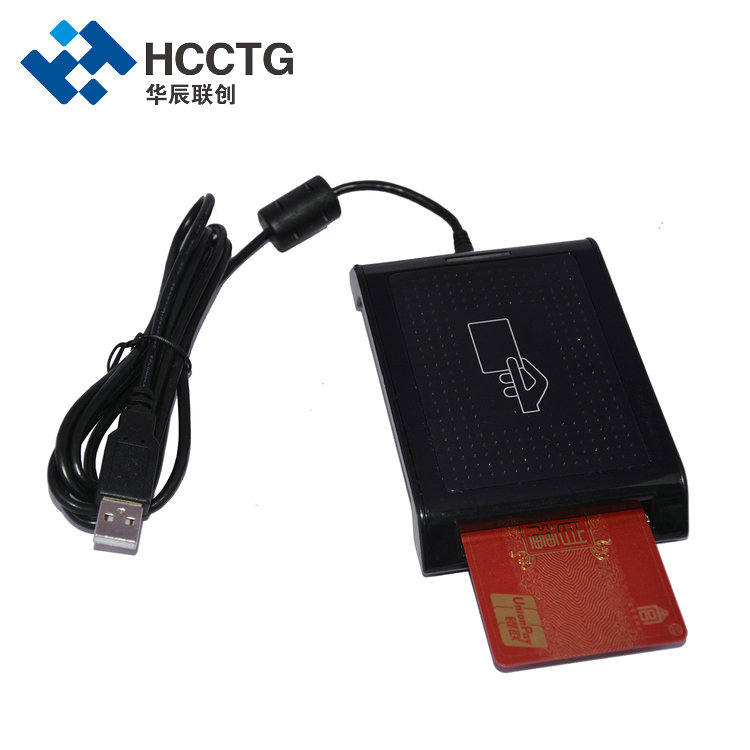

HD5 enables one to conventionally integrate separate and independent applications for contact and contactless technologies into one device and one card. It provides intelligent support for hybrid and combi cards, such that it detects a contactless card even if it is inserted in the contact card slot. With additional features such as USB firmware upgradability, HD5 is a cost-effective and powerful dual interface reader designed to provide you with great flexibility and convenience.
Feature
Applications
Specification
| Physical Specifications | |
| Dimensions | 117.47mm (L) x 78.30mm (W) x 19.4mm (H) |
| Case Color | Black |
| Weight | 260g |
| USB Device Interface | |
| Protoco | USB CCID |
| Type | Four Lines: +5V, GND, D+ and D- |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Supply Voltage | 5 V |
| Supply Current | Max.300 mA |
| Cable Length | 1.5 m fixed cable |
| Contactless Smart Card Interface | |
| Standard | ISO-14443 A & B part 1-4 |
| Protocol | Mifare ClassicProtocols, T=CL |
| SmartCardRead /Write Speed | 106 kbps |
| OperatingDistance | Up to40 mm |
| Operating Frequency | 13.56 MHz |
| Contact Smart Card Interface | |
| Number of Slots | 1 ID-1 Slot |
| Standard | ISO/IEC7816 ClassA,B, C (5V,3V, 1.8V) |
| Protocol | T=0; T=1 |
| Supply Current | Max. 50 mA |
| Short Circuit Protection | (+5) V /GND on all pins |
| Card Connector Type | ICC Slot 0: Landing |
| SmartCardRead /Write Speed | 9,600-420,000 bps |
| Card Insertion Cycles | Min. 200,000 |

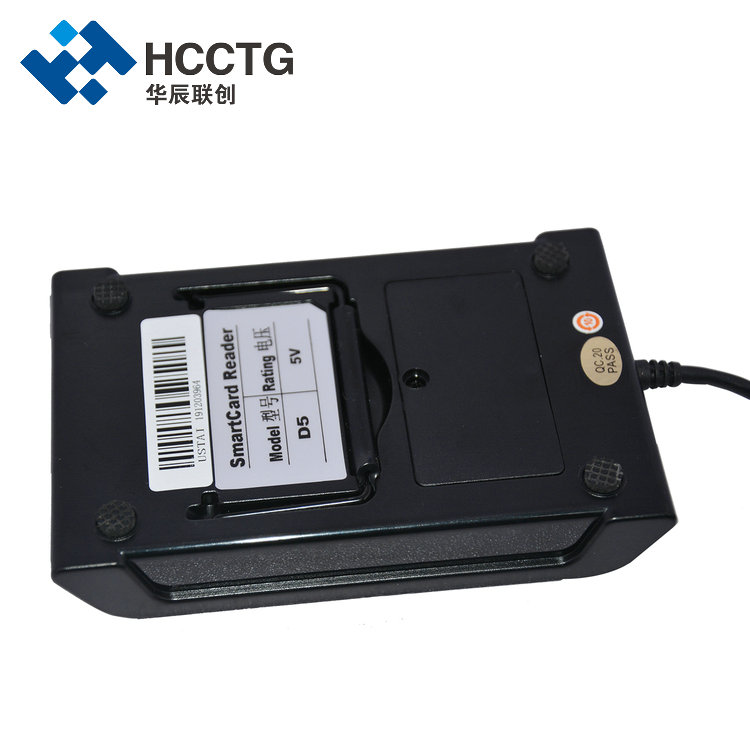

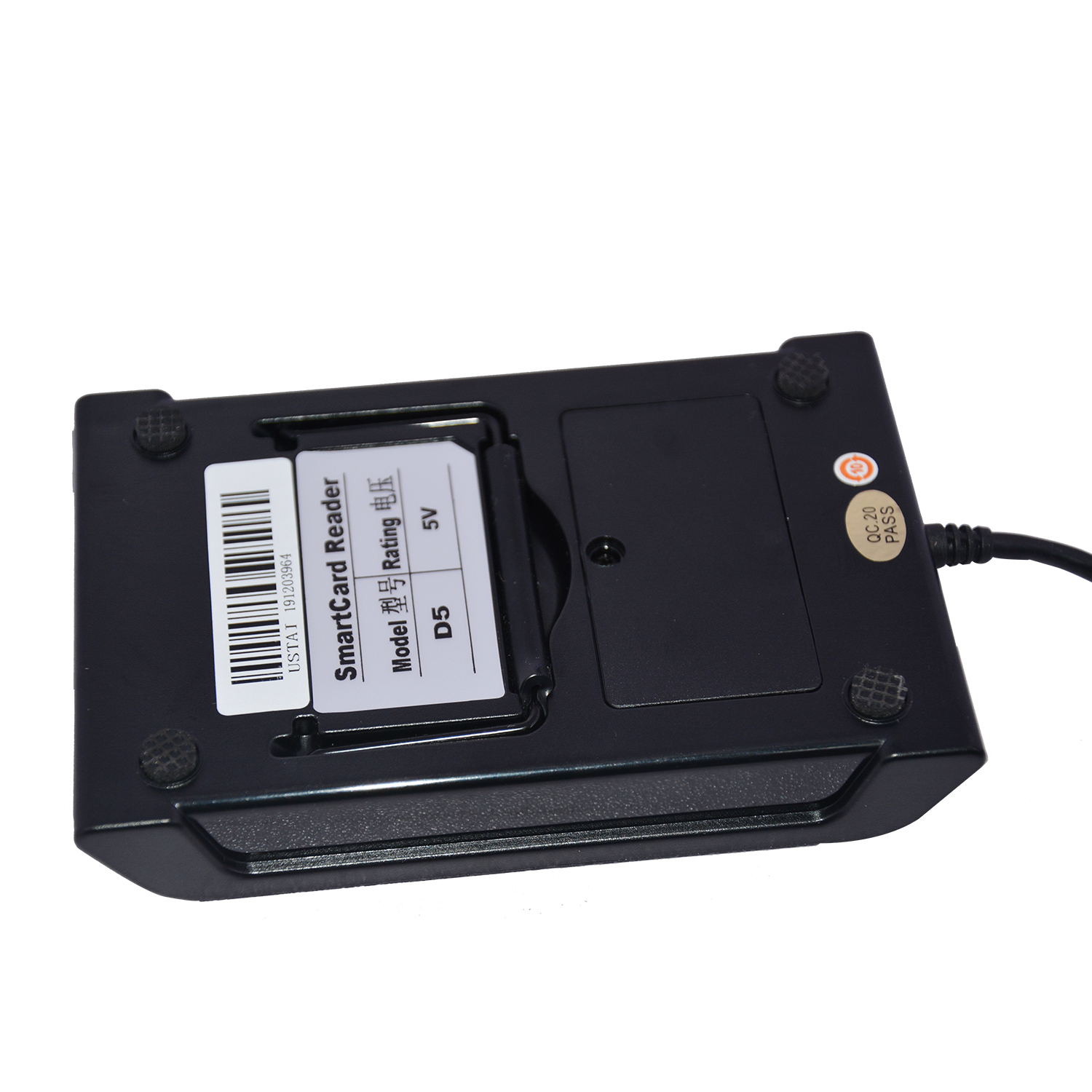

| SAM Card Interface | |
| Number of Slots | 1 ID-000 slots |
| Card ConnectorType | Contact |
| Standard | ISO/IEC7816 Class B (3V) |
| Protocol | T=0; T=1 |
| SmartCardRead /Write Speed | 9,600-420,000 bps |
| Built-in Peripherals | |
| Buzzer | Monotone |
| LED StatusIndicators | 1 Bi-color: red and blue |
| Operating Conditions | |
| Temperature | 0°C –50°C |
| Humidity | 5% to93%, non-condensing |
| Application Program Interface | |
| PC-linked mode | PC/SC |
| Certifications/Compliance | ISO/IEC7816, ISO/IEC14443 |
| Supported Operating Systems | Windows XP, Windows 7, Windows 8.1, Windows 10, Linux |
