HCC-3064TA washable label printer has 300 DPI printing resolution and 32 bit RISC microprocessor CPU.
Item No.:
HCC-3064TAProduct origin:
Guangdong, ChinaColor:
BlackGoods_stock:
3000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

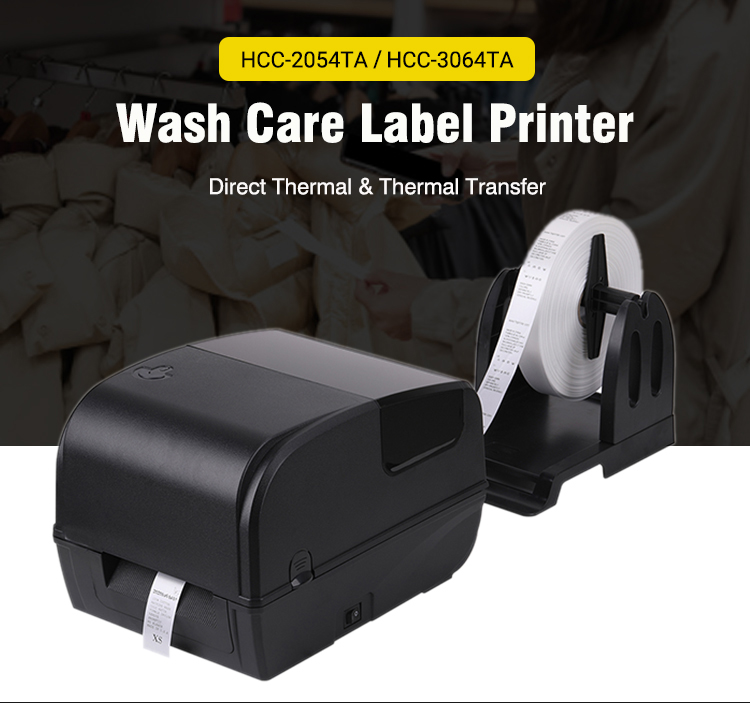

Fabric Wash Care Thermal Label Printer For Clothing Industry HCC-3064TA

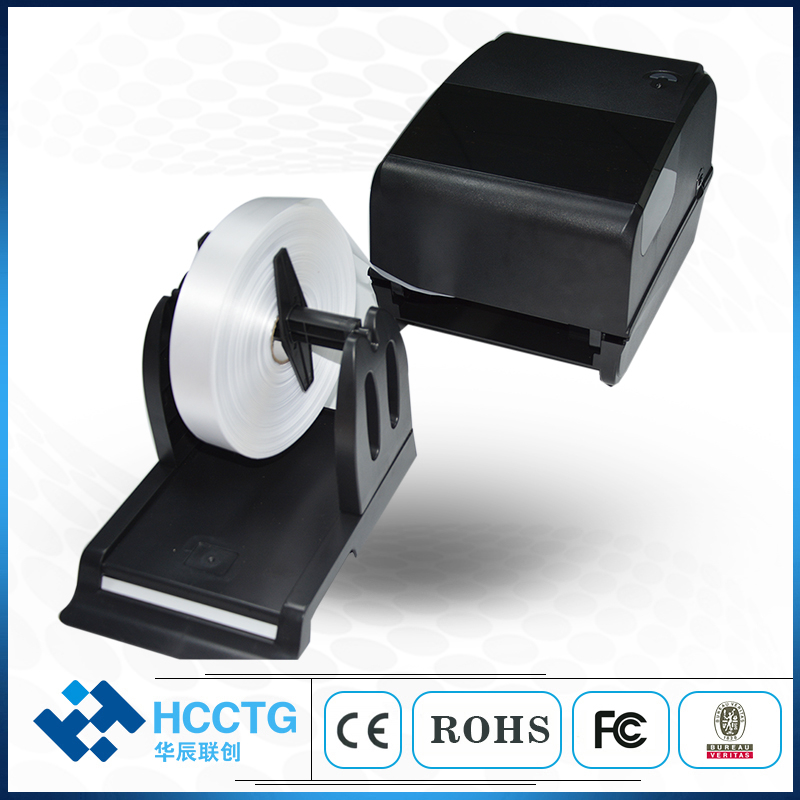

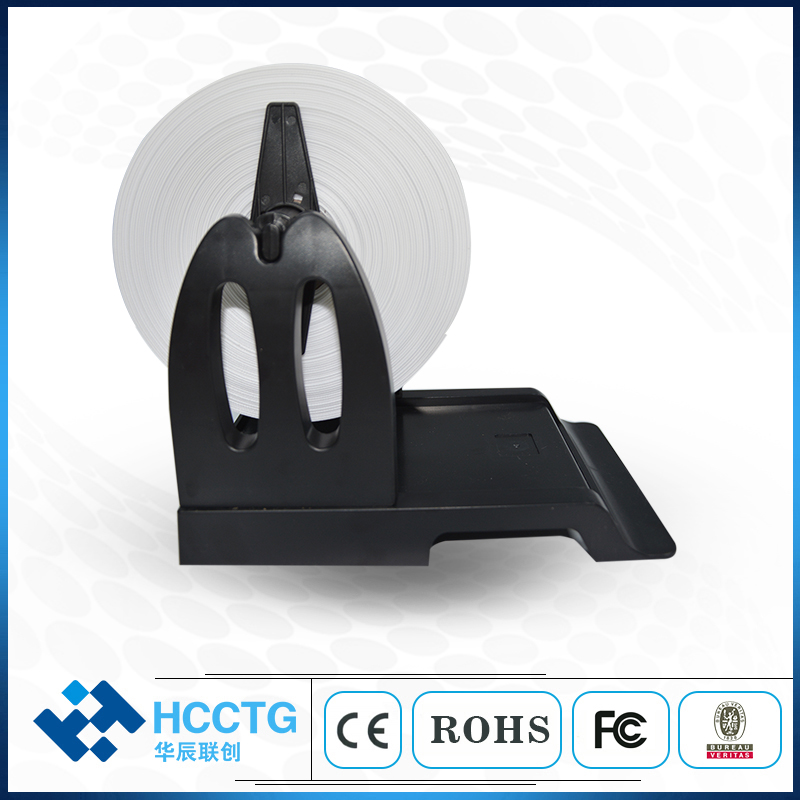

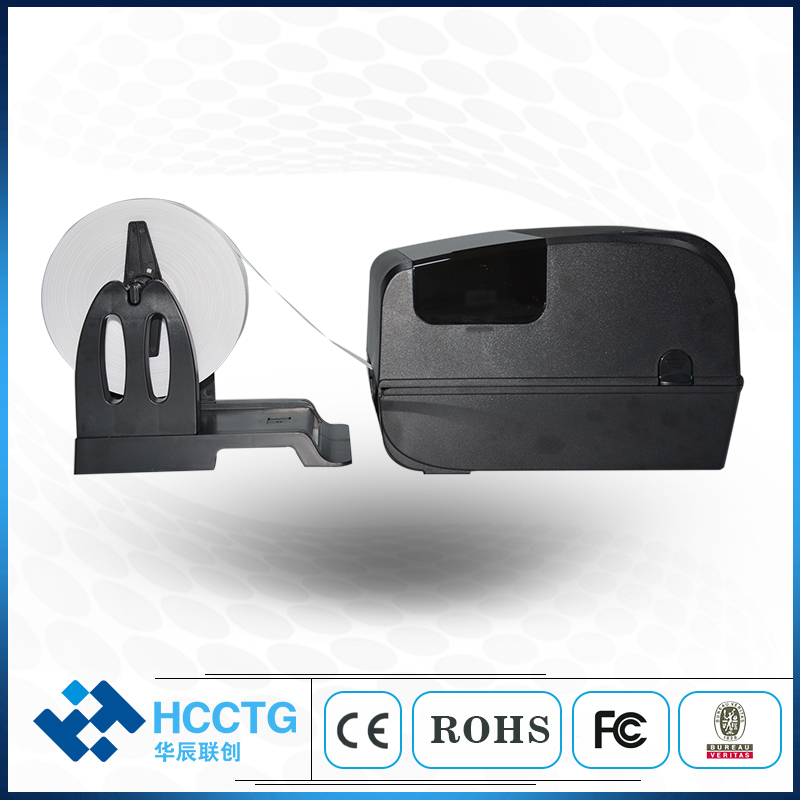

The HCC-3064TA thermal label printer is an affordable and efficient solution for printing laundry care labels on clothes. This advanced clothing tag printer comes with exclusive features such as a cutter, label stacker, and holder, ensuring accurate printing and cutting without any issues like shifting or sticking. With this washable label printer, you can easily create high-quality wash care labels that withstand multiple washes.
By incorporating the HCC-3064TA wash care label printer into your laundry care label printing process, you can streamline your operations and achieve cost-effective results. This versatile printer is designed to meet the specific needs of the garment industry, providing a total solution for creating durable and professional labels.
In addition to its cutting-edge features, the HCC-3064TA offers compatibility with various label materials, allowing you to customize your labels to suit different fabric types and styles. With its precise printing capabilities, you can ensure that important care instructions and branding information are accurately represented on each label.
Functions
Specification

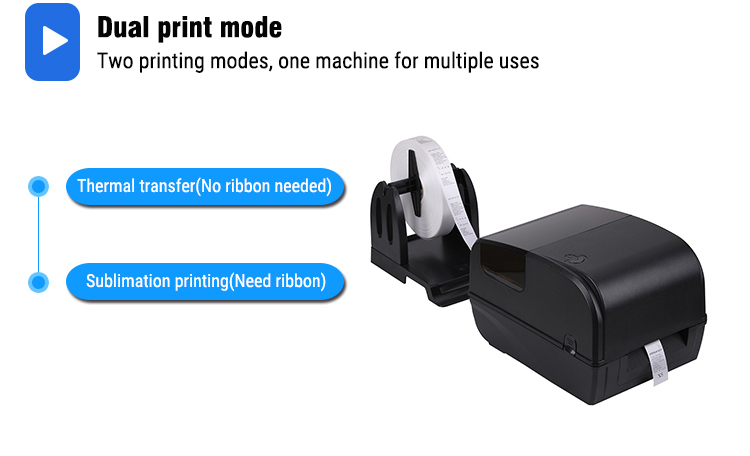

| Printing Method | Direct Thermal & Thermal Transfer |

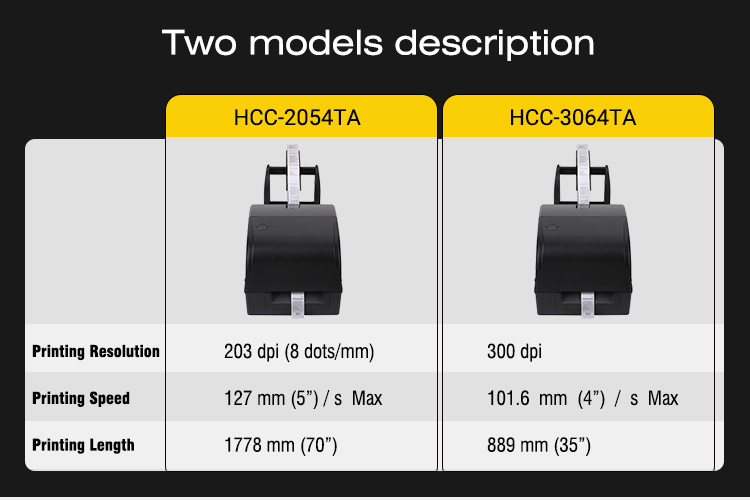

| Printing Resolution | 300DPI |
| Printing Speed | 101.6 mm (4”) / s Max. |
| Printing Length | 889 mm (35”) |

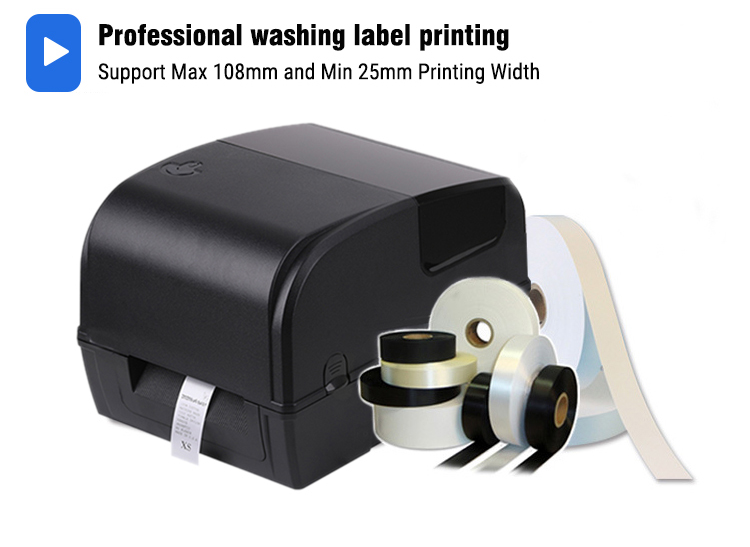

| Printing Width | 108 mm (4.25") |
| Memory | 8MB DRAM, 8MB Flash ROM |
| CPU Type | 32 bit RISC microprocessor |
| Wash label Supporter | YES |

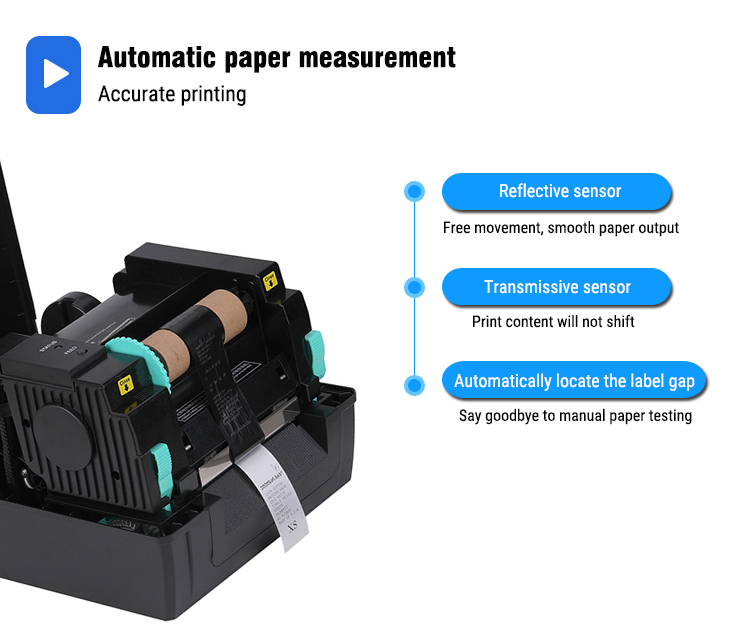

| Sensors | Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Center fixed) |

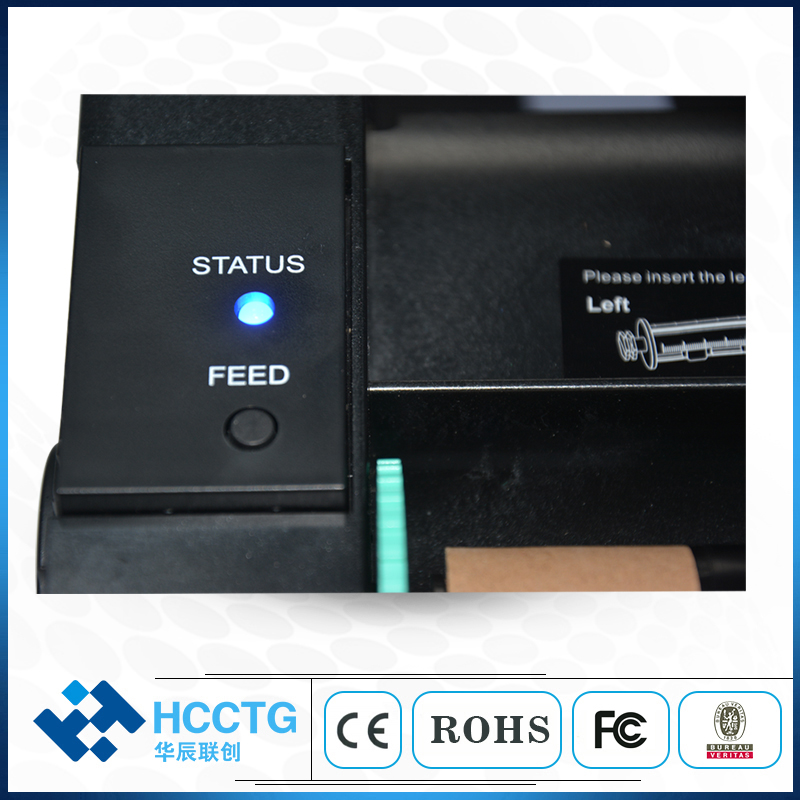

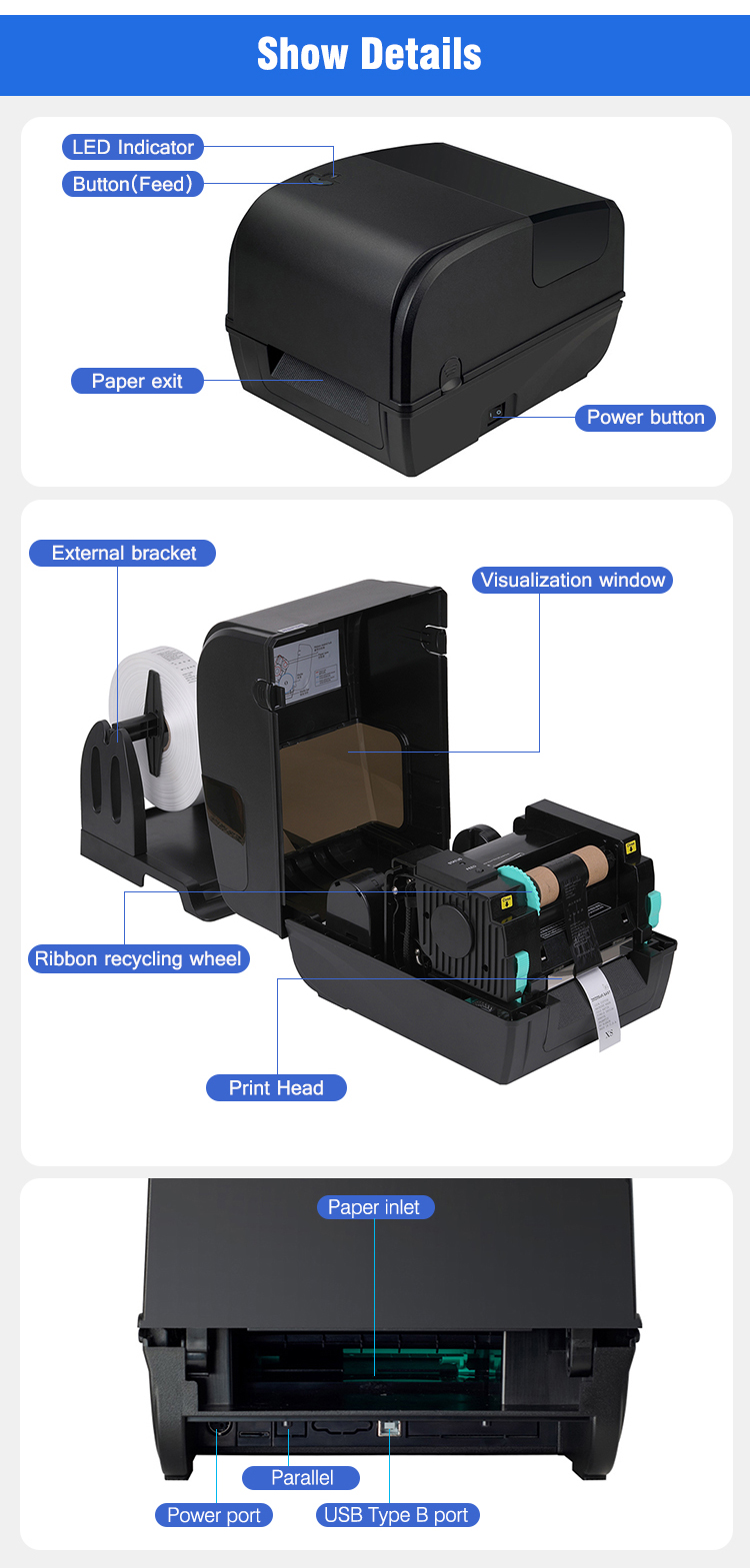

| Operation Interface | LED Indicator x 2, Button(Feed) x 1 |

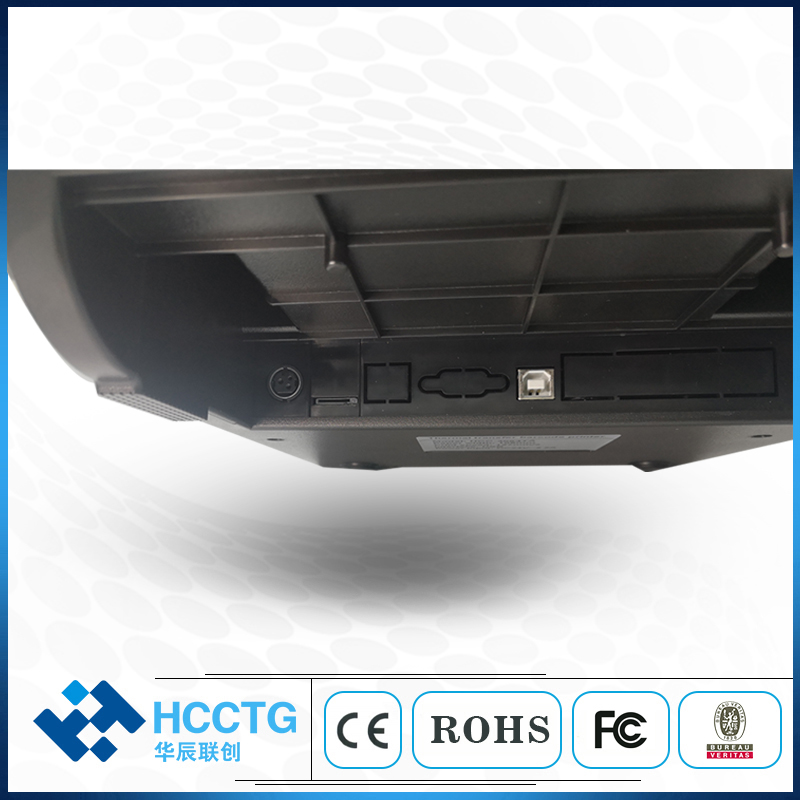

| Communication Interface | USB, RS-232, Parallel |
| 1D Barcodes | PPLA: Code 39,UPC-A,UPC-E,Code 128 subset A/B/C,EAN-13,EAN-8,HBIC,Codabar,Plessey,UPC2,UPC5,Code 93,Postnet,UCC/EAN-128,,UCC/EAN-128 K-MART,UCC/EAN-128 Random weight,Telepen,FIM,Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars),GS1 Data bar (RSS) |
| 2D Barcodes | PPLA/PPLB: MaxiCode,PDF417,Data Matrix (ECC 200 only),QR code,Composite Codes |
| Emulation | TSPL,EPL,ZPL,DPL |
| Media Type | Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label |
| Media | Max. width 4.3”(110mm) Min. width 1” (25.4 mm) Thickness 0.0025”~0.01” (0.0635mm ~0.254mm) Max. roll capacity (OD): 5"(127 mm) Core size 1”(2.54mm) Max. roll capacity (OD): 4.5"(114.3 mm) Core size 0.5”(12.7mm) Optional Max. roll capacity (OD): 4.7"(120 mm) Core size 1.5”(38.1mm) Optional |

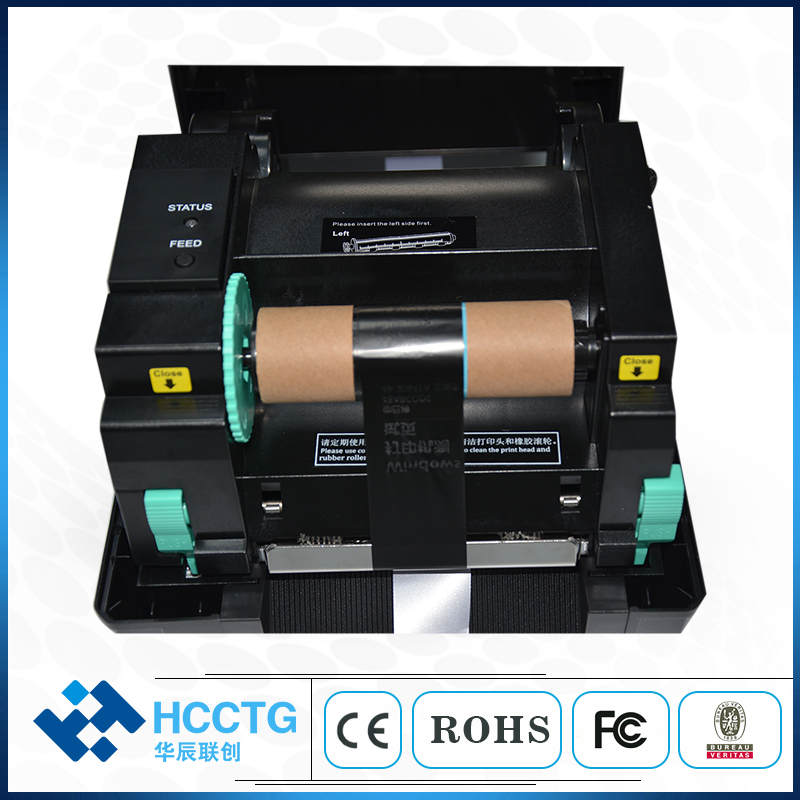

| Ribbon | Ribbon roll – OD: 2.6”(67mm) Ribbon Length: Max. 300m Core size – ID: 1”(2.54mm) Ribbon Width:1"~4.33"(25.4mm~110mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) |
| Printer Dimensions | 302.5 mm (D) x 234 mm (W) x 195.18 mm (H) |
| Printer Weight | 3.2 kg |
| Power Source | Universal Switching Power Supply AC Input: 100V~240V, 1.8A, 50~60Hz, DC Output: 24V 2.4A |
