HCC-T80S has the characteristics of integration, mobility, small size, light weight, high performance, and suitable for handheld.
Item No.:
HCC-T80SProduct origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

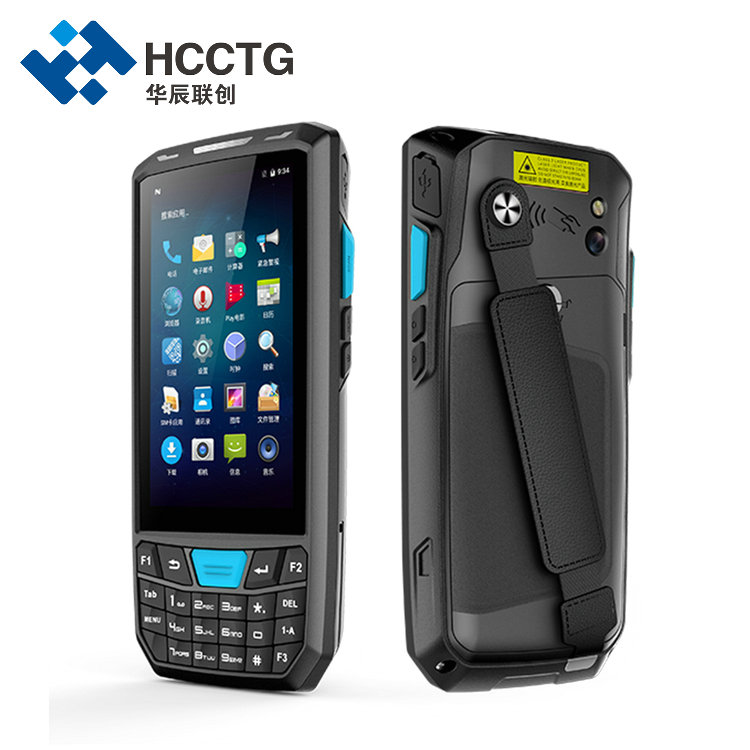

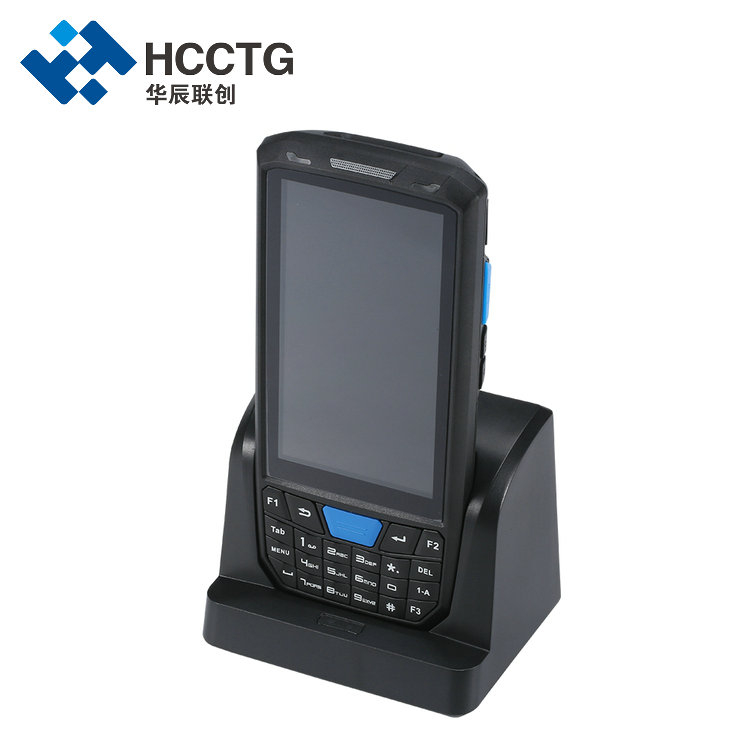

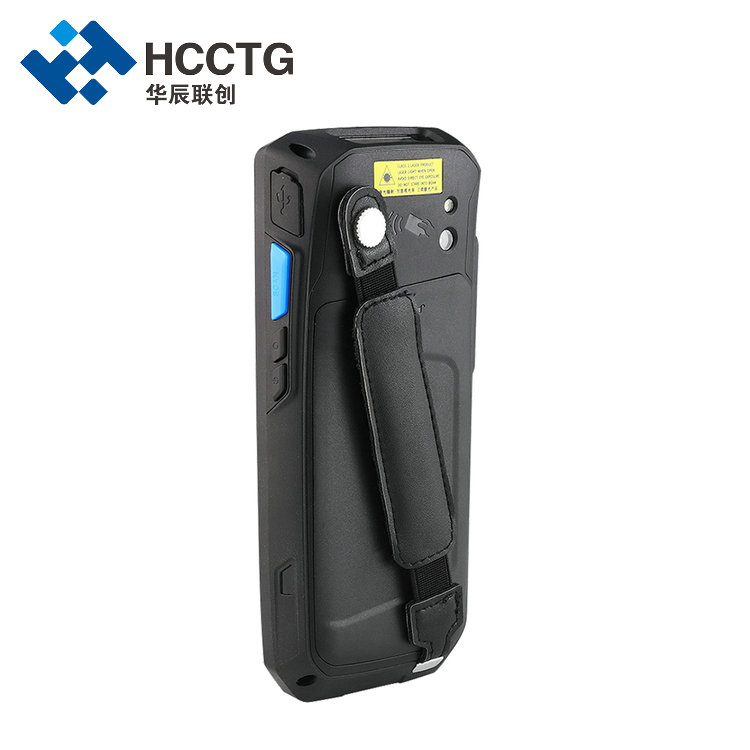

Ruggged 4G Android 9.0 Handheld PDA Terminal For Warehouse HCC-T80S

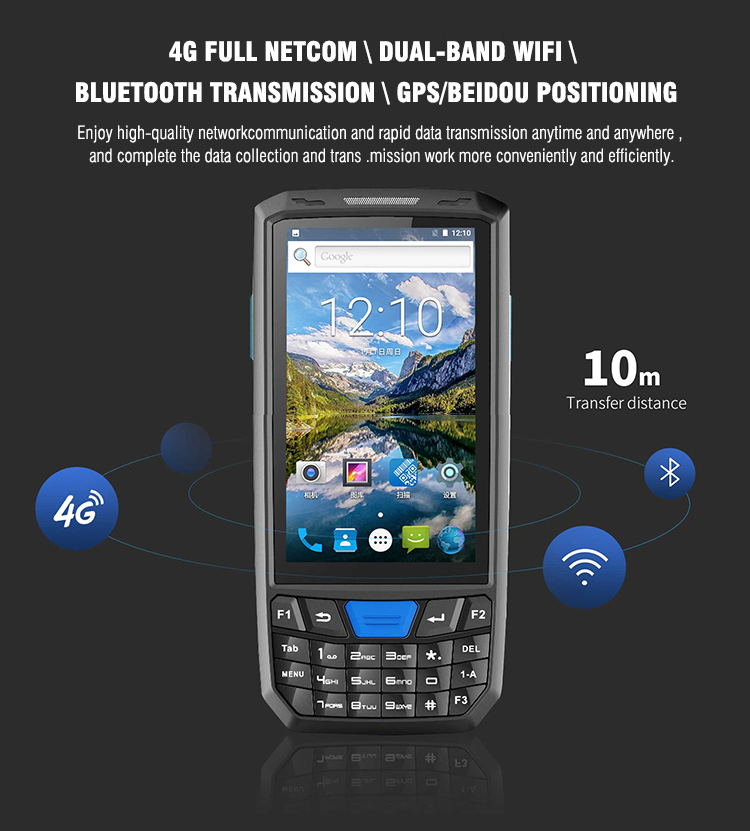

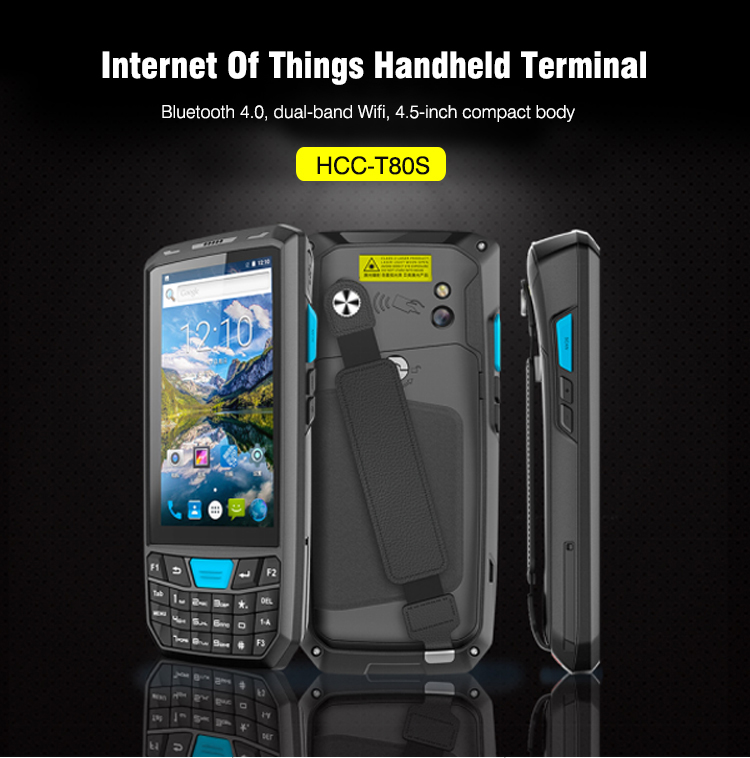

HCC-T80S Internet Of Things Handheld Terminal has4.5 inch HD, Wifi and Blue-tooth 2.1+EDR/3.0+HS/4.1+HS. The operating system is android 8.1 and it has 2G, 3G & 4G full-netcom. NFC reader, barcodescanner and camera.
Features
Specifications
| Performance | |
| CPU | Cortex-A53Quad-core 64-bit 2.0GHz high-performance processor |
| RAM+ROM | 2GB+16GB |
| Expand memory | Micro SD(TF) Supports up to 128GB |
| System | Android 9.0 |
| Data communication | |
| WLAN | Dual-band 2.4GHz/ 5GHz, SupportingIEEE 802 a/b/g/n/ac protocol |
| WWAN | 2G:GSM (850/900/1800/1900MHz) |
| 3G:WCDMA (850/900/1900/2100MHz) | |
| 4G:FDD:B1/B3/B4/B7/B8/B12/B20 | |
| TDD:B38/B39/B40/B41 | |
| Bluetooth | Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters |
| GPS | SupportGPS,Galileo,Glonass,Beidou |
| Data collection | |
| Barcodescanning(Optional) | |

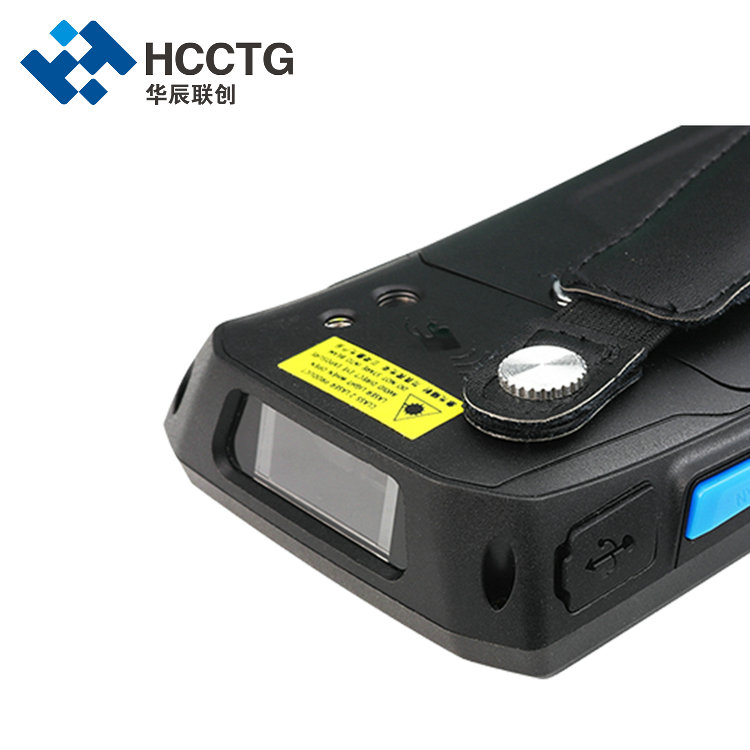

| 1D Linear scanner | Mindeo SE966 Honeywell N4313 |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber,Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,UCC/EAN-128, GS1 Databar, HIBC, etc. |

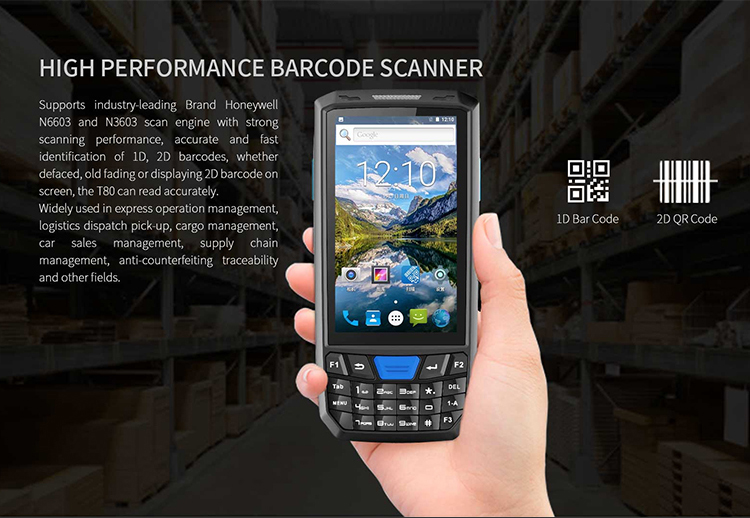

| 2D Imagerscanner | Newland EM3090 Honeywell N3603 Honeywell N6603 |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code, etc. |
| Camera | |

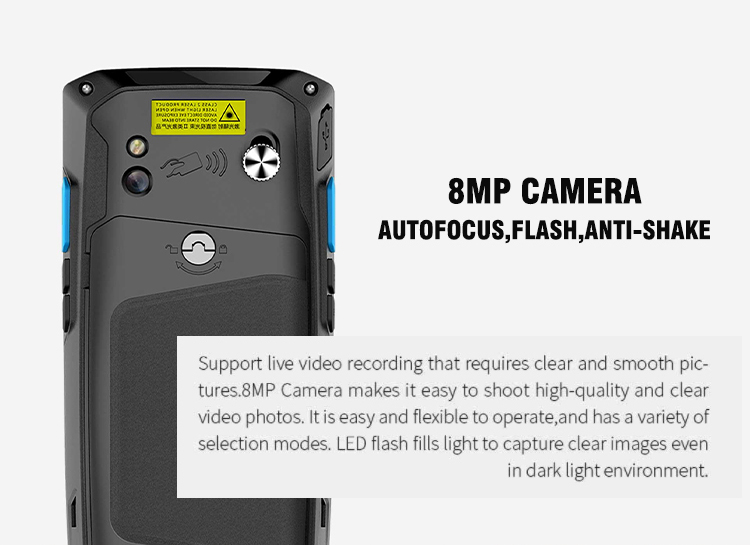

| Rear camera | 8MP HD camera,Support auto focus, Flash,Anti-shake,Macro shooting |

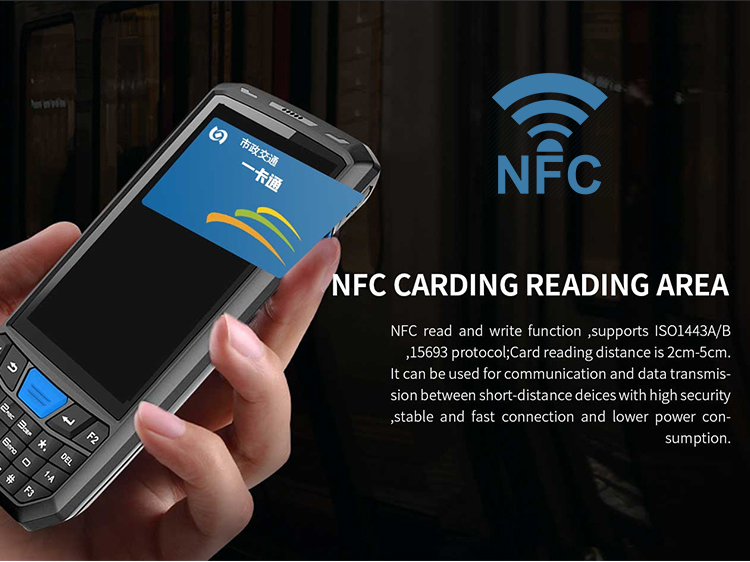

| NFC (Optional) | |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm-5cm |
| Physical parameter | |

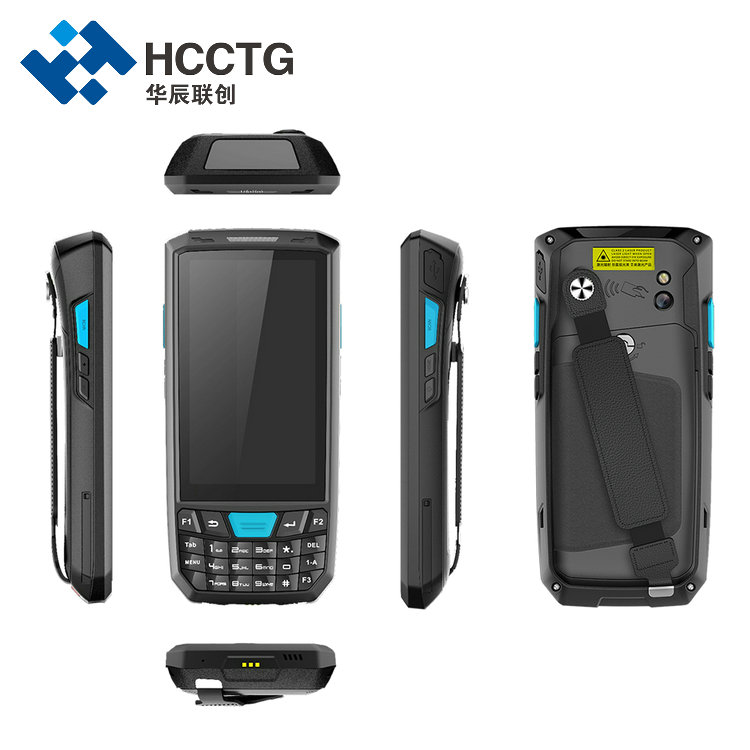

| Dimensions | 166mm×77.5mm×22mm |
| Weight | ＜500g |
| Display | 4.5 inch IPS color display with resolution 480*854 |
| TP | CorningGorilla glass, supports multi-touch Supported gloves and we thands |
| Battery capacity | Rechargeable polymer battery (3.8V 4200mah) removable |
| Standby time >350 hours | |
| Working time > 12 hours | |
| Charging time＜4H, using standard power adapter and data cable | |
| Expansion Card slot | PSAM x 2, Micro SIM card x 1 , TF card × 1 |
| Communication interface | Type-C USB x 1, OTG,POGO Pin x 1 |
| Audio | Speaker (mono),Microphone,Earpiece |
| Keypad | Support touch screen soft keypad and physical keypad |
| Sensor | GravitySensor,Vibration motor |
| Language/input method | |
| Input | English,Pinyin,Five strokes,Handwriting input,Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc. |
| User environment | |
| Operating temperature | -20℃ - 55℃ |
| Storage temperature | -40℃ - 70℃ |
| Environment humidity | 5%RH--95%RH(no condensation) |
| Drop specification | 6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature |
| Rolling test | 500×0.5m rolling for 6 sides |
| Protection level | IP66 |
| Accessories | |

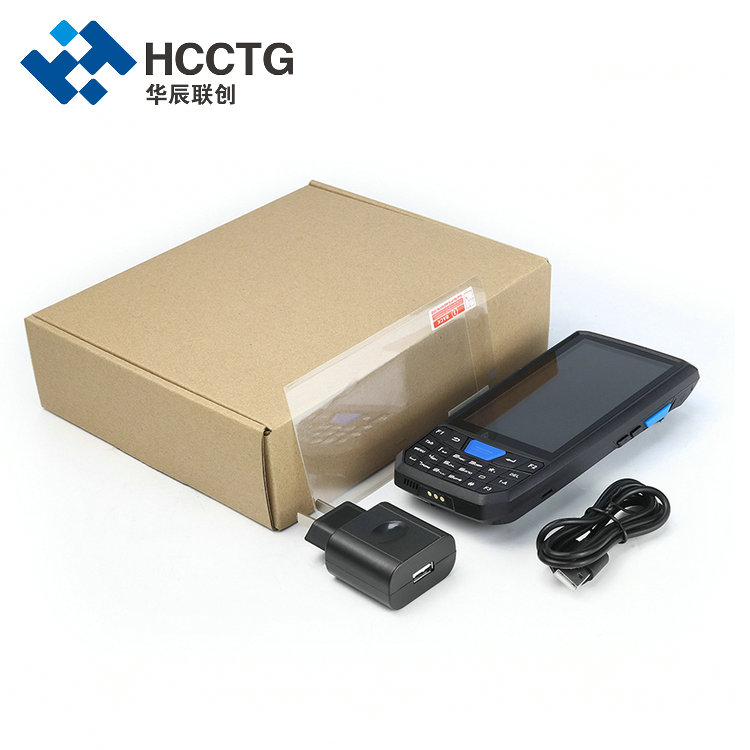

| Standard | Adapter,Data cable,Protective film, Instruction manual |
