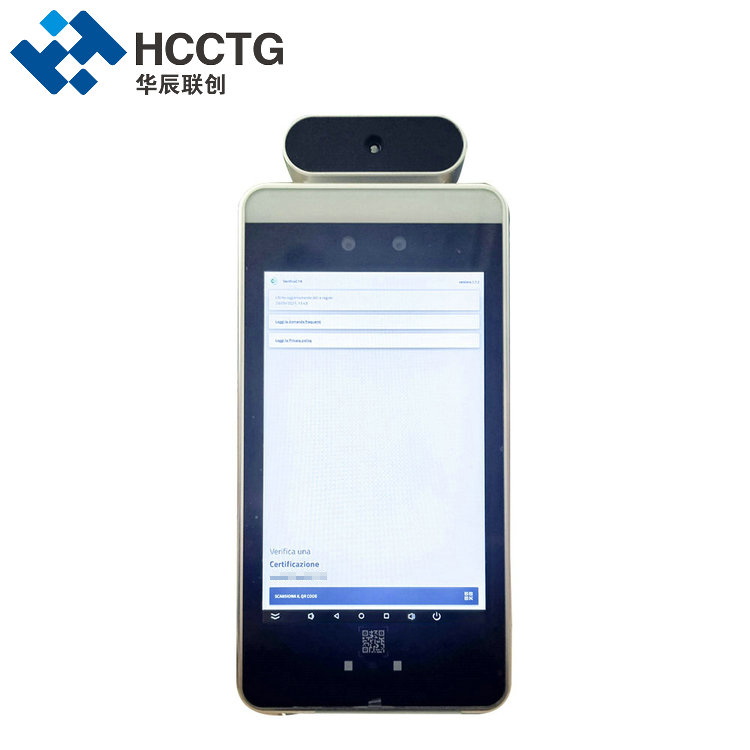

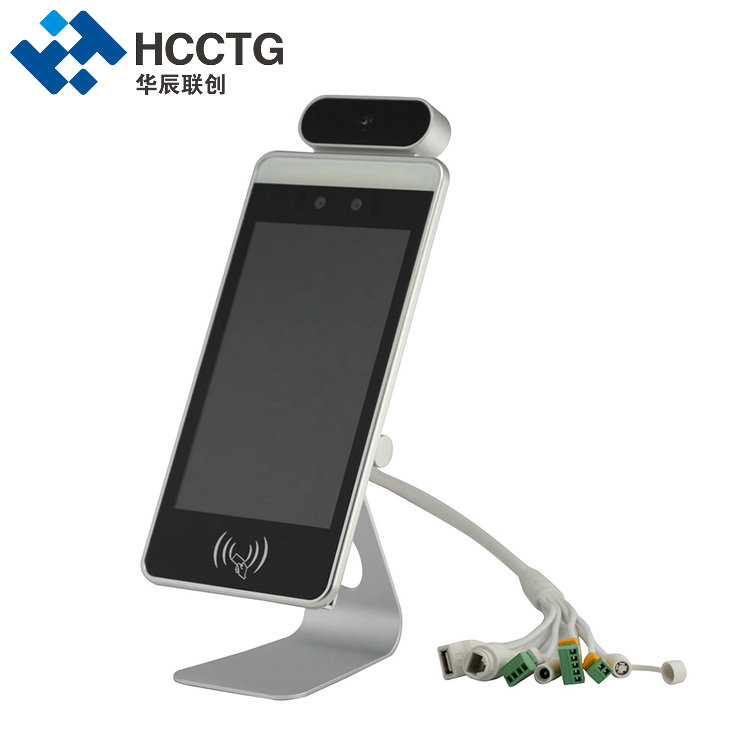

HS-620 is newest touch screen 8inch dynamic dual face live scan time attendance access control with Android 7.0 OS, supports Ethernet and WIFI connection.
Item No.:
HS-620Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:

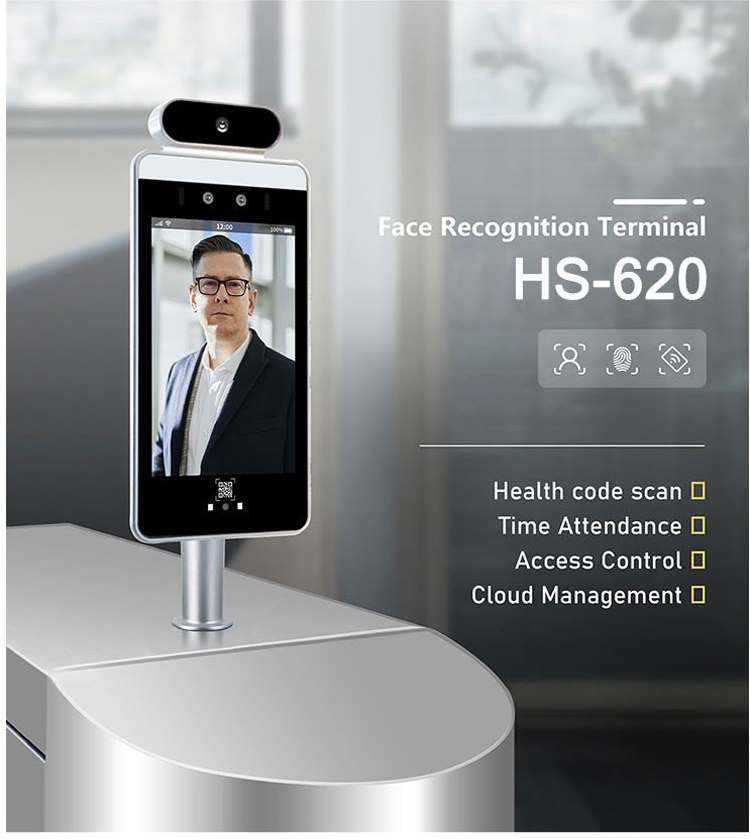

2Bluetooth Face Recognition Health Code Scanner With Temperature Measurement HS-620

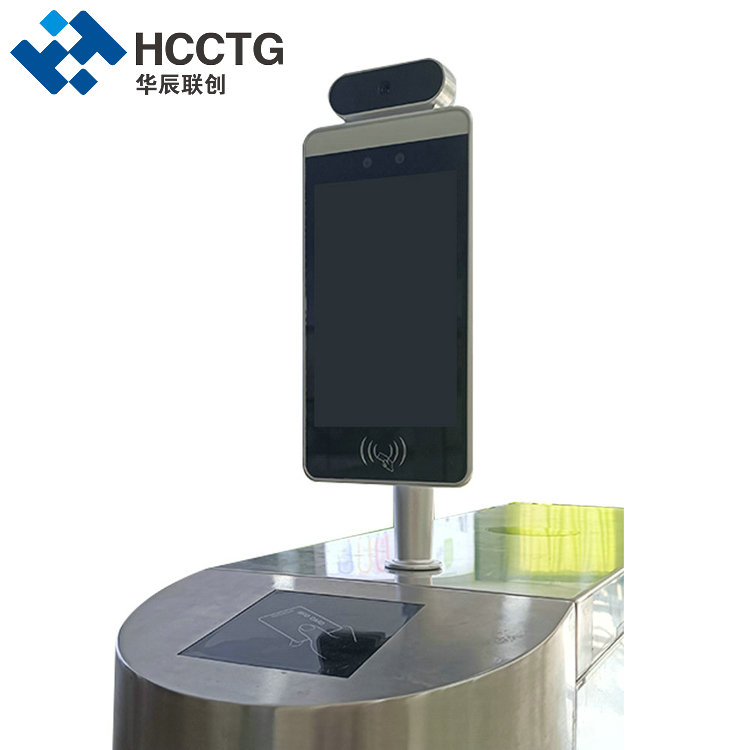

HS-620 can detect 5 moving persons at 4 meters within 0.7 seconds, mainly be designed for turnstile system, EM lock, wall mounted and desktop version.
Features
Specification
| CPU | 4 cores, 1.8GHz |
| Memory | 2GB RAM, 8GB ROM |
| Operating System | Android 7 |

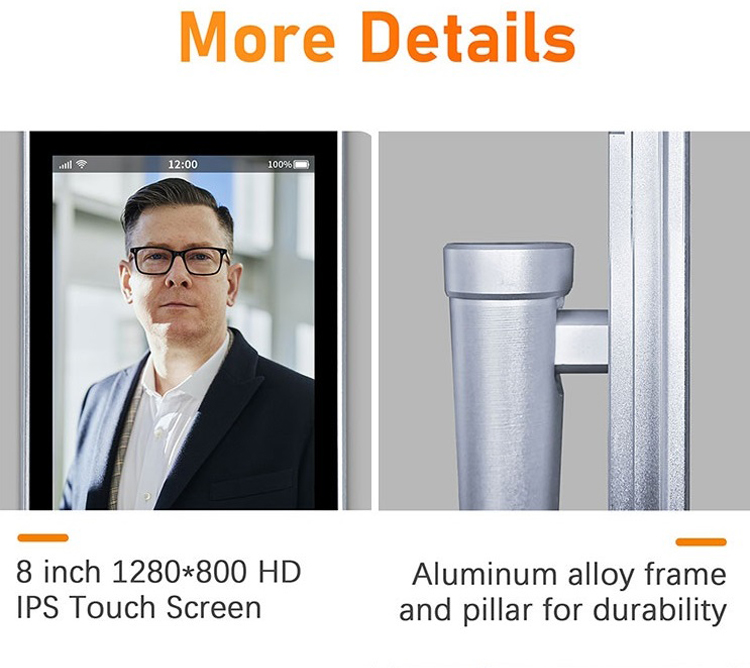

| Dimension | 8 inches touch screen, full view angle, IPS LCD screen, resolution 1280*800 |
| Dual Camera | 2.0M(RGB Camera); 1.3M(InfraredCamera) |
| Wide dynamic camera
| Wide Dynamic: Automatic |
| White Balance: Automatic | |
| Aperture: 4m, Focal Length: 0-2m | |
| Accessories | |
| Card Reader UID(Optional) | ID/NFC (UID) at optional |
| Filling Light | LEDfilling light |
| QR Code
| UK Health Code, Safe Entry, Lithuanian Health Code, American Health Code, Canadian Health Code, UAE Health Code, EU Health Code |

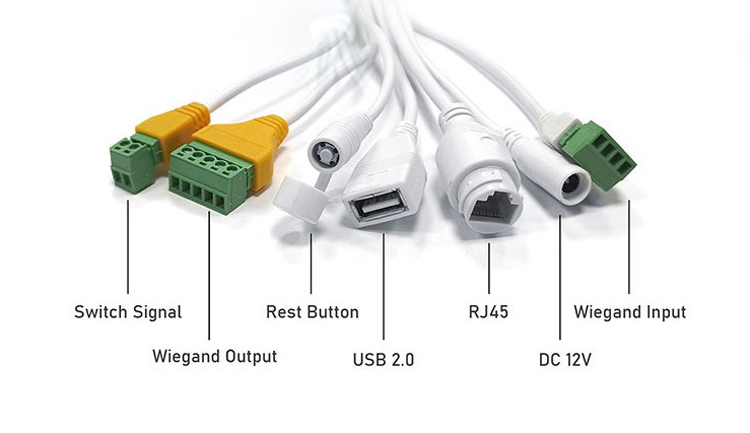

| Interface | |
| Network Module | WIFI (2.4G), Bluetooth, 4G(optional) |
| Serialport | RS232, relay |
| Relay Output | NC, COM&NO |
| Wiegand Interface | Support Wiegand 26 / 34 input / output |
| Reset Interface | Yes |
| RJ45 | Yes |
| Face Detection | |
| Capacity | 20000 Capacity, Support detecting and tracking 5 people at the same time |
| Face Recognition | 99.99%, 1:N |
| Recognize Distance | Support(0.5-4meters) |
| Remote Upgrade of Equipment | Support |
| Stranger Detection | Support |
| Fingerprint Scanner | |
| Sensor | FAP10 Capacitive Sensor, 20000 Fingerprint Capacity |
| FAR | 0.0001% |
| Image Resolution | 508DPI |
| Fingerprint Verification Time | 1s |
| Image Size | 256*360pixel |
| FRR | 0.01% |
| General Parameters | |

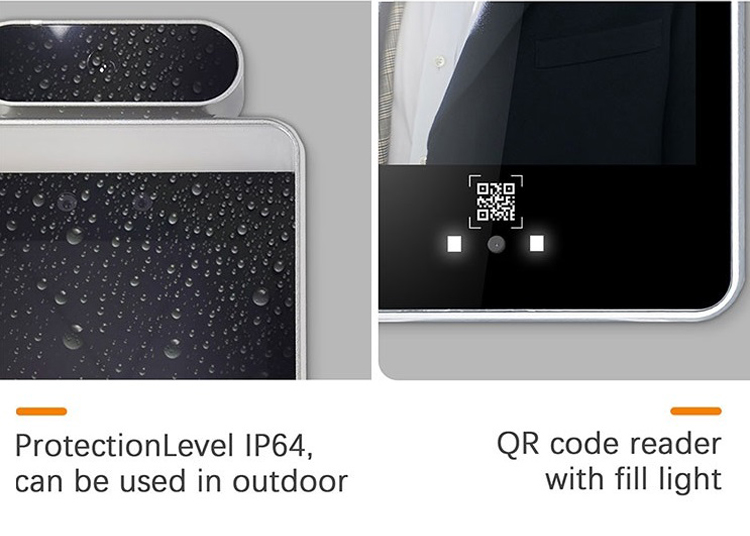

| Certification | IP64, CE,ROHS |

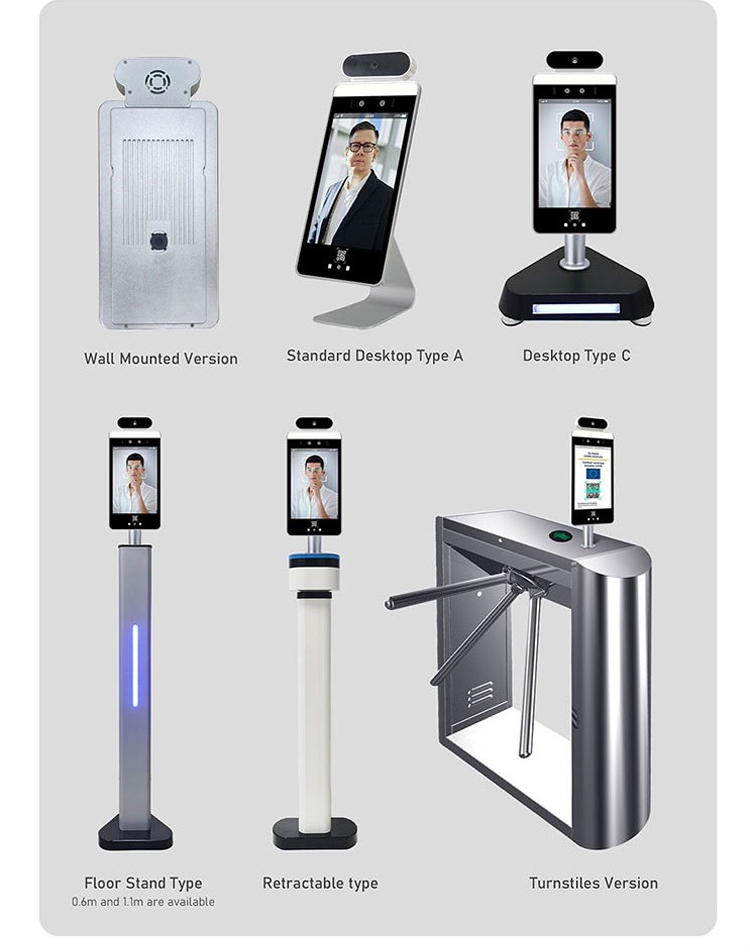

| Installation Method | Turnstile, Wall mounted, Desktop, Floor Type |
| Power Supply | DC12V (±10%) |
| Operating Temperature | -10° C ~ 60° |
| Working Humidity | 10% to 90% |
| Device Size | 310(L)*133(W)*25(H)mm |
| Weight | 2.5KG (Device Only) |
