HS-600's Hardware & software to working with EU to scan people's green pass or health pass QR code to have access control.
Item No.:
HS-600Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

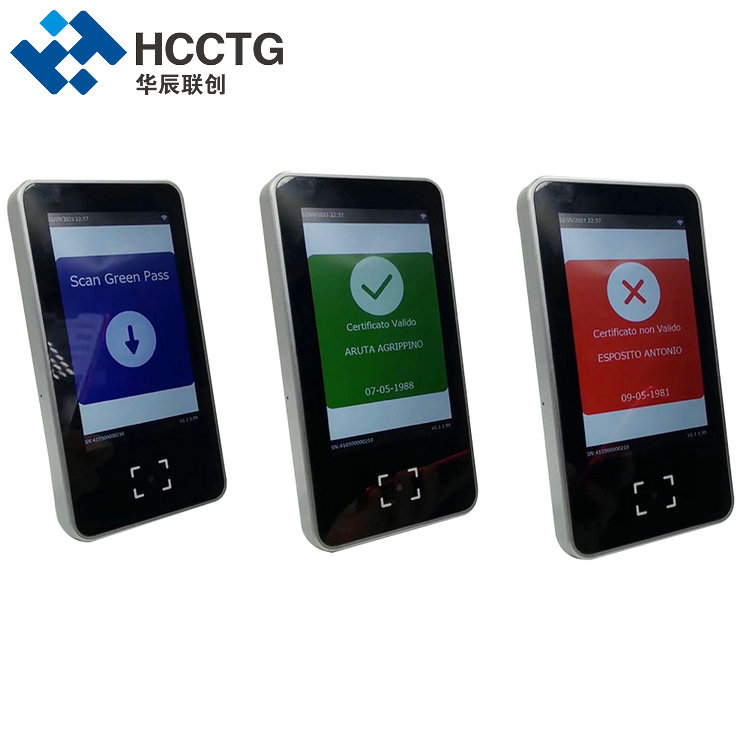

EU Health Pass Scanner Green Pass QR Code Reader Machine For Access Control HS-600

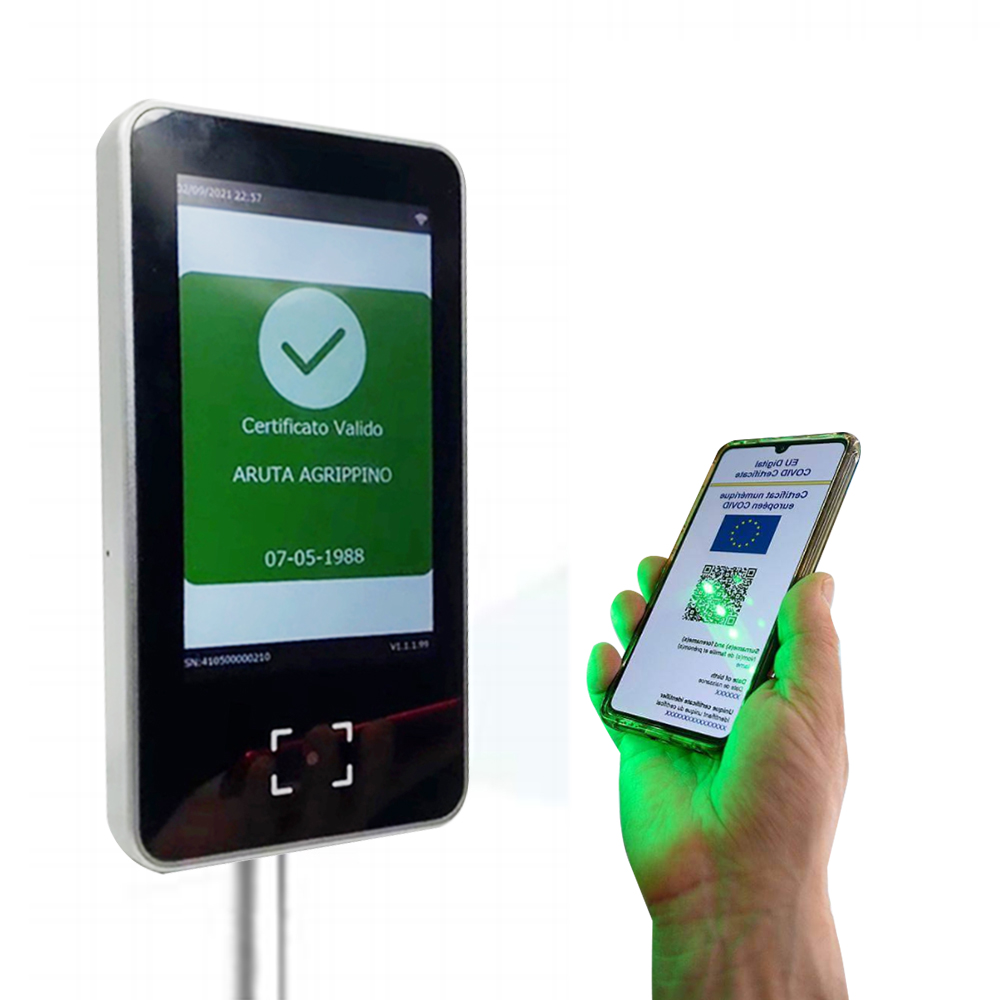

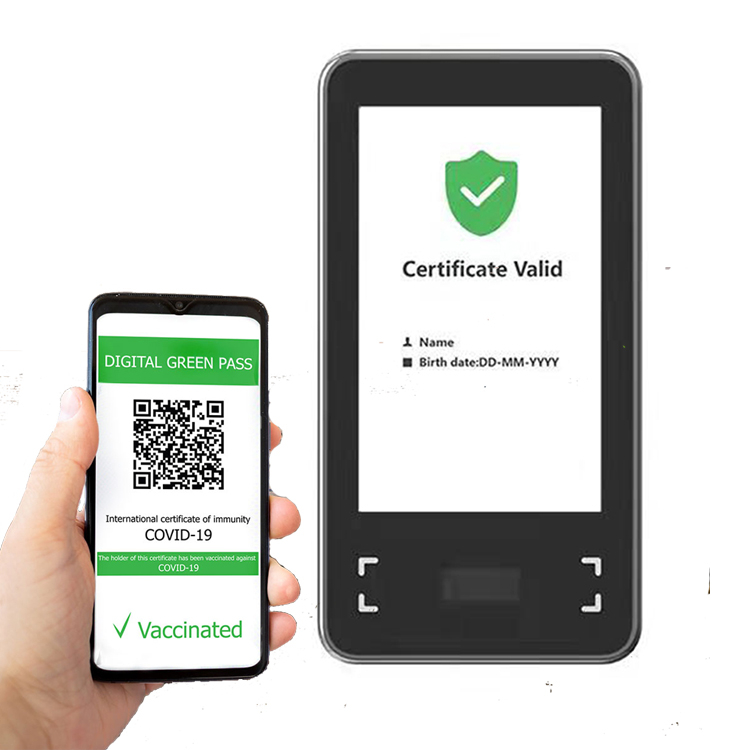

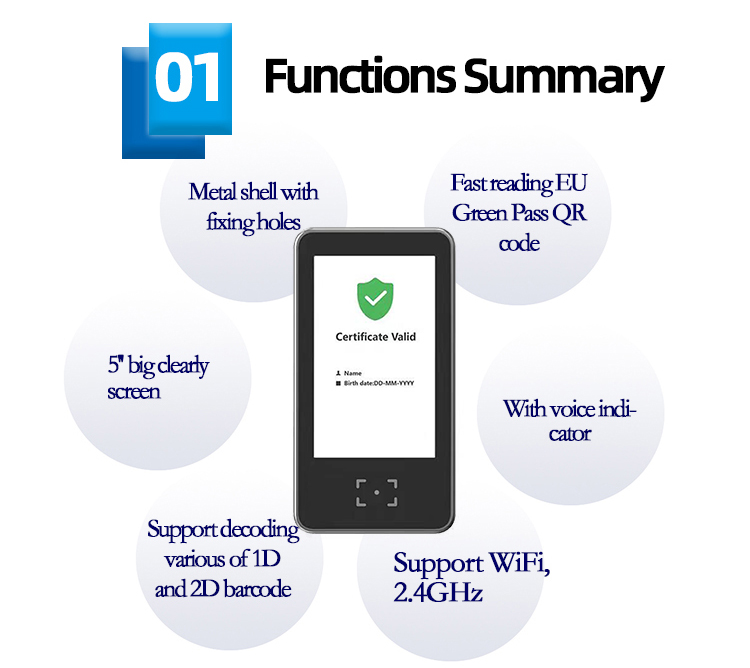

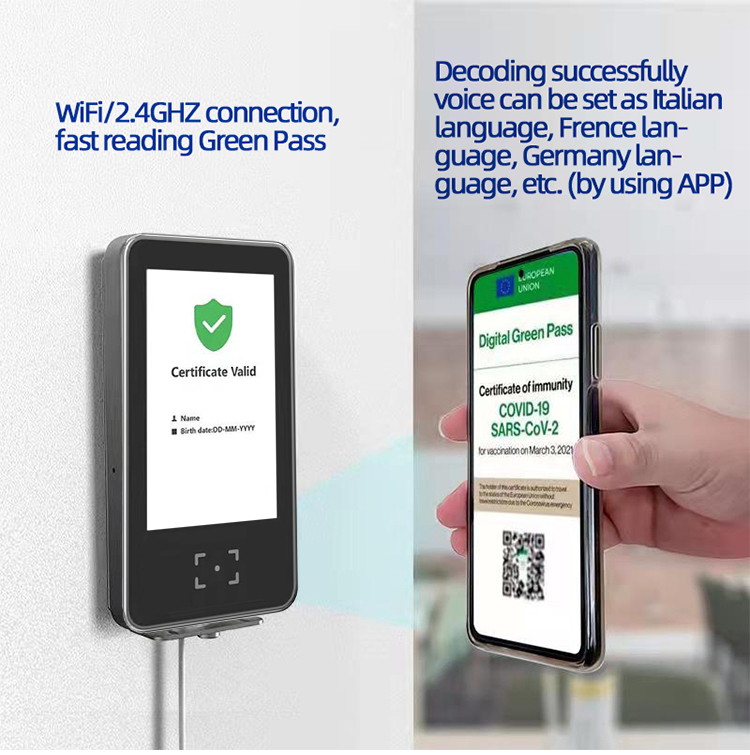

It's with a variety of release conditions, to avoid a single function and it has the features of equipment integrated, easy to install, in order to meet a variety of installation requirements. Green pass digital QR code reader with 5 inch screen, visual indication of the reading result and sound via voice (multilingual), WiFi connection (2.4Ghz) via an easy-to-use dedicated App, to guarantee the update in real time from the European server of the certificates issued.

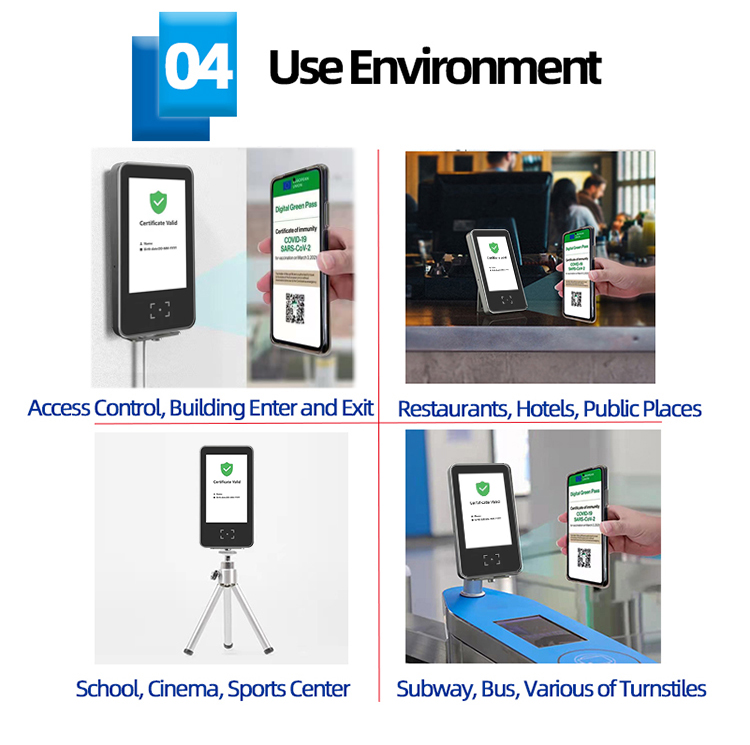

Application
Specification
| System parameters | |
| Display | 5 inch screen,Resolution 800*480 |
| Interface | MIPI |
| WIFI | 2.4GHz IEEE802.11 b/g/n |
| Multi-language | Italian, French, German, English, Spanish, Greek, Romanian. And other more countries' language support is increasing. Please look forward to it. |
| Audio | Voice output (Support customize by MP3 file) |
| Performance parameters | |
| Image sensor | CMOS 640px * 480px |
| 2D Symbologies | PDF417,Data Matrix,QR,Micro QR |
| Angle | level:68° vertical:51° diagonal: 84.8° |
| Sensitivity | Tilt:±60° rotate:±60° deflection:360° |
| Accuracy | ≥3mil |
| Contrast ratio | ≥20% |
| Prompt mode | Beep, LED indicator |
| Electrical parameters | |
| Power Supply | 5V/2A |
| Button RST | Reset button |
| LED indicator | Blue |
| Environmental parameters | |
| Working Temperature | -10℃ ~ +60℃ |
| Relative humidity | ≤95%(No condensation) |
| Physical parameters | |

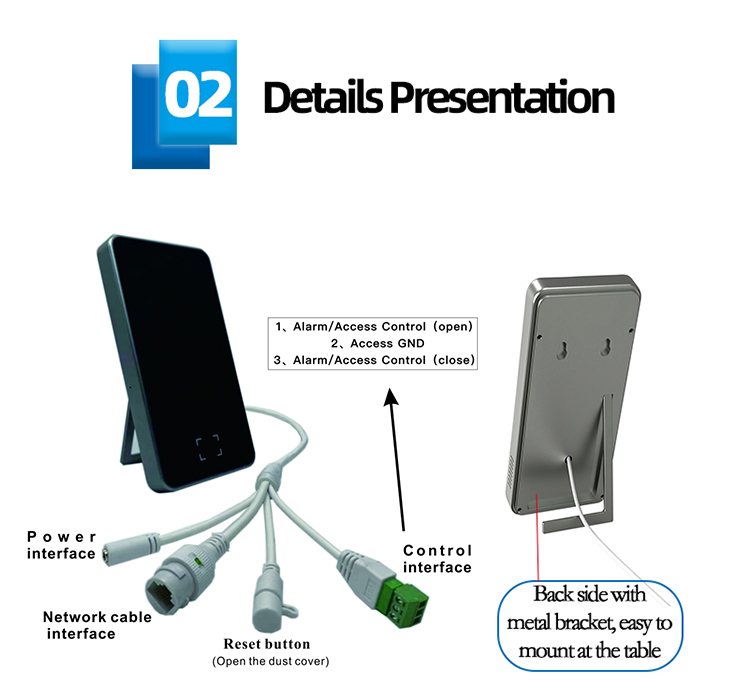

| Interface | Network*1, Wigan*1, DC power*1 |
| Appearance size | 86.8 * 164.6 * 20.6(L * W * D)mm |
| Weight | 360g |
