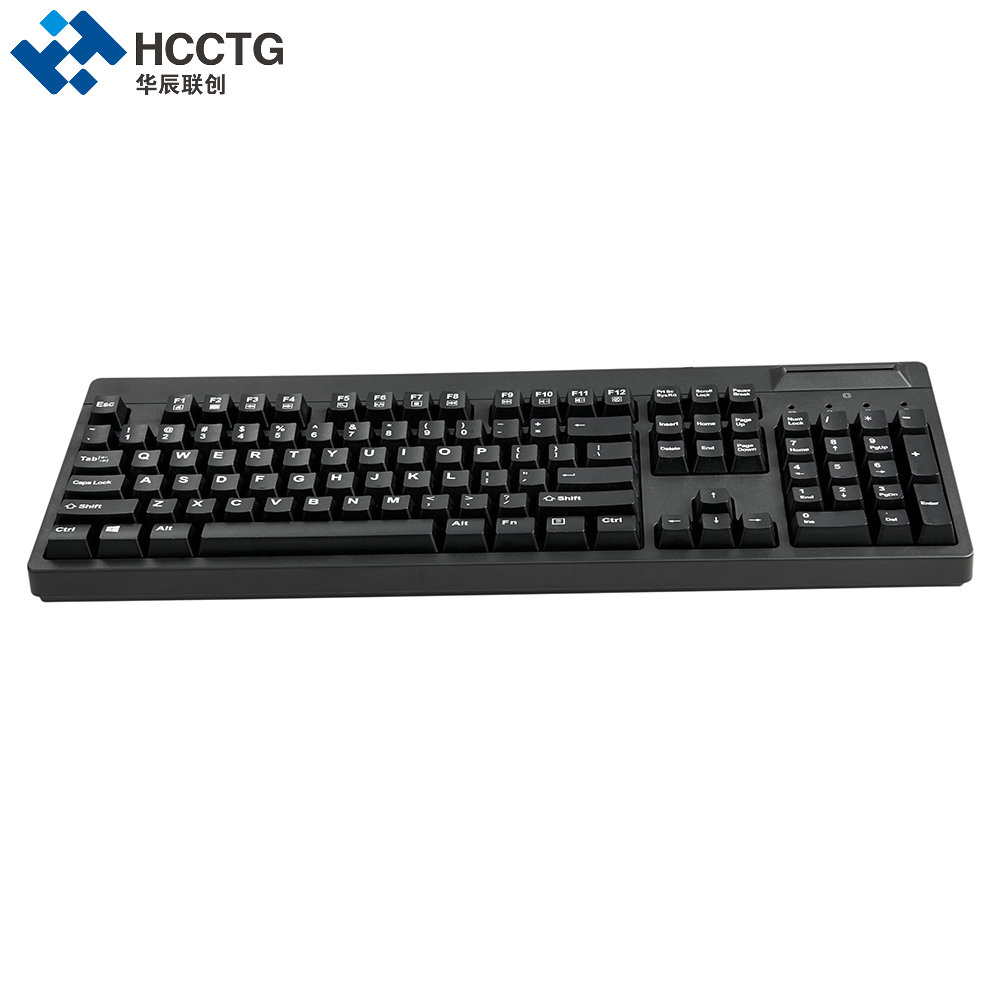

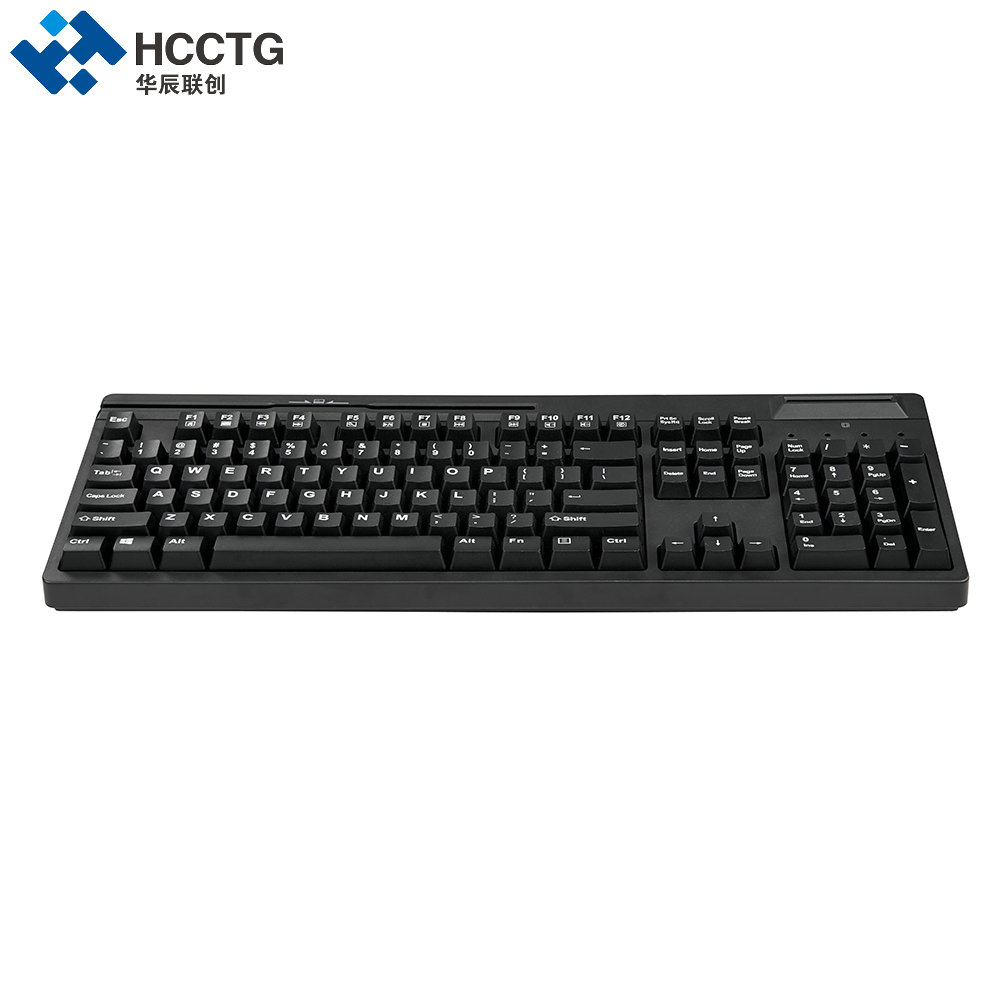

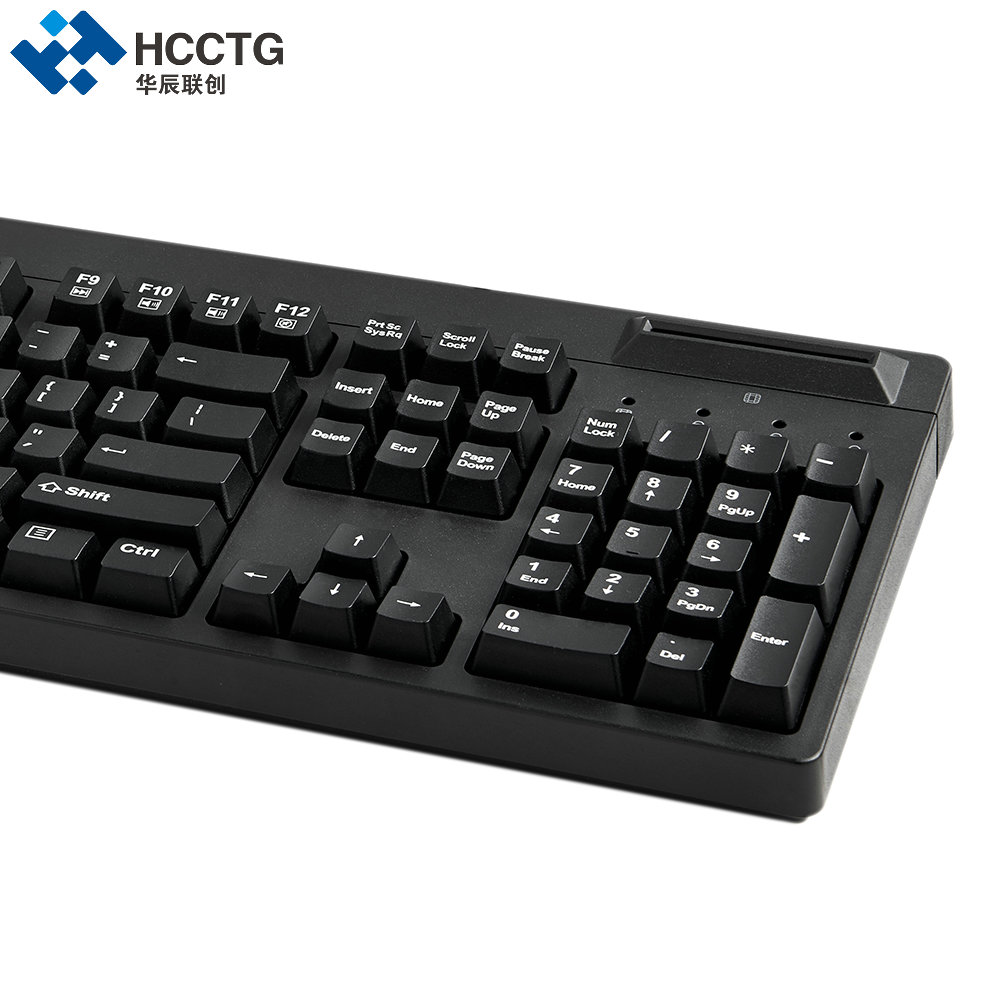

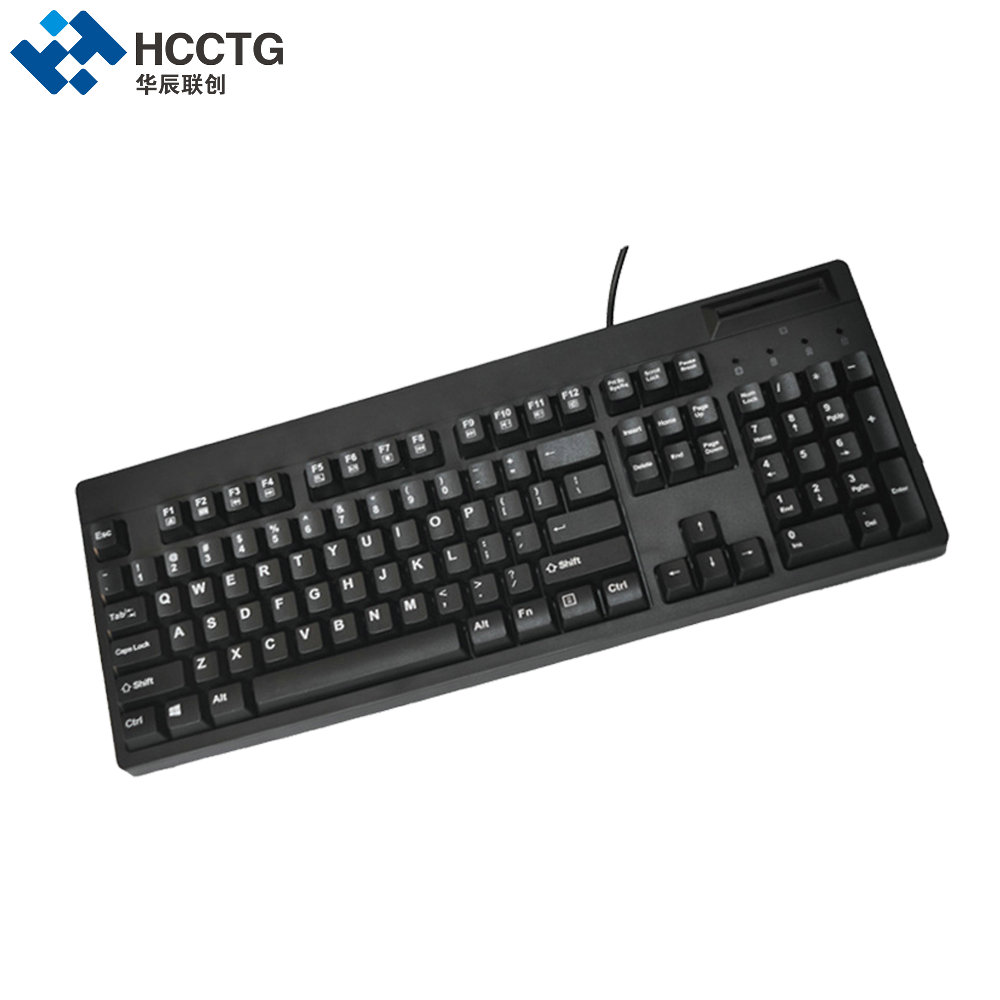

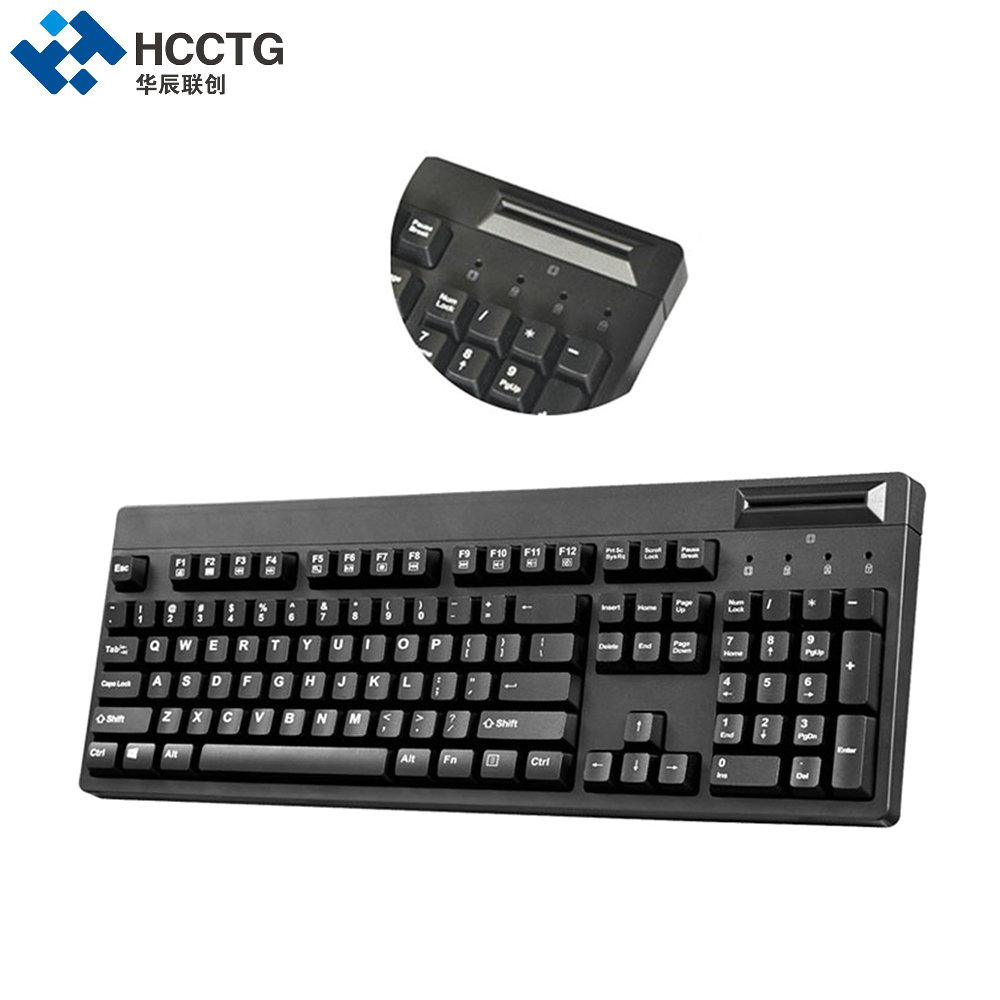

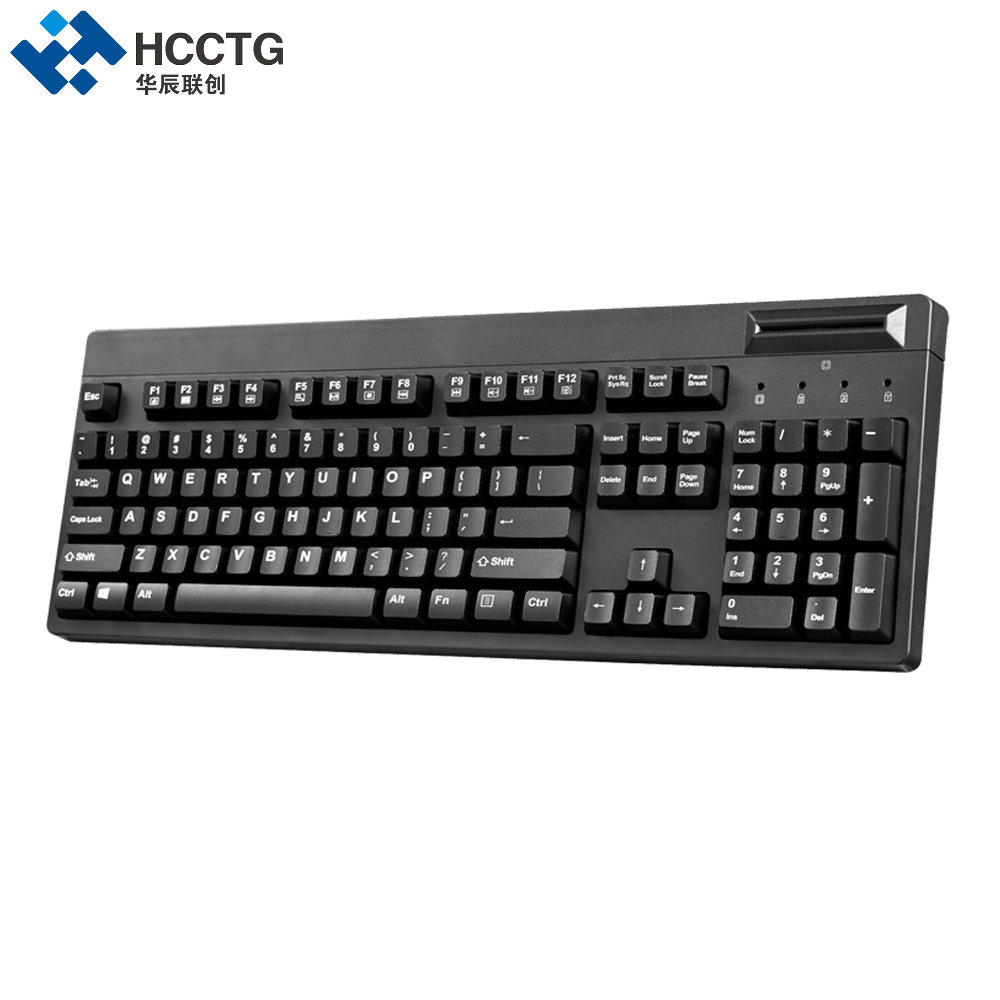

104keys ISO7816 EMV Unionpay Membrane Keyboard with SCR&MSR HCC-150U

HCC-150U has 104-Key US Layout, supports ISO7816 for IC card standard, PC/SC 2.0 for Windows Smart Card standard.

Item No.:
HCC-150U
Product origin:
Guangdong, China
Color:
Black
Shipping port:
Shenzhen/Guangzhou/HongKong
Lead Time:
2

Product Description

USB Membrane Keyboard With Built-In Smart Card Reader & MSR HCC-150U

HCC-150U Membrane Keyboard with SCR&MSR features a 3 zone keyboard layout with a built-in Smart Card Reader (SCR) for banking transactions, identification systems, secure web applications, and secure login ,as well as a Magnetic Stripe Reader (MSR) for Credit Cards.

This full-sized wired membrane keyboard is perfect for any desktop, kiosk, office, or warehouse, while the built-in multi-functional hotkeys allow quick access to your multimedia controls and Internet browser commands.

Features

Supports ISO7816 for IC card standard, PC/SC 2.0 for Windows Smart Card standard, Microsoft WHQL, EMV for Europay MasterCard Visa standard and USB-CCID standard.
Magnetic stripe readers can be read by a computer program through your keyboard wedge, and are generally categorized by the way they read a badge.
Membrane Key Switches provide a better tactile response and a quieter typing experience. Plus they last up to 10million keystrokes.

Specification

Card Reader Specifications	EMV 4.0 Level 1 and PBOC2.0 Level 1 certified
	Supports USB 2.0 full speed, USB-IF certified
	Based on ISO7816 implementation
	Supports PC Smart Card industry standard - PC/SC 2.0
	Supports Microsoft Smart Card for Windows
	Meets Microsoft WHQL USB Smart Card Reader requirements
	MeetsUSFederal InformationProcessing Standards(FIPS) Publication 201
	Requirements on smart card reder interoperability
	Smart Card Reader supports T0, T1 Protocol
	Supports ISO7816 Class A, B, and C (5V/3V/1.8V) card
	MSR Power Specifications: Wedge - 20mA max
	Operating Temperature: -30°C to 70°C (-22 F to 158 F)
	Mechanical Specifications: Length 3.94” x Width 1.28” x Height1.23”
	Weight: 4.5 oz.
Keyboard Specifications
Key Layout	104-Key US Layout
Key Type	Membrane
Connection	USB
Internet Hotkeys	5 hotkeys(Home page, E-mail, Back,Forward, Search)
Multimedia Hotkeys	7 Hotkeys (Play/Pause, Stop, Previous Track, NextTrack, Vol. Down, Vol. Up, Mute)
Dimensions	18.3”x 6.5“ x 1.3”(4655 x 165 x 33 mm)
Weight	2.56 lb.(1163 g)
Requirements
Operating System	Windows10 / 8 / 7 /Vista / XP
Connectivity Interface	2000 Available USB Port
