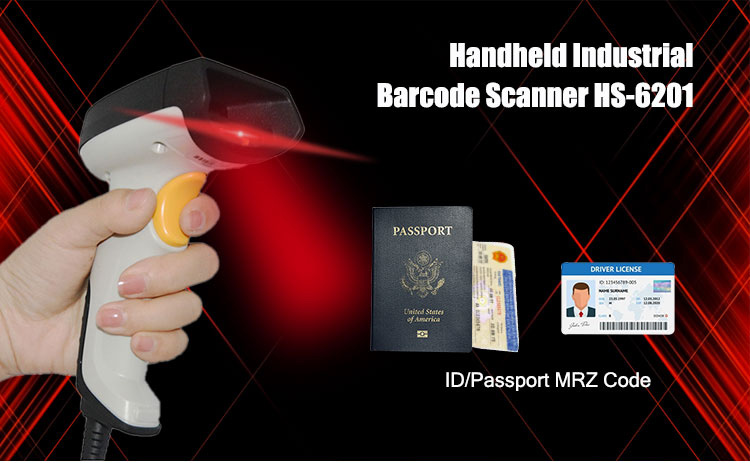

HS-6201 has USB/RS232 interface and MRZ(passport code) at optional.
Item No.:
HS-6201Product origin:
Guangdong, ChinaColor:
Black/WhiteGoods_stock:
3000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|
HS-6201B
HCCTG

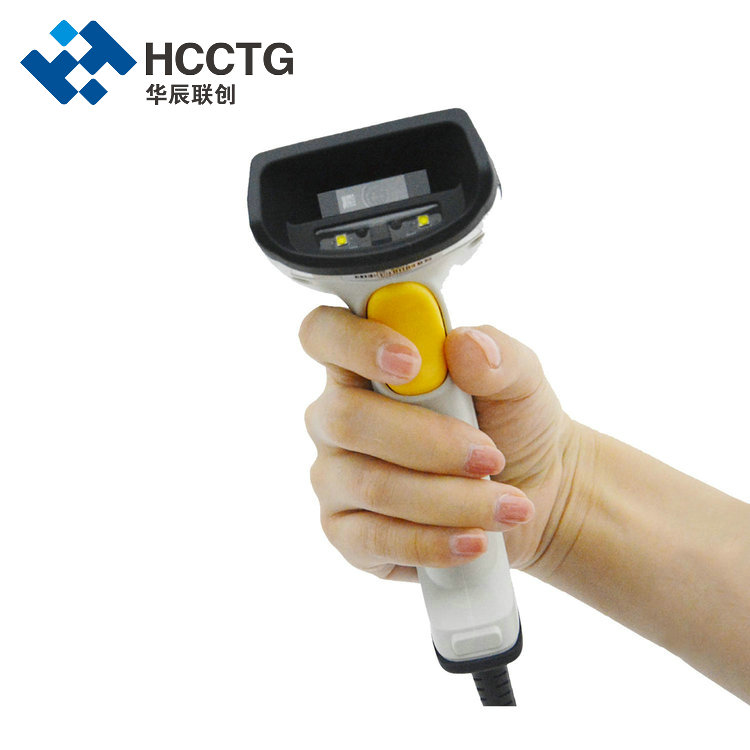

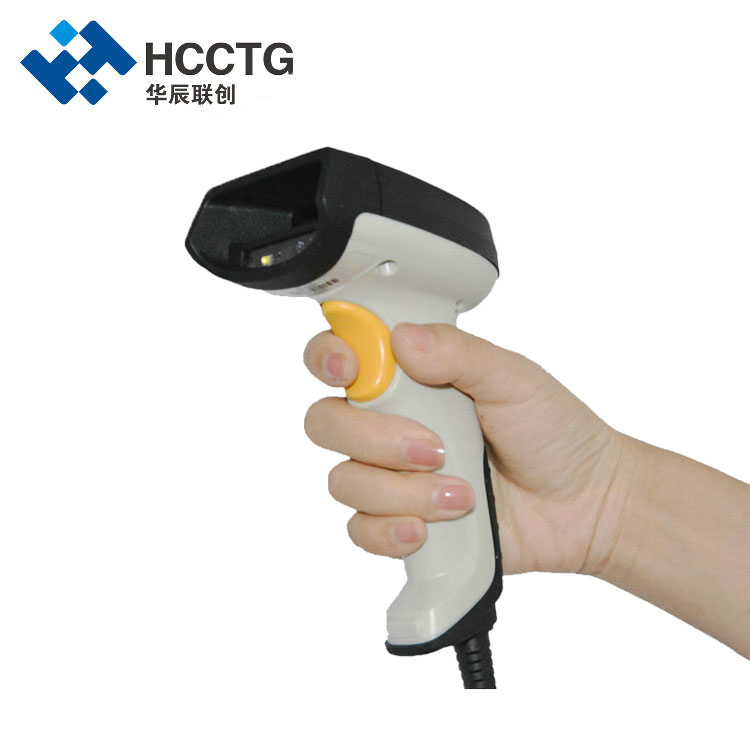

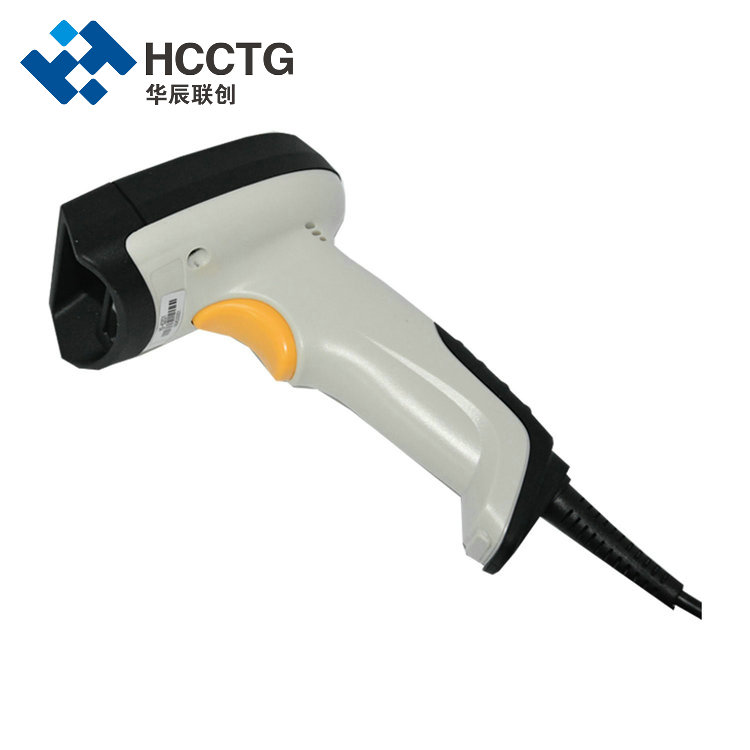

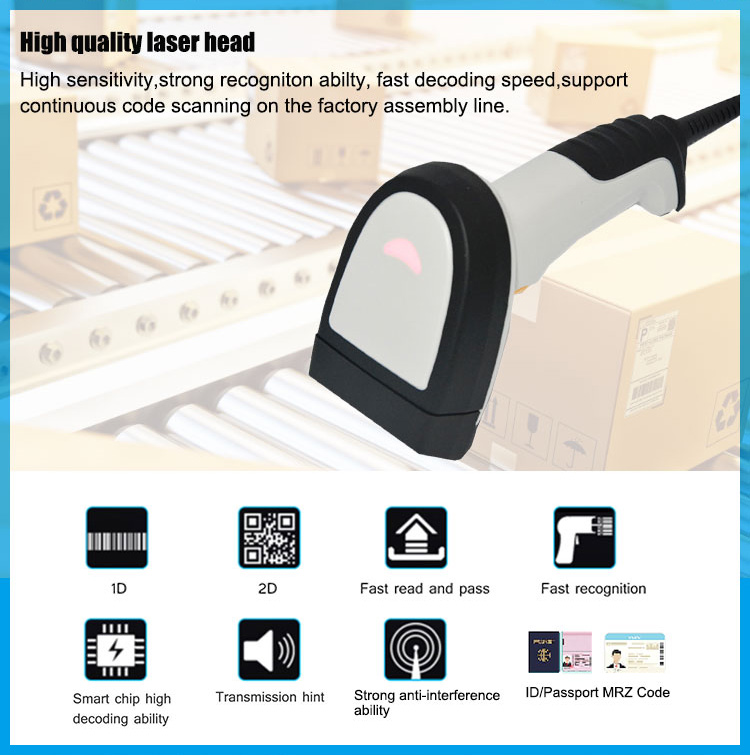

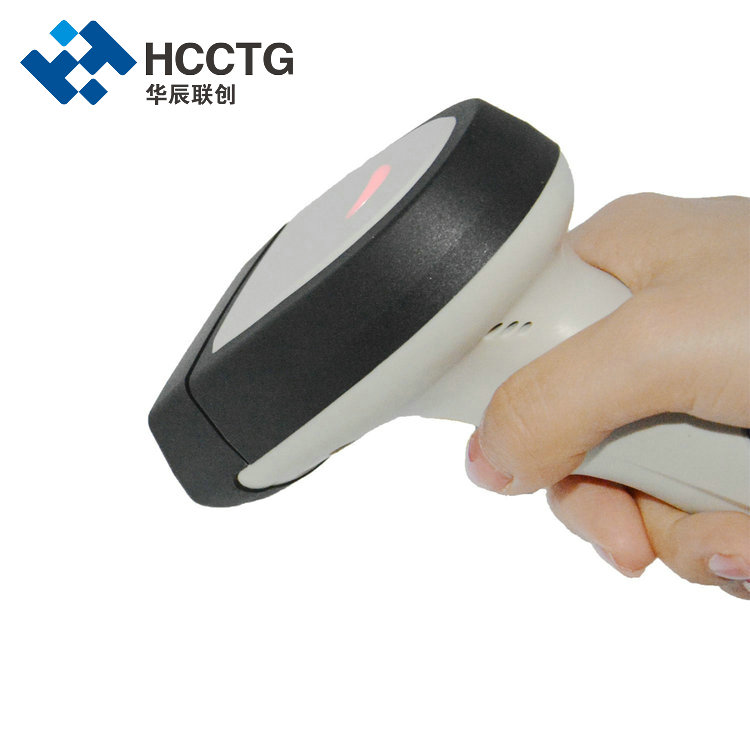

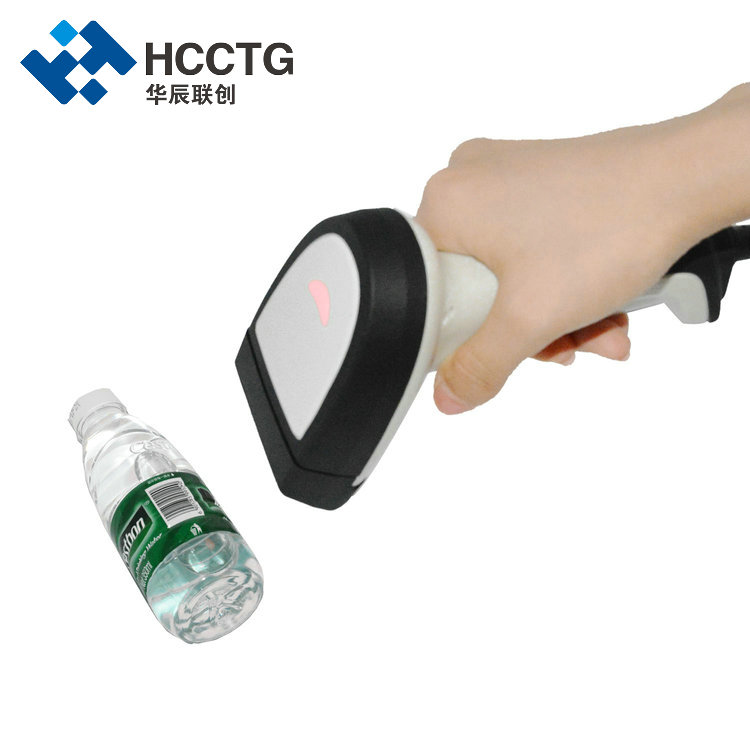

MRZ Code RS232/USB Wired Handheld Industrial 2D Barcode Scanner HS-6201B
The HS-6201B handheld barcode scanner is equipped with an advanced barcode reading algorithm developed specifically to tackle the challenges posed by smaller-sized and higher-version barcodes. Our cutting-edge algorithm enhances the scanner's ability to capture and decode even the most intricate barcodes, ensuring accurate and reliable data extraction in various industries.
The HS-6201B scanning gun is designed to read a wide range of barcode types, including 1D barcodes like UPC, EAN, and Code 128, as well as 2D barcodes such as QR codes and Data Matrix codes. Its versatility makes it an ideal solution for diverse industries, including retail, logistics, healthcare, manufacturing, and more.
Features:
1. Comprehensive fast reading ability
It is possible to read paper codes with a density of more than 3mil and direct part identification barcodes (DPM) in as fast as 50ms.
2. Fast and sensitive reaction
Infrared induction can detect changes in object distance up to 40cm, and quickly start induction reading within 100ms.
3. Humanized lighting & focusing design
The soft lighting without flicker and the clear and precise cross laser focusing system can not only avoid visual fatigue under continuous high-intensity working conditions, but also greatly improve the working efficiency.
4. Powerful data editing function
The powerful data editing function enables the data to be preset through the device before uploading to the host computer to complete the data input of the established format, which can flexibly meet various data editing needs.
Specification
Image Sensor | CMOS |
Read Accuracy | ≥3mil |
Pixel | 1280 × 960 Motion tolerance* 2 m/s |
Scanning Performance | Lighting White LED/Red LED |
Field of view | Horizontal 40.5°, Vertical 30.4° |
Focus Laser 650nm Symbol Contrast | ≥25% |
Reading code system | 2D PDF417, QR Code,Data Matrix,Chinese Sensible Code, etc. 1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6,ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. |

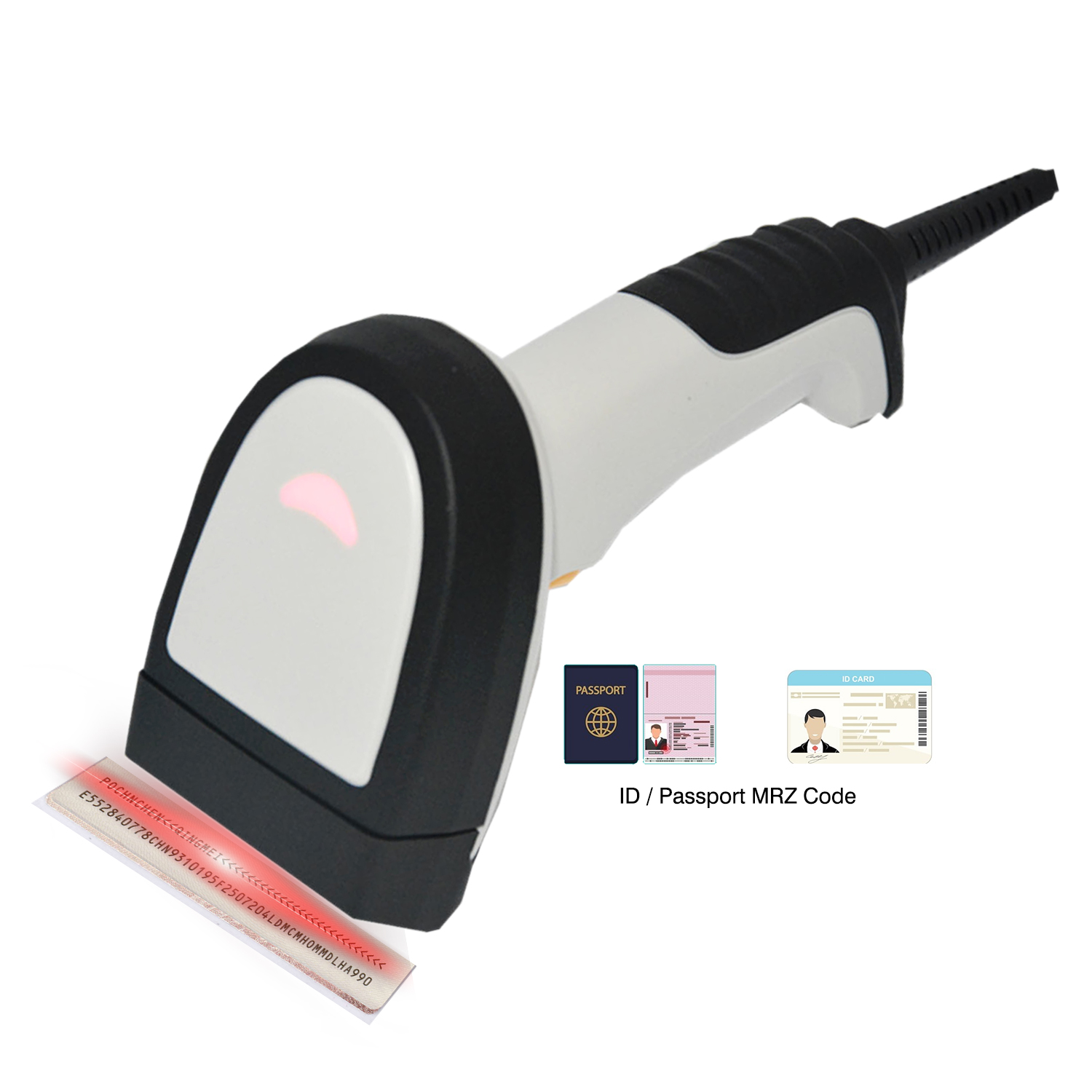

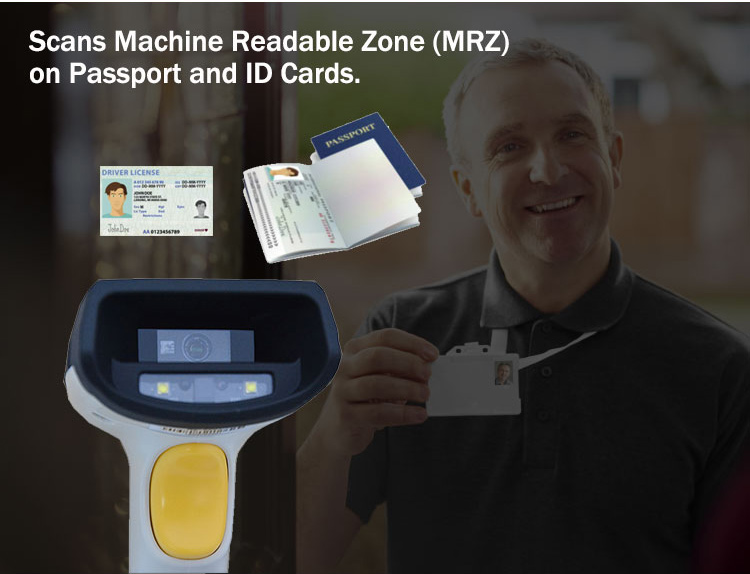

OCR | Support MRZ reading |
Typical Reading Depth of Field | EAN-13(13mil) 25mm~155mm 40mm~410mm Code 39(5mil) 50mm~100mm 110mm~250mm PDF 417(6.7mil) 40mm~105mm 115mm~190mm Data Matrix(10mil) 40mm~110mm 100mm~250mm QR Code (15mil) 35mm~155mm 70mm~280mm |
Barcode sensitivity | Pitch ± 50° Tilt 360° Skew ±50° |
Sleep current | 2mA |
Working temperature | -20°C~ 60°C |
Relative humidity | 5% to 95% (non-condensing) |
Communication Interface | RS-232,USB, PS/2 Prompt Mode Buzzer, LED Indication, Vibrator |

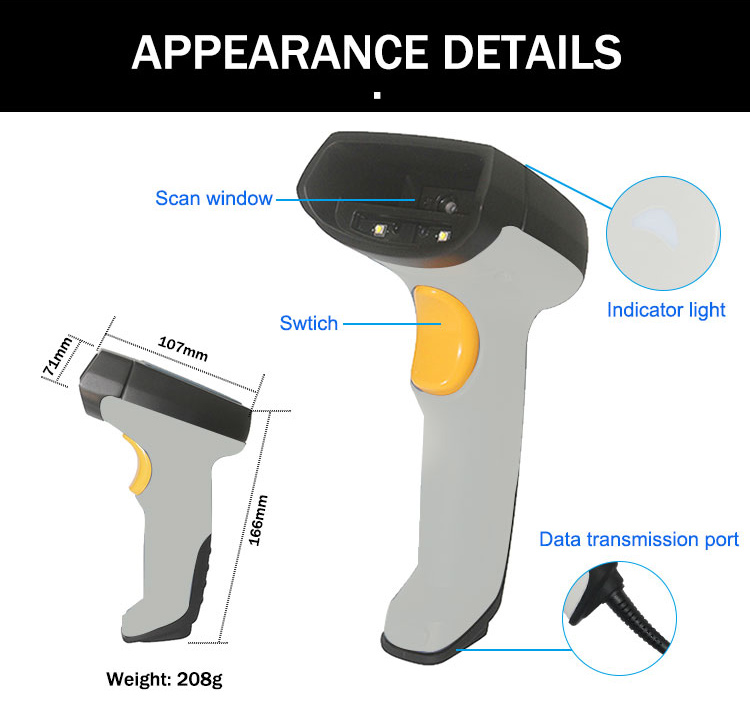

Appearance size | 166 (W) × 107 (D) × 71 (H) |
Operating voltage | 5 VDC ± 5% |
Weight | 208g Rated power consumption 1251mW (typical) |
Electric current | @ 5 VDC |
Operating Current | 266mA (typ.) |
Standby Current | 109mA |
Operating temperature | -20°C~50°C |
Electrostatic protection | ±16kV (air discharge), ±8kV (direct discharge) |
Storage temperature | -40°C~+70°C |
Impact resistance | Drop height 1.8 meters |
Relative humidity | 5%~95% (non-condensing) |
Protection class | IP42 |
International Certification | FCC Part15 Class B,CE EMC Class B |
Accessories List Data | Data cable, USB |
USB data cable for connecting the unit and the message receiving main engine | RS-232 RS-232 data cable (optional) for connecting this unit and the message receiving main engine PS/2 PS/2 data cable (optional) for connecting the unit and the message receiving main engine |
Power adapter | 5V power adapter (optional), with RS232 data cable to power the device Output: DC 5V, 1.5A |
Input | AC 100~240V, 50~60Hz |
Technique support | smart sensor support, Data editing function Support |
