C50Plus handheld terminal has android 9.0 system, widely used in logistics and warehouse management.
Item No.:
C50 PlusProduct origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

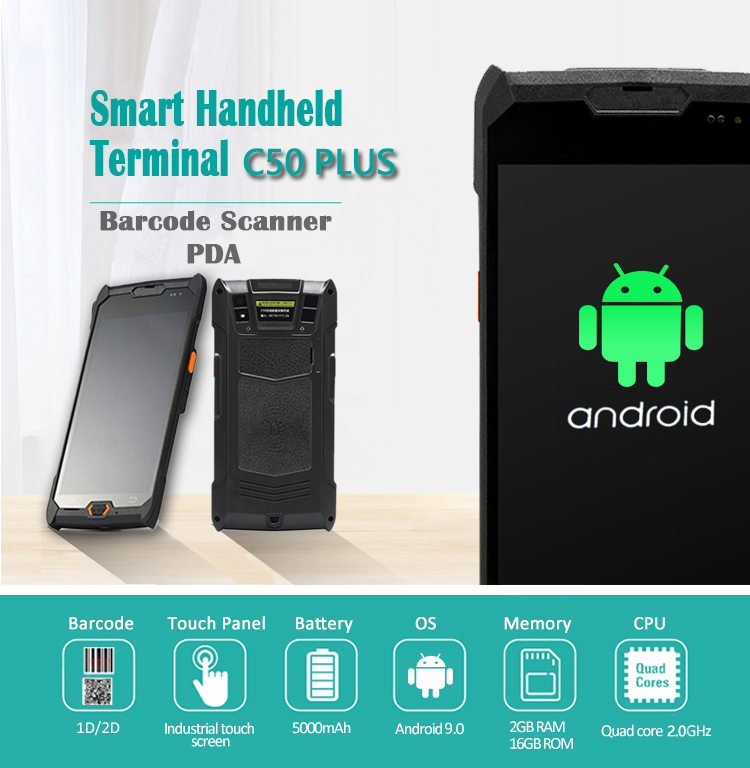

Handheld 1D/2D Barcode Scanner Industrial PDA Data Collector C50 Plus
C50Plus handheld PDA supports 4G, Bluetooth and WiFi, the transmission distance is farther, which effectively solves the problem of insufficient signal coverage in the warehouse, greatly reduces the cost of enterprise network deployment.
Besides, this data collector allows the equipment to be online at any time, and the data can be exchanged in real time. C50 PLUS handheld terminal supports international universal one-dimensional/two-dimensional bar codes, and dares to accept various challenge of different codes.
Specification
| CPU | ARM Cortex-A53 64 bit Octa-core 2.0GHz |
| Operation System | Android 9.0 |
| Memory | 2GB RAM + 16GB ROM 4GB RAM +64GB ROM (Optional) |
| Expansion Slot | Mini SD card (utmost support 32G), Micro SD slot |

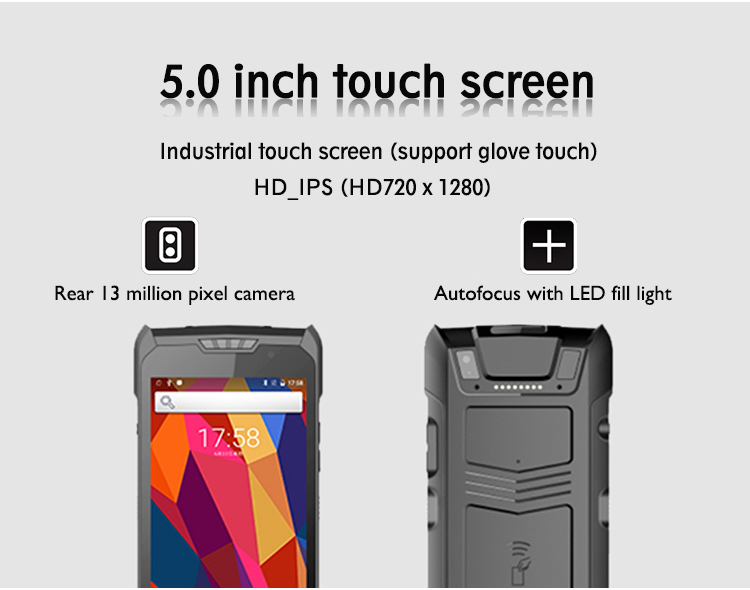

| Display | 5.0' MIPI interface, HD_IPS (HD720 x 1280) |
| Touch Panel | Industrial touch screen (support glove touch) |
| Camera | 13MP autofocus with LED fill light |
| Imager Window | Corning Gorilla |
| Keyboard | 1 anti-wear button, 2 industrial touch buttons, side buttons 5 |

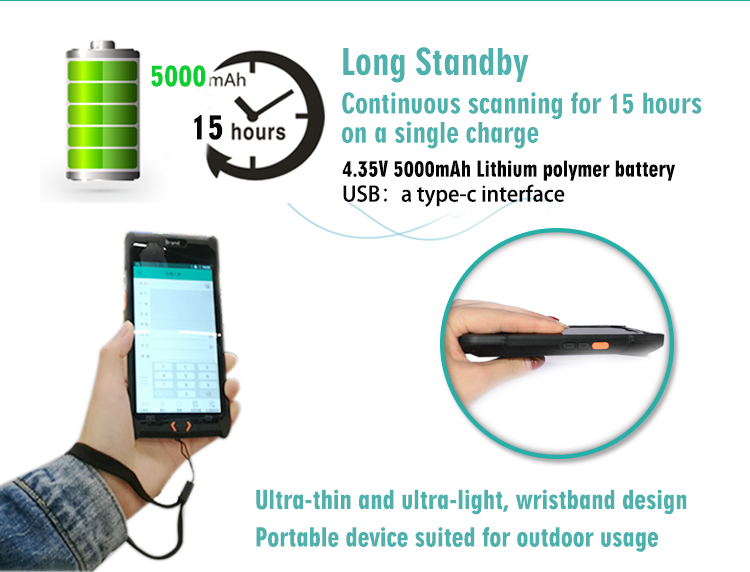

| Battery | 4.35V 5000mAh Lithium polymer battery |
| Audio Frequency | Built-in microphone |
| Prompt | Vibration Tip/LED Tip/Audio Tip |
| Vibration Motor | Built-in programmable vibration motor |

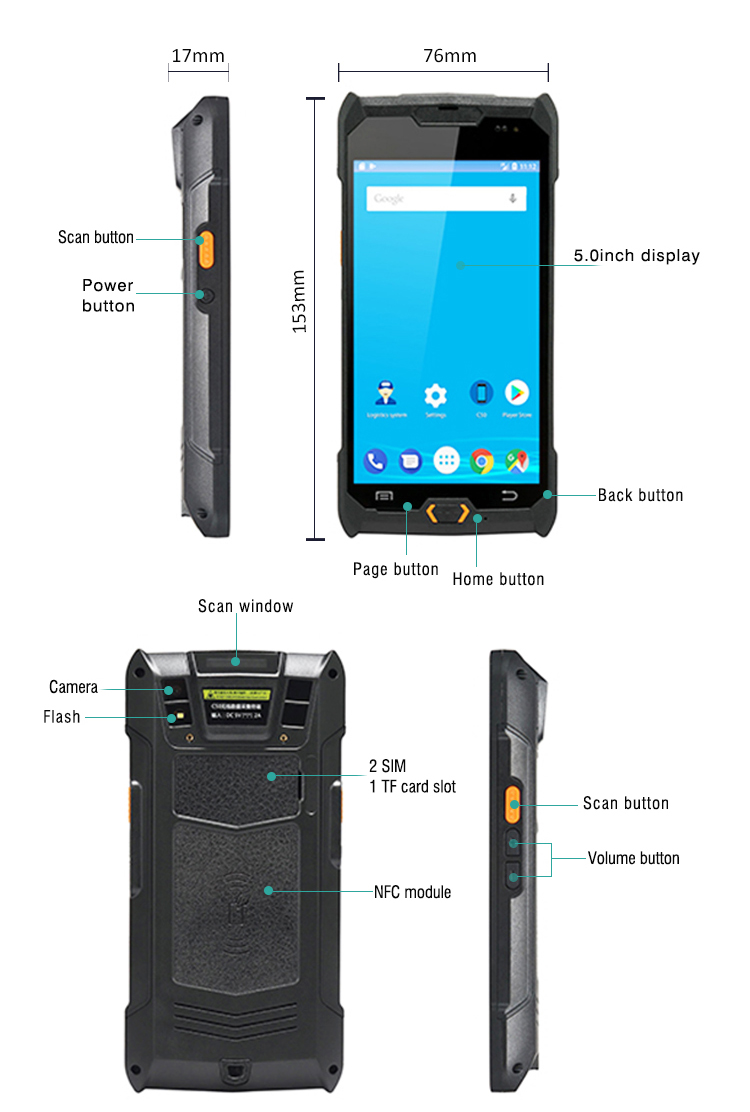

| Size & Weight | 152.5 mm x 76 mm x 17 mm 250g |
| 4G/3G/2G | 2G: 900/1800,CDMA2000 |
| 3G: B1/B34/B39,EVD0 | |
| 4G: B1/B2/B3/B4/B5/B7/B8/B12/B20/B38/B39B40/B41 | |
| WLAN | Wi-Fi 802.11b/g/n |
| WPAN | Bluetooth 4.0 |

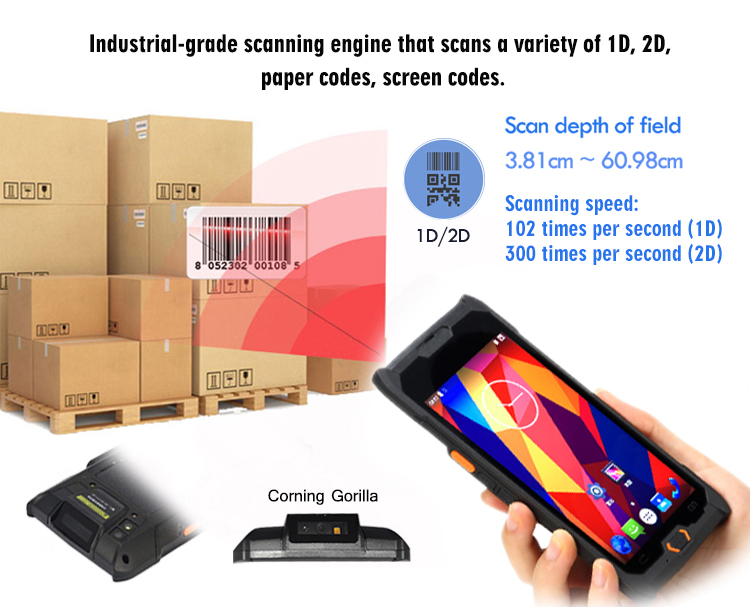

| 1D Scanning | UPC-A, UPC-E, EAN-13, EAN-8, 39 code, Cross 25 code, Matrix 25 code, code bar 128, UCC/EAN 128(GS1-128), ISBT 128, 93 code, China Post, China Finance, GS1 Data Bar, GS1 Data Bar Truncated 3, GS1 Data Bar Limited, GS1 Data Bar Expanded |
| 2D Scanning | Coda block A, Coda block F, PDF417, MicroPDF417, QR Code, Data Matrix, Maxi Code, Chinese Sensible(Han Xin) code, Aztec Code, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Plant Code, Potent |
| GPS | A-GPS |
| Infrared Meter Reading | Working frequency 37.9K (Optional) |
| Interface | Type-C interface |

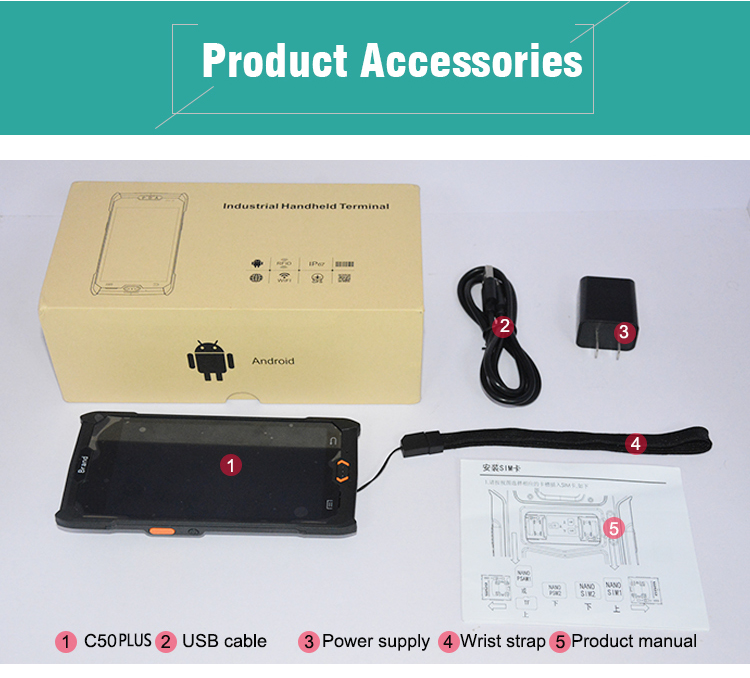

| Standard | Battery, Adapter, USB cable for power and communication, Hand strap |
| Card Slot | 2 SIM card slots, 1 TF card slot, 1 PSAM card slot |
| Development Tool | Android SDK +JDK +Eclipse |
| Programming Language | Java, C |
| Operating Temperature | -27℃ ~ 50℃ |
| Storage Temperature | -27℃ ~ 60℃ |
| Humidity | 0 ~ 95% |
| Drop Specifications | Multiple 1.5m drop to tile over concrete |
| Tumble Specifications | Exceeds 500 (0.5m) tumbles |

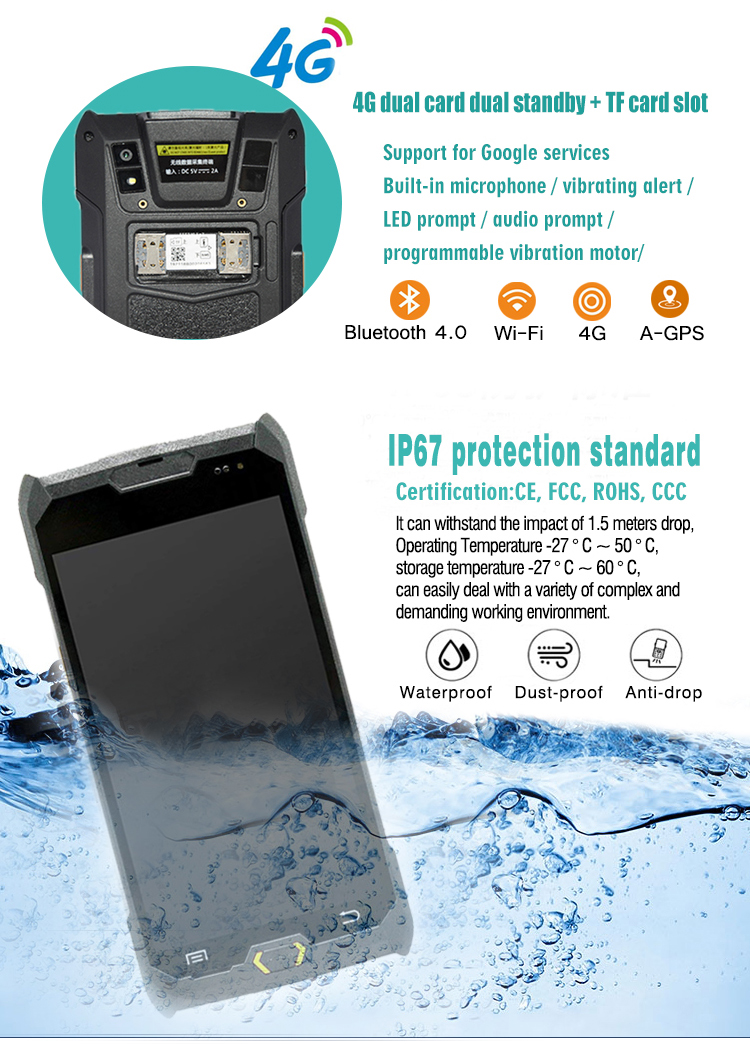

| Sealing | IP67 |
| ESD Protection | ±12kV air, ±8kV contact |
