MB-2 is a specialized multi-function peripheral for bank front offices. With its ultra-compact dimensions and extensive range of functions, MB-2 simplifies front-office installations and supports new applications.
Item No.:
MB-2Product origin:
Guangdong, ChinaColor:
BlackGoods_stock:
1000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

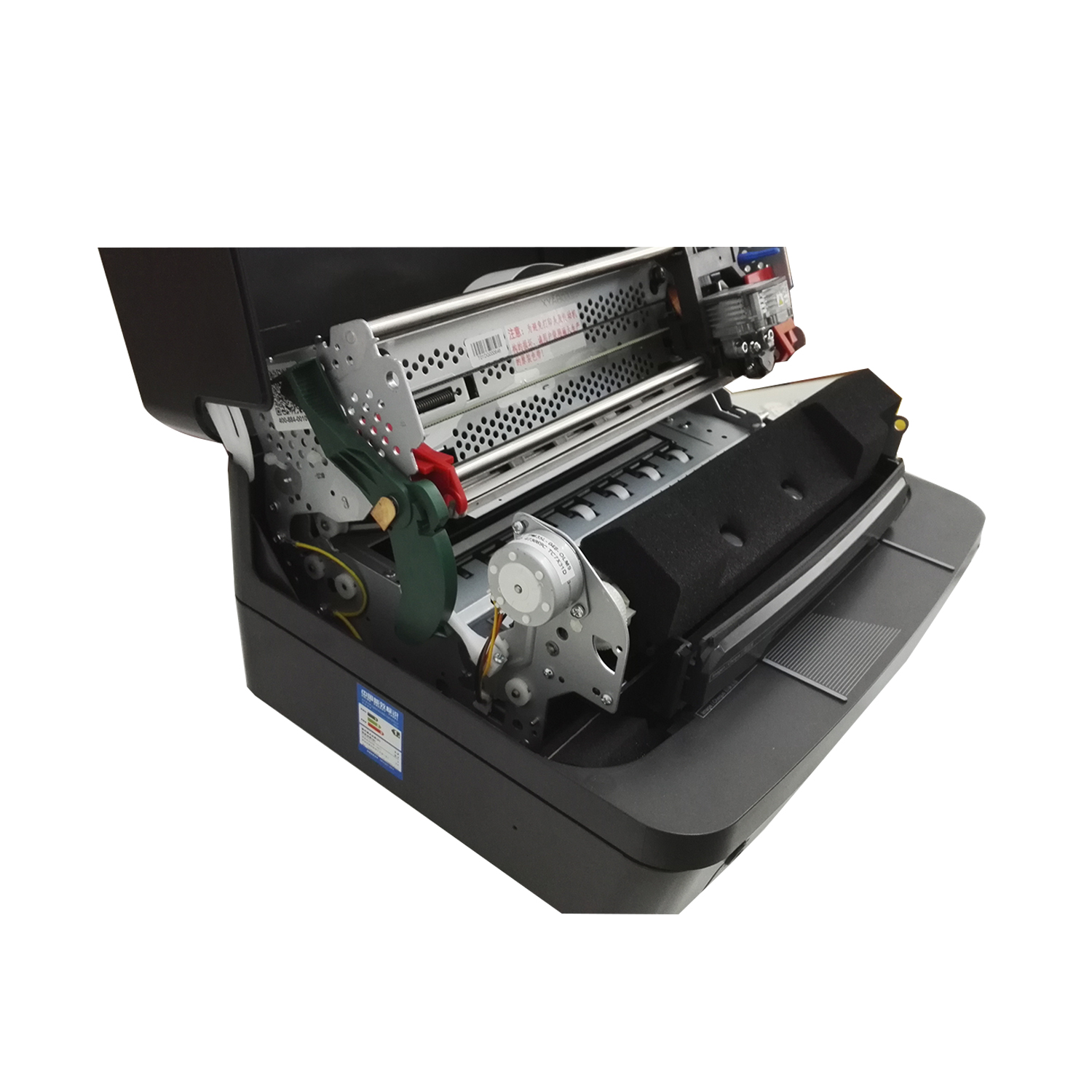

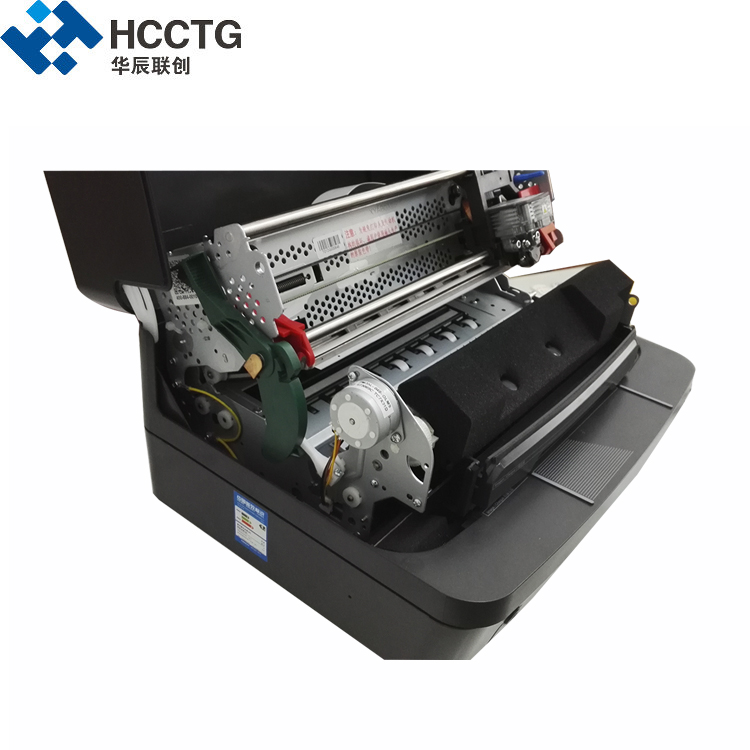

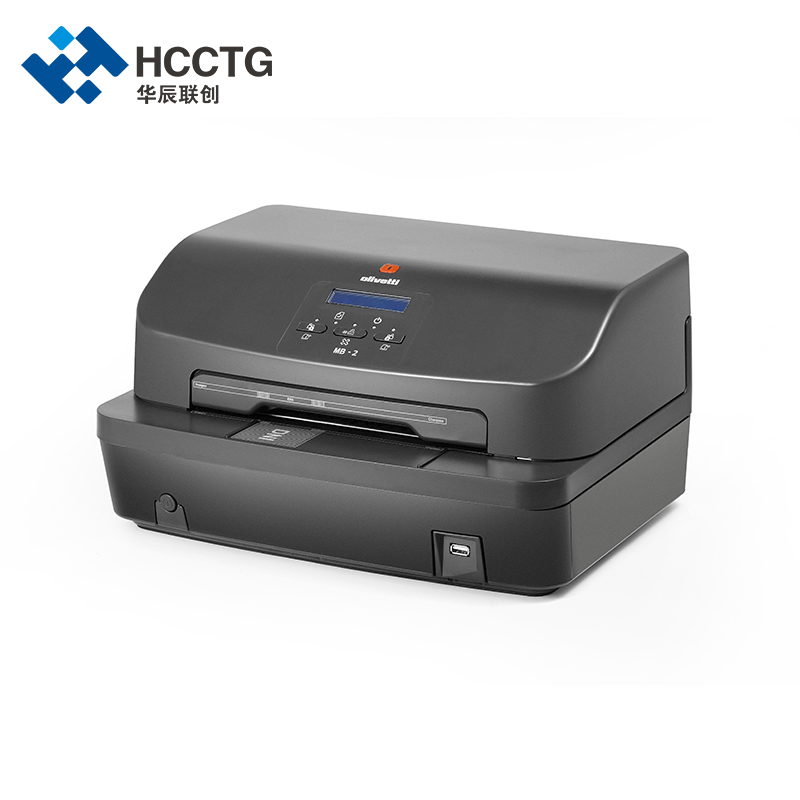

24-Pin Dot Matrix A4 Duplex Scanner Passbook Printer With MICR MB-2
MB-2 is the ideal tool for document platform solutions, enabling text and image acquisition directly by the cashier.
Functions such as optical character recognition and magnetic code line recognition, are just two of the many options available.
MB-2 is compatible with the applications currently implemented on the PR2, Olivetti’s highly successful bank printer.
Feature
Specification
| Technology | 24-pin dot matrix |
| Resolution | 240 x 360 dpi |
| Fonts | OCR A-B, Roman, Sans Serif, Italic, Courier |
| Pitch | 10, 12, 15, 16.6, 17,1cpi |
| Printing speed at 10cpi | VHSD: 560 cpsNLQ: 185 cps HSD: 510 cpsLQ: 125 cps Draft: 370 cpsBIM: 2000dps |
| Line length | 238,76 mm (94 columns at 10cpi) |
| Line spacing | 1/5", 1/6", n/216", n/240" |
| Technology | Contact image sensor, flat bed |
| Resolution | 600 / 300 / 200 dpi |
| Acquisition | One pass, front and rear |
| Colors | RGB 24 bit / 256 grays / 16 grays / BW |
| Other functions | TWAIN driver JPEG compression Filtering, rotation Multiple windows selections (up to 9) |
| MICR | Recognized fonts: CMC7, E13B Speed: >30cps (CMC7) or >18cps (E13B) |
| HUB | Type: USB 2.0 Ports: 1 frontal and 2 rear |

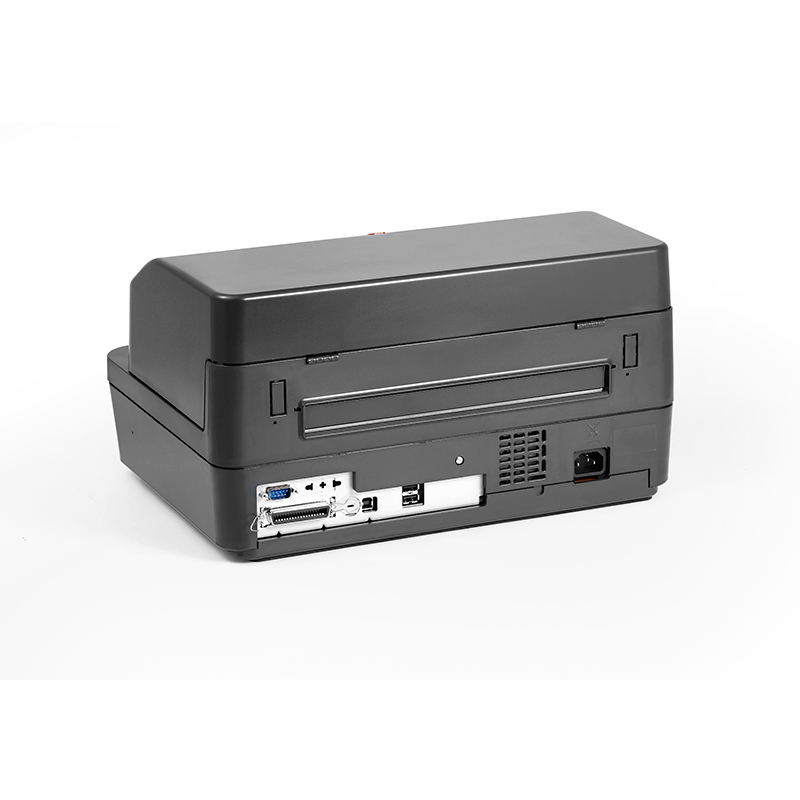

| Interfaces | Standard: RS232 serial, IEEE 1284 parallel and USB 2.0 |
| Noise level | < 54dBA (ISO 7779 printing ECMA 132 text) |
| Copies | Original + 6 copies |
| Emulations | Olivetti Standard, IBM PP & X24 Optional: WINCOR 4915 |
| Document handling | - Feed width: 245 mm - Completely flat paper bed - Automatic insertion with auto border - Automatic document-thickness adaptation |
| Ribbon cartridge | 4 million or 10 million characters |
| Scanning speed | Max 10 inch/s (greyscale) Full colors 3.3 inch/s |
| Document format | Image width up to 210 mm Width: 65/245 mm Length: 70/330 mm Thickness: 0.08/1.8 mm |
| Rigid documents | Unembossed credit and ID cards |
| Power consumption | Min. 6,8 W Max. 85 W (printing) |
| Voltage | 230V / 50Hz 115V / 60Hz |
| Certifications & Regulatory | CE, TüV NRTL,FCC class A verified |
| Dimensions (WxDxH) | 384 x 296 x 204 mm 15.12" x 11.65" x 8.03" |
| Weight | 10.5 Kg |
