HX80-II can support printing on a variety of paper types including black label paper, perforated paper, continuous paper, folded paper, etc. The maximum paper thickness can reach 250g
The HX80-II printer is a new type of thermal printer. It can support various types of paper printing, such as black label paper, perforated paper, continuous paper, folding paper, etc. The maximum paper thickness can reach 250 grams, which can meet the needs of different application scenarios.
|

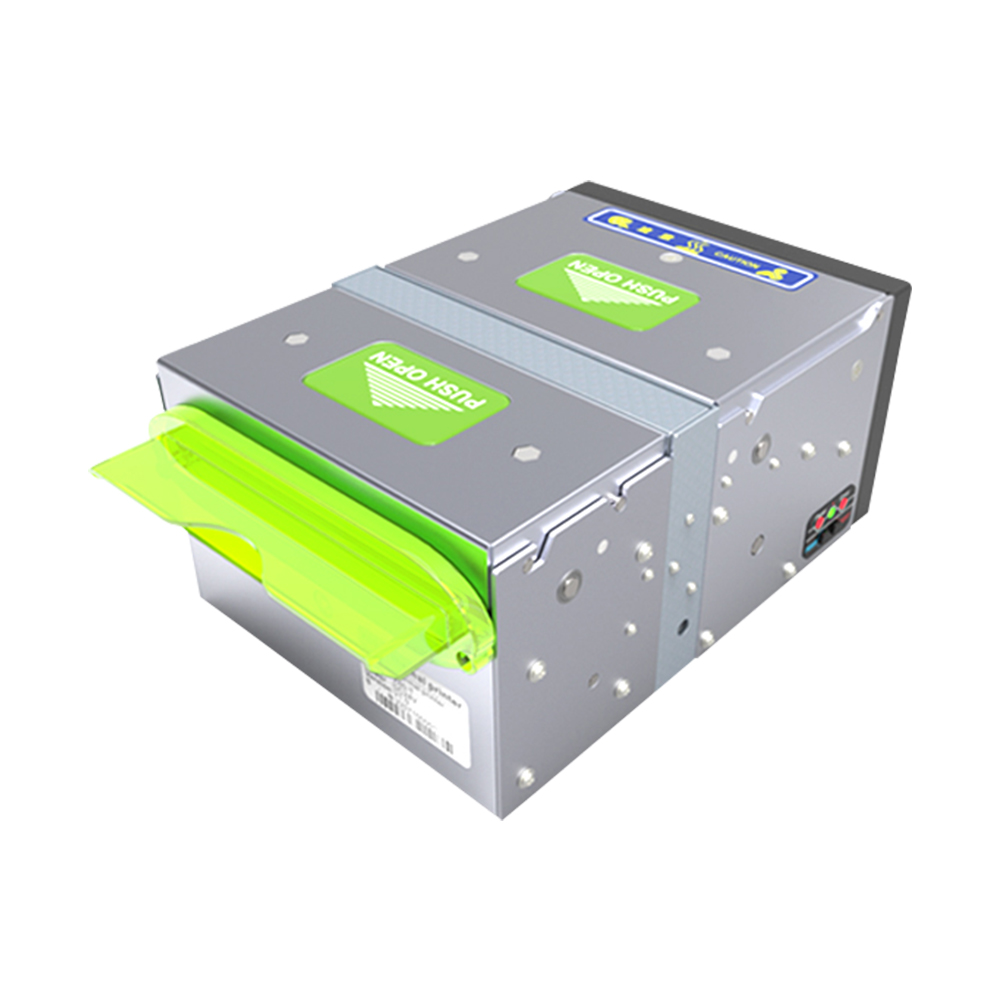

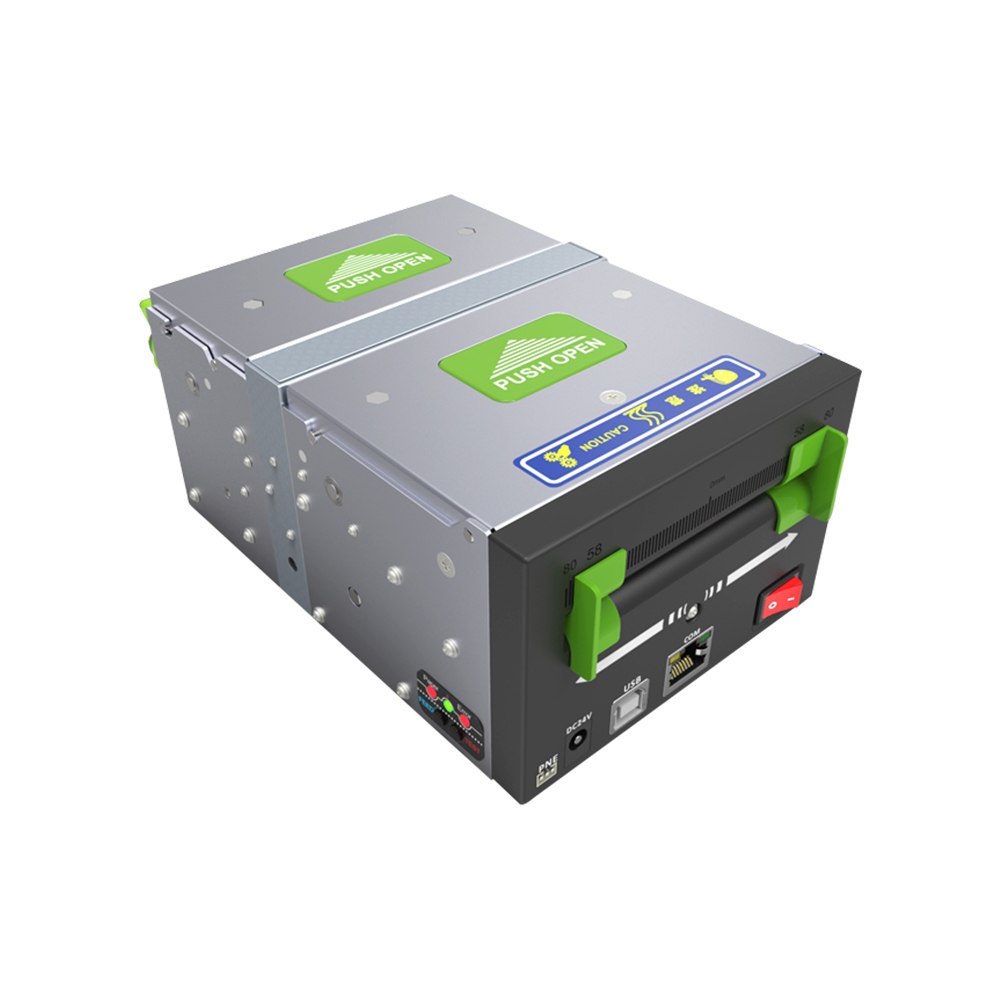

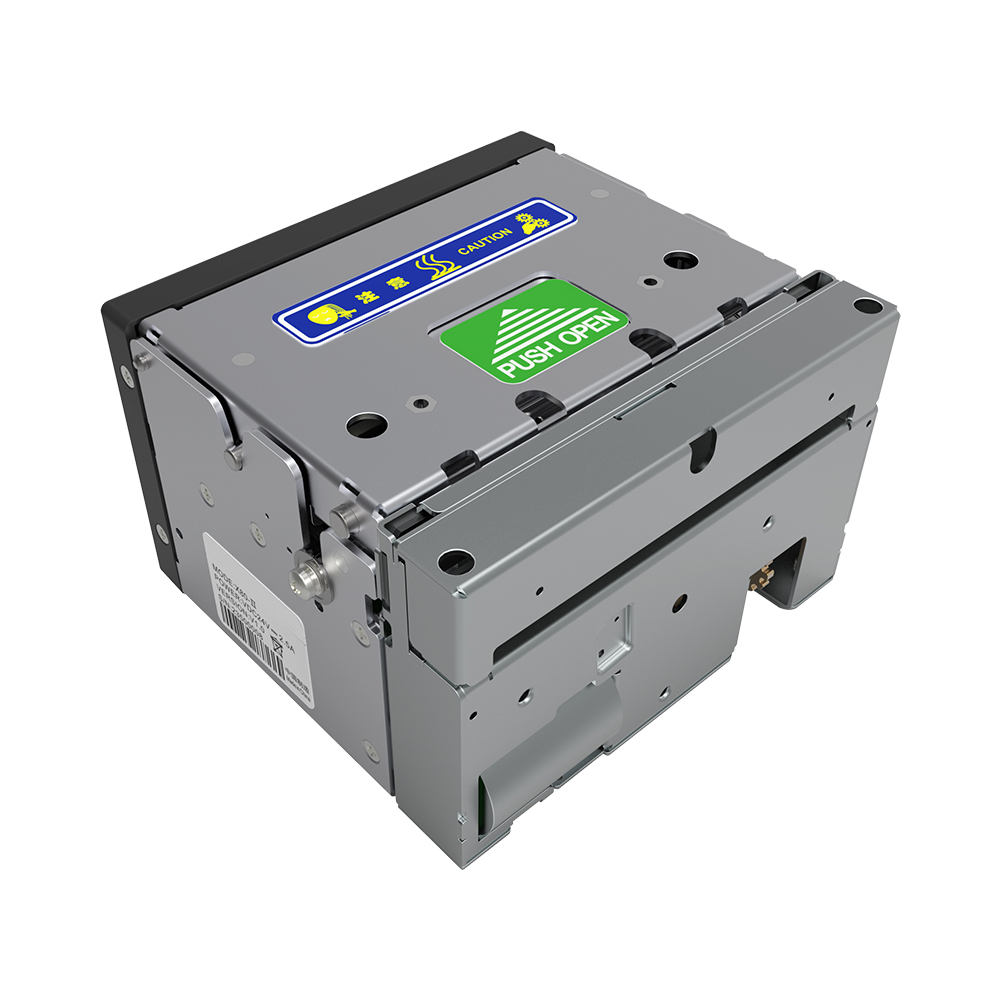

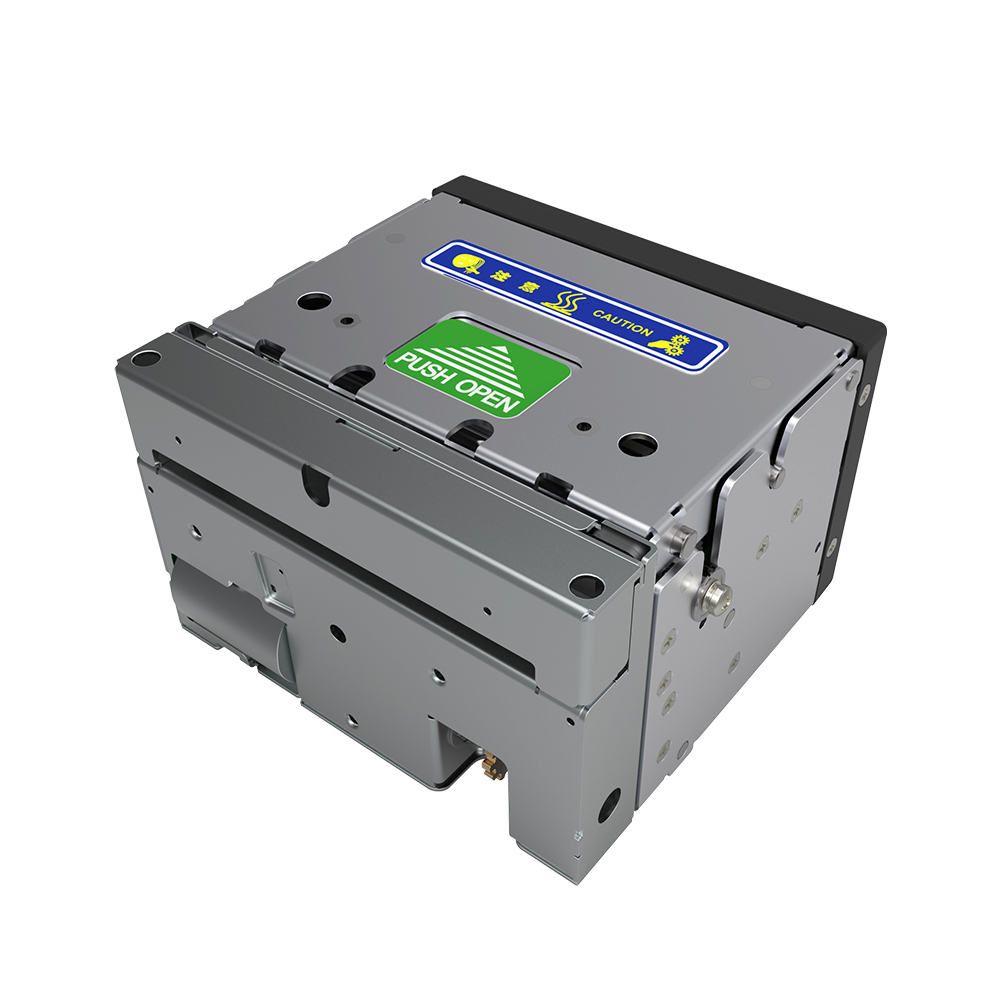

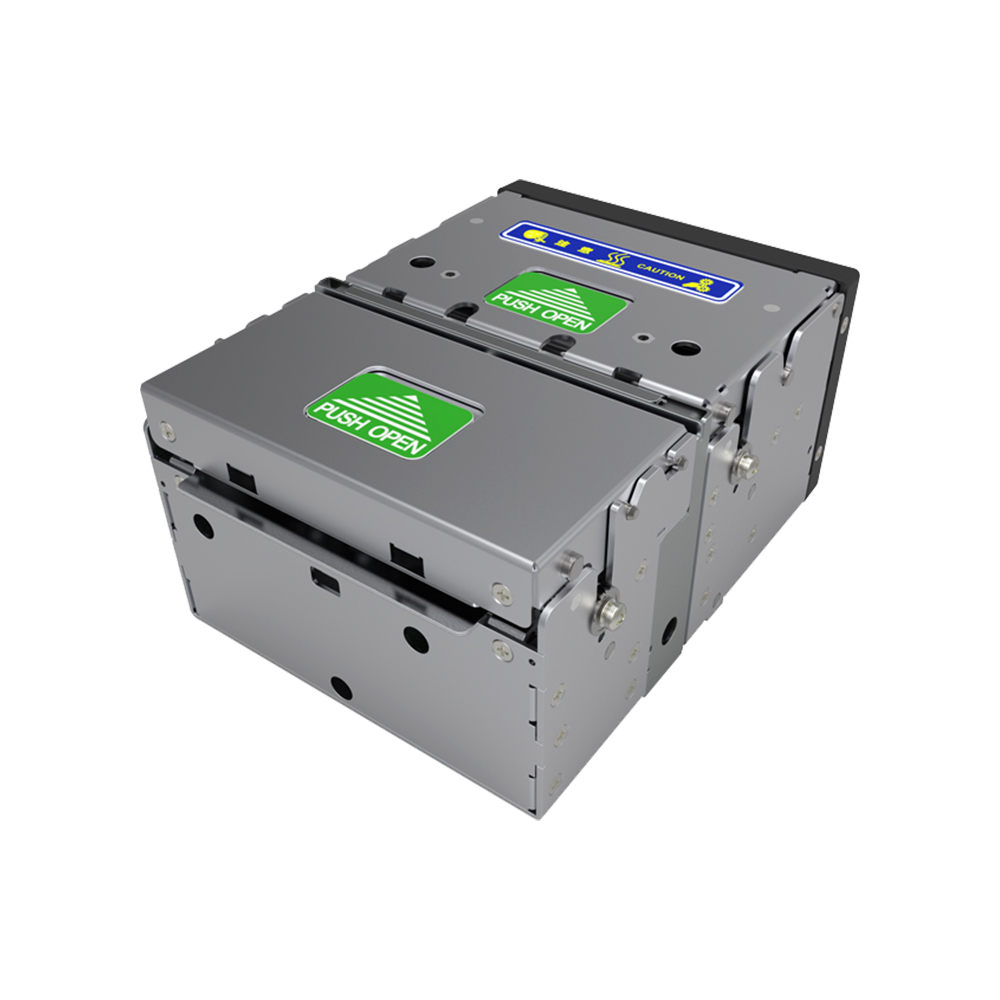

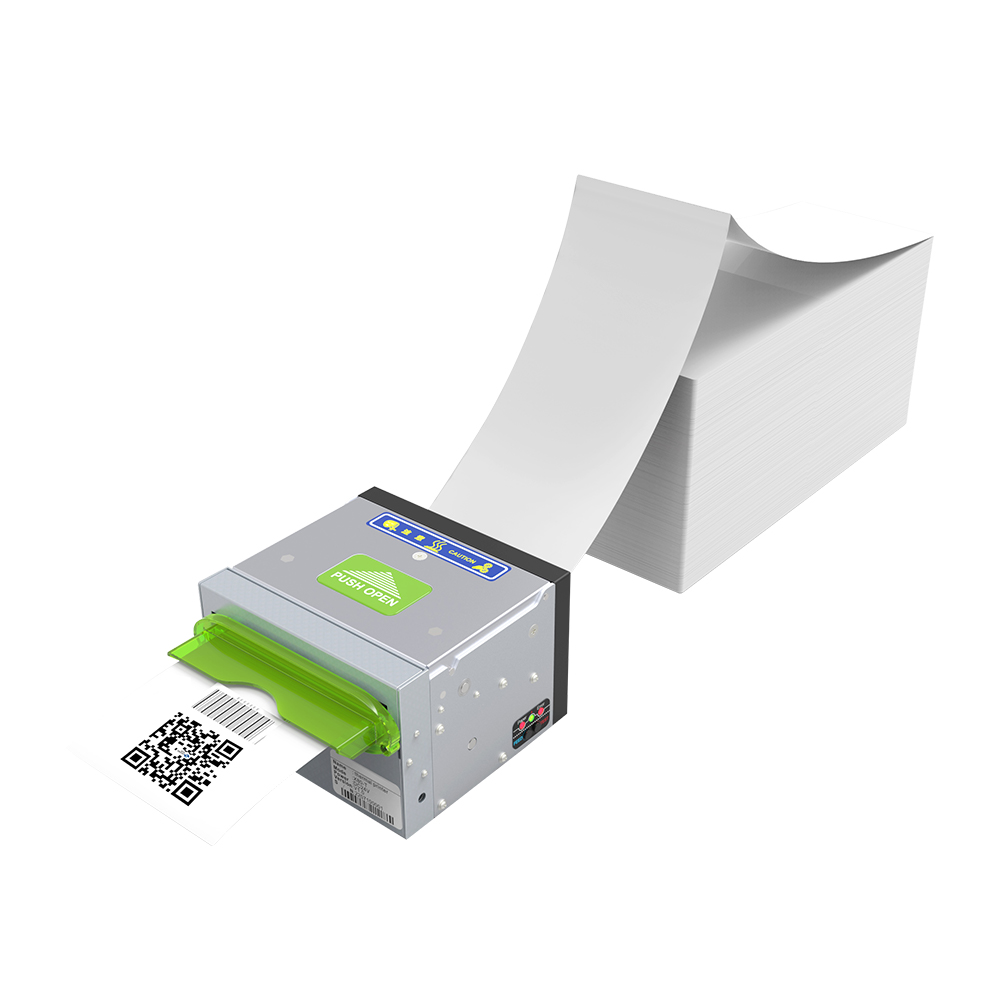

Product Show
|
Features
1.Compact design, high speed print, easily installed inside all kinds of kiosk.
2.Top open design, direct in direct out, not easy to jam, easy to maintain.
3.AEA firmware available to print airport & airline boarding pass & luggage tag.
4.20-80mm paper width to satisfy wide range of paper. Black mark, hole & transparent gap.
With the function of detecting the remaining amount of paper, it provides early warning of the remaining amount of paper
|
Specifications
Printing Method
Line Thermal printing
Print Resolution
203 DPI
Print Speed
150 mm/s
Paper Width
82.5mm (Max)
Paper Thickness
60-250g/sq.m
Paper Diameter
150 mm (Max)
Paper Feed method
Paper Feed method
Paper Output
Ticket ejector mode, retention ticket mode
Support Fonts
FONT A: 12 * 24 (1.5 * 3 mm) dot matrix character
FONT B: 9 * 17 (1.125 * 2.125 mm) dot matrix character
Chinese：Support GB18030 Chinese simplified (compatible with GB2312-1980)
NB: GB18030 currently only supports double byte zones 1, 2, 3, 4, 5
Bar Code
Bar code: EAN8, EAN13, CODE93, CODE128
QR code: QR, PDF417
Interface
RS232 + USB
Receive Buffer
Receive Buffer
Instruction Set
ESC/POS
Operating System
Windows XP/WIN 7/8/Linux/Andorid
Sensor
Paper End Detection, Paper End Detection, Head Opening Detection, Head Temperature Detection, Black Label Detection, Paper Output Detection, and Knife Jam Detection
Paper Cut Mode
Full or partial cut
Power Supply
24VDC±10%, 6A
Energy Consumption
150W
Working Temperature
Temperature: 0~50℃
Humidity: 20~85%RH(no condensation)
Storage Temperature
Temperature: -25~70℃
Humidity: 0~90%RH(not include paper print, no condensation)
