Product Description
1）HCC-K25 series is a 2-inch high-speed built-in thermal printer module with automatic cutter;
2）It is used for self-service terminal equipment such as finance, communication, coupons, taxation, library, etc., fuel dispenser, parking lot management, queuing machine, etc；
3）HCC-K25 printer is built for continuous, 24/7 operation, with robust auto-cutters and mechanisms designed to handle millions of printed lines and cuts;
4）Offer Two interfaces like USB, RS232 to integrate with a wide range of operating systems and embedded systems
|

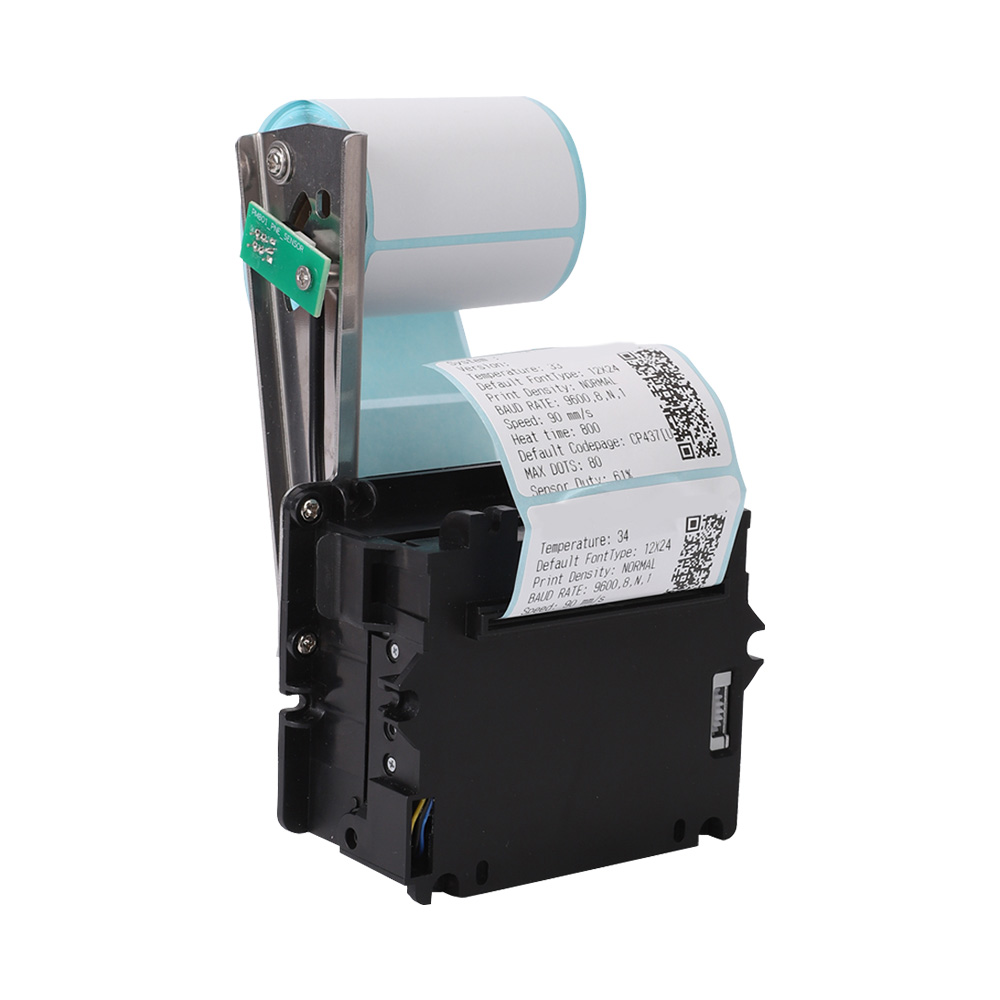

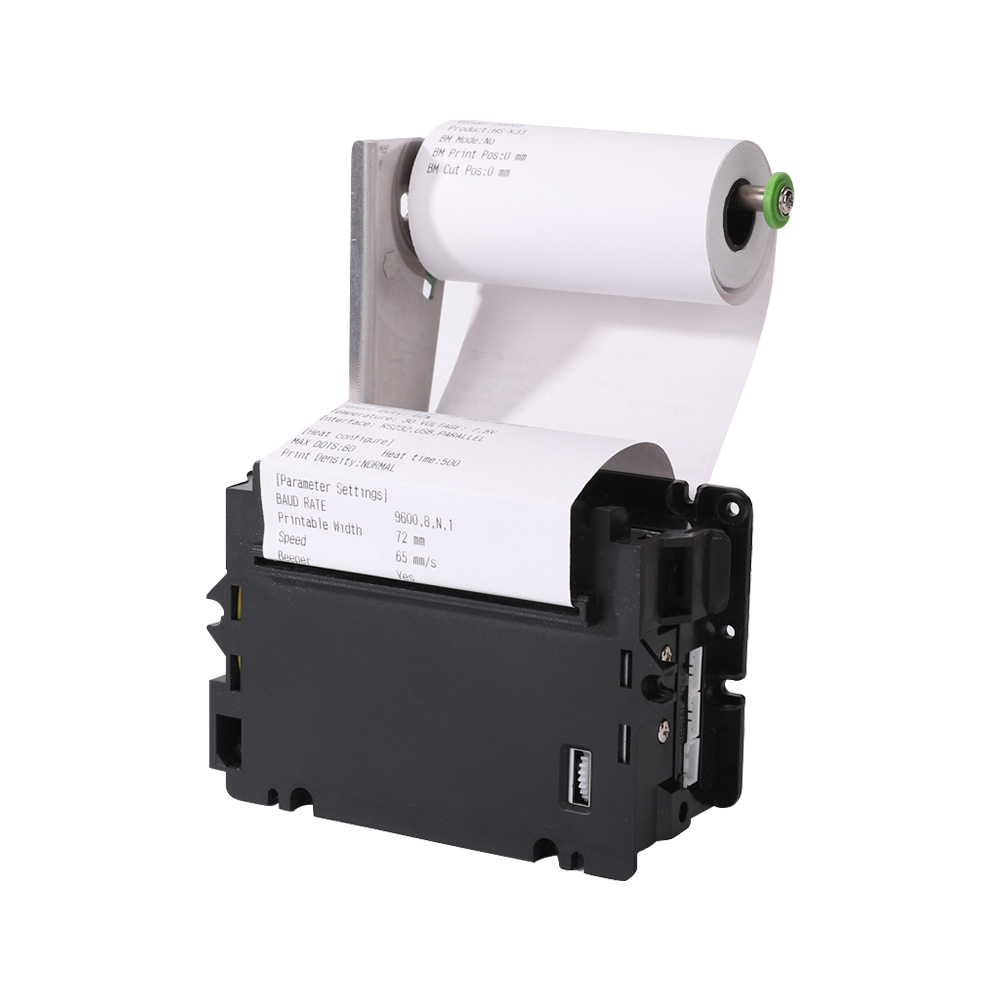

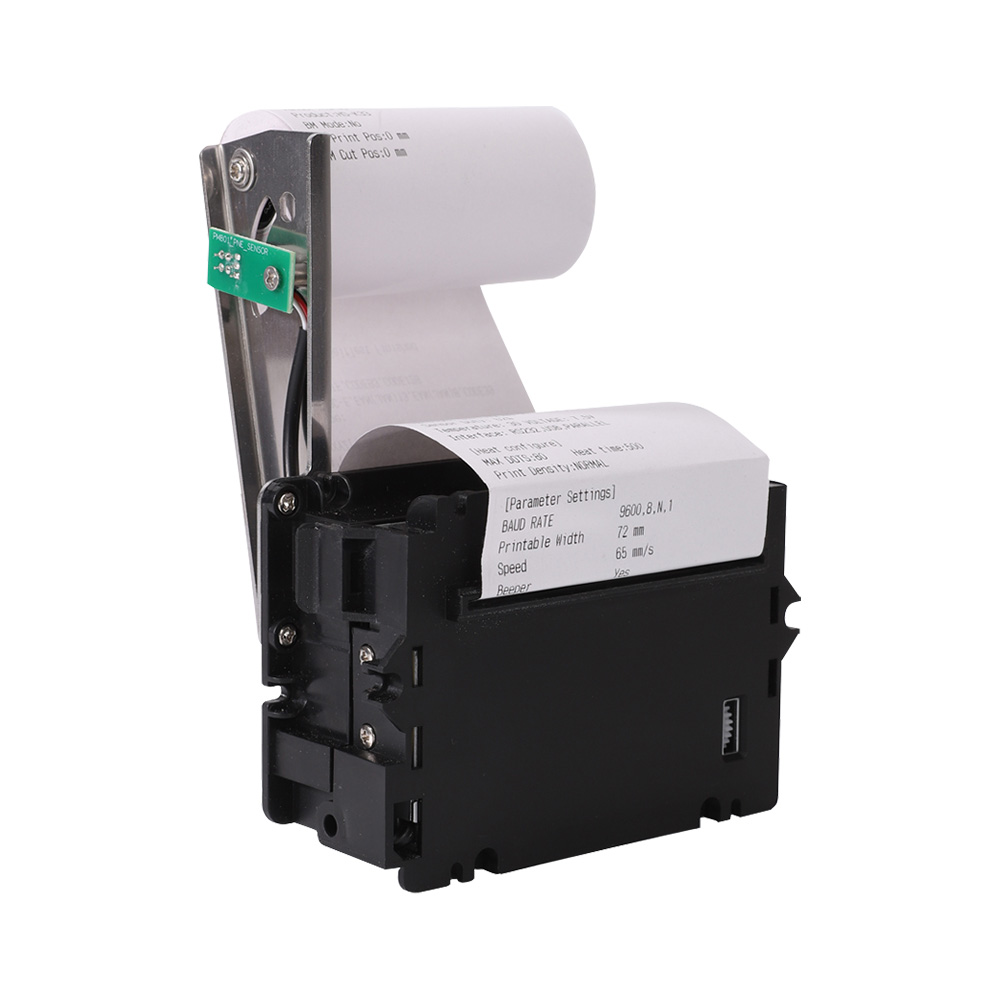

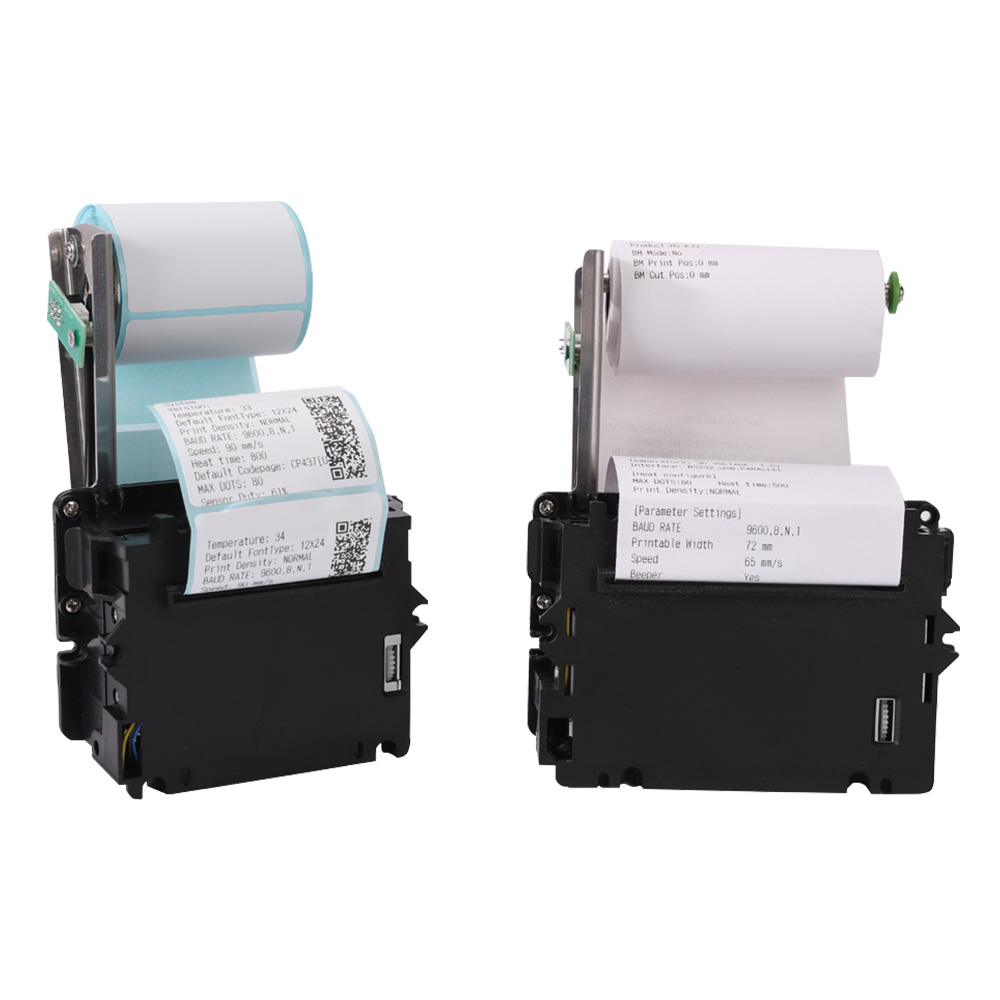

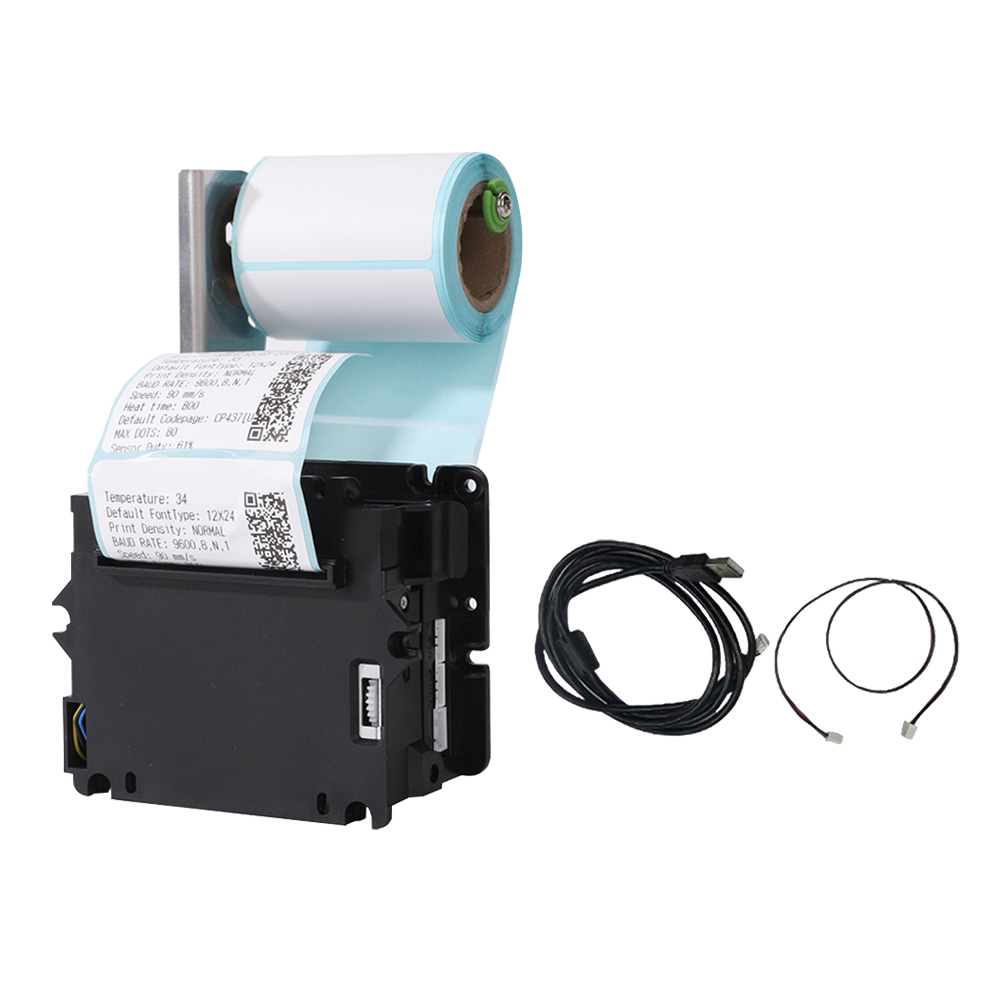

Product Show
|
Specification
Printing
|
| Print Method | Thermal dot line printing |
| Resolution | 203DPI (8dot/mm) |
| Printing Speed | MAX.100mm/s |
| Printing Width | 48mm |
| Interface | RS232, USB |
| Paper |
| Paper Type | Thermal paper, Die-cut label paper |
| Paper Width | 58mm |
| Paper Roll Diameter | Max.120mm (Diameter above 120mm can be customized) |
| Inner Diameter of Paper Roll Core | 0.053-0.12mm |
| Paper Thickness | Easy paper loading & automatic paper suction |
| Auto Cutter | Full and half cuts (by command) |
| Reliability |
| TPH Life | 100km (12.5% printing rate) |
| Cutter Life | More than 1 million times |
| Font |
| Chinese | GBK: 16x16, 24x24 |
| Western Languages | ASCII: 8x16, 9x17, 9x24, 12x24 |
| Bar Code |
| 1D | UPC-A, UPC-E, EAN8, EAN13, code39, ITF, CODEBAR, CODE128, CODE93 |
| 2D | QR code, PDF417 |
| Memory |
| RAM | 64K |
| Flash | 4M |
| Power |
| Power Supply | DC8-24V/2A (peak≥4A) |
| Software |
| Command | ESC/POS |
| Driver | Windows XP,7, 8, 10 / Linux / MAC OS |
| SDK | Windows SDK / Linux SDK / Android SDK / IOS SDK |
| Environment |
| Temperature | Operating: 0°C-50°C Storage: -20°C-60°C |
| Humidity | Operating: 20%RH-85% RH Storage: 5%-90%RH |
| Dimension | 101.25 * 149.6 * 87.6 mm |
