Portable Full Range A4/A5 Invoice Document Thermal Printer HX216-II

The HX216-II printer can support A4 format 1:1 printing. It also has the characteristics of small size and fast printing speed, which effectively improves the working efficiency of terminal equipment.

Printing Method:	Line Thermal printing
Printing Width:	104-216 mm
Printing Resolution:	300 dpi
Paper Thickness:	60~100 g/m²
Availability:

Quantity:



Inquire Add to Basket

Model:
HX216-II
Brand:
HCCTG

Product Description

A4 (210mm) RS232+USB 300 DPI Thermal Printer with Auto Cutter HX216-II

|

Product Description

1）The HX216-II printer is a new type of thermal printer. Its biggest feature is that it can support A4 format 1:1 printing. At the same time, HX216-II has the characteristics of small size and fast printing speed, effectively improving the work efficiency of terminal devices, avoiding the problem of long waiting times for homepage printing when using traditional A4 format printers in the past.

2）HX216-II supports both GDI image and regular text printing modes, allowing for free switching between A4 layout printing and long list printing. Its characteristics reflect that the HX216-II thermal printer has become the best choice for terminal device printing products.

|

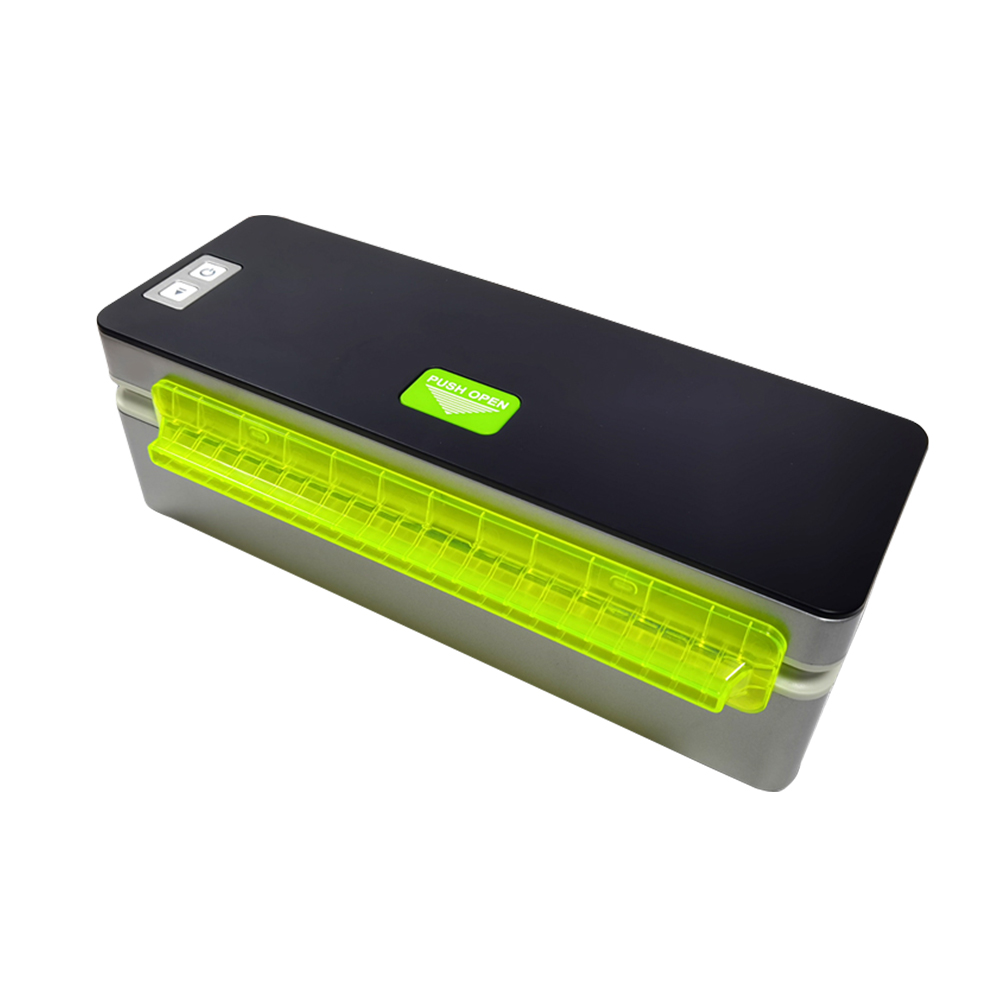

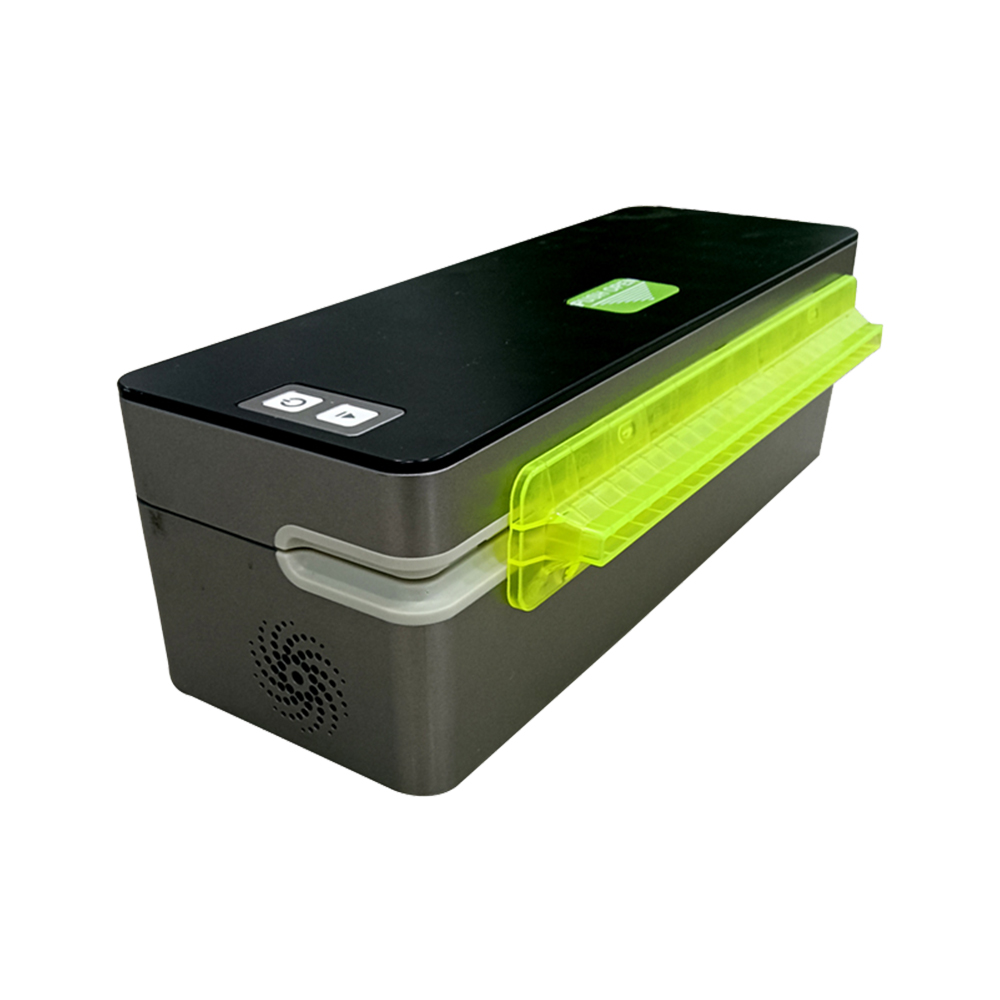

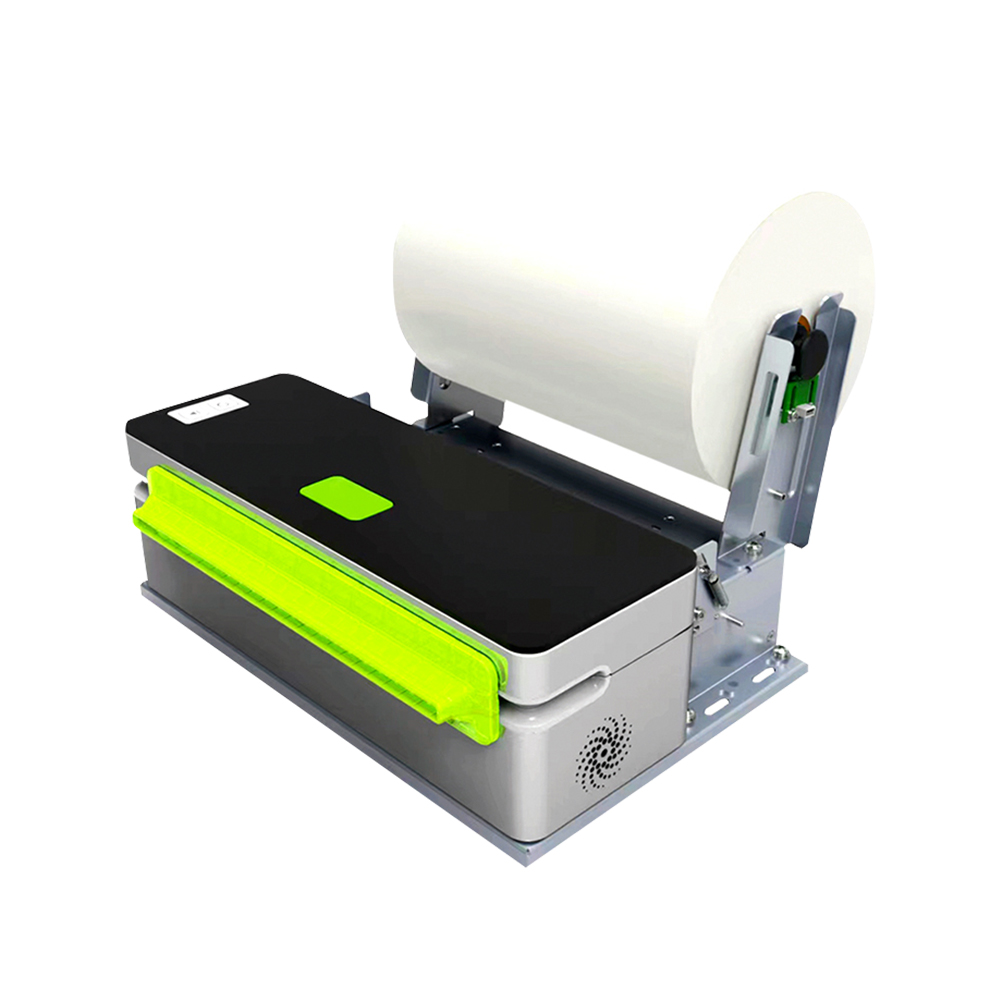

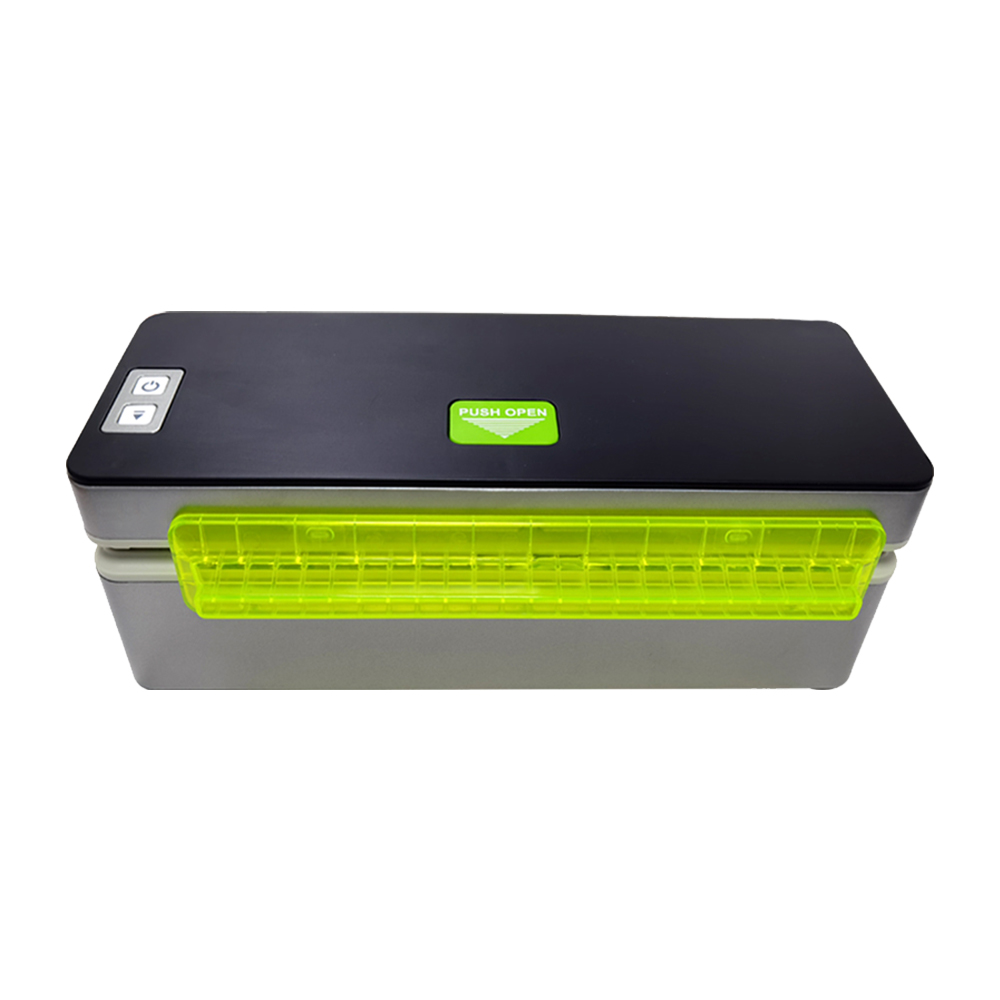

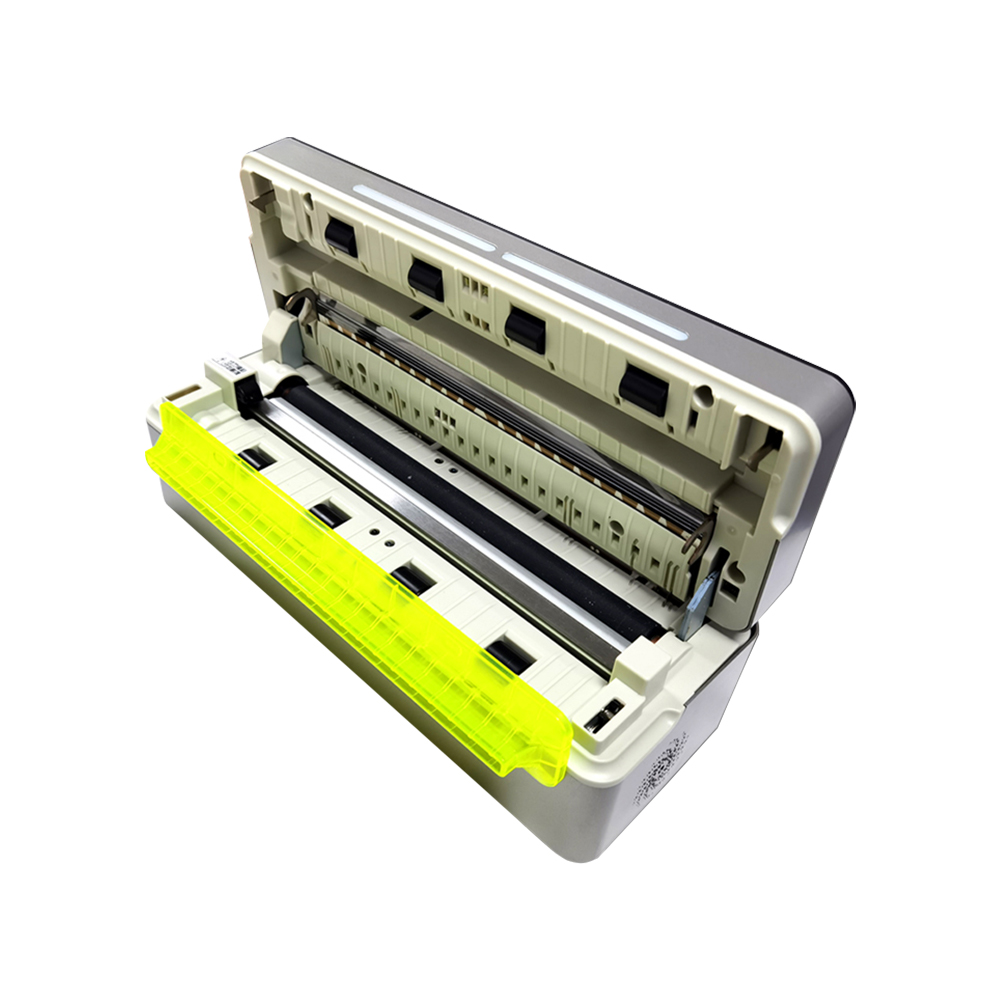

Product Show

|

Features

300dpi resolution.
Anti block & anti pull paper design.
A4 1:1 format, GDl graphics & text.
Easily switch among A4, A5 & long receipt.
Big paper roll.
Compact design, high speed prin

|

Specifications

Printing Method	Line Thermal printing
Printing Width	104-216 mm
Printing Resolution	300 dpi
Printing Speed	150 mm/s
Paper Diameter	150 mm (Max)
Paper Thickness	60~100 g/m²
Paper Diameter	Outer Diameter: Max150 mm Inner Diameter: Min25.4 mm
Point Density	11.8dots/mm
Paper Feed Method	180° automatic paper feed
Paper Output	Ticket ejector mode, retention ticket mode
Support Fonts	FONT A: 12 * 24 (1.02 * 2.03mm) dot matrix character FONT B: 9 * 17 (0.76 * 1.44mm) dot matrix character Chinese: Support GB18030 Chinese simplified (compatible with GB2312-198) NB: GB18030 currently only supports double byte zones 1, 2, 3, 4, 5
Bar Code	Bar code: EAN8, EAN13, CODE93, CODE128 QR code: QR, PDF417
Interface	RS232 + USB
Receive Buffer	2MB
Instruction Set	ESC/POS
Operating System	Windows XP/WIN 7/8/Linux/Android
Sensor	Paper End Detection, Paper End Detection, Head Opening Detection, Head Temperature Detection, Black Label Detection, Paper Output Detection, Knife Jam Detection, and Paper Jam Detection
Paper Cut Mode	Auto Cutter
Power Supply	24VDC±10%, 6A
Energy Consumption	150W
Working Temperature	Temperature: 0~50℃ Humidity: 20~85%RH (no condensation)
Storage Temperature	Temperature: -25~70℃ Humidity: 0~90%RH(not include paper print, no condensation)
Reliability	Print head life time: 100KM Cutter life time: 3 million cut
