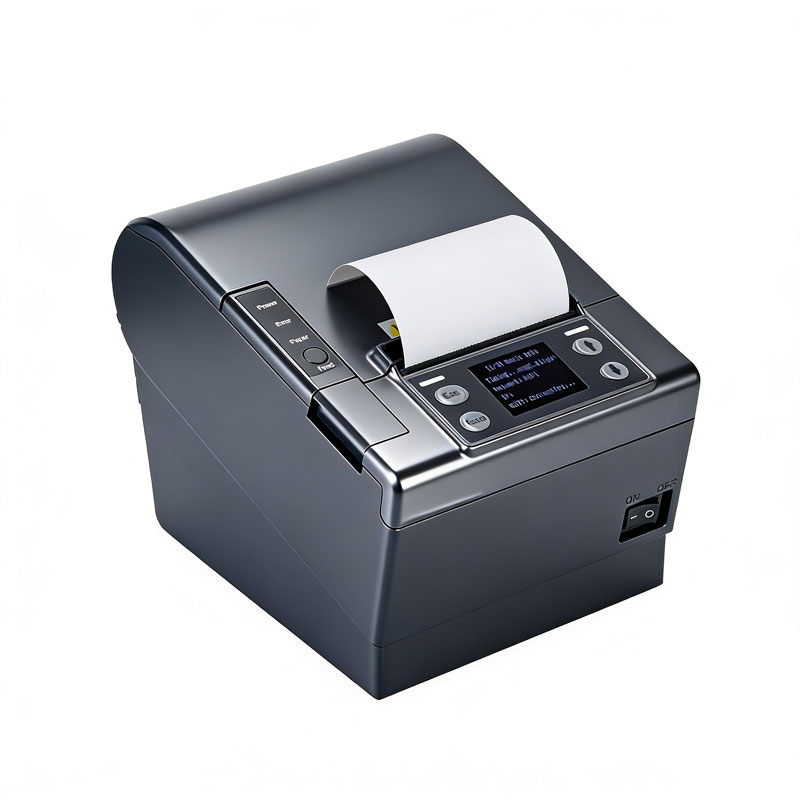

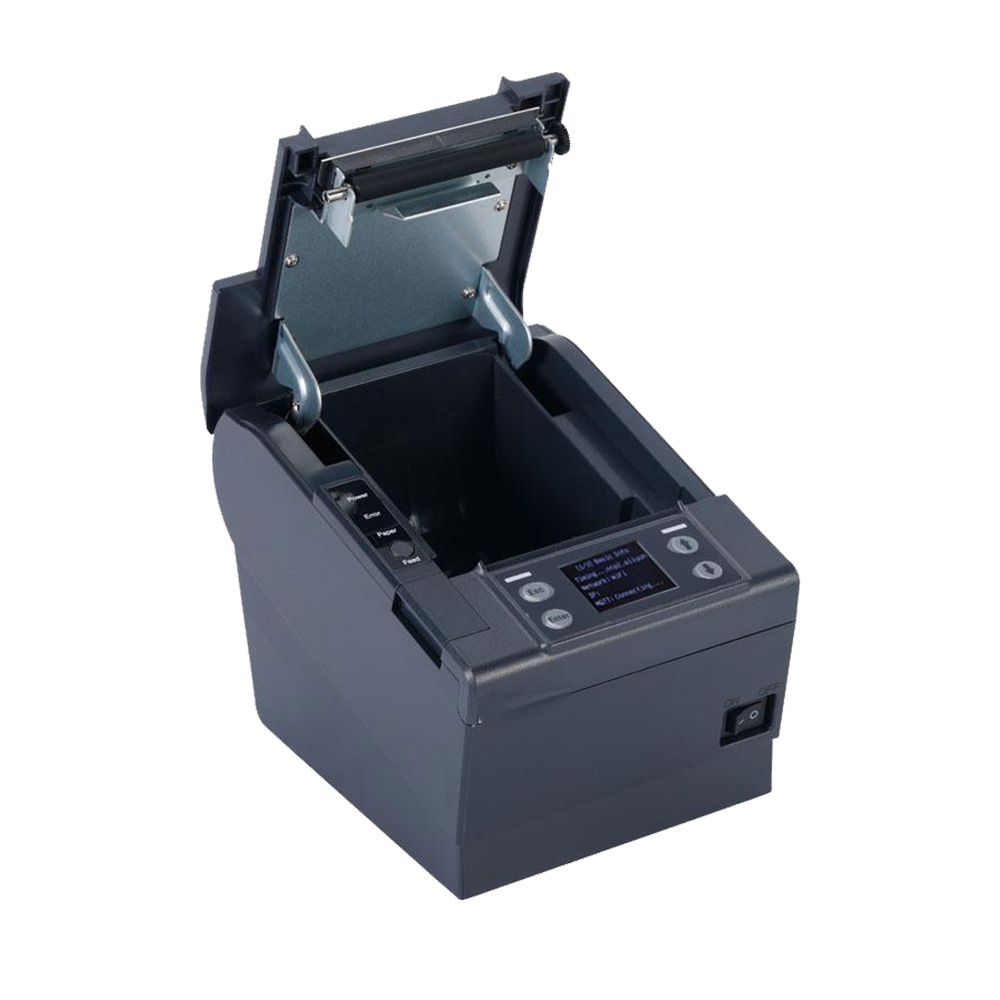

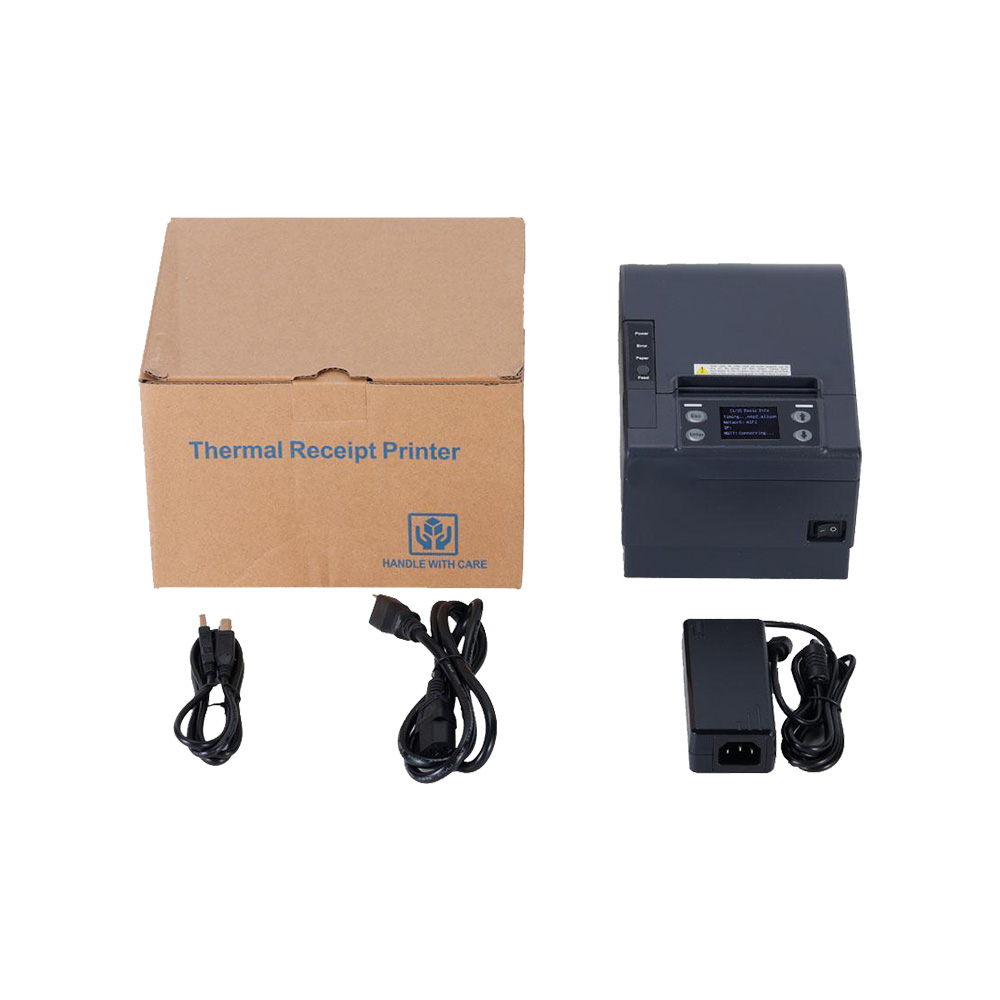

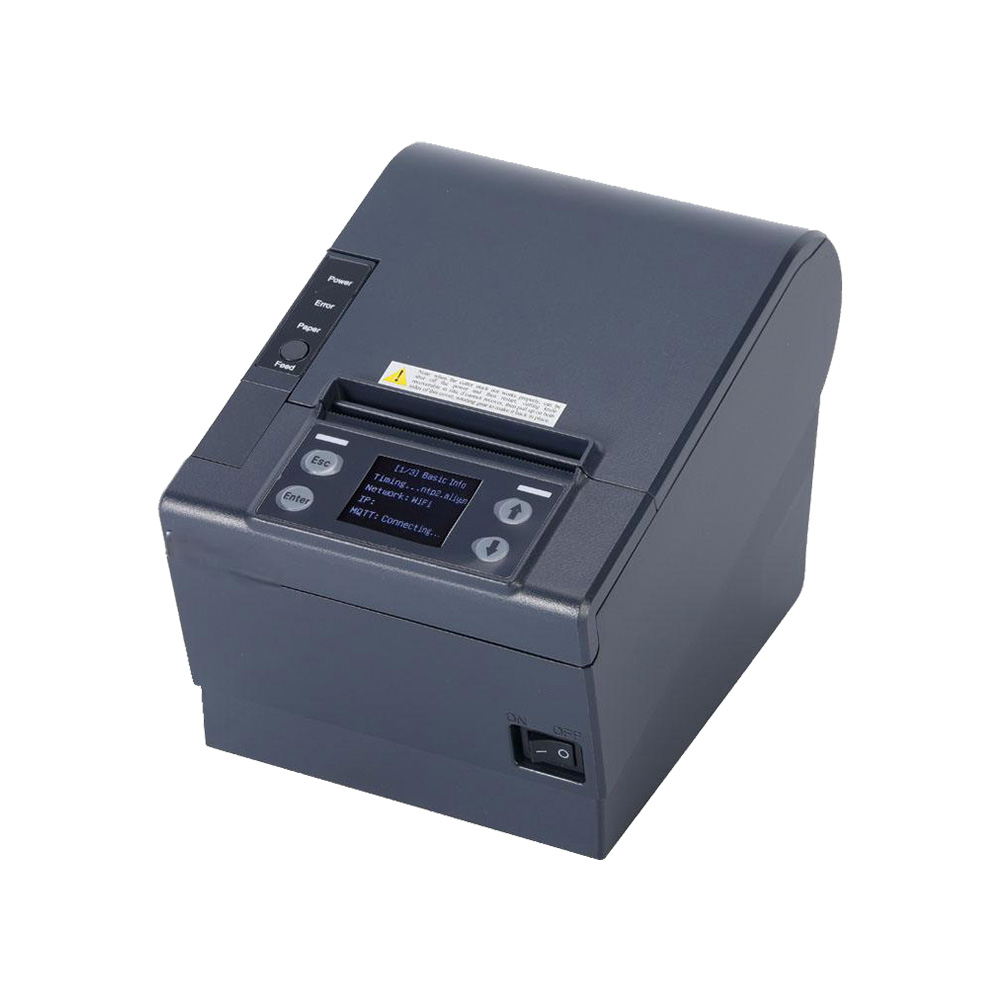

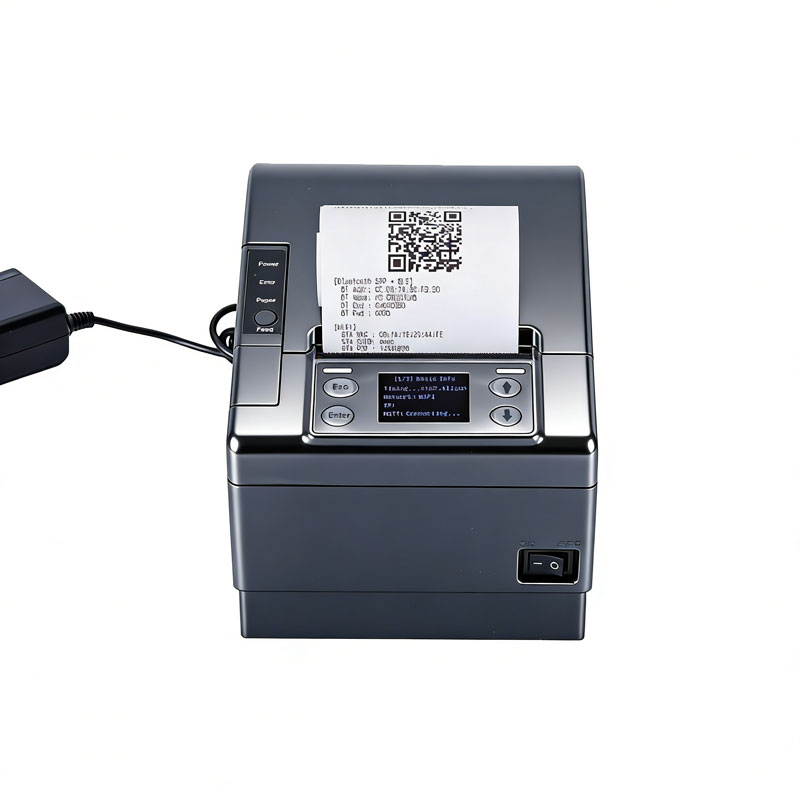

HCC-POS830
HCCTG
|
Product Description
1）HCC-POS830 is engineered for high-frequency printing needs of commercial scenarios. Boasting 250mm/s high-speed printing, 72mm print width and 32M super input buffer, it supports 80mm large-diameter paper rolls to cut paper replacement frequency. Equipped with USB+LAN+Bluetooth+WIFI full interfaces, WPS one-click WIFI configuration and built-in DHCP server, it enables easy connection and automatic IP allocation, with a compact 190145145mm design saving space for cash register and office use.
2）Integrated with rich intelligent and practical functions, the printer supports 1D/2D QR code and LOGO graphic printing, TTF font download and multi-language printing for personalized and cross-border business needs. It features MQTT and Web Socket protocol support, adapting to AliCloud, Baidu Cloud and other mainstream cloud platforms for remote cloud printing and management. With customizable voice broadcast, LED flash and buzz order reminders, built-in auto cutter (1 million cuts life) and standard cash drawer port, it also has industrial-grade durability with 100km print head life, ensuring stable operation in peak business hours.
3）Widely applicable to supermarkets, catering, retail stores, tax, banking, medical care, warehousing and logistics industries, HCC-POS830 is an ideal POS system matching device, efficiently printing receipts, order tickets, settlement lists and logistics labels. Fully compatible with ESC/POS, OPOS Drivers and Windows/Linux/Mac systems, it supports Java, C++, C# and other development languages for easy SDK secondary development. Its all-scenario adaptability, high efficiency and easy operation make it a reliable printing solution for merchants, optimizing cash register efficiency and reducing operational management costs for chain enterprises, distributors and individual businesses alike.
|
Product Show
|
Features
Support 80mm large diameter roll;
Using 100M Ethernet card, connect printer faster, 32M super input buffer;
Support LOGO Graphical download and print;
Support 1D, 2D bar code printing;
Support TTF font download, you can switch font formats on the printer.
Support Multi language printing.
Interface: USB + LAN+ Bluetooth + WIFI
Compatible with ESC/POS print instruction mode.
Support OPOS Drivers.
Support MQTT protocol and web socket Protocols.
Support AliCloud, Baidu Cloud, Windows Azure.
With big screen on the printer show some infos.
With Voice broadcast can be customized.
With led flash and buzz when order coming.
Support windows, Linux, Mac drivers Printing.
Built in DHCP Servers, can get the IP address automatically.
Support Cash Drawer port and Auto cutter.
WIFI support STA SSID AND P2P(AP)
Support WPS WIFI configuration automatically.
Support Multiple developing language, Java, C++,C#, JS etc, easy to SDK.
|
Data Sheet
| Print Width | 72mm |
| Column Capacity | 576 dots/line, 512 dots/line |
| Printing Speed | 250mm/s |
| Interface | USB / LAN / Bluetooth / WIFI |
| Printing Paper | 79.5±0.5mm×φ80mm |
| Line Spacing | 3.75mm (Adjustable by commands) |
| Column Number | 80mm paper: Font A - 42 columns or 48 columns / Font B - 56 columns or 64 columns / Chinese, traditional Chinese - 21 columns or 24 columns |
| Character Size | ANK, Font A: 1.5 * 3.0 mm(12 * 24 dots) Font B: 1.1 * 2.1 mm(9 * 17 dots) Chinese, traditional Chinese: 3.0 * 3.0mm(24 * 24 dots) Support TTF from at font |
| Auto Cutter | Full or partial (optional) |
| Bar Code Character | |
| Extension Character Sheet | PC347(Standard Europe), Katakana, PC850(Multilingual), PC860 (Portuguese), PC863(Canadian-French), PC865(Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2), PC858, IranII, Latvian, Arabic, PT151)1251) |
| Bar Code Types | UPC-A/UPC-E/JAN13(EAN13)/JAN8 (EAN8/CODE39/ITF/CODABAR/CODE93/CODE128) |
| 2D Code | QR Code |
| Input Buffer | 32048k bytes |
| Power | |
| Power Adaptor | Input: AC 110V/220V, 50～60Hz |
| Power Source | Output: DC 24V/2.5A |
| Cash Drawer Output | DC 24V/1A |
| Physical Characteristics | |
| Weight | 1.60 kg |
| Dimensions | 190 * 145 * 145mm (D * W * H) |
| Environmental Requirements | |
| Work Environment | Temperature(0~45℃), humidity(10~80%) |
| Storage Environment | Temperature(-10~60℃), humidity(10~80%) |
| Reliability | |
| Cutter Life | 1million cuts |
| Printer Head Life | 100 km |
